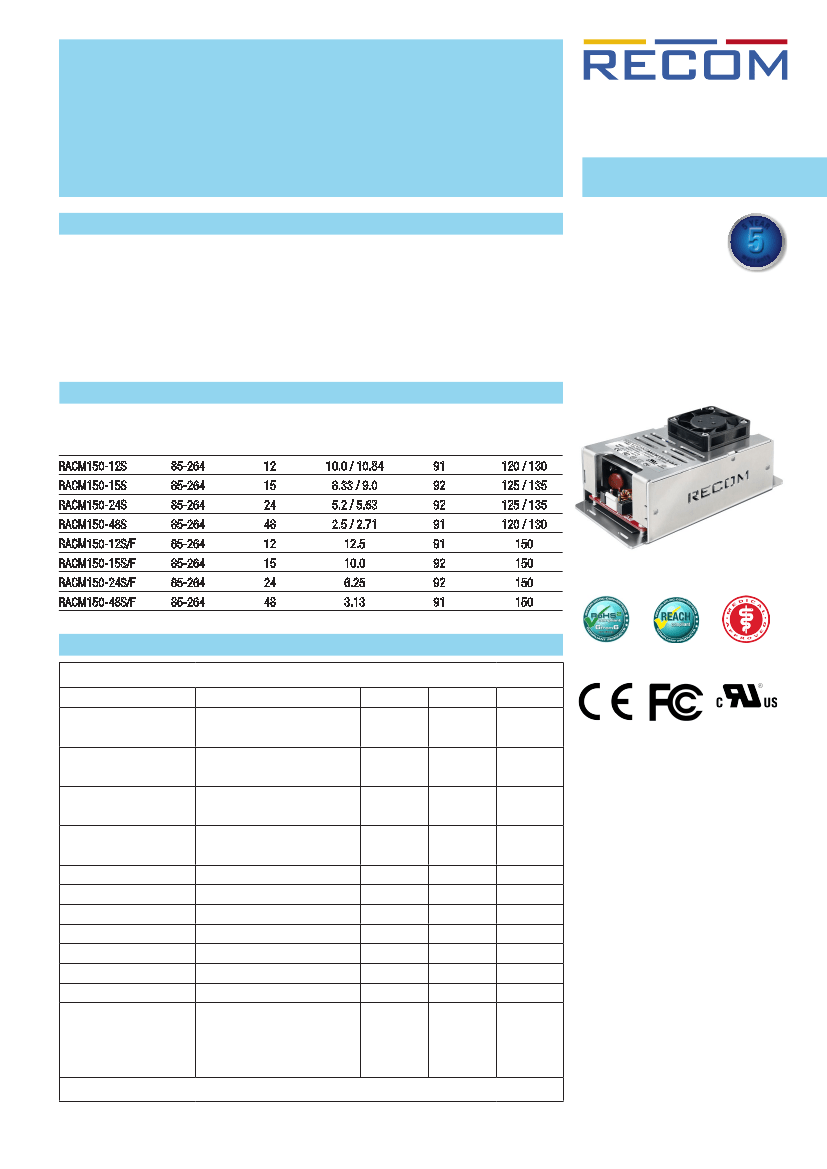

The RACM150-S(/F) is a compact 4.6”x 1.63” high efficiency AC/DC power supply with 2xMOPP safety
approval for medical applications. These space saving enclosed power supplies have a universal input
voltage range (85-264VAC), 4kVac isolation, require no minimum load and can be used at
ambient temperatures of between -25°C and +80°C. The 12V, 15V, 24V or 48V output voltages
are fully protected and have tolerances of less than ±0.2% over the entire input voltage range and
less than ±0.5% over the entire load range. The RACM150-S(/F) series is certified to medical safety
standard IEC/ES/EN-60601-1 3rd Edition and feature BF rated outputs with less than 100µA
leakage current. It has a built-in Class B EMI filter and comes with a five year warranty.
rranty
Selection Guide
Part
Number
RACM150-12S
RACM150-15S
RACM150-24S
RACM150-48S
RACM150-12S/F
RACM150-15S/F
RACM150-24S/F
RACM150-48S/F
Input
Voltage Range
(VAC)
85-264
85-264
85-264
85-264
85-264
85-264
85-264
85-264
Output
Voltage
(VDC)
12
15
24
48
12
15
24
48
Output
Current (A)
115/230VAC
10.0 / 10.84
8.33 / 9.0
5.2 / 5.63
2.5 / 2.71
12.5
10.0
6.25
3.13
Efficiency
typ.
(%)
91
92
92
91
91
92
92
91
Peak Output
Power (W)
115/230VAC
120 / 130
125 / 135
125 / 135
120 / 130
150
150
150
150
Specifications
(measured at TA= 25°C, 230VAC, full load and after warm-up)
BASIC CHARACTERISTICS
Parameter
Input Voltage
Input Current
Inrush Current
No Load Input Power
Input Frequency
Start-up Time
Rise Time
Hold up Time
Minimum Load
Power Factor
Switching Frequency
Output Ripple and Noise
(measured @ 20MHz BW)
2MOPP
250VAC
Condition
Min.
85VAC
120VDC
Typ.
Max.
264VAC
370VDC
1.7A
0.8A
30A
60A
E314885
115VAC, fulll load
230VAC, full load
cold start, 115VAC
cold start, 230VAC
230VAC, with fan
230VAC, without fan
AC Input
47Hz
0.7s
20ms
30ms
0.6W
0.25W
1W
0.3W
63Hz
1s
EN-55011 Certified
EN-55022 Certified
ES-60601 Certified
IEC/EN-60601 Certified
0%
0.95
60kHz
12VDC, with 1µF/25V MLCC
15VDC, with 1µF/25V MLCC
24VDC, with 1µF/50V MLCC
48VDC, with 0.1µF/100V MLCC
continued on next page
120mVp-p
150mVp-p
220mVp-p
250mVp-p
Refer to Applications Notes
REV.: 0/2015
MED-1
www.recom-international.com
RACM150(/F)
AC/DC Converter
Efficiency vs. Load
100
230VAC
90
Series
Efficiency vs. Input Voltage
89
88
87
86
85
84
85 90 110 130 150 170 190 230 240 250 264
Specifications
(measured at TA= 25°C, 230VAC, full load and after warm-up)
Efficiency (%)
80
70
60
50
10
20
30
40
50
60
70
115VAC
80
90 100
Load (%)
Efficiency (%)
90
Input Voltage (V)
Load vs. Input Voltage
125
1
Deviation vs. Load
% of Full Load
80
60
40
20
85
100
115
130
145
160
175
264
Deviation (%)
100
0.5
0
-0.5
-1
0
10 20 30 20 50 60 70 80 90 100
Input Voltage (V)
REGULATIONS
Parameter
Output Voltage Accuracy
Line Voltage Regulation
Load Voltage Regulation
Output Voltage Trim
Transient Peak Deviation
Transient Recovery Time
load step from 50% - 75% change at 2.5A/µs
load step from 50% - 75% change at 2.5A/µs
Load (%)
Condition
230VAC, full load
low line to high line, full load
0% to 100% load
Value
±0.1% typ. / ±1% max.
±0.1% typ. / ±0.2% max.
±0.1% typ. / ±0.5% max.
±10%
3% Vout max.
500µs typ.
PROTECTIONS
Parameter
Input Fuse
Short Circuit Protection (SCP)
Over Load Protection (OLP)
Over Voltage Protection (OVP)
Isolation Voltgage
(2MOPP insulation)
% of Iout rated
% of Vout nominal
I/P to O/P
I/P to Chassis
O/P to Chassis
continued on next page
MED-2
REV.: 0/2015
www.recom-international.com
Condition
internal line and neural
Value
T3.15A / 250VAC, slow blow type
continuous, auto-recovery
Hiccup Mode, 115-150%
Latch Mode, 115%-135% max.
4kVAC / 1 minunte
1.5kVAC / 1 minute
1.5kVAC / 1 minunte
RACM150(/F)
AC/DC Converter
Leakage Current
Clearance
Creepage
Isolation Resistance
264VAC
I/P to O/P
I/P to O/P
500VDC
Series
100µA max.
8mm
8mm
0.1GW min.
Specifications
(measured at TA= 25°C, 230VAC, full load and after warm-up)
ENVIRONMENTAL
Parameter
Relative Humidity
Temperature Coefficient
Operating Temperature Range
(refer to derating graph)
Storage Temperature Range
Operating Altitude
MTBF (+25°C)
according to MIL-HDBK-217F, full load
without fan and with derating
with fan and with derating
with fan
without fan
Condition
non-condensing
Value
5% to 95% RH
±0.02% / °C
-25°C to +80°C
-25°C to +80°C
-40°C to +80°C
-40°C to +80°C
5000m max.
780 x 10
6
hours
Derating Graph
150
Vin= 115VAC
150
Vin= 230VAC
Output Current (%)
140
120
100
80
60
40
RACM150-xxS/F
RACM150-xxS (xx=15, 24)
RACM-xxS (xx=12 48)
Output Current (%)
140
120
100
80
60
40
RACM150-xxS/F
RACM150-xxS (xx=15, 24)
RACM-xxS (xx=12 48)
20
0
-25
0
20
0
-25
0
10 20 30 40 50 60 70 80 90 100
10 20 30 40 50 60 70 80 90 100
Ambient Temperature (°C)
Ambient Temperature (°C)
SAFETY AND CERTIFICATIONS
Certificate Type
IEC/EN Medical Safety
ANSI/AAMI Medical Safety
CAN/CSA Medical Safety
E314885
E314885
Report / File Number
Standard
IEC/EN-60601-1
Medical Report + ISO14971 Risk Assessment
ES60601-1
C22.2 No. 60601-1
Certificate Type (Environmental)
ESD
Radiated Immunity
Fast Transient
Surge
Conducted Immunity
Power Frequency Magnetic Field
Harmonic Current
Voltage Flicker
Thermal Shock
Shock
Vibration
Condition
Air ±8kV; Contact ±6kV
20V/m
±2kV
DM ±1kV and CM ±2kV
20Vr.m.s
10A/m
full load
Standard / Criterion
EN61000-4-2, Criteria A
EN61000-4-3, Criteria A
EN61000-4-4, Criteria A
EN61000-4-5, Criteria A
EN61000-4-6, Criteria A
EN61000-4-8, Criteria A
EN61000-3-2; Class A and D
EN61000-3-3, PASS
MIL-STD-810F
IEC68-2-27
IEC68-2-6
Dip and Interruptions
30%, 500ms
60%, 100ms
230VAC 50Hz
>95%, 10ms
>95%, 5000ms
REV.: 0/2015
EN60601-1-2, Criteria A
EN60601-1-2, Criteria A
EN60601-1-2, Criteria A
EN60601-1-2, Criteria B
MED-3
www.recom-international.com
RACM150(/F)
AC/DC Converter
DIMENSIONS and PHYSICAL CHARACTERISTICS
Parameter
Material
Package Dimensions (LxWxH)
Package Weight
Packaging Dimensions (LxWxH)
Packaging Quantity
Series
Type
Case
with fan
without Fan
with Fan
without Fan
Cardboard Box
Specifications
(measured at TA= 25°C, 230VAC, full load and after warm-up)
Value
Aluminium
116.8 x 62.0 x 49.2mm
116.8 x 62.0 x 39.2mm
270g
255g
145 x 80 x 85mm
1pcs

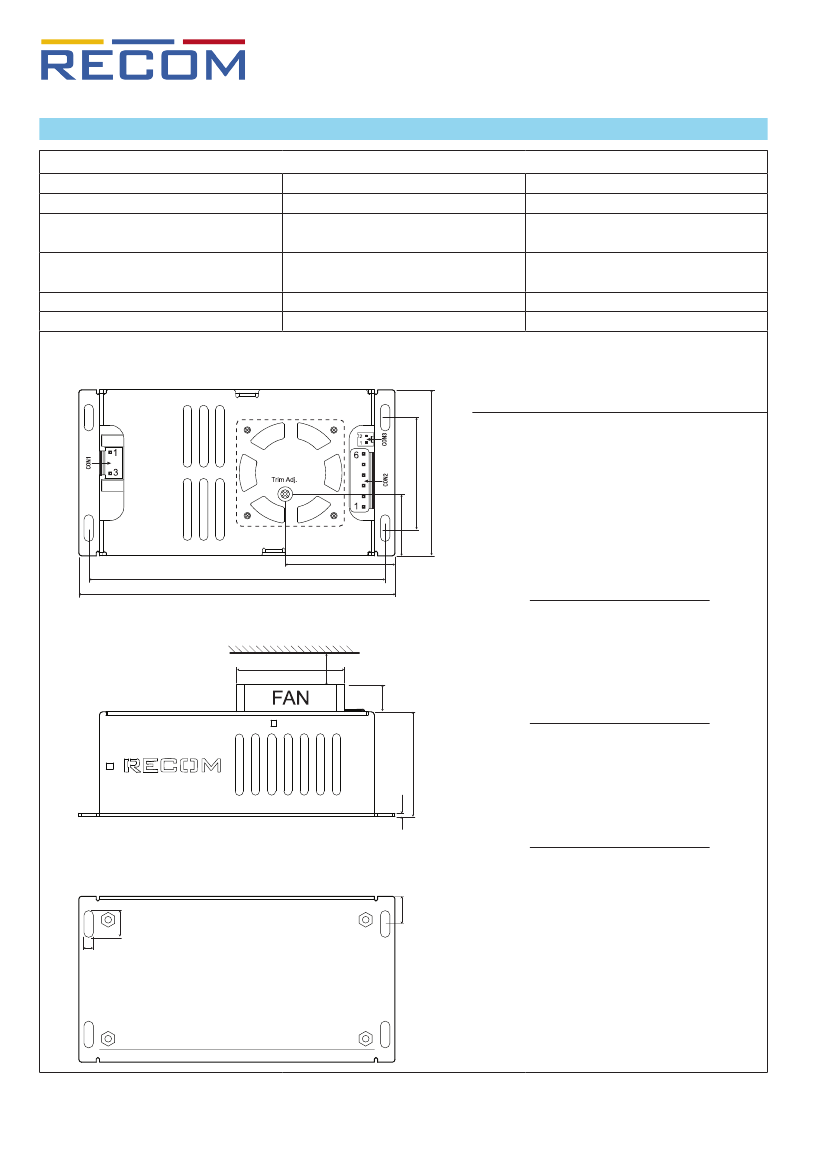

Mechanical Dimensions (mm)
Top View
FAN
Rated Voltage:
Input Power:
Speed:
Air Flow:
expected Lifetime (40°C):
Cable length:
12V (7-13.8)
0.96W typ. 1.8W max.
6000RPM
7CFM/Min.; 30dBA max.
>70khours continuous
55mm inlcuding connector
FC 41.3
33.0
FC 109.6
116.8
23.1
62.0
CON1 - Input
Pin1
Line
Pin3
Neutral
40.0
10.0 mm minimum
Side View
Mates with
JST housing: VHR-3N
JST crimp terminals: SVH-21T-P1.1
10.0
CON2 - Output
39.2
Pin1,2,3
-Vout
Pin45,6
+Vout
Mates with
JST housing: VHR-6N
JST crimp terminals: SVH-21T-P1.1
1.2
CON2 - Output
Bottom View
10.0
10.4
Pin1
Pin2
-Fan
+Fan
Mates with
Molex housing: 22-01-1022
Molex crimp terminals: 2759
3.5
Tolerance: ±0.5mm
FC:
fixing center
The product information and specifications are subject to change without prior notice. All products are designed for non-safety critical commercial and industrial applications.
The buyer agrees to implement safeguards that anticipate the consequences of any failures that might cause harm, loss of life and/or property damage.
