CD5EC620JO3F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> CD5EC620JO3F

CD5EC620JO3F: DescriptionCAPACITOR, MICA, 300 V, 0.000003 uF, THROUGH HOLE MOUNT; CategoryPassive components; File Size273KB，4 Pages; ManufacturerETC2

Download Datasheet Parametric View All

CD5EC620JO3F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD5EC620JO3F	-	-	View	Buy Now

CD5EC620JO3F Overview

CAPACITOR, MICA, 300 V, 0.000003 uF, THROUGH HOLE MOUNT

CD5EC620JO3F Parametric

Parameter Name	Attribute value
negative deviation	16.67 %
Minimum operating temperature	-55 Cel
Maximum operating temperature	125 Cel
positive deviation	16.67 %
Rated DC voltage urdc	300 V
Processing package description	RADIAL LEADED
EU RoHS regulations	Yes
state	Active
Capacitor type	MICA CAPACITOR
capacitance	3.00E-6 µF
dielectric materials	MICA
jesd_609_code	e3
Manufacturer Series	CD5
Installation features	THROUGH HOLE MOUNT
packaging shape	RECTANGULAR PACKAGE
Package Size	Radial
cking_method	TR
series	CD5
size code	2711
Temperature Coefficient	-200/+200ppm/Cel
terminal coating	TIN
Terminal spacing	3 mm
Terminal shape	WIRE
heigh	4.8 mm
length	6.9 mm
width	2.8 mm

Preview

Download Datasheet

View All

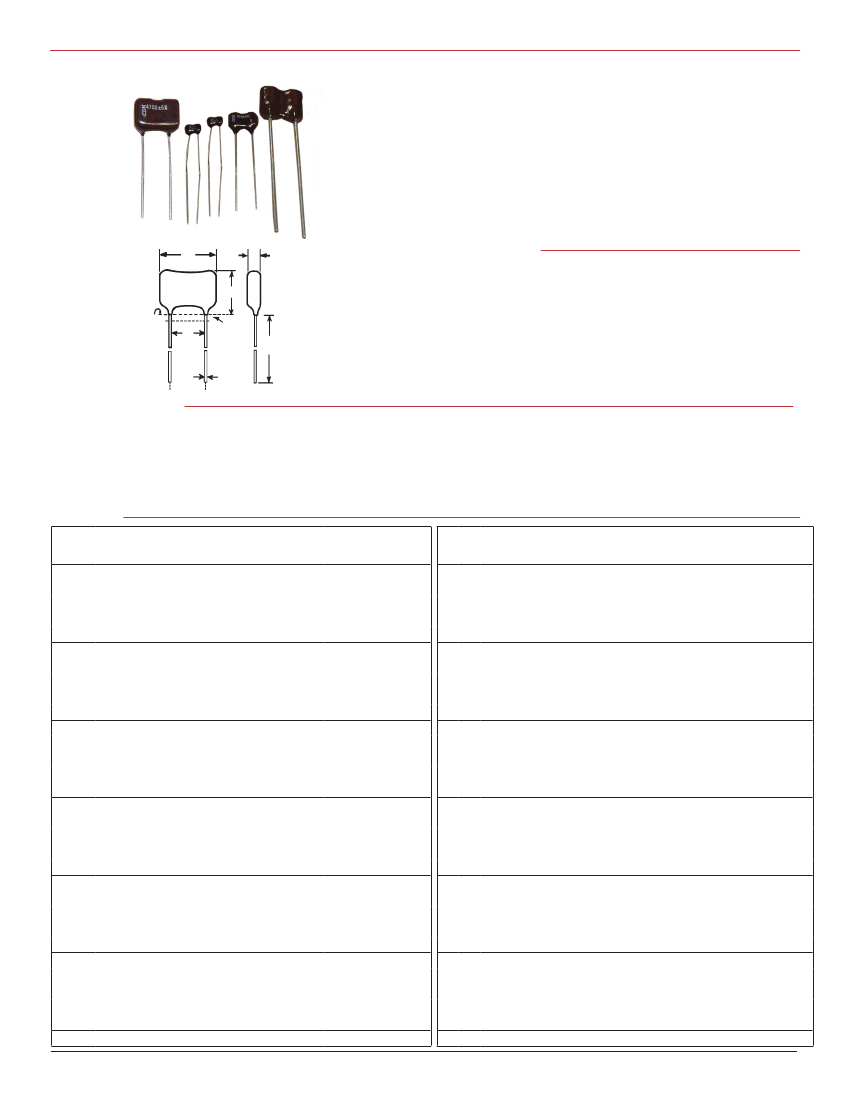

Mica Capacitors

Miniature Dipped

Types CD5, CD6, CD7, CDS5, CDS10, D7, CDS15, CDS19, CDS30

Small cases for tight places is what you get with CDE

miniature dipped silver mical capacitors. Like the stan-

dard dipped mica capacitor, the miniature dipped product

offers the same stability and rugged performance in low

and moderate-humidity applications.

Highlights

♦

H Max.

Measured at

point where

phenolic cone

becomes a

cylinder

.031.

.078. Max.

no solder

Min.

Reel packaging available

♦

Dimensions meet EIA RS153B specification

♦

20,000 V/µs dV/dt pulse capability minimum

♦

Non-flammable units that meet IEC 695-2-2 are

available

RoHS Compliant

1 pF to 40,000 pF

50 Vdc to 500 Vdc

±1/2 pF (D), ±1 pF (C), ±1/2% (E), ±1% (F), ±2% (G), ±5% (J)

–55 ºC to +125 ºC

200% of rated voltage

Cap Volts

(pF)

Catalog

Specifications

Ratings

Cap Volts

(pF)

Catalog

Capacitance Range:

Voltage Range:

Capacitance Tolerance:

Temperature Range:

Dielectric Strength Test:

inches (mm)

0.270 ( 6.9)

0.250 ( 6.4)

0.275 ( 7.0)

0.310 ( 7.9)

0.430 (10.9)

0.270 ( 6.9)

0.250 ( 6.4)

0.275 ( 7.0)

0.310 ( 7.9)

0.430 (10.9)

0.270 ( 6.9)

0.250 ( 6.4)

0.275 ( 7.0)

0.310 ( 7.9)

0.430 (10.9)

0.270 ( 6.9)

0.250 ( 6.4)

0.275 ( 7.0)

0.310 ( 7.9)

0.430 (10.9)

0.270 ( 6.9)

0.250 ( 6.4)

0.275 ( 7.0)

0.310 ( 7.9)

0.430 (10.9)

0.270 ( 6.9)

0.250 ( 6.4)

0.275 ( 7.0)

0.310 ( 7.9)

0.430 (10.9)

0.270 ( 6.9)

inches (mm)

0.190 (4.8)

0.160 (4.1)

0.175 (4.4)

0.260 (6.6)

0.280 (7.1)

0.190 (4.8)

0.160 (4.1)

0.175 (4.4)

0.260 (6.6)

0.280 (7.1)

0.190 (4.8)

0.160 (4.1)

0.175 (4.4)

0.260 (6.6)

0.280 (7.1)

0.190 (4.8)

0.160 (4.1)

0.175 (4.4)

0.260 (6.6)

0.280 (7.1)

0.190 (4.8)

0.160 (4.1)

0.175 (4.4)

0.260 (6.6)

0.280 (7.1)

0.190 (4.8)

0.160 (4.1)

0.175 (4.4)

0.260 (6.6)

0.280 (7.1)

0.190 (4.8)

inches (mm)

0.110 (2.8)

0.090 (2.3)

0.095 (2.4)

0.120 (3.0)

0.140 (3.6)

0.110 (2.8)

0.090 (2.3)

0.095 (2.4)

0.120 (3.0)

0.140 (3.6)

0.110 (2.8)

0.090 (2.3)

0.095 (2.4)

0.120 (3.0)

0.140 (3.6)

0.110 (2.8)

0.090 (2.3)

0.095 (2.4)

0.120 (3.0)

0.140 (3.6)

0.110 (2.8)

0.090 (2.3)

0.095 (2.4)

0.120 (3.0)

0.140 (3.6)

0.110 (2.8)

0.090 (2.3)

0.095 (2.4)

0.120 (3.0)

0.140 (3.6)

0.110 (2.8)

inches (mm)

0.160 (4.1)

0.175 (4.4)

0.260 (6.6)

0.280 (7.1)

0.190 (4.8)

0.160 (4.1)

0.175 (4.4)

0.260 (6.6)

0.280 (7.1)

0.190 (4.8)

0.160 (4.1)

0.175 (4.4)

0.260 (6.6)

0.280 (7.1)

0.190 (4.8)

0.160 (4.1)

0.175 (4.4)

0.260 (6.6)

0.280 (7.1)

0.190 (4.8)

0.160 (4.1)

0.175 (4.4)

0.260 (6.6)

0.280 (7.1)

0.190 (4.8)

0.160 (4.1)

0.175 (4.4)

0.260 (6.6)

0.280 (7.1)

0.190 (4.8)

0.170 (4.3)

inches (mm)

0.090 (2.3)

0.095 (2.4)

0.120 (3.0)

0.140 (3.6)

0.110 (2.8)

0.090 (2.3)

0.095 (2.4)

0.120 (3.0)

0.140 (3.6)

0.110 (2.8)

0.090 (2.3)

0.095 (2.4)

0.120 (3.0)

0.140 (3.6)

0.110 (2.8)

0.090 (2.3)

0.095 (2.4)

0.120 (3.0)

0.140 (3.6)

0.110 (2.8)

0.090 (2.3)

0.095 (2.4)

0.120 (3.0)

0.140 (3.6)

0.110 (2.8)

0.090 (2.3)

0.095 (2.4)

0.120 (3.0)

0.140 (3.6)

0.120 (3.0)

0.100 (2.5)

(Vdc) Part Number

300 CD5CC010DO3F

300 CDS5CC010DO3F

500 CD6CD010DO3

500 CDS10CD010DO3F

500 CDS15CD010DO3F

300 CD5CC020DO3F

300 CDS5CC020DO3F

500 CD6CD020DO3

500 CDS10CD020DO3F

500 CDS15CD020DO3F

300 CD5CC030DO3F

300 CDS5CC030DO3F

500 CD6CD030DO3

500 CDS10CD030DO3F

500 CDS15CD030DO3F

300 CD5CC040DO3F

300 CDS5CC040DO3F

500 CD6CD040DO3

500 CDS10CD040DO3F

500 CDS15CD040DO3F

300 CD5CC050DO3F

300 CDS5CC050DO3F

500 CD6CD050DO3

500 CDS10CD050DO3F

500 CDS15CD050DO3F

300 CD5CC060DO3F

300 CDS5CC060DO3F

500 CD6CD060DO3

500 CDS10CD060DO3F

500 CDS15CD060DO3F

300 CD5CC070DO3F

inches (mm) inches (mm)

0.120 (3.0) 0.016 (.4)

0.172 (4.4) 0.016 (.4)

0.141 (3.6) 0.016 (.4)

0.234 (5.9) 0.025 (.6)

0.120 (3.0) 0.016 (.4)

0.172 (4.4) 0.016 (.4)

0.141 (3.6) 0.016 (.4)

0.234 (5.9) 0.025 (.6)

0.120 (3.0) 0.016 (.4)

0.172 (4.4) 0.016 (.4)

0.141 (3.6) 0.016 (.4)

0.234 (5.9) 0.025 (.6)

0.120 (3.0) 0.016 (.4)

0.172 (4.4) 0.016 (.4)

0.141 (3.6) 0.016 (.4)

0.234 (5.9) 0.025 (.6)

0.120 (3.0) 0.016 (.4)

0.172 (4.4) 0.016 (.4)

0.141 (3.6) 0.016 (.4)

0.234 (5.9) 0.025 (.6)

0.120 (3.0) 0.016 (.4)

0.172 (4.4) 0.016 (.4)

0.141 (3.6) 0.016 (.4)

0.234 (5.9) 0.025 (.6)

0.120 (3.0) 0.016 (.4)

(Vdc) Part Number inches (mm)

300 CDS5CC070DO3F 0.250 ( 6.4)

500 CD6CD070DO3

0.275 ( 7.0)

500 CDS10CD070DO3F 0.310 ( 7.9)

500 CDS15CD070DO3F 0.430 (10.9)

300 CD5CC080DO3F 0.270 ( 6.9)

300 CDS5CC080DO3F 0.250 ( 6.4)

500 CD6CD080DO3

0.275 ( 7.0)

500 CDS10CD080DO3F 0.310 ( 7.9)

500 CDS15CD080DO3F 0.430 (10.9)

300 CD5CC090DO3F 0.270 ( 6.9)

300 CDS5CC090DO3F 0.250 ( 6.4)

500 CD6CD090DO3

0.275 ( 7.0)

500 CDS10CD090DO3F 0.310 ( 7.9)

500 CDS15CD090DO3F 0.430 (10.9)

300 CD5CC100JO3F

0.270 ( 6.9)

300 CDS5CC100JO3F 0.250 ( 6.4)

500 CD6CD100DO3

0.275 ( 7.0)

500 CDS10CD100JO3F 0.310 ( 7.9)

500 CDS15CD100JO3F 0.430 (10.9)

300 CD5CC110JO3F

0.270 ( 6.9)

300 CDS5CC110JO3F 0.250 ( 6.4)

500 CD6CD110DO3

0.275 ( 7.0)

500 CDS10CD110JO3F 0.310 ( 7.9)

500 CDS15CD110JO3F 0.430 (10.9)

300 CD5CC120JO3F

0.270 ( 6.9)

300 CDS5CC120JO3

0.250 ( 6.4)

500 CD6CD120JO3

0.275 ( 7.0)

500 CDS10CD120JO3 0.310 ( 7.9)

500 CDS15CD120JO3 0.430 (10.9)

300 CD5CC150JO3F

0.270 ( 6.9)

300 CDS5CC150JO3F 0.250 ( 6.4)

inches (mm) inches (mm)

0.120 (3.0) 0.016 (.4)

0.172 (4.4) 0.016 (.4)

0.141 (3.6) 0.016 (.4)

0.234 (5.9) 0.025 (.6)

0.120 (3.0) 0.016 (.4)

0.172 (4.4) 0.016 (.4)

0.141 (3.6) 0.016 (.4)

0.234 (5.9) 0.025 (.6)

0.120 (3.0) 0.016 (.4)

0.172 (4.4) 0.016 (.4)

0.141 (3.6) 0.016 (.4)

0.234 (5.9) 0.025 (.6)

0.120 (3.0) 0.016 (.4)

0.172 (4.4) 0.016 (.4)

0.141 (3.6) 0.016 (.4)

0.234 (5.9) 0.025 (.6)

0.120 (3.0) 0.016 (.4)

0.172 (4.4) 0.016 (.4)

0.141 (3.6) 0.016 (.4)

0.234 (5.9) 0.025 (.6)

0.120 (3.0) 0.016 (.4)

0.172 (4.4) 0.016 (.4)

0.141 (3.6) 0.016 (.4)

0.234 (5.9) 0.025 (.6)

0.120 (3.0) 0.016 (.4)

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com

Mica Capacitors

Miniature Dipped

Notice and Disclaimer:

All product drawings, descriptions, specifications, statements, information and data

(collectively, the “Information”) in this datasheet or other publication are subject to change. The customer

is responsible for checking, confirming and verifying the extent to which the Information contained in this

datasheet or other publication is applicable to an order at the time the order is placed. All Information given

herein is believed to be accurate and reliable, but it is presented without any guarantee, warranty, representation

or responsibility of any kind, expressed or implied. Statements of suitability for certain applications are based

on the knowledge that the Cornell Dubilier company providing such statements (“Cornell Dubilier”) has

of operating conditions that such Cornell Dubilier company regards as typical for such applications, but

are not intended to constitute any guarantee, warranty or representation regarding any such matter – and

Cornell Dubilier specifically and expressly disclaims any guarantee, warranty or representation concerning

the suitability for a specific customer application, use, storage, transportation, or operating environment.

The Information is intended for use only by customers who have the requisite experience and capability to

determine the correct products for their application. Any technical advice inferred from this Information or

otherwise provided by Cornell Dubilier with reference to the use of any Cornell Dubilier products is given

gratis (unless otherwise specified by Cornell Dubilier), and Cornell Dubilier assumes no obligation or liability

for the advice given or results obtained. Although Cornell Dubilier strives to apply the most stringent quality

and safety standards regarding the design and manufacturing of its products, in light of the current state

of the art, isolated component failures may still occur. Accordingly, customer applications which require a

high degree of reliability or safety should employ suitable designs or other safeguards (such as installation

of protective circuitry or redundancies or other appropriate protective measures) in order to ensure that the

failure of an electrical component does not result in a risk of personal injury or property damage. Although

all product-related warnings, cautions and notes must be observed, the customer should not assume that all

safety measures are indicated in such warnings, cautions and notes, or that other safety measures may not be

required.

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
