POSITILT
®
PTAM5

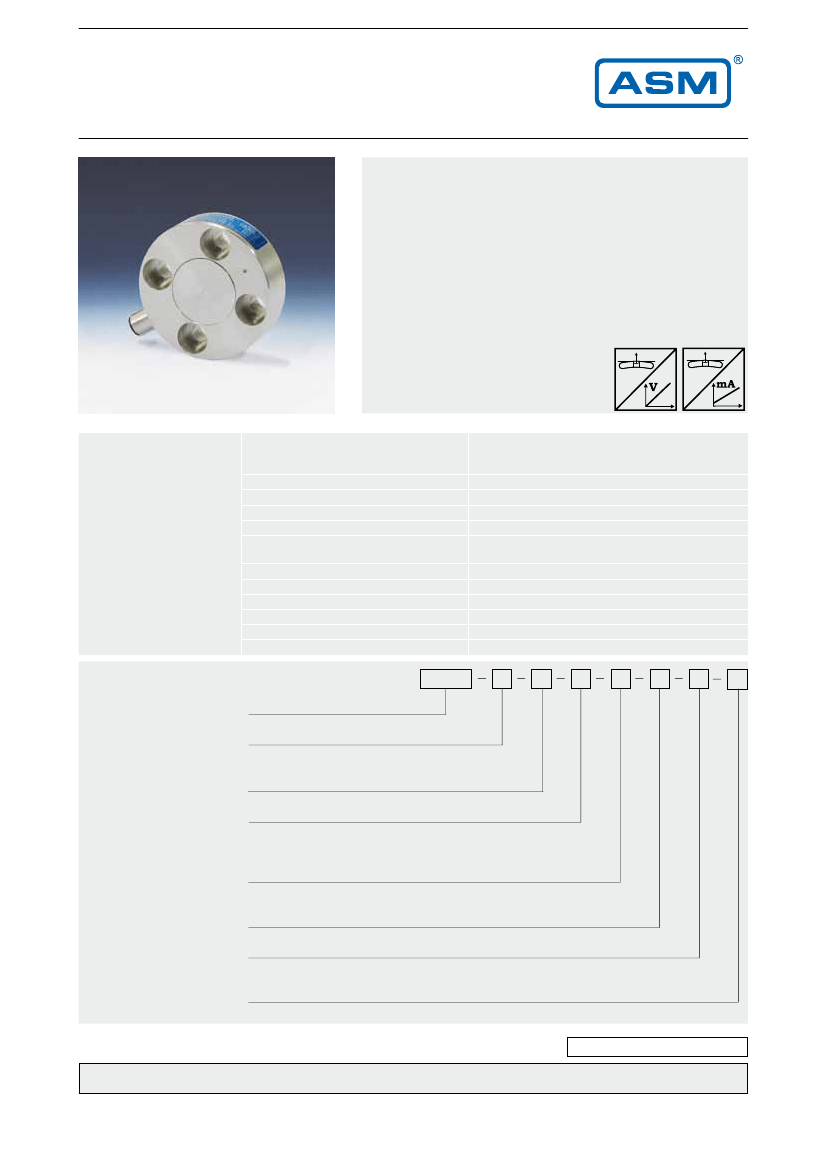

Extremely robust Inclination Sensor with Analog Output
Analog Inclination Sensor with 1 or 2 axes
in MEMS technology
●
●
●
●
●
●
●
●
Measurement range ±180° for 1 axis or ±60° for 2 axes
Protection class IP67 / IP69K, optional IP68*
Analog output linear
Stainless steel housing
Wear free, high resolution
High shock resistance
Seawater proof
Suitable for use on ocean-going vessels
* Depth and duration of immersion must be specified!
Specifications
Output
Measurement range
Resolution
Linearity
Settling time
Protection class
Material
Mounting
Connection
Shock (non-operational)
Vibration (non-operational)
EMC, temperature
U2
U8
I1
Voltage 0.5 ... 10 V
Voltage 0.5 ... 4.5 V
Current 4 ... 20 mA
±180° for 1 axis or ±60° for 2 axes
0.05°
±0.5 °
0.1 s ... 10 s / 90 %, configurable
IP67 / IP69K (connector output with IP69K connector
cable), optional IP68*
Stainless steel
Screws M8
5 pin connector M12 axial or radial
EN60068-2-27:2010, 100 g/11 ms, 100 shocks
EN60068-2-6:20ß08, 20 g/10 Hz-2 kHz, 10 cycles
Refer to output specification
Order code PTAM5
Model name
PTAM5
Axis of inclination
1
= Inclination in X axis (mounting X)
≤
±180°
2
= Inclination in X and Y axis (mounting XY)
≤
±60°
Measuring range [in °]
= ±15°... ±180° in 15° increments
15 ... 180
Output
U2
= 0.5 ... 10 V
U8
= 0.5 ... 4,5 V
I1
= 4 ... 20 mA
Characteristic
CW
= Increasing signal for CW inclination
CCW
= Increasing signal for CCW inclination
Output delay 0 ... 90 %
Tx.x
= 0.1 s ... 10 s
Connection
M12R5
= 5-pin socket M12, radial (compatible with 4 pin mating connector)
M12A5
= 5-pin socket M12, axial (compatible with 4 pin mating connector)
Housing material
VA
= Stainless steel
Order code connector cable
(see page 9)
KAB-...M-M12/4F/G-LITZE
Order example: PTAM5 - 1 - 180 - I1 - CW - T1.0 - M12R5 - VA
DB-PTAM5/PTDM5-E-2014-05/0.1.0
www.asm-sensor.com
1/10
© ASM GmbH
info@asm-sensor.com
POSITILT
®
PTDM5

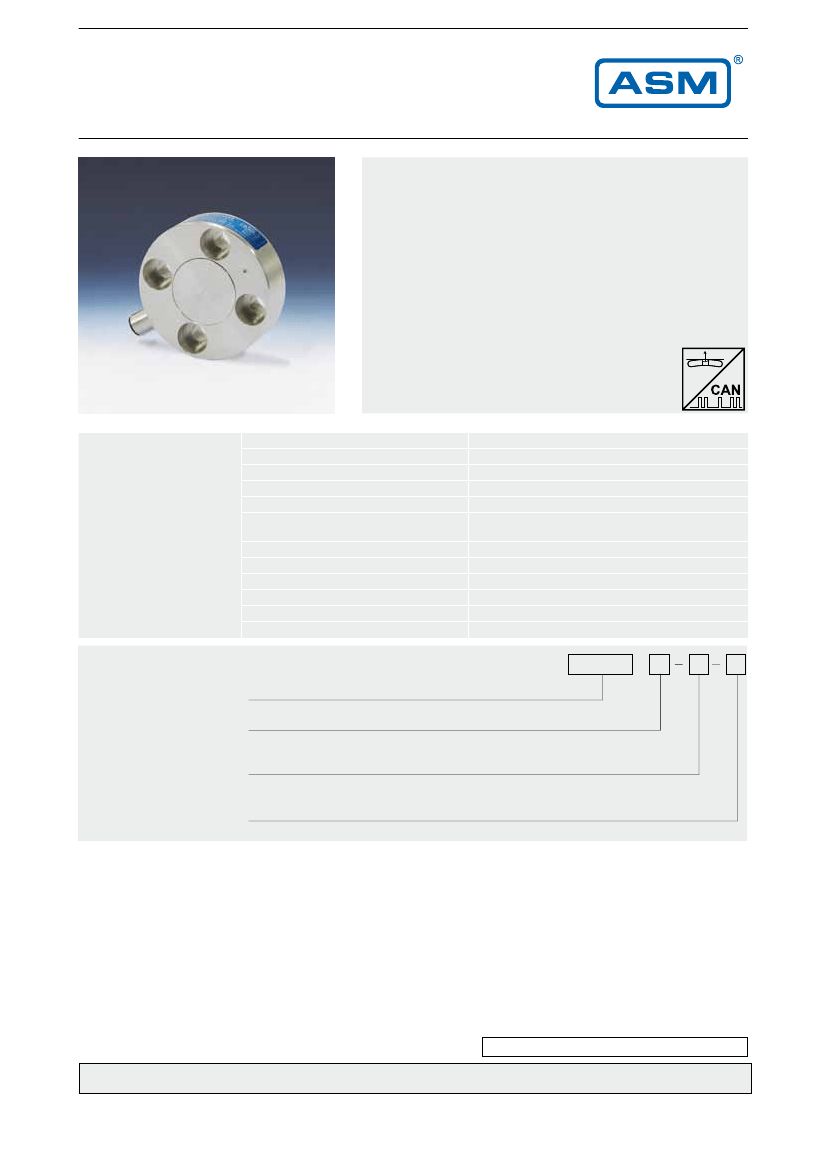

Extremely robust Inclination Sensor with CANopen Output
Digital Inclination Sensor with 1 or 2 axes
in MEMS technology
●
●
●
●
●
●
●
●
Measurement range ±180° for 1 axis or ±60° for 2 axes
Protection class IP67 / IP69K, optional IP68 (bar)
CANopen output
Stainless steel housing
Wear free, high resolution
High shock resistance
Seawaterproof
Suitable for use on ocean-going vessels
* Depth and duration of immersion must be specified!
Specifications
Output
Measurement range
Resolution
Linearity
Settling time
Protection class
Material
Mounting
Connection
Shock (non-operational)
Vibration (non-operational)
EMV, temperature
CANopen (profile „Inclination Sensor“)
±180° for 1 axis or ±60° for 2 axes
0.05 °
±0.5°
0.1 s ... 10 s / 90% configurable
IP67 / IP69K (connector output with IP69K connector
cable), optional IP68*
Stainless steel
Screws M8
5 pin connector M12 axial or radial
EN60068-2-27:2010, 100 g/11 ms, 100 shocks
EN60068-2-6:2008, 20 g/10 Hz-2 kHz, 10 cycles
Refer to output specification
Order code PTDM5
Model name
Output
CANOP
= CANopen
CANJ1939
= CAN SAE J1939
Connection
M12R5/CAN
= 5-pin socket M12, radial
M12A5/CAN
= 5-pin socket M12, axial
Housing material
VA
= Stainless steel
PTDM5
Order code connector cable
(see page 10)
KAB - XM - M12/5F/G - M12/5M/G - CAN
Order example: PTDM5 - CANOP - M12R5/CAN - VA
DB-PTAM5/PTDM5-E-2014-05/0.1.0
www.asm-sensor.com
2/10
© ASM GmbH
info@asm-sensor.com
POSITILT
®
PTAM5/PTDM5
Dimensions

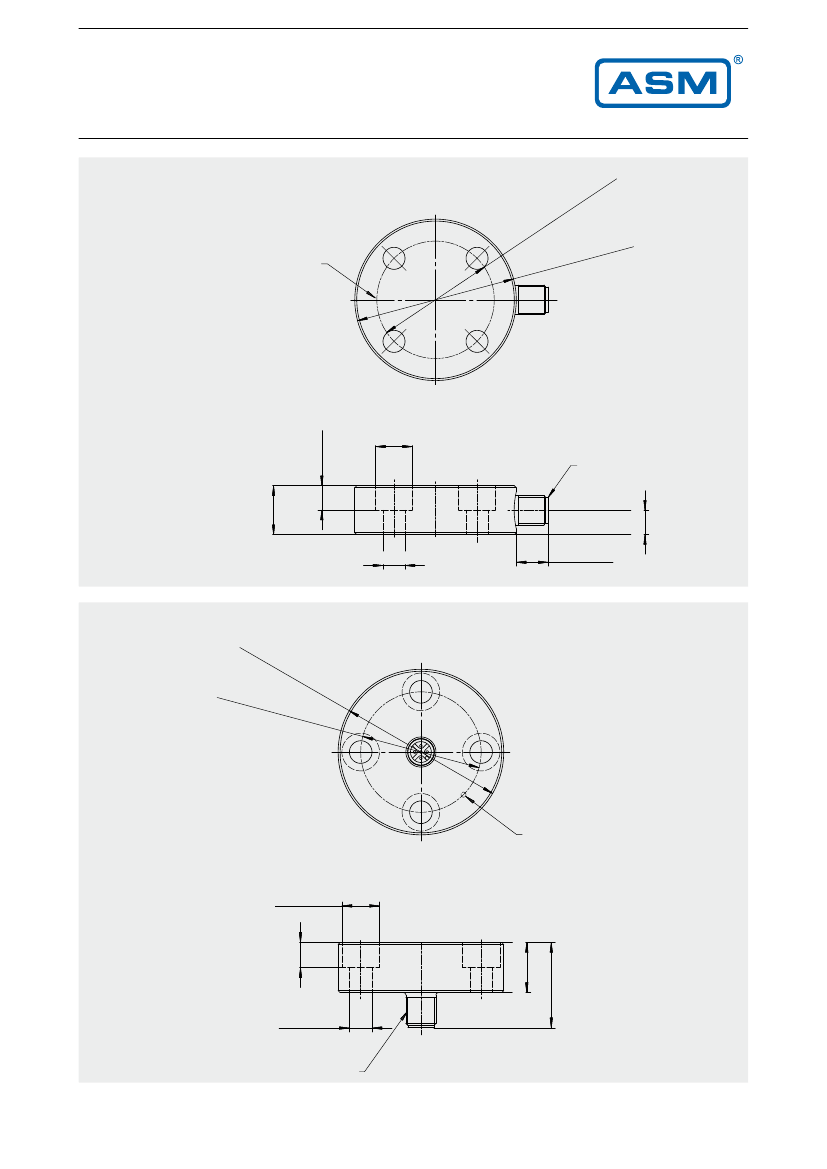

Outline drawing
M12 radial
Marking
Markierung
48
0,0
1.
5
[
89
0
.00
2
]
+0
66
- 0,1
[
8
- .0
2.59
+0
04
]
Dimensions in mm [inch]
Dimensions informative only.
For guaranteed dimensions consult
factory.
10 [.394]
Ø15 [.591]
Connector M12
M12-Stecker
20 [.787]
Ø9 [.354]
13 [.512]
Outline drawing
M12 axial
6
6
+0
-0
,1
[
2.598
48
0,0 5
[1.8
90
.0
02
]
+0
- .0
04
]
Dimensions in mm [inch]
Dimensions informative only.
For guaranteed dimensions consult
factory.
15 [.591]
Markierung
Marking
10 [.394]
20 [.787]
Ø9 [.354]
Connector M12
M12-Stecker
DB-PTAM5/PTDM5-E-2014-05/0.1.0
www.asm-sensor.com
3/10
34 [1.339]
10 [.394]
© ASM GmbH
info@asm-sensor.com
POSITILT
®
PTAM5/PTDM5
Dimensions

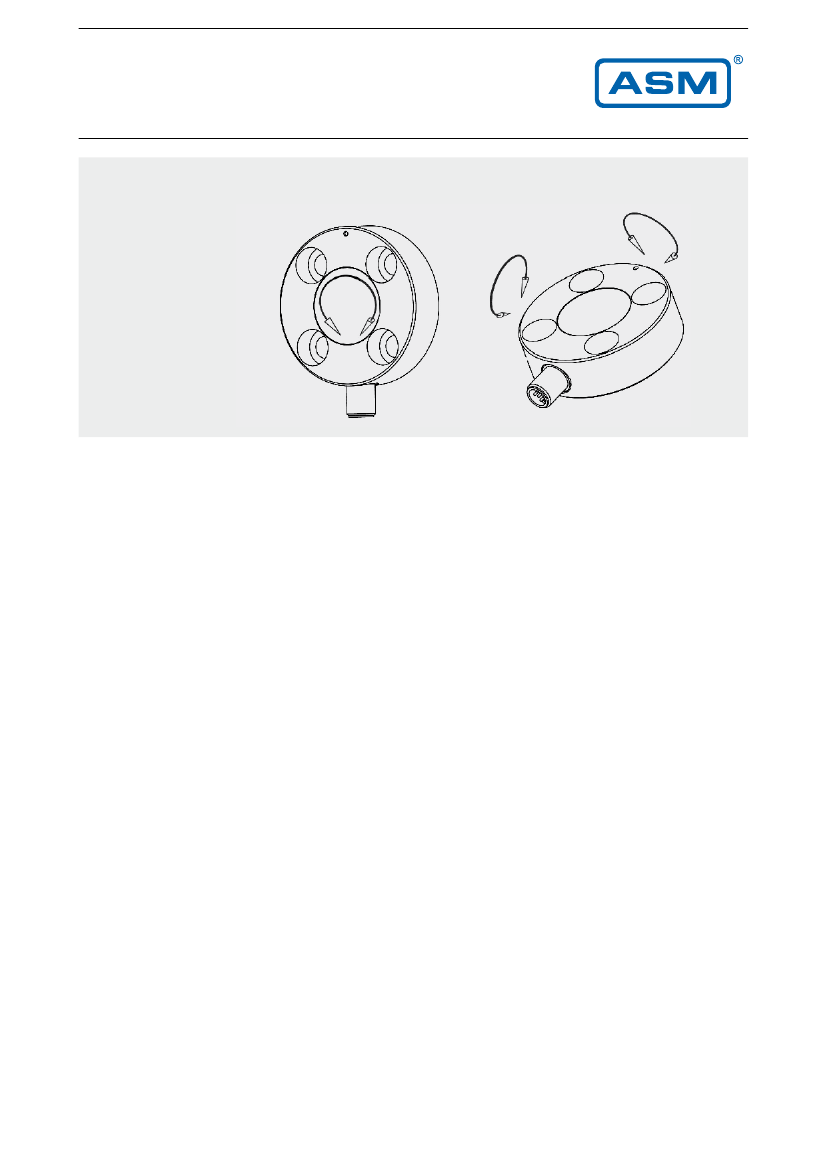

Orientation of the
inclination axes
1 axis
2 axes
DB-PTAM5/PTDM5-E-2014-05/0.1.0
www.asm-sensor.com
4/10
© ASM GmbH
info@asm-sensor.com
POSITILT
®
PTAM
AnalogoutputsU2,U8andI1
U2
Voltage Output
0.5 ... 10 V
Excitation voltage
Excitation current
Output voltage
Output current
Measuring rate
Stability (temperature)
Operating temperature
Protection
EMC
Excitation voltage
Excitation current
Output voltage
Output current
Measuring rate
Stability (temperature)
Operating temperature
Protection
EMC
Excitation voltage
Excitation current
Load resistor
Output current
Measuring rate
Stability (temperature)
Operating temperature
Protection
EMC
18 ... 36 V DC
12 mA typ., 16 mA max.
0.5 ... 10 V DC
2 mA max.
1 kHz standard
±100 x 10
-6
/ °C f.s. (typ.)
-40 ... +85 °C
Reverse polarity, short circuit
EN61326-1:2013
18 ... 36 V DC
12 mA typ., 16 mA max.
0.5 ... 4.5 V DC
2 mA max.
1 kHz standard
±100 x 10
-6
-40 ... +85 °C
Reverse polarity, short circuit
EN61326-1:2013
18 ... 36 V DC
32 mA typ., 36 mA max..
500
Ω
max.
4 ... 20 mA
1 kHz standard
±100 x 10 / °C f.s. (typ.)
-40 ... +85 °C
Reverse polarity, short circuit
EN61326-1:2013
U8
Voltage output
0.5 ... 4.5 V
I1
Current Output
4 ... 20 mA
Other outputs available on request.
Ω
-6
/ °C f.s. (typ.)
Outputsignals
Connection
U2
U8
I1
Excitation +
Signal +
GND
View to sensor
connector
M12A5 / M12R5
SignalWiring
Outputsignals
1axis
Excitation +
Output X
GND
Do not connect!
Do not connect!
Connectorpin
2axes
Excitation +
Output X
GND
Output Y
Do not connect!
1
2
3
4
5
Cablecolor
brown
white
blue
black
gray
DB-PTAM5/PTDM5-E-2014-05/0.1.0
www.asm-sensor.com
5/10
© ASM GmbH
info@asm-sensor.com
