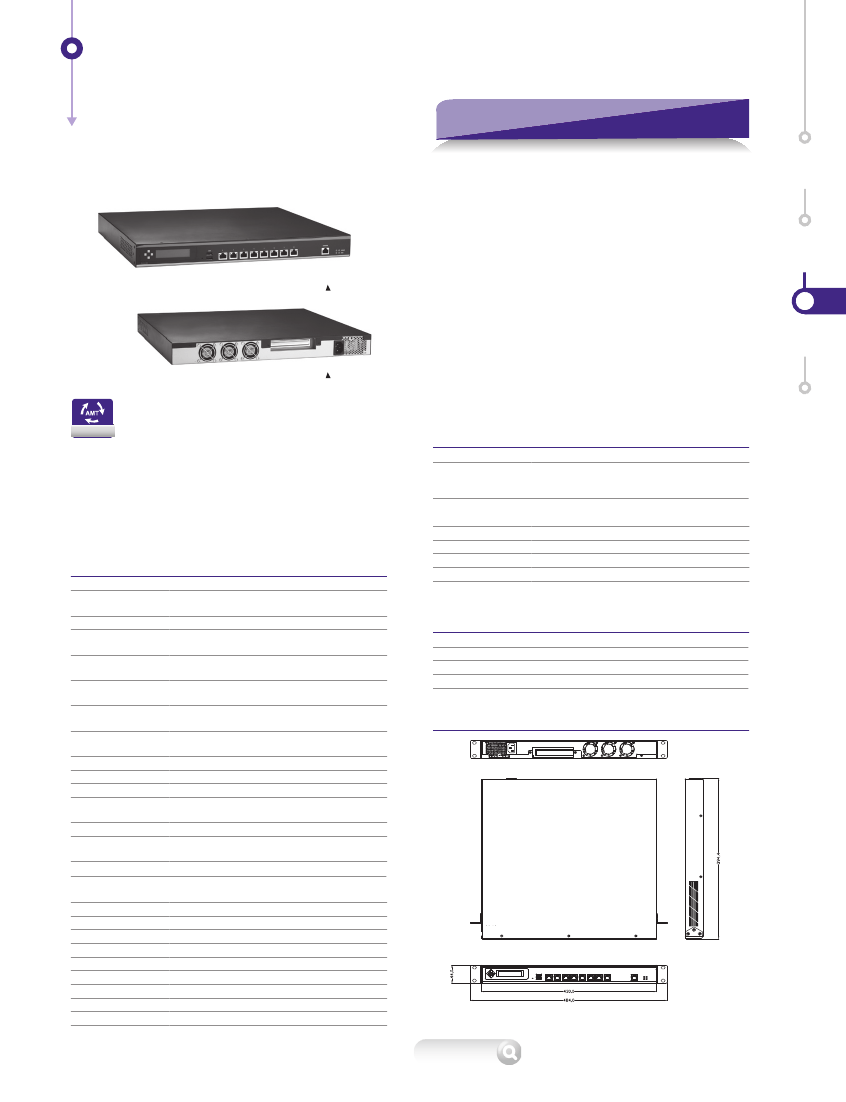

NA510
1U Rackmount Network Appliance Platform
with LGA1156 Socket Intel® Core™
Processor and 8 LANs
Features
●
LGA1156 socket type of processor as Intel® i5-660/ i3-540/
G6960, i7-860/ i5-750
●
Supports eight 10/100/1000Mbps Ethernet ports
(Intel® 82574L/82578DM)
●
Supports unbuffer and non-ECC DDR3 memory up to 8GB
●
Supports two 2.5" SATA HDD or one 3.5" SATA HDD for data
or proxy
●
Supports BIOS redirected to COM port
●
Suitable for VPN, firewall and other network security
applications
Overview
SOHO Series
Front view
2
SMB Series
Rear view
Accessories
AMT
Ordering Information
Standard
NA-510-R8GI-RC
(P/N: E26E510100)
1U high performance network appliance with LGA1156
socket for Intel® Clarkdale i5-660/i3-540/ G6960, Lynnfield
i7-860/ i5-750 and 8 x 10/100/1000Mbps
Introduction
The NA510 is a 1U rackmountable network hardware platform with featuring high
performance and high density for VPN, firewall and other network security applications.
It supports LGA1156 socket for Intel® i5-660/ i3-540/ G6960, i7-860/ i5-750 up to 8 GB
un-buffer non-ECC DDR3-800/1066/1333 DIMM memory. For storing event log data, the
NA510 utilizes two 2.5" SATA HDD or one 3.5" SATA HDD; limited support of SATA DOM as
an option. It also supports two groups of LAN bypass through WDT and GPIO pin definition
without any downtime.
Specifications
System
CPU
Chipset
Memory
BIOS
Storage
Network Interface
I/O Interface
Watchdog Timer
USB
Expansion Slot
Other Features
Power Supply
Management Capability
OS Compatibility
LGA1156 socket for Intel® i5-660/ i3-540/ G6960, i7-860/
i5-750 processors
Intel® Q57
2 x DDR3-800/1066/1333 DIMM max. up to 8 GB
(unbuffered non-ECC)
Award 64 Mbit PnP Flash BIOS with function of BIOS
redirected to COM port
2 x 2.5" SATA HDD / 1 x Compact Flash™ type-II,
1 x 3.5” SATA HDD/ DOM SATA2 type (optional)
8 x 10/100/1000Mbps Ethernet
(Intel
®
82574L, Intel
®
82578DM)
1 x console (RJ type), 2 x USB connector, 8 x RJ-45
connector for LAN
255 stepping for porting
2 x USB 2.0 port on front side, rest are internal pin headers
1 x 32bit/33MHz MiniPCI/1 x PCIe x8 slot
LAN bypass function through WDT and GPIO pin Control
(2 groups)
270W ATX power
Intel® AMT (Active Management Technology) 6.0 for remote
control and diagnosis
Linux Red Hat 2.4 and 2.6, FreeBSD
Optional
CK9A104
Cable kit (P/N: 8816E320010E)
AX92101
VGA MiniPCI module
59416112100E
Cable DB9 (M) - RJ-45, L: 1.5M straight cable
* Specifications and certifications are based on options and may vary.
** Recommend ordering optional cable kit with first order.
Packing List
1 x power cord
1 x SATA cable
1 x utility CD (user's manual and driver)
1 x RJ-45 to DB9 (F) 1.8M console cable (RC) cross cable
Dimensions
Mechanical/ Environmental
Form Factor
1U rackmount
LED
Power, HDD, Link/Act with transfer rate (RJ-45)
Operating Temp.
0° ~ +45°C (32°F ~ 113°F)
Storage Temp.
-20°C ~ +70°C (-4°F ~ +158°F)
Humidity
10% ~ 95% RH, non-condensing
Chassis Material
Steel
44 mm (1.73") (H) x 430 mm (16.93") (W) x 394.4 mm (15.52") (D)
Dimensions
Weight (net/gross)
8.2 kg (17.64 lb)/9.8 kg (21.61 lb)
Certification
FCC class A/CE class A
* All specifications and photos are subject to change without notice.
