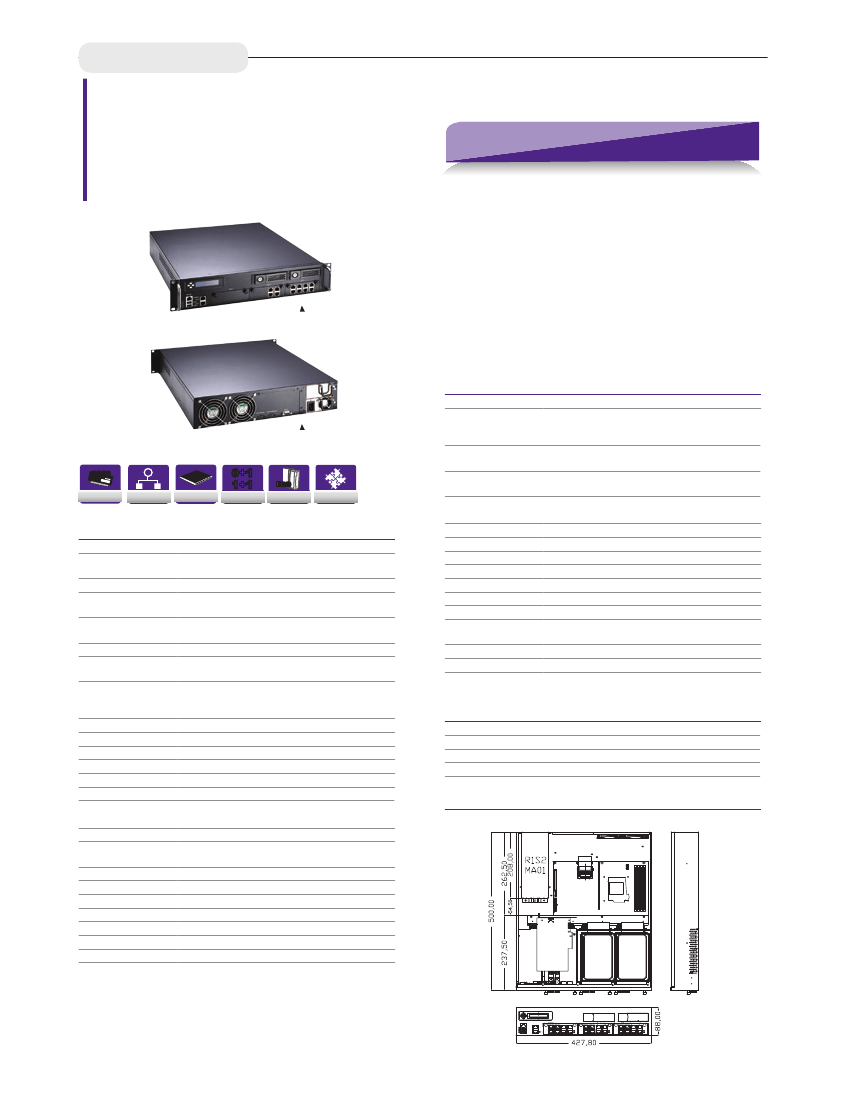

www.axiomtek.com/NA
NA551
2U Rackmount Network Appliance Platform
Features
with LGA1155 Intel® Xeon® E3 Processor,
Intel® C216, Two 3.5" Hot-swappable HDD
●
LGA1155 socket 3rd/2nd generation Intel® Xeon® E3 family
and up to 26 LANs
processors
●
Four DIMM sockets support up to 32 GB non-buffer non-ECC/
ECC memory (DDR3-1333, dual channel)
●
Supports diversified LAN modules expansion
●
Supports redundant power
●
Supports BIOS redirected to COM port
●
Supports two front-accessible 3.5" SATA HDD
●
Suitable for VPN, network bandwidth controller, firewall
applications
Ordering Information
Rear view
Front view
Standard
NA551-REGI-RC-US
(P/N: E26E551100)
NA551-R2GI-RC-US
(P/N: E26E551101)
NA551-R2GI-RC-US
(P/N: E26E551102)
Optional
59416112100E
AX93306-4GI
AX93306-4GIL
AX93306-4FI
AX93306-8GI
AX93306-8GIL
AX93306-8MI
AX93306-8MIL
CF
DDR3
DDR3
LAN Bypass
CFast
TM
Redundant Power
0+1
1+1
HDD
Swappable
NIC Module
2U network appliance with LGA1155 3rd/2nd generation
Intel® Core™ processors, PSU 1+0 and 14 GbE LANs
(AXP3306-4GIL & AXT3306-8GIL)
2U network appliance with LGA1155 3rd/2nd generation
Intel® Core™ processors, PSU 1+0 and 2 GbE LANs
2U network appliance with LGA1155 3rd/2nd generation
Intel® Core™ processors, PSU 1+1 and 2 GbE LANs
Specifications
System
CPU
Chipset
Memory
BIOS
Storage
Network Interface
I/O Interface
LGA1155 socket for 3rd/2nd Generation Intel® Xeon® E3
family processors
Intel® C216
4 x DDR3-1333 DIMM sockets max. up to 32 GB non-buffer
non-ECC/ECC memory (dual channel)
AMI 64 Mbits PnP Flash BIOS with function of BIOS
redirected to COM port
2 x 3.5" SATA HDD / 1 x CFast™
14 x 10/100/1000Mbps Ethernet ports (default)
3 x LAN modules (for optional) up to 26 LAN ports
1 x console (RJ-type), 2 x USB connectors,
14 x RJ-45 connectors, 1 x VGA connector, 1 x PS/2
keyboard/mouse connector
Up to 8 stepping for porting
2 x USB 2.0 ports on front side, rest are internal pin headers
1 x Mini PCI slot (32-bit/33 MHz)
LAN bypass function through software program
300W redundant power supply
Linux Redhat Kernel 2.6
ast
Cable DB9 (M) - RJ-45, L: 1.5M straight cable
4-port Gigabit copper module
4-port Gigabit copper module with LAN bypass
4-port Gigabit SFP fiber module
8-port Gigabit copper module
8-port Gigabit copper module with LAN bypass
4-port Gigabit copper & 4-port Gigabit SFP fiber module
4-port Gigabit copper & 4-port Gigabit SFP fiber module
with LAN bypass
AX93312-8FI
8-port Gigabit SFP fiber module
* Specifications and certifications are based on options and may vary.
** Recommend ordering optional cable kit with first order.
Packing List
1 x SATA Cable
1 x utility CD (user's manual and driver)
1 x power cord (PSU 1+0), 2 x power cord (PSU 1+1)
2 x HDD tray (w/ key)
Watchdog Timer
USB
Expansion slot
Other Features
Power Supply
OS Compatibility
Dimensions
Mechanical/ Environmental
Form Factor
2U rackmount
LED
Power, HDD, Link/Act with transfer rate, LAN bypass,
GPIO programmable (optional)
Operating Temp.
0°C ~ 40°C (32°F ~ 104°F)
Storage Temp.
-20°C ~ +70°C (-4°F ~ +158°F)
Humidity
10% ~ 95% RH, non-condensing
Chassis Material
Steel
88 mm (3.46") (H) x 427.8mm (16.92”) (W) x 500 mm (19.68") (D)
Dimensions
Weight (net/gross)
14.52 kg (32.01 lb)/21.61 kg (47.64 lb)
Certification
FCC class A/CE class A
