HA-084-APC Overview

High brightness open frame LCD monitor

Preview

Download Datasheet

View All

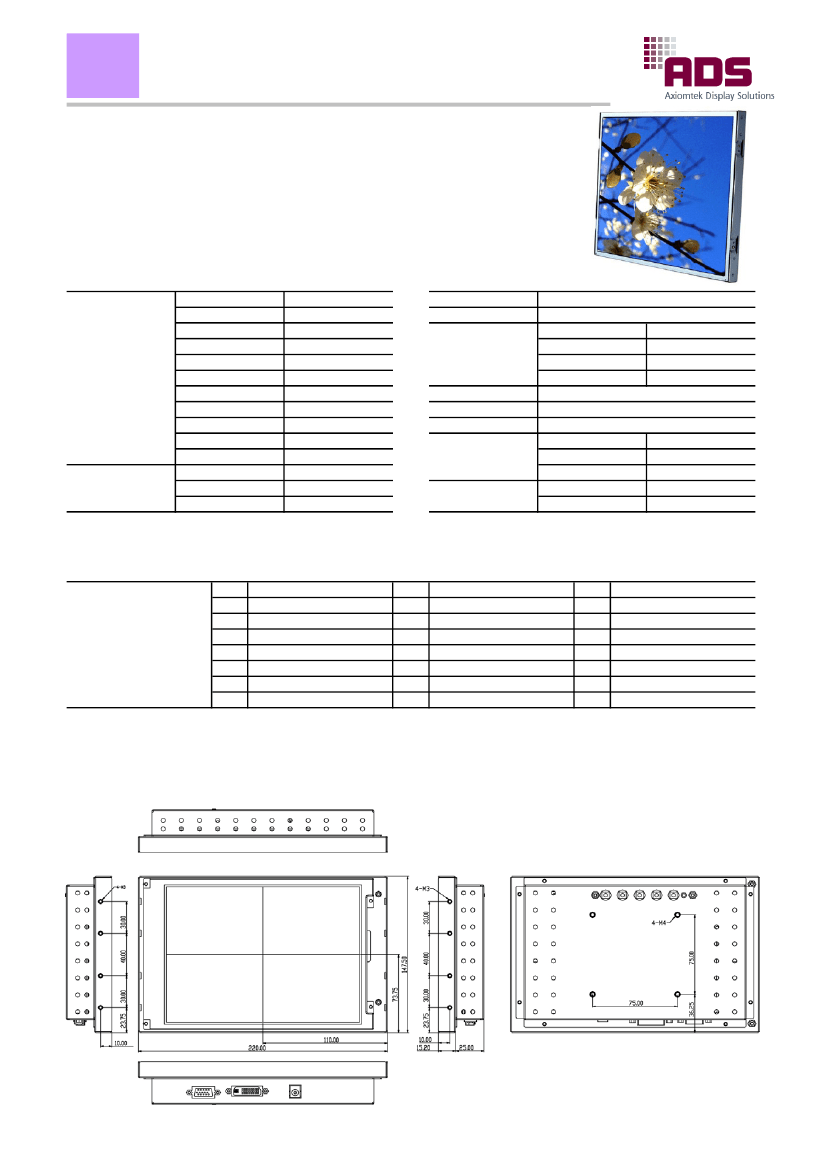

HB-084

8.4" High brightness open frame LCD monitor

Features

■

Flexible, low cost and high brightness

For semi-outdoor kiosk, vending machine, signage application

8.4" SVGA TFT LCD with LED backlight

High brightness enhancement

VESA mount (75x75mm)

Option with anti-reflective treatment

Size

Backlight

Panel type

Pixel pitch

Active area

Brightness

Contrast

Viewing angle

Resolution

Display color

Response time

Hor. frequency

Ver. frequency

Pixel rate

8.4" (4:3)

LED

0.213x0.213 mm

170.4x127.8 mm

1000 nits (max.)

600 : 1

160/140 degree

800 x 600

262K/16.2M (6/8

bit

)

Tr/Tf=20/10 mS

30 ~ 48 KHz

60/70 Hz

50 MHz

Signal input

OSD adjustment

Power

Mounting

Dimension

Net weight

Package

Temperature

VGA, DVI-I

Power, Enter, Left, Right, Auto

DC connector

2.5mm diameter

DC input

12 Vdc / 0.75A

Consumption

Management

VESA DPMS

75x75mm VESA mount

220 (W) x 147.5 (H) x 40.2 (D) mm

1.1 kg

Packing

5 pcs / carton

Carton size

410x368x435mm

Container loading

Operation

-30 ~ 80 degree C

Storage

-30 ~ 80 degree C

Specifications

LCD panel

Video

* Higher brightness is on demand.

Ordering information

■

Model selection

HB-084-XYZ

Panel selection

Standard, chosen

A: Specified LCD

B: Specified LCD

…etc. Specified LCD

Input selection

Standard, VGA/DVI

VGA only

VGA/DVI/HDMI

DVI/HDMI/DP

VGA/DVI/S-video

Touch selection

Standard, none

Glass

Resitive

Surface capacitive

Projective capacitive

SAW

■

Optional accessories

* Power adapter

100 ~ 240 Vac adapter with 12Vdc / 3A o/p

* Power cord

1.8M power cord, US / EU

* Signal cable

1.8M VGA cable, 1.8M DVI cable

Product drawing

* All specification and photos are subject to change without notice.
