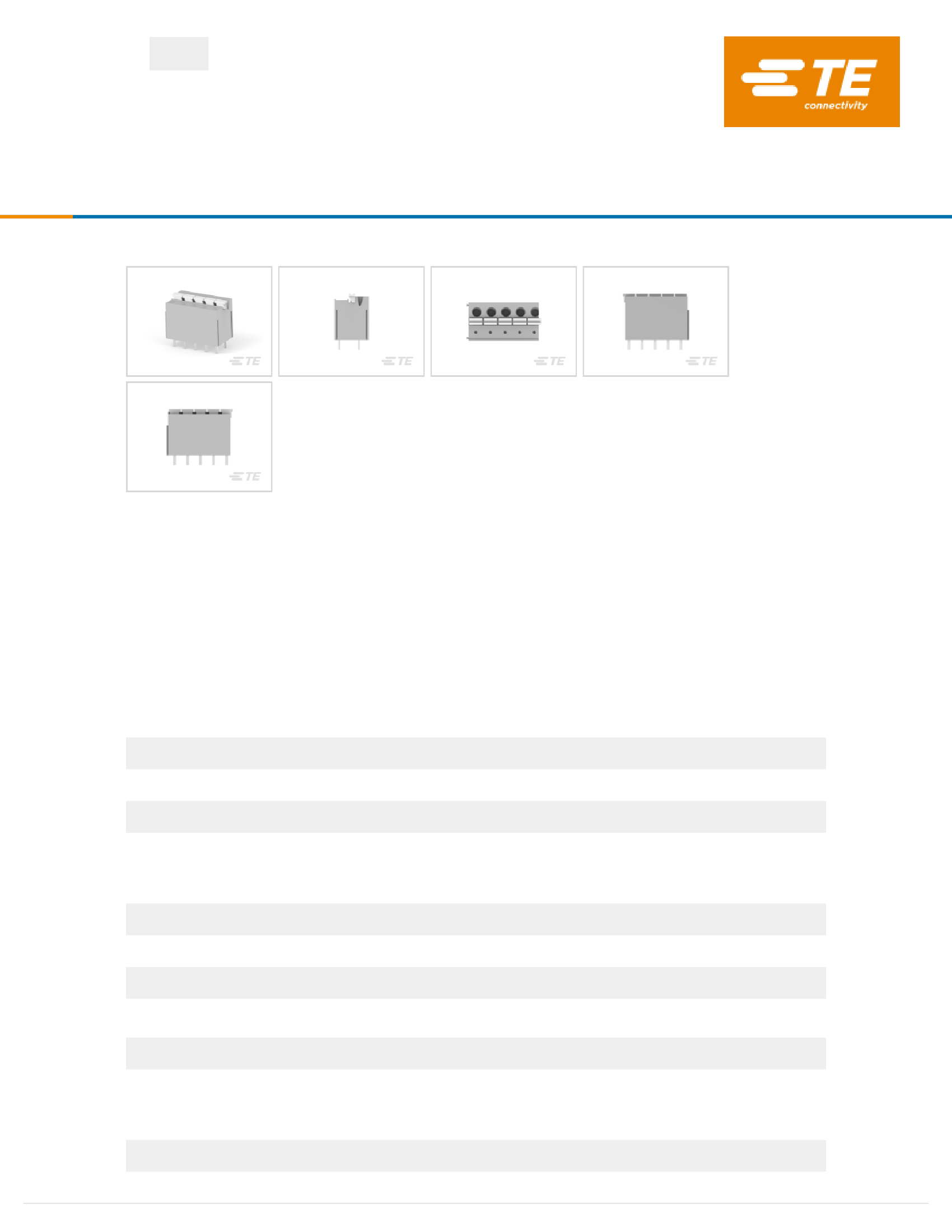

2834112-4
PCB Terminal Blocks, Receptacle, Wire-to-Board, 5 Position, .02 in [5.08 mm]
Centerline, 1 Row, Top Wire Entry Angle, 26 – 16 AWG Wire Size
2834112-4
ACTIVE
Buchanan WireMate
TE Internal #: 2834112-4
PCB Terminal Blocks, Receptacle, Wire-to-Board, 5 Position, .02 in
[5.08 mm] Centerline, 1 Row, Top Wire Entry Angle, 26 – 16 AWG
Wire Size
View on TE.com >
Connectors
>
Terminal Blocks & Strips
>
PCB Terminal Blocks
Terminal Block Connector Type:
Receptacle
Connector System:
Wire-to-Board
Number of Positions:
5
Centerline (Pitch):
5.08 mm [ .02 in ]
Number of Rows:
1
Features
Product Type Features
Terminal Block Connector Type
Connector System
Sealable
Connector & Contact Terminates To
Configuration Features
Number of Positions
Number of Rows
Wire Entry Angle
Electrical Characteristics
Current Rating (Max)
Voltage Rating
Body Features
Color
Gray
10 A
300 VAC
5
1
Top
Receptacle
Wire-to-Board
No
Printed Circuit Board
For support call+1 800 522 6752
Contact Features
06/16/2022 11:49PM | Page 1
2834112-4
PCB Terminal Blocks, Receptacle, Wire-to-Board, 5 Position, .02 in [5.08 mm]
Centerline, 1 Row, Top Wire Entry Angle, 26 – 16 AWG Wire Size
Contact Features
Contact Mating Area Plating Material
Contact Mount
Contact Base Material
Contact Current Rating (Max)
Mechanical Attachment
Screwless Terminal Block
Housing Features
Housing Color
Housing Material
Centerline (Pitch)
Dimensions
PCB Tail Length
Wire Size
Usage Conditions
Operating Temperature Range
Operation/Application
Circuit Application
Packaging Features
Packaging Method
Box
Power & Signal
-40 – 105 °C[-40 – 221 °F]
3.8 mm
.14 – 1.5 mm²
Gray
High Temperature Polyamide
5.08 mm[.02 in]
Yes
Tin
Through Hole
Copper
10 A
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Compliant
Compliant
No Restricted Materials Above Threshold
Current ECHA Candidate List: JAN 2022
(223)
Candidate List Declared Against: JAN 2020
(205)
SVHC > Threshold:
Not Yet Reviewed
Not Yet Reviewed for halogen content
Wave solder capable to 260°C
06/16/2022 11:49PM | Page 2
Halogen Content
Solder Process Capability
For support call+1 800 522 6752
2834112-4
PCB Terminal Blocks, Receptacle, Wire-to-Board, 5 Position, .02 in [5.08 mm]
Centerline, 1 Row, Top Wire Entry Angle, 26 – 16 AWG Wire Size
Solder Process Capability
Wave solder capable to 260°C
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-
reach

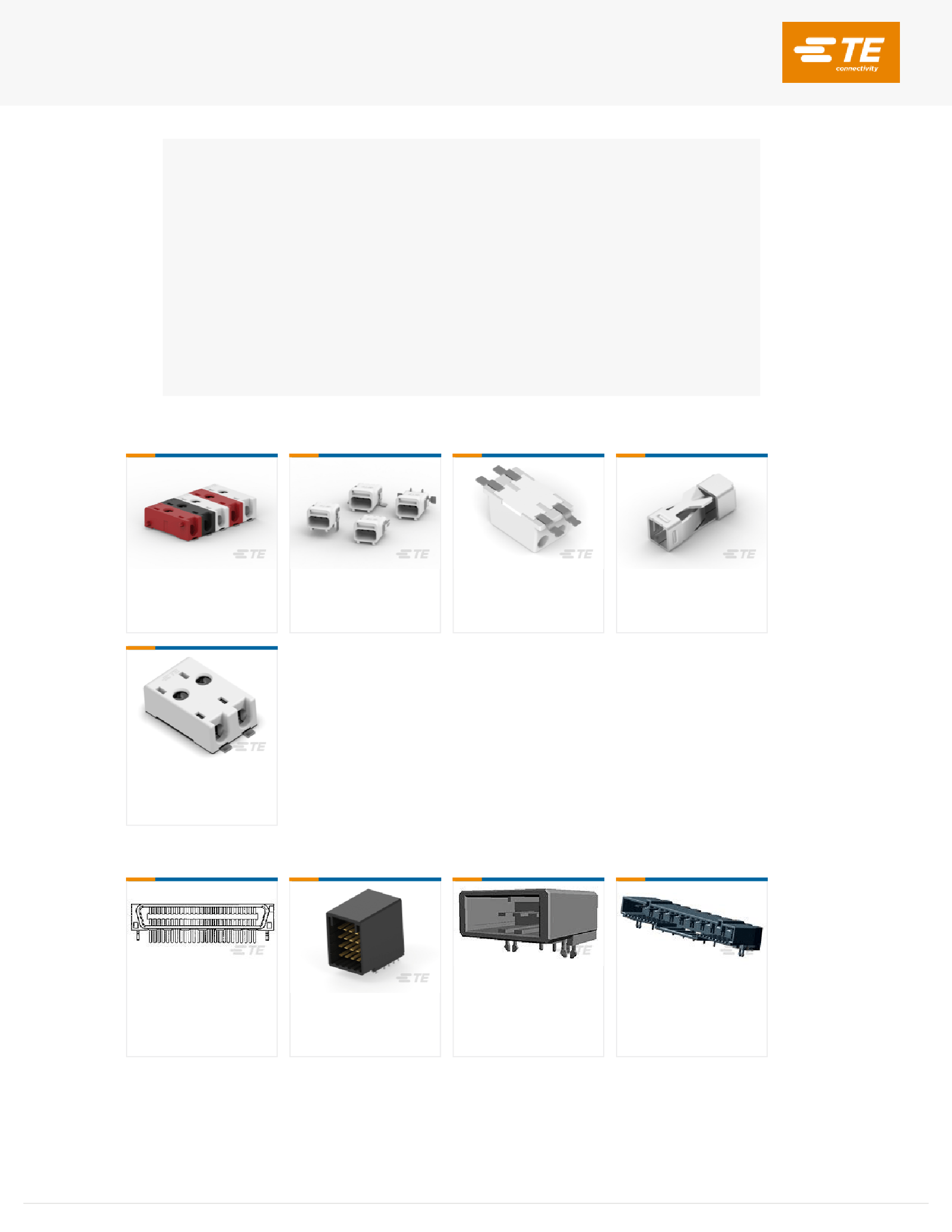

Compatible Parts
TE Part # CAT-B8519-P7565
BUCHANAN WIREMATE POKE-IN
TE Part # CAT-SL36-M6642B
SLIMSEAL MINIATURE HEADERS
TE Part # 2834334-2
4.0PITCH ITB CONN_2P_W
CAP_NATURAL
TE Part # 2834167-3
RELEASABLE SLIM CONTACT
TE Part # 2834385-2
RELEASE POKE-IN
CONNECTOR_2P_NATURAL

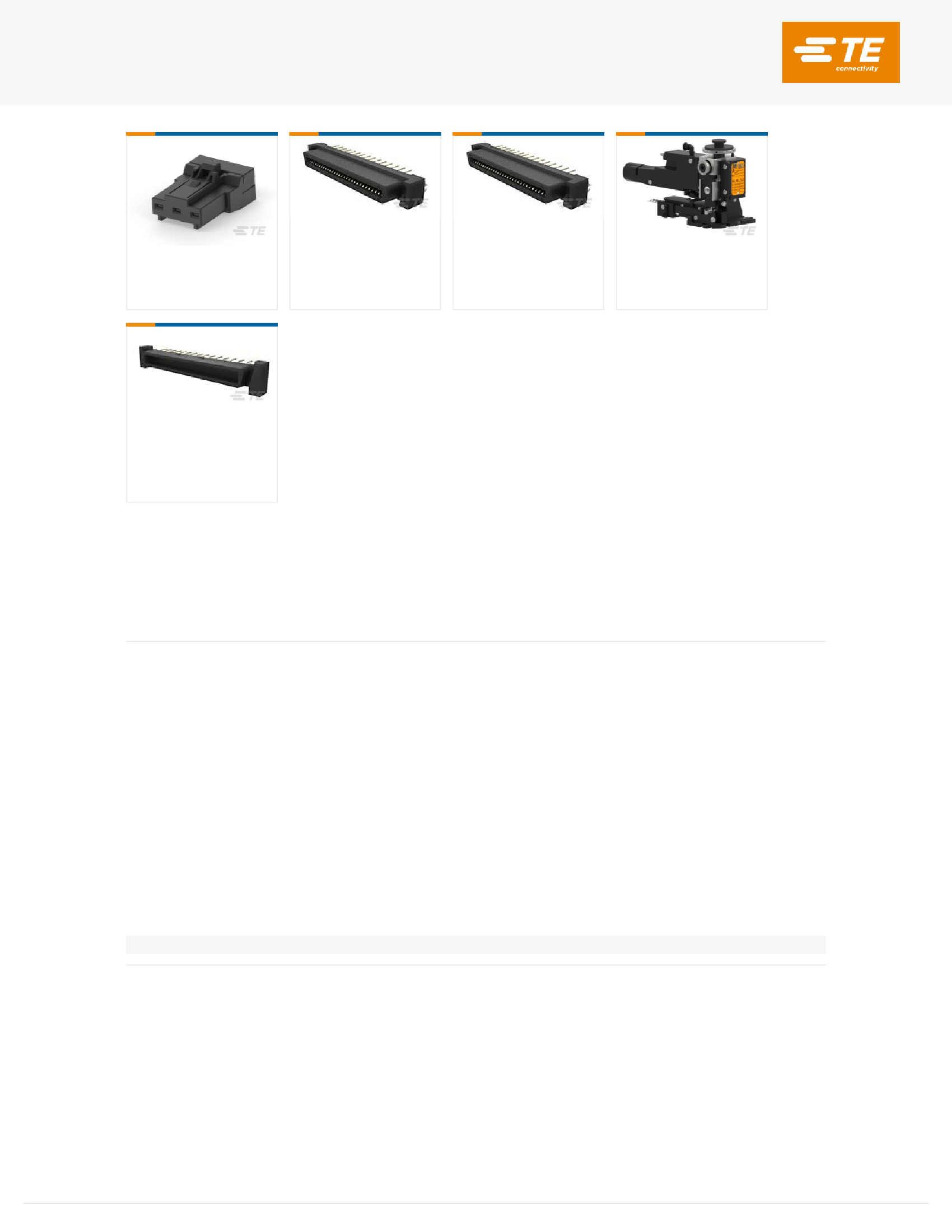

Customers Also Bought
