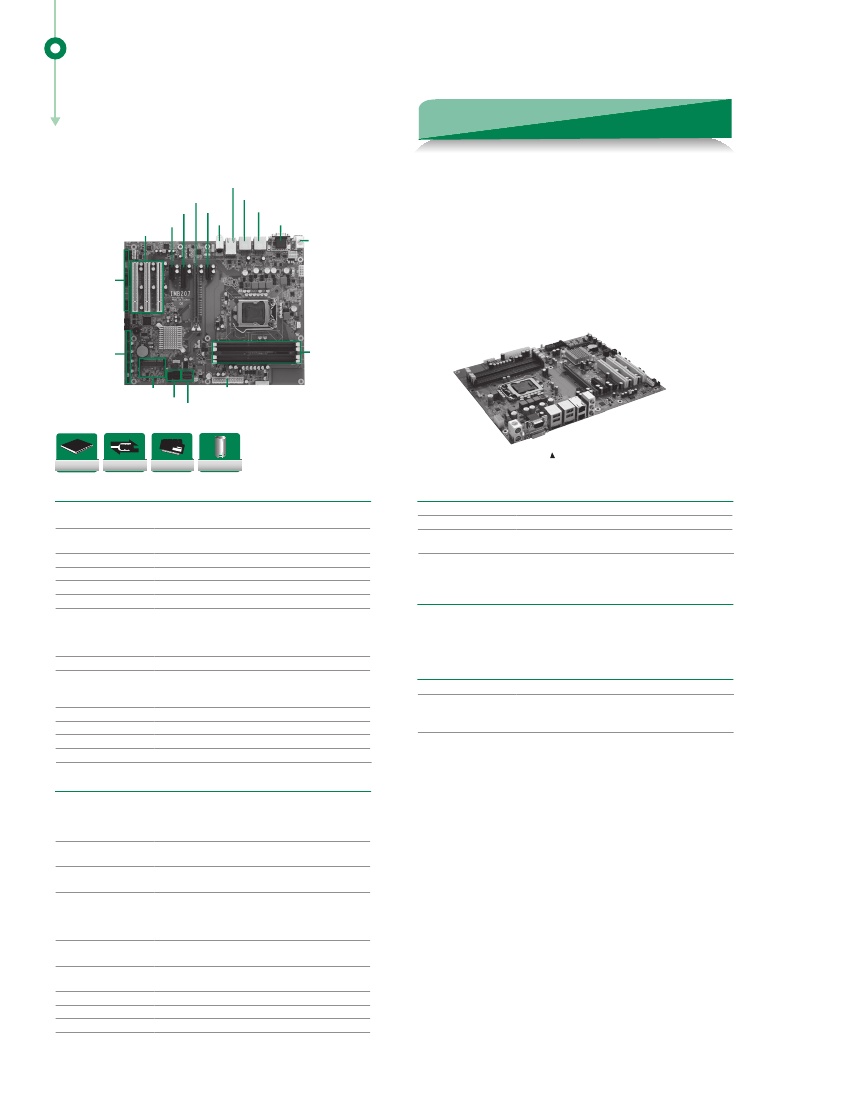

IMB208
LGA1155 Socket Intel® Core™ i7/i5/i3 &
Celeron® ATX Industrial Motherboard with
Intel® C216, USB 3.0, DisplayPort/DVI-I
(VGA), Dual LANs and CFast™
Ethernet 1/2
DisplayPort 2+USB 3.0 3/4
PCIe x16
DisplayPort 1+USB 3.0 1/2
PCIe x1
PCIe x4
Audio
DVI-I+COM 1
PCIe x1
PCI 1~3
PS/2
K/B+M/S
Features
●
LGA1155 socket 3rd generation Intel® Core™ i7/i5/i3 &
Celeron® processor (Ivy Bridge)
●
4 DDR3-1333/1600 MHz up to 32 GB
●
Triple view display: DisplayPort /DVI-I (VGA)
●
PCIe Gen. 3 supported
●
2 SATA-600, 3 SATA-300, support RAID 0/1/5/10
●
4 USB 3.0 ports
●
TPM 1.2 supported
●
Intel® iAMT 8.0 supported
COM 2~4
USB 2.0 1~8
DDR3
CFast
SATA-300 3~4
ATX power input
SATA-600 1~2
USB
CF
DDR3
ast
CFast
TM
USB 3.0
DDR3
Full Solid
Cap Design
Side view
System
CPU
System Memory
Chipset
BIOS
SSD
Watchdog Timer
Expansion Interface
LGA1155 socket 3rd generation Intel® Core™ i7/i5/i3 &
Celeron® processor (Ivy Bridge)
4 x 240-pin DIMM support ECC DDR3-1333/1600 max.
up to 32 GB
Intel® C216
AMI UEFI BIOS with OA 3.0 built
1 x CFast™
255 levels, 1~255 sec.
1 x PCIe x16 Gen. 3 (slot 2)
1 x PCIe x4 Gen. 2
2 x PCIe x1 Gen. 2
3 x PCI
Lithium 3 V/220 mAH
E3-1275V2 3.5 GHz DDR3, 8 GB 1600 x 1
+5v@2.8A, +12V@9.3A, -12V@0.4A, +5VSB@0.4A,
+3.3V@2.1A
305 x 244 mm
1.6 mm
0° ~ +60°C (32°F ~ 140°F), operation
10% ~ 95% relative humidity, non-condensing
Display
Display Chipset
Memory Size
Display Interface
Intel® HD 4000/2500 Graphics
Max. 1.7 GB
2 x DisplayPort
1 x DVI-I
Packing List
User's manual/utility CD, cable
Battery
Power Requirements
Ordering Information
Standard
IMB208
LGA1155 socket 3rd generation Intel® Core™ i7/i5/i3 &
Celeron® ATX industrial motherboard with USB 3.0, dual
GbE LAN, DisplayPort/DVI-I (VGA) and CFast™
Size
Board Thickness
Temperature
Operation Humidity
I/O
MIO
1 x PS/2 keyboard
1 x PS/2 mouse
3 x RS-232 (COM 2/3/4)
1 x RS-232/422/485 (COM 1)
2 x SATA-600
3 x SATA-300, support RAID 0/1/5/10
Detect CPU/system temperature, voltage and support Smart
fan control
1st port as 10/100/1000 Mbps supports Wake-on-LAN,
PXE Boot ROM, iAMT with Intel® 82579LM
2nd port as 10/100/1000 Mbps supports Wake-on-LAN,
PXE Boot ROM with Intel® 82574L
HD Codec audio as MIC-in/Line-in/Line-out
with Realtek ALC662 speaker-out with 1W/8ohm x 2
4 x USB 3.0
8 x USB 2.0
Infineon SLB9635 for trusted platform
System Management Bus for advanced monitoring/control
8 channels (4-IN & 4-OUT)
* All specifications and photos are subject to change without notice.
SATA
Hardware Monitoring
Ethernet
Audio
USB
TPM
SMBus
Digital I/O
