JEWEL HILL ELECTRONIC CO.,LTD.
JEWEL HILL ELECTRONIC CO.,LTD.
SPECIFICATIONS FOR
LCD MODULE
Module No.
JH24240320A
E-mail:
sales@jhlcd.com
Website:
www.jhlcd.com
JH24240320A
VER: 0.1
-
0-
Issue date: 2013/08/01
JEWEL HILL ELECTRONIC CO.,LTD.
TABLE OF CONTENTS
LCM NUMBER SYSTEM
1.GENERAL INFORMATION……………………………………………. …3
2.EXTERNAL DIMENSIONS…………………………………………………4
3.ABSOLUTE MAXIMUM RATINGS………………………………………5
4.ELECTRICAL CHARACTERISTICS……………………….....................6
5.OPTICAL SPECIFICATION……………………………. ………………...7
6.BLOCKDIAGRAM……………………………………...............................10
7.INTERFACE DESCRIPTION……………………….. ………………… ..11
8.TIMING CHARACTERISTICS…………………………………………. .12
9.RELIABILITY AND INSPECTION STANDARD……………………….13
10.INSPECTION CRITERION………………………………………………14
11.PACKAGE INFOIRMATION……………………………………………21
12.ROHS COMPLIANT WARRANTY……………………………………..22
13.REVISION HISTORY…………………………………………………….23
SAMPLE APPROVED REPORT
JH24240320A
VER: 0.1
-
1-
Issue date: 2013/08/01
JEWEL HILL ELECTRONIC CO.,LTD.

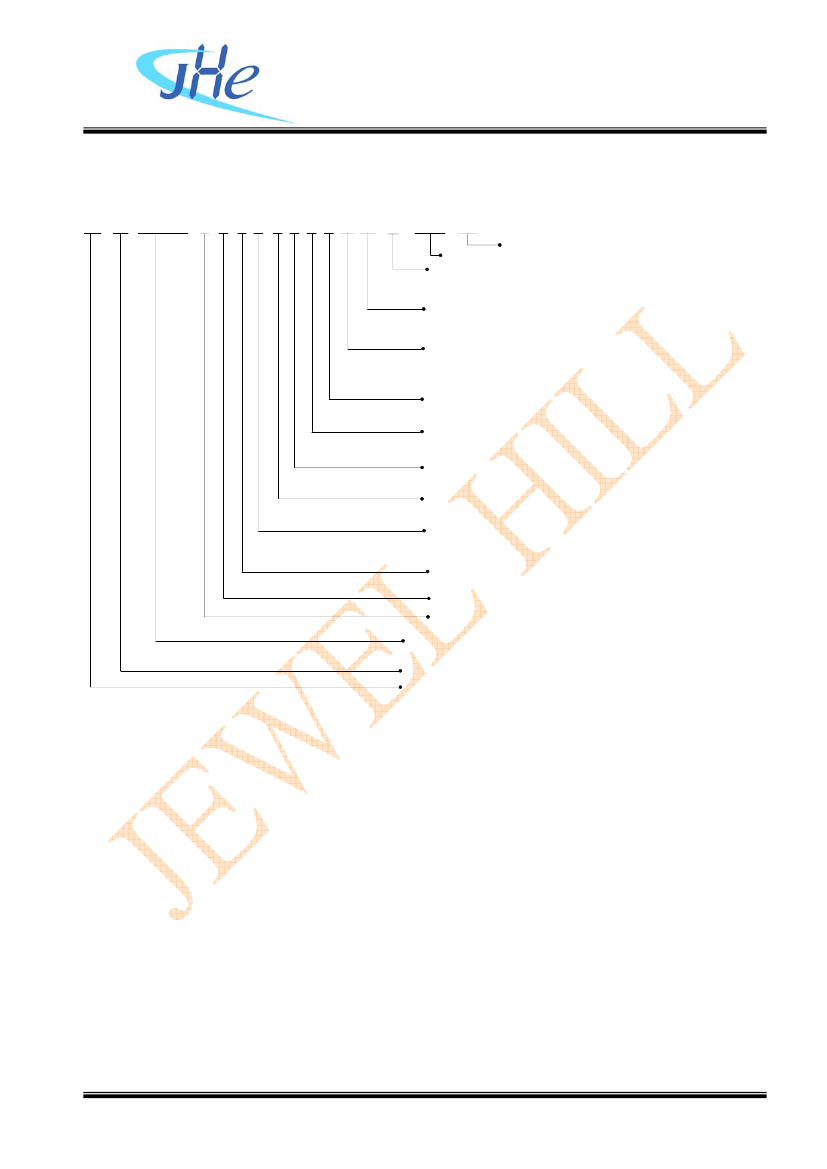

LCM Number System
JH 24 240320 A T Y D M N T F L W
N -V00- SC
SPECIAL CODE: P: PIN;C:CONNECT;O: OTHER;........
VERSION NUMBER: V00½V99
IC CONTROLLER:
C:WITH CONTROLLER;
N:WITHOUT CONTROLLER;
BACKLIGHT COLOR:
W:WHITE;
O:OTHER;
BACKLIGHT MODE:
L:LED;
E:EL;
C:CCFL;
CONNECTOR:
H:HEATSEAL; Z:ZEBRA;
F:FPC
O:OTHER;
POLARIZER TYPE:
T:TRANSMISSIVE; F:TRANSFLECTIVE: O: OTHER
LCD DISPLAY MODE:
N: NEGATIVE;
O:OTHER;
TEMPERATURE RANGE:
N: NORMAL TEMPERATURE; M:MIDDLE TEMPERATURE;
W: WIDE TEMPERATURE;
O:SUPER WIDE TEMPERATURE
VIEWING DIRECTION:
U: UPPER(12:00); D:DOWN(6:00);
L: LEFT(9:00);
R:RIGHT(3:00);F:FULL VIEW
WITH TP:
N: WITHOUT TOUCH PANEL; Y:WITH TOHCH PANEL
SERIAL NUMBER:C: CSTN
T: TFT
SERIAL NUMBERA--Z.
GRAPHIC MODULEs:NUMBER OF COMMONS AND SEGMENTs
CHARACTER MODULEs:
LCM SIZE;18:1.8";20:2.0"; 22:2.2".......
JEWEL HILL ELECTRONIC CO.,LTD.
JH24240320A
VER: 0.1
-
2-
Issue date: 2013/08/01
JEWEL HILL ELECTRONIC CO.,LTD.
1. GENERAL INFORMATION.
1.1. Description.
The
JH24240320A
model is a Color TFT LCD .This main Module has a
2.4
inch
diagonally measured active display area with 240(RGB)×320 resolution. Each pixel is
divided into Red, Green and Blue sub-pixels and dots which are arranged in vertical stripes.
The LCD color is determined with 262,000 colors signal for each pixel.
The
JH24240320A
has been designed to apply the interface method that enables low
power, high speed, and high contrast.
The
JH24240320A
is intended to support applications where thin thickness, wide
viewing angle and low power are critical factors and graphic displays are important.
1.2. Function&Feaures.
Item
LCD type
Viewing direction
Module area (WxH)
Active area(WxH)
Number of Dots
Pixel Pitch
Pixel Arrangement
Driver IC
Backligth Type
Interface Type
Input volygae
Contents
TFT，Normally White, Transmissive,LCD
6 O”Clock
44.52(W) x 63.38(H)x3.55(T)
36.72(W)×48.96(H)
240x(RGB)x320Pixels
0.153(W)x0.153(H)
RGB Vertical Stripes
HX8347D(COG)
LED(White，4pcs LED)
18 Bits/16Bits/9Bits/8Bits
2.8
/
/
/
V
Unit
/
/
mm
mm
dots
mm
JH24240320A
VER: 0.1
-
3-
Issue date: 2013/08/01
JEWEL HILL ELECTRONIC CO.,LTD.

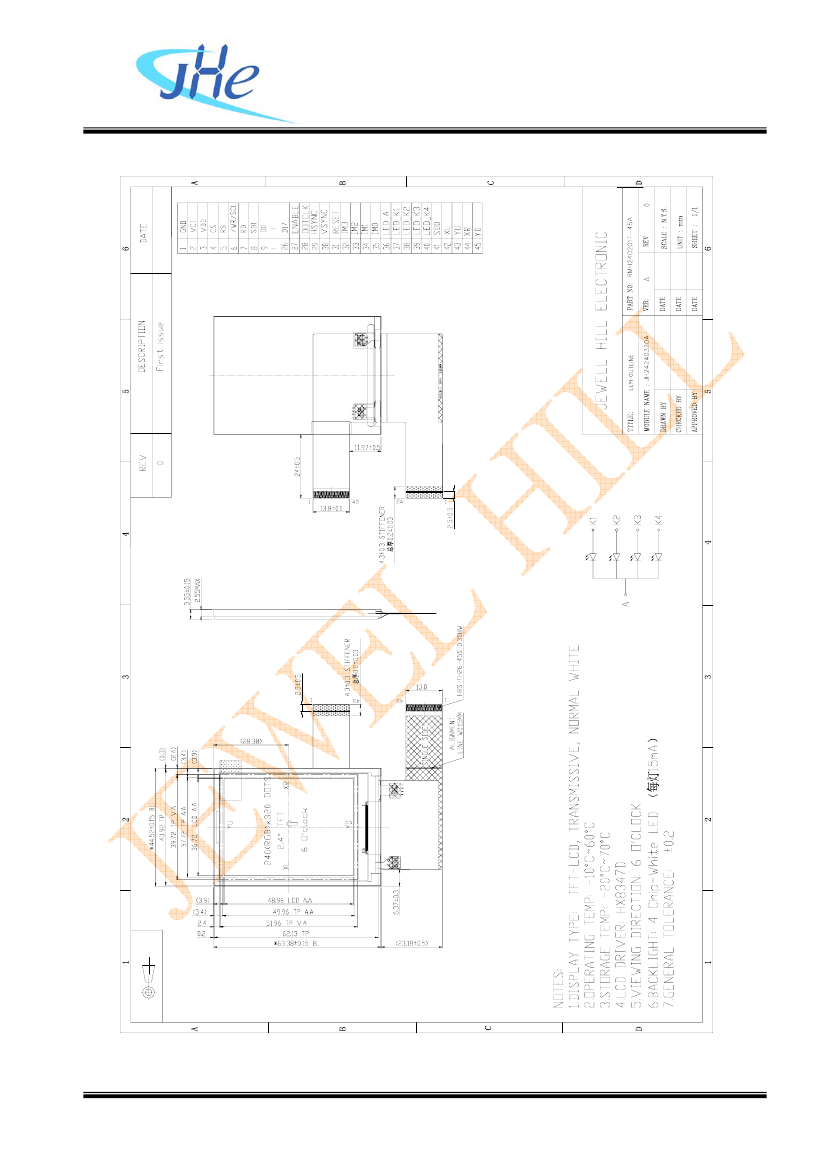

2. EXTERNAL DIMENSIONS.
JH24240320A
VER: 0.1
-
4-
Issue date: 2013/08/01
