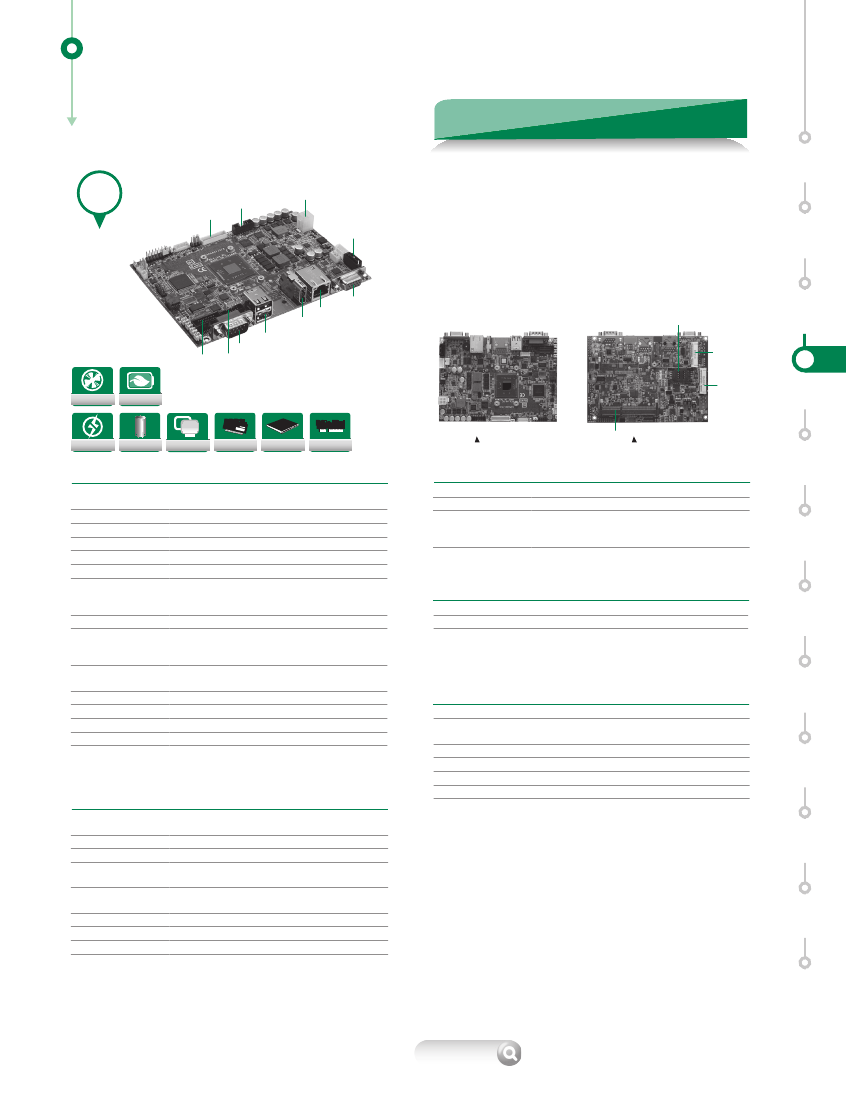

CAPA848
Intel® Celeron® Processor N2807
3.5" Embedded SBC with LVDS/VGA/HDMI,
LAN and Audio
NEW
LVDS
Audio
+12V power input
Features
●
Intel® Celeron® processor N2807 (1.58 GHz)
●
1 DDR3L SO-DIMM supports up to 8 GB memory capacity
●
4 USB 2.0 ports
●
4 COM ports
●
2 PCI Express Mini Card and 1 SIM slot
●
Gigabit Ethernet port
●
Display: LVDS/VGA/HDMI in dual-view
SBC
Services
and Solutions
SATA
Systems
on
Modules
Ethernet
HDMI
USB 2.0 1/2
COM 1
COM 3/4 COM 2
VGA
SIM Slot
Full Size PCI
Express Mini
Card
Half sizePCI
Express Mini
Card
Embedded
SBCs
>EPIC
3
Embedded
SBCs
>3.5" Capa
Fanless
Low Power
DDR3L
PCIe Mini
CF
ast
AiRD
Full Solid
Cap Design
DualView
DDR3L
CFast
TM
PCIe Mini
Top view
DDR3L SO-DIMM
Rear view
Embedded
SBCs
>Nano-ITX
System
CPU
System Memory
Chipset
BIOS
SSD
Watchdog Timer
Expansion Interface
Intel® Celeron® processor N2807 1.58 GHz dual core
onboard (Bay Trail)
1 x 204-pin DDR3L-1333 SO-DIMM max. up to 8 GB
SoC Integrated
AMI
N/A
255 levels, 1~255 sec.
1 x Full-size PCI Express Mini Card with mSATA
1 x Half-size PCI Express Mini Card
1 x SIM slot
Lithium 3V/220mAH
2 x 2-pin connector
+12V DC-in only
AT Auto Power On function supported
Intel® Celeron® N2807 @ 1.58 GHz, 8GB DDR3L
Max. RMS. +12V @ 0.64A
146 x 104 mm
1.6 mm
-20°C ~ +70°C (-4°F ~ +158°F), operation
10% ~ 95% relative humidity, non-condensing
Display
Chipset
Memory Size
Display Interface
Intel® HD Graphics
Share System Memory
1 x VGA
1 x LVDS; 18/24-bit single/dual channel
1 x HDMI
Embedded
SBCs
>Pico-ITX
Packing List
Standard
Quick installation guide, user's manual/utility CD
Embedded
SBCs
>PC/104
Battery Lithium
Power Input
Power Requirements
Size
Board Thickness
Temperature
Relative Humidity
Ordering Information
Standard
CAPA848VHGA-N2807
(P/N: E38E848100)
59382620000E
59384500100E
59382631000E
59380000300E
3.5" embedded SBC with Intel® Celeron® processor N2807
1.58 GHz, VGA/LVDS/HDMI, 1 GbE LAN and audio
1 x COM w/ bracket P=2.0 mm, L=300 mm
Audio cable w/ bracket P=2.0 mm, L=450 mm
2 x USB 2.0 wafer cable w/ bracket 180 mm
2 x COM w/bracket P=1.27 x 2.54 L=300 mm
Industrial
Mother-boards
Slot CPU
Cards
I/O
MIO
SATA
Hardware Monitoring
Ethernet
Audio
USB
SMBus
Digital I/O
2 x RS-232/422/485
2 x RS-232
1 x SATA-300
Detect CPU/system temperature and voltage
1 port 10/100/1000 Mbps supports Wake-on-LAN, PXE Boot
ROM with Intel® i211AT
HD Codec audio as MIC-in/Line-in/Line-out with Realtek
ALC662
4 x USB 2.0
System Management Bus for advanced monitoring/control
8 channels IN/OUT programmed
ARM
Embedded
Boards
Accessories
Appendix
* All specifications and photos are subject to change without notice.
ax io m tek .c om
© 2016 Axiomtek Co., Ltd. All rights reserved.
