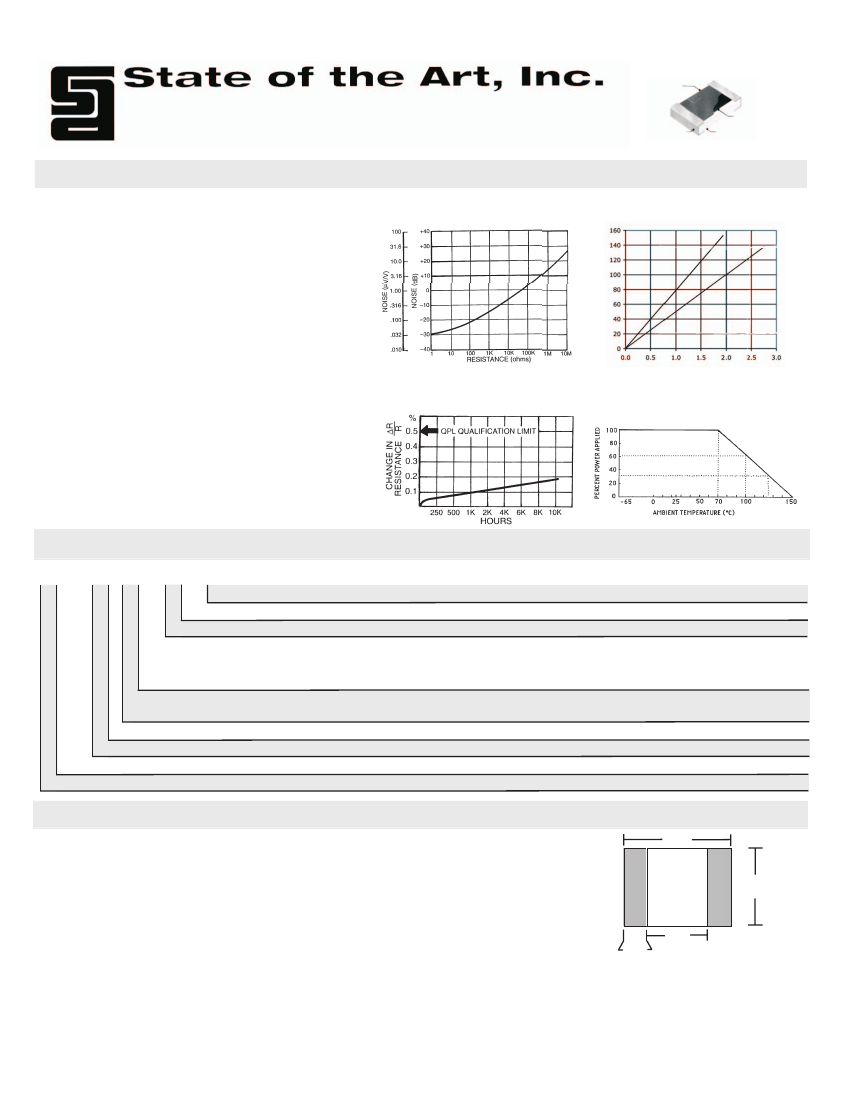

1005 Thick Film Chip Resistor
Standard Grade, Wraparound
PERFORMANCE CHARACTERISTICS
Resistance Range
Tolerances (1)
TCR
Thermal Resistance
Maximum Power
Maximum Voltage
(1)+/- 0.5% limited availability
1
W-40
M
W
0.5%,1%, 2%, 5%,10%
±100, ±200, ±300 ppm
81.5°C/W
250 mW
75 Volts
GLASS
PASSIVATION
RESISTOR
FILM
96% ALUMINA CHIP
WRAPAROUND
TERMINATIONS
CURRENT NOISE
TEMPERATURE RISE (°C)
POWER DISSIPATION
fiber epoxy board
ceramic board
ENVIRONMENTAL PERFORMANCE (2)
Thermal Shock
Low Temperature Operation
Short-time Overload
Resistance to Bonding Exposure
Moisture Resistance
High Temperature Exposure
Life Test
±0.03%
±0.03%
±0.03%
±0.03%
±0.05%
±0.05%
See Chart
POWER DISSIPATION (WATTS)
LIFE TEST
POWER DERATING
(2)Typical resistance change, test methods and criteria
per MIL-PRF-55342.
PART NUMBERING
S 1005 C P X 150 J 20 - TR
PACKAGING CODE: - TR = Tape/Reel - W = Waffle Carrier (Default packaging is Bulk)
TEMPERATURE CHARACTERISTIC: 10: ±100 ppm 20: ±200 ppm 30: ±300 ppm
TOLERANCE: F: 1% G: 2% J: 5% K: 10% M: 20%
RESISTANCE VALUE:
Four digits are used for tolerances of 1% or lower, three digits are used above 1%. Leading digits are significant while the last digit
specifies the number of zeros to add. The letter "R" is used to represent the decimal for fractional ohmic values. Example: 5R6 is 5.6
ohms.
TERMINATION FINISH: X: Sn60 over Nickel (Solderable) C: Silver bearing (Epoxy bondable-RoHS) G: Gold (Epoxy bondable-RoHS)
Y: Silver over Nickel (Solderable -RoHS) Z: Gold over Nickel (Solderable-RoHS)
PRODUCT DESIGNATION: P: Thick film on alumina U: Untrimmed alumina (10% & 20% tolerance only)
TERMINATION TYPE: C: Wraparound termination
SIZE CODE
GRADE: S: Standard Production H: High Reliability (For Screening options, contact the factory)
MECHANICAL
INCHES
MILIMETERS
.130
MINIMUM
RECOMMENDED
MOUNTING
PADS
(INCHES)
Length
Width
Thickness
Top Term
Bottom Term
Gap
Approx. Weight
.100 (.098 - .108)
.048 (.046 - .054)
.018 (.015 - .023)
.014 (.010 - .020)
.014 (.010 - .020)
.072 (.068 - .076)
.0054 grams
2.54
1.22
0.46
0.36
0.36
1.83
(2.49 - 2.74)
(1.17 - 1.37)
(0.38 - 0.58)
(0.25 - 0.51)
(0.25 - 0.51)
(1.73 - 1.93)
.052
.066
.032
“Specifications subject to change without notice.”
STATE OF THE ART, INC.
2470 Fox Hill Road, State College, PA 16803-1797
Phone (814) 355-8004
www.resistor.com
Fax (814) 355-2714
Toll Free 1-800-458-3401
02/08/08
