85932671000E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > 85932671000E

Preview

85932671000E: Description1 DDR3L SO-DIMM supports up to 8 GB memory capacity; File Size397KB，1 Pages; ManufacturerAxiomtek; Websitehttp://www.axiomtek.com/

Download Datasheet Compare View All

85932671000E Overview

1 DDR3L SO-DIMM supports up to 8 GB memory capacity

Preview

Download Datasheet

View All

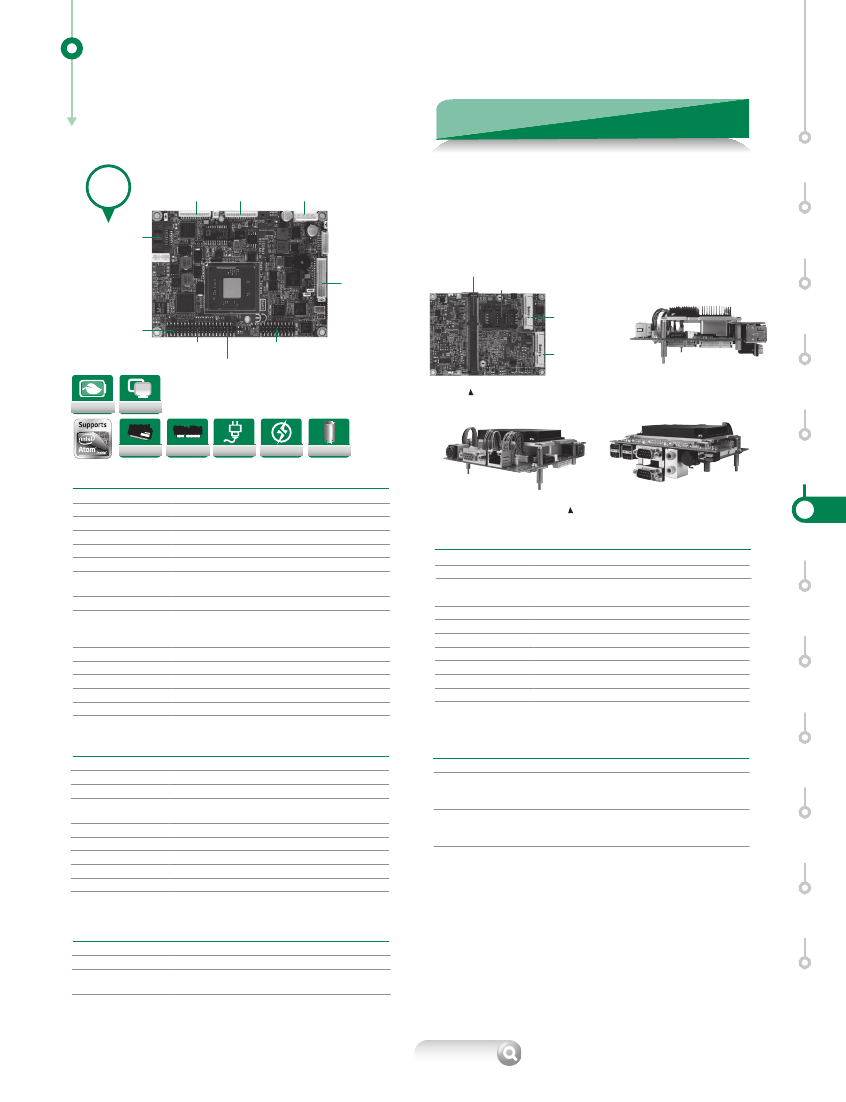

PICO843

Intel® Celeron® Processor J1900/N2807

Pico-ITX SBC with LVDS/VGA, LAN & Audio

NEW

SATA

Features

●

Intel® Celeron® processor J1900/N2807 Bay Trail SoC

onboard

●

1 DDR3L SO-DIMM supports up to 8 GB memory capacity

●

4 USB 2.0 ports

●

2 COM ports

●

2 PCI Express Mini Cards

SBC

Services

and Solutions

Ethernet

VGA

+12V power input

Systems

Modules

LVDS

DDR3L SO-DIMM

SIM slot

Half-size PCI

Express Mini Card

Embedded

SBCs

>EPIC

Audio

USB 2.0 1/2/3/4

COM 1/2

Poweron/off, reset, LED

Rear view

Low Power

DualView

DDR3L

PCIe Mini

Full-size PCI Express

Mini Card w/mSATA

supported

Embedded

SBCs

>3.5" Capa

DDR3L

PCIe Mini

+12V

AiRD

Full Solid

Cap Design

System

CPU

System Memory

Chipset

BIOS

SSD

Watchdog Timer

Expansion Interface

Battery Lithium

Power Input

Intel® Celeron® processor J1900/N2807 onboard

1 x 204-pin DDR3L-1066/1333 SO-DIMM max. up to 8 GB

SoC integrated

AMI

N/A

255 levels, 1~255 sec.

1 x Full-size PCI Express Mini Card with mSATA

1 x Half-size PCI Express Mini Card

Lithium 3V/220mAH

1 x 4-pin connector

+12V DC-in only

AT Auto Power On function supported

Intel® Celeron® J1900 @ 2 GHz 4 GB DDR3L

100 x 72 mm

1.6 mm

-20°C ~ +70°C (-4°F ~ 158°F), operation

10% ~ 95% relative humidity, non-condensing

Assembly view

Embedded

SBCs

>Nano-ITX

Embedded

SBCs

>Pico-ITX

Packing List

Standard

Quick installation guide, User’s Manual/Utility CD and cable

Accessories

Part Number

85932831000E

85932671000E

59406308010E

594P8800600E

5078H843000E

5078H100200E

Power Requirements

Size

Board Thickness

Temperature

Relative Humidity

Description

AX93283 I/O board

AX93267 I/O board

SATA cable

SATA power cable

Heatspreader

Heatsink

Qty

Embedded

SBCs

>PC/104

Industrial

Mother-boards

I/O

MIO

SATA

Hardware Monitoring

Ethernet

Audio

USB

SMBus

Digital I/O

TPM

2 x RS-232/422/485

1 x SATA-300

Detect CPU/system temperature and voltage

1 port 10/100/1000 Mbps supports Wake-on-LAN, PXE Boot

ROM with Intel® i211AT

HD Codec audio as MIC-in/Line-out with Realtek ALC662

4 x USB 2.0

System Management Bus for advanced monitoring/control

ST ST33TPM12LPC with TPM 1.2 compliant

Ordering Information

Standard

PICO843VGA-J1900

(P/N: E38H843100)

PICO843VGA-N2807

(P/N: E38H843101)

Pico-ITX SBC with Intel® Celeron® processor J1900

(2 GHz-2.42 GHz, 2 MB Cache, 10W), VGA/LVDS, GbE LAN

and audio

Pico-ITX SBC with Intel® Celeron® processor N2807

(1.58 GHz-2.16 GHz, 1 MB Cache, 4.3W), VGA/LVDS,

GbE LAN and audio

Slot CPU

Cards

ARM

Embedded

Boards

Accessories

Display

Chipset

Memory Size

Display Interface

Intel® HD Graphics

Share System memory

1 x VGA

1 x LVDS; 18/24-bit single/dual channel

Appendix

* All specifications and photos are subject to change without notice.

ax io m tek .c om

134
