TD4226006KC71 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> TD4226006KC71

TD4226006KC71: DescriptionTantalum Capacitor, Polarized, Tantalum, 6V, 10% +Tol, 10% -Tol, 22uF, 2415,; CategoryPassive components capacitor; File Size604KB，8 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

TD4226006KC71 Overview

Tantalum Capacitor, Polarized, Tantalum, 6V, 10% +Tol, 10% -Tol, 22uF, 2415,

TD4226006KC71 Parametric

Parameter Name	Attribute value
Objectid	845573127
package instruction	, 2415
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	22 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
high	2.4 mm
length	6 mm
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	6 V
series	TD(4SIZE)
size code	2415
width	3.9 mm

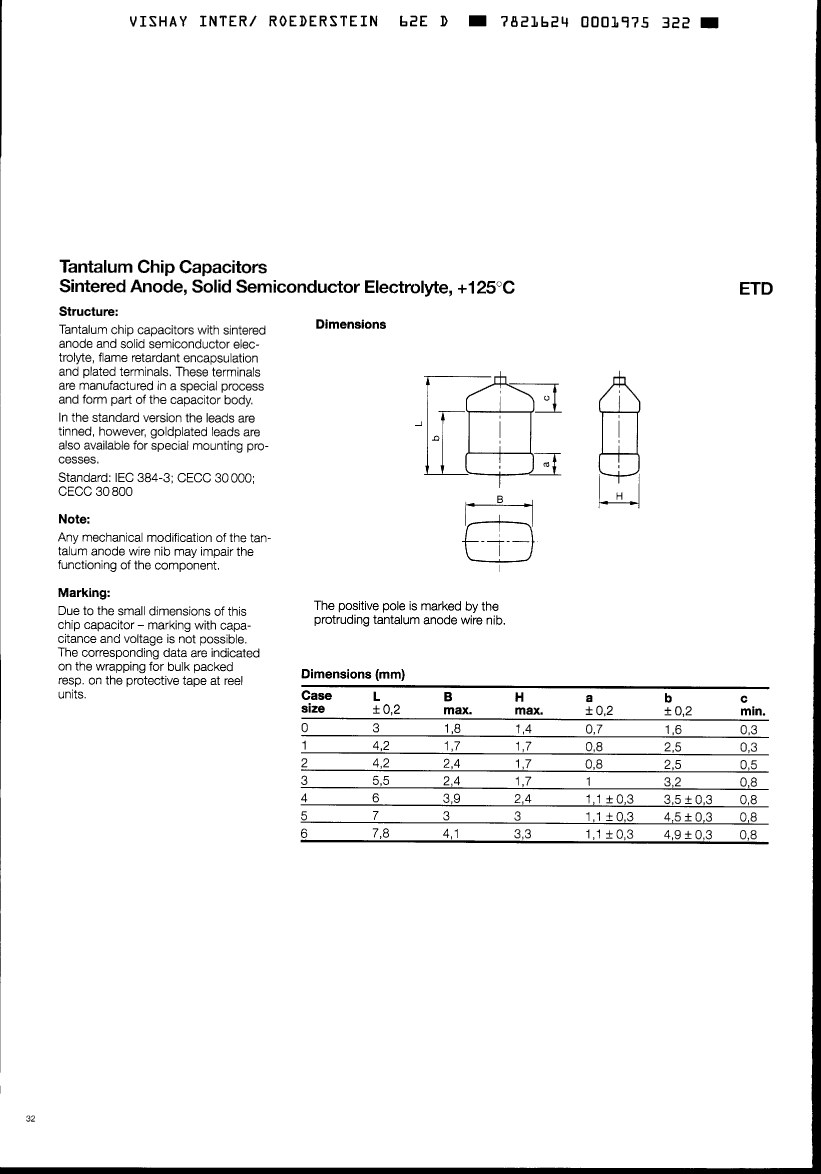

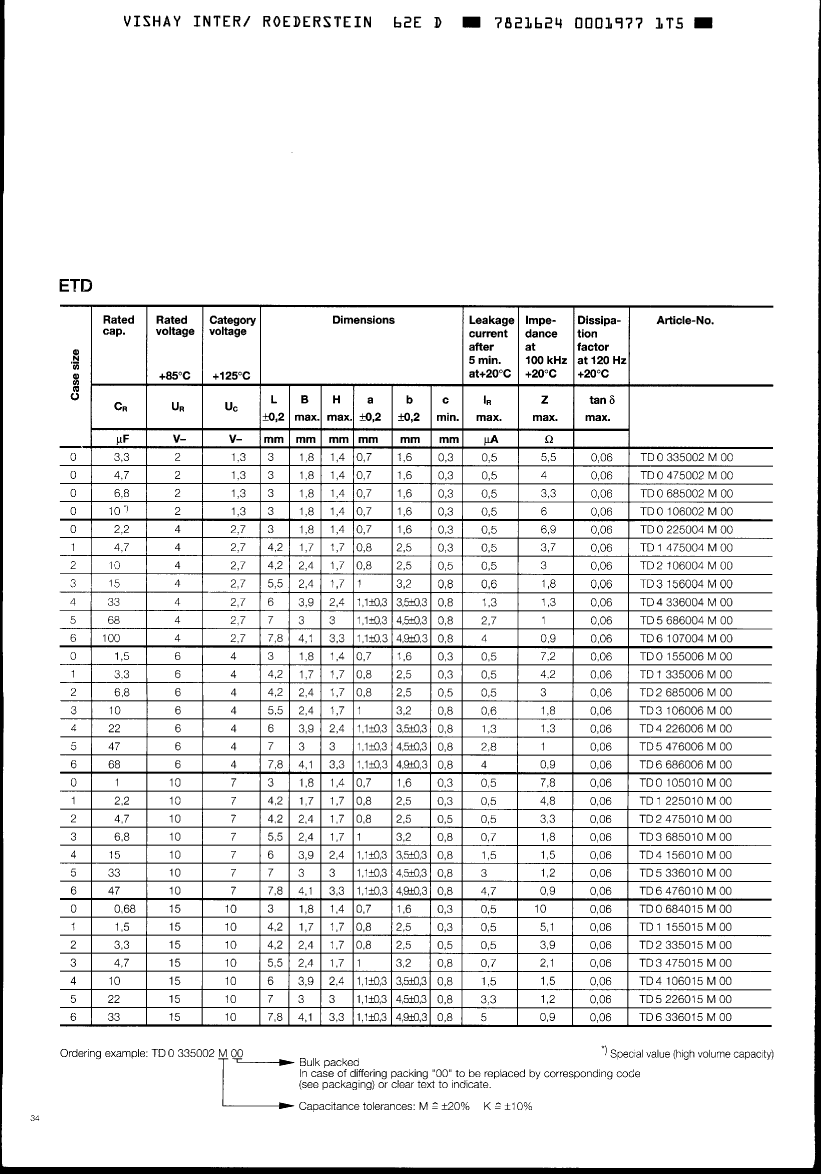

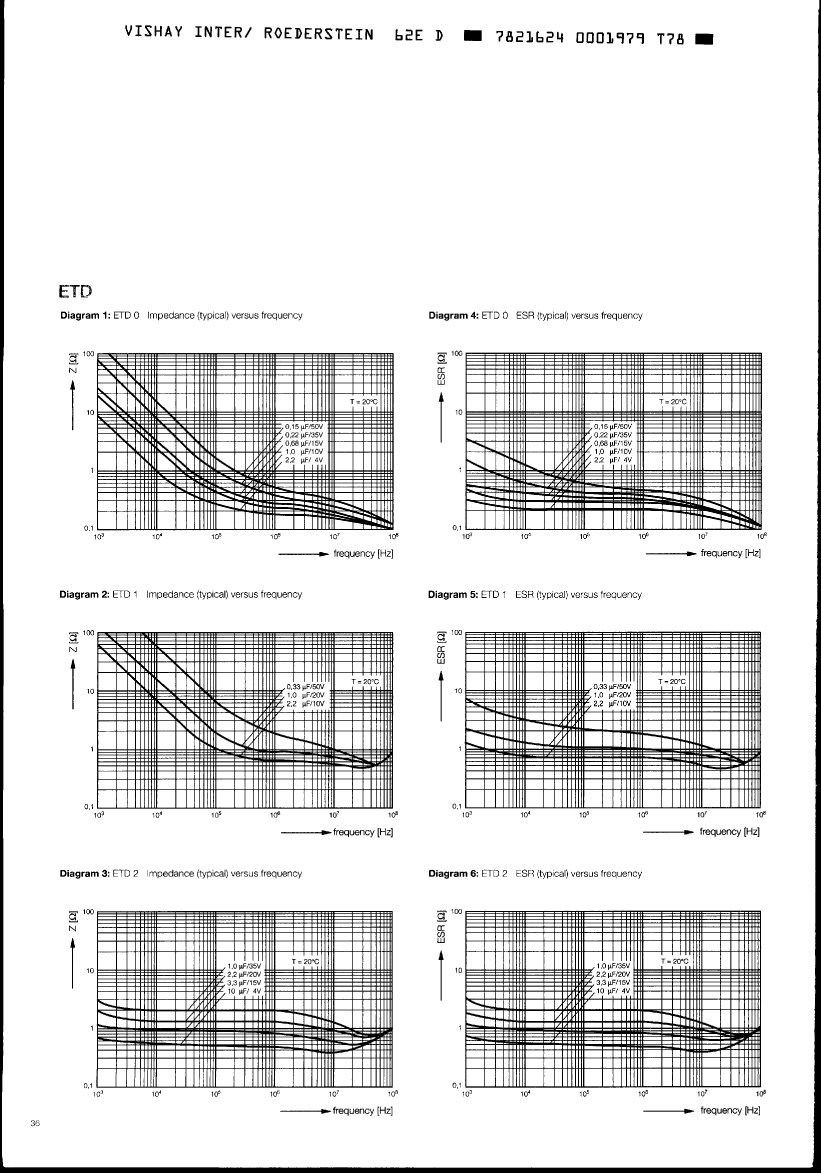

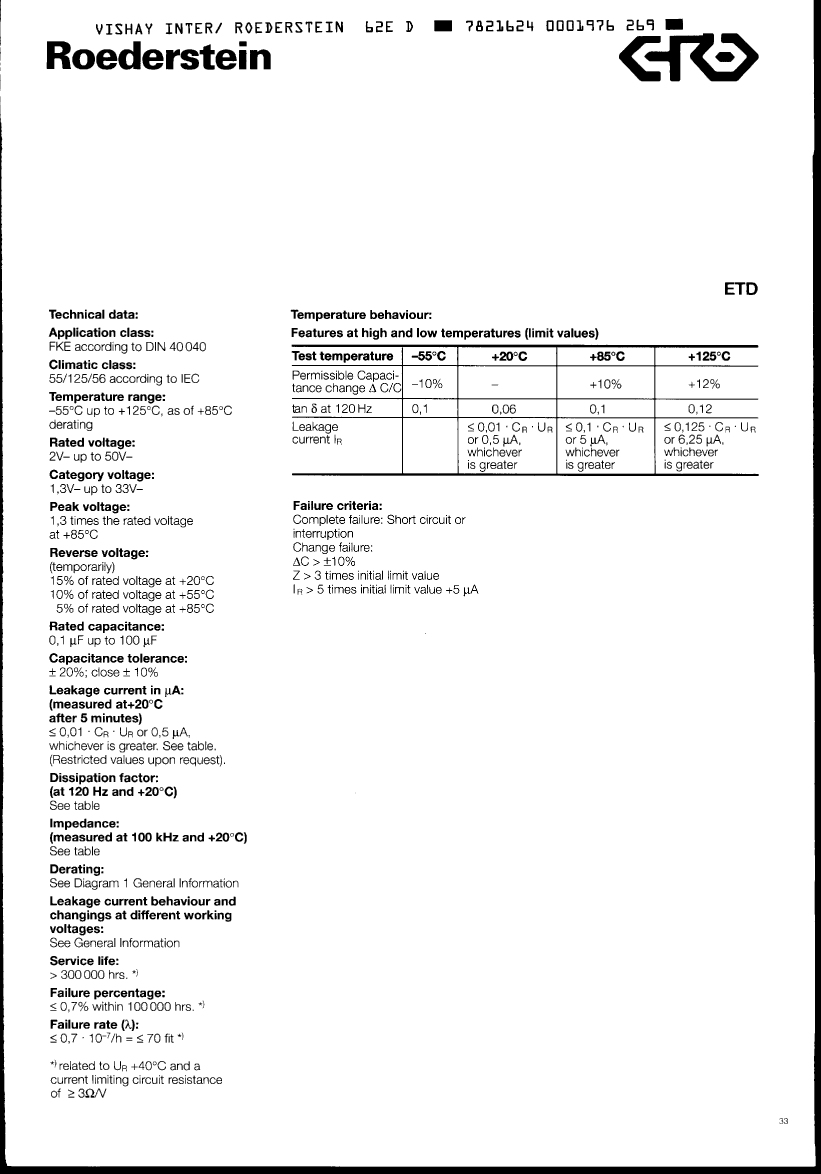

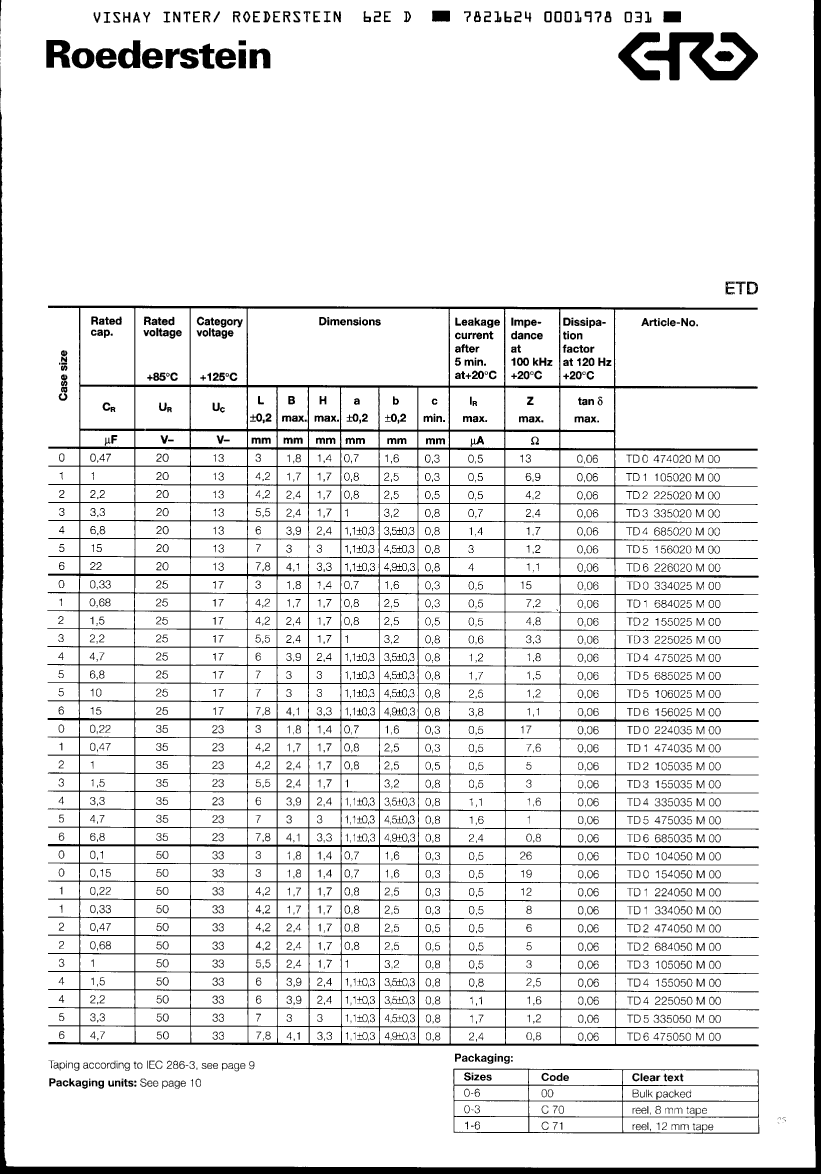

Preview

Download Datasheet

View All

TD4226006KC71 Related Products

	TD4226006KC71	TD5226015K00	TD2106004K00	TD2106004KC71	TD2106004MC71	TD2474050K00	TD2474050KC70	TD2474050M00	TD2474050MC70
Description	Tantalum Capacitor, Polarized, Tantalum, 6V, 10% +Tol, 10% -Tol, 22uF, 2415,	Tantalum Capacitor, Polarized, Tantalum, 15V, 10% +Tol, 10% -Tol, 22uF, 2812,	Tantalum Capacitor, Polarized, Tantalum, 4V, 10% +Tol, 10% -Tol, 10uF, 1709,	Tantalum Capacitor, Polarized, Tantalum, 4V, 10% +Tol, 10% -Tol, 10uF, 1709,	Tantalum Capacitor, Polarized, Tantalum, 4V, 20% +Tol, 20% -Tol, 10uF, 1709,	Tantalum Capacitor, Polarized, Tantalum, 50V, 10% +Tol, 10% -Tol, 0.47uF, 1709,	Tantalum Capacitor, Polarized, Tantalum, 50V, 10% +Tol, 10% -Tol, 0.47uF, 1709,	Tantalum Capacitor, Polarized, Tantalum, 50V, 20% +Tol, 20% -Tol, 0.47uF, 1709,	Tantalum Capacitor, Polarized, Tantalum, 50V, 20% +Tol, 20% -Tol, 0.47uF, 1709,
package instruction	, 2415	, 2812	, 1709	, 1709	, 1709	, 1709	, 1709	, 1709	, 1709
Reach Compliance Code	unknown	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
capacitance	22 µF	22 µF	10 µF	10 µF	10 µF	0.47 µF	0.47 µF	0.47 µF	0.47 µF
Capacitor type	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)
high	2.4 mm	3 mm	1.7 mm	1.7 mm	1.7 mm	1.7 mm	1.7 mm	1.7 mm	1.7 mm
length	6 mm	7 mm	4.2 mm	4.2 mm	4.2 mm	4.2 mm	4.2 mm	4.2 mm	4.2 mm
negative tolerance	10%	10%	10%	10%	20%	10%	10%	20%	20%
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package form	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT
method of packing	TR	Bulk	Bulk	TR	TR	Bulk	Tape	Bulk	Tape
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	10%	10%	10%	10%	20%	10%	10%	20%	20%
Rated (DC) voltage (URdc)	6 V	15 V	4 V	4 V	4 V	50 V	50 V	50 V	50 V
series	TD(4SIZE)	TD(5SIZE)	TD(2SIZE)	TD(2SIZE)	TD(2SIZE)	TD(2SIZE)	TD(2SIZE)	TD(2SIZE)	TD(2SIZE)
size code	2415	2812	1709	1709	1709	1709	1709	1709	1709
width	3.9 mm	3 mm	2.4 mm	2.4 mm	2.4 mm	2.4 mm	2.4 mm	2.4 mm	2.4 mm
Maker	-	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay
