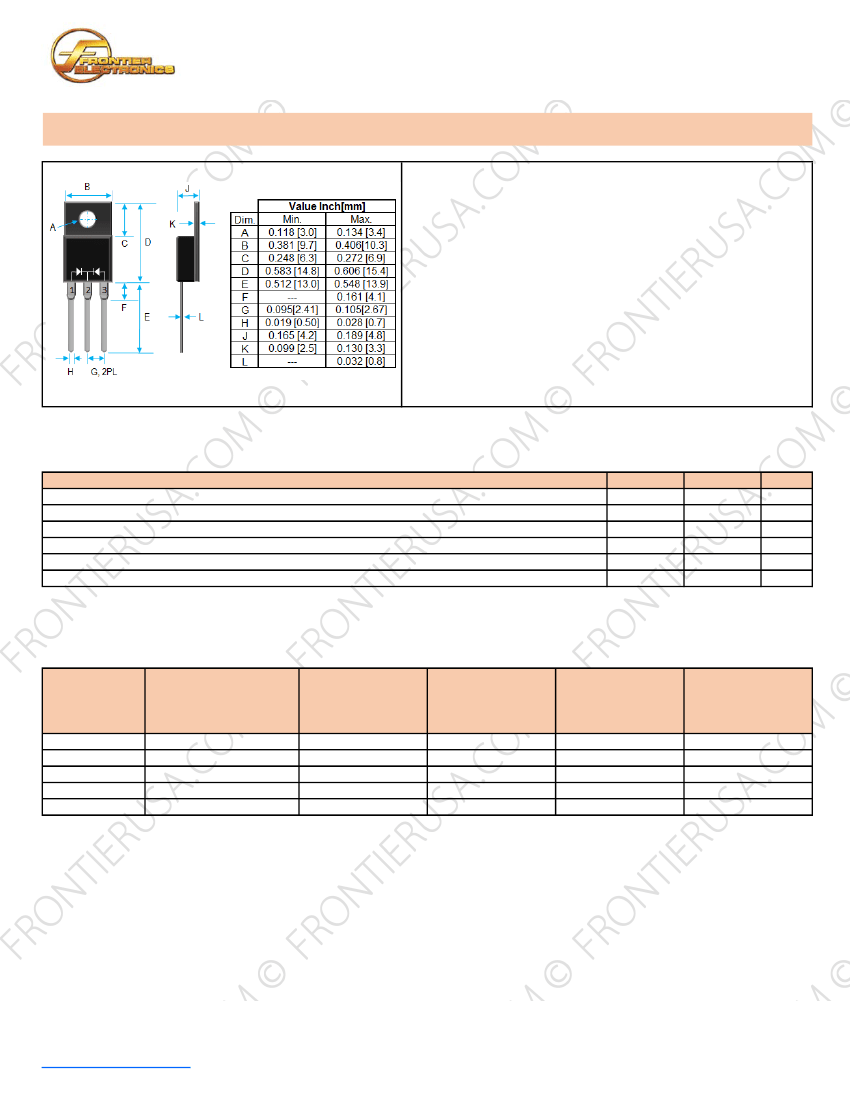

EF1605FCT THRU EF1660FCT SPECIFICATIONS
Rev. A
16.0A GLASS PASSIVATED EFFICIENCY FAST RECTIFIERS-50-600V
PRODUCT FEATURES
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
FLAMMABILITY CLASSIFICATION: 94V-0
GLASS PASSIVATED CHIP JUNCTION
LOW LEAKAGE
LOW FORWARD VOLTAGE DROP
HIGH SURGE CURRENT CAPABILITY
CASE: JEDEC ITO-220AB, MOLDED PLASTIC
DIMENSIONS IN INCHES AND (MILLIMETERS)
POLARITY: AS MARKED
WEIGHT: 1.7 GRAMS
LEADS: SOLDERABILITY PER MIL-STD-202 METHOD 208
RoHS, SUFFIX "-H" INDICATES HALOGEN FREE PARTS
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS RATINGS AT 25°C AMBIENT TEMPERATURE UNLESS OTHERWISE
SPECIFIED STORAGE AND OPERATING TEMPERATURE RANGE -55°C TO +150°C. SINGLE PHASE, HALF WAVE, 60 HZ,
RESISTIVE OR INDUCTIVE LOAD. FOR CAPACITIVE LOAD, DERATE CURRENT BY 20%.
RATINGS
MAXIMUM AVERAGE FORWARD RECTIFIED CURRENT @ 25°C
PEAK FWD SURGE CURRENT, 8.3ms HALF SINE-WAVE SUPERIMPOSED ON RATED LOAD
TYPICAL JUNCTION CAPACITANCE (NOTE2)
MAXIMUM REVERSE CURRENT @ 25℃
MAXIMUM REVERSE CURRENT @ 125℃
MAXIMUM REVERSE RECOVERY TIME (NOTE1)
1. REVERSE RECOVERY TIME TEST CONDITION, I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
2. MEASURED @ 1 MHZ AND APPLIED REVERSE VOLTAGE 0F 4.0 VOLTS
3. MAXIMUM FORWARD VOLTAGE @ I
o
4. DUAL RECTIFIER CONSTRUCTION, POSITIVE CENTETAP, 5.0A HALF WAVE AND10.0A FULL WAVE RECTIFICATION
SYMBOL
I
O
I
FSM
C
J
I
R
I
R
T
RR
VALUE
16
100
30
5
250
25
UNITS
A
A
pF
uA
uA
nS
PART NUMBER
EF1605FCT
EF1610FCT
EF1620FCT
EF1640FCT
EF1660FCT
MAX RECURRENT PK MAX RMS VOLTAGE MAX DC BLOCKING MAX FWD VOLTAGE
REV VOLTAGE V
RRM
(V)
V
RMS
(V)
VOLTAGE V
DC
(V)
V
F
(V)
50
100
200
400
600
35
70
140
280
420
50
100
200
400
600
0.98
0.98
0.98
1.25
1.9
MARKING
EF1605FCT
EF1610FCT
EF1620FCT
EF1640FCT
EF1660FCT
Frontier Electronics Corp.®
http://frontierusa.com/
1
667 E. Cochran St., Simi Valley, CA 93065
Phone: 1-805-522-9998, Fax: 1-805-522-9989
EF1605FCT THRU EF1660FCT SPECIFICATIONS
Rev. A

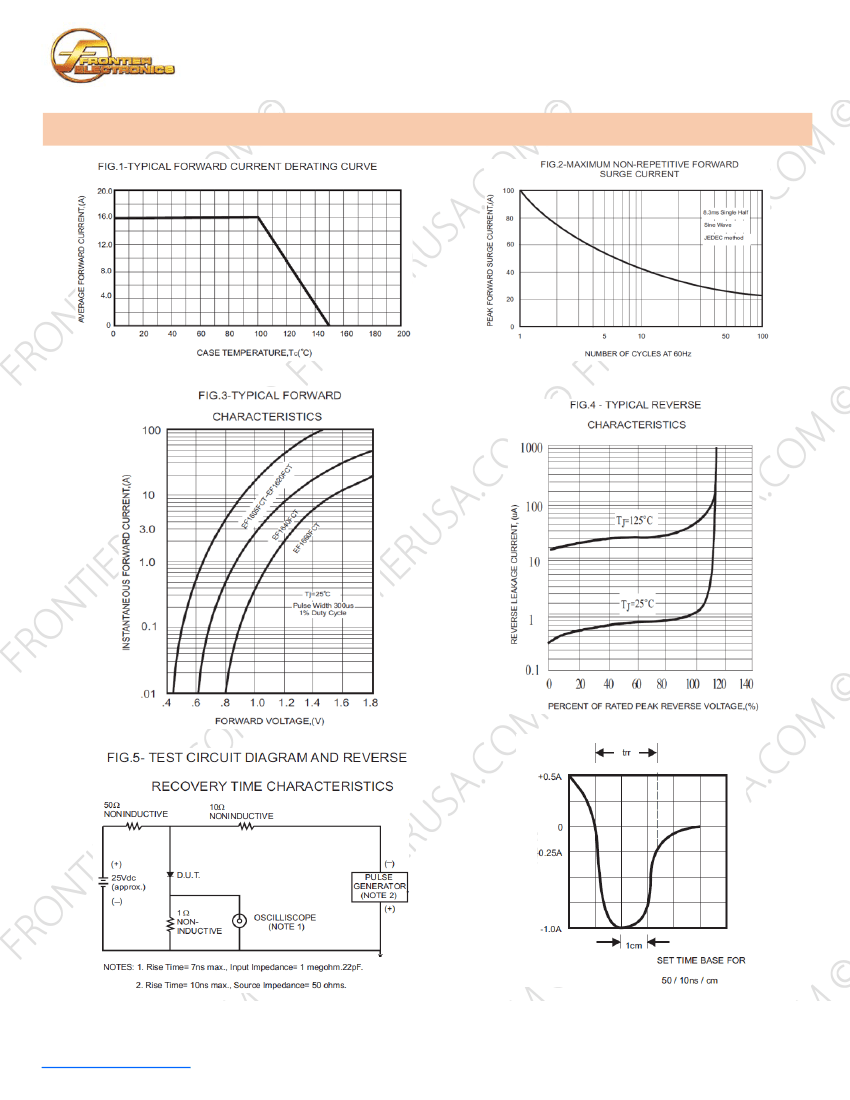

RATING AND CHARACTERISTIC CURVES
