54FCT2825CTLB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54FCT2825CTLB

54FCT2825CTLB: DescriptionJbar-Kbar Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CQCC28; Categorylogic logic; File Size463KB，9 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

54FCT2825CTLB Overview

Jbar-Kbar Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CQCC28

54FCT2825CTLB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1157440514
package instruction	QCCN, LCC28,.45SQ
Reach Compliance Code	not_compliant
JESD-30 code	S-XQCC-N28
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	JBAR-KBAR FLIP-FLOP
Maximum Frequency@Nom-Sup	83300000 Hz
MaximumI(ol)	0.012 A
Number of functions	8
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC28,.45SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Prop。Delay @ Nom-Sup	7 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE

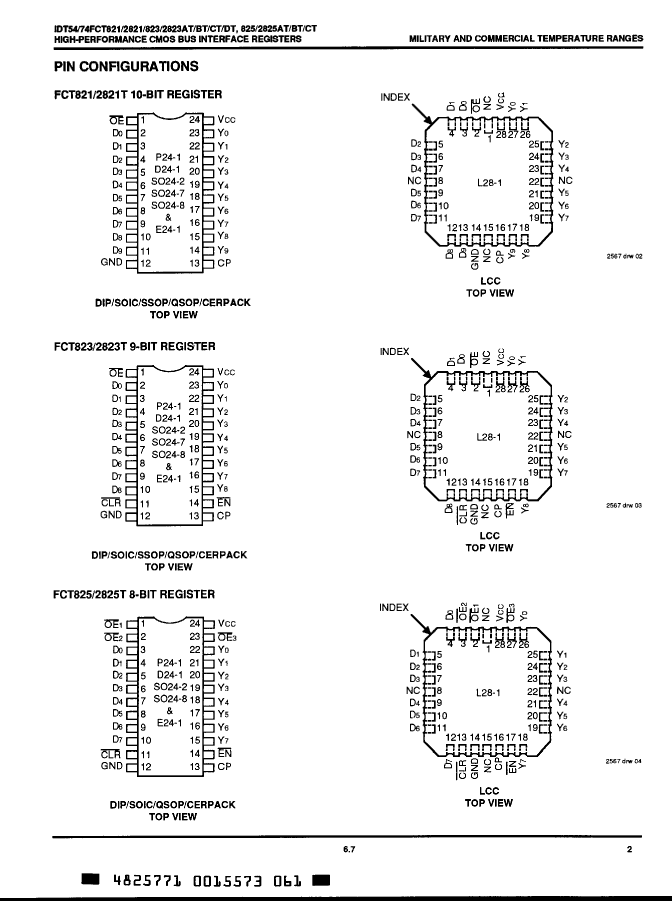

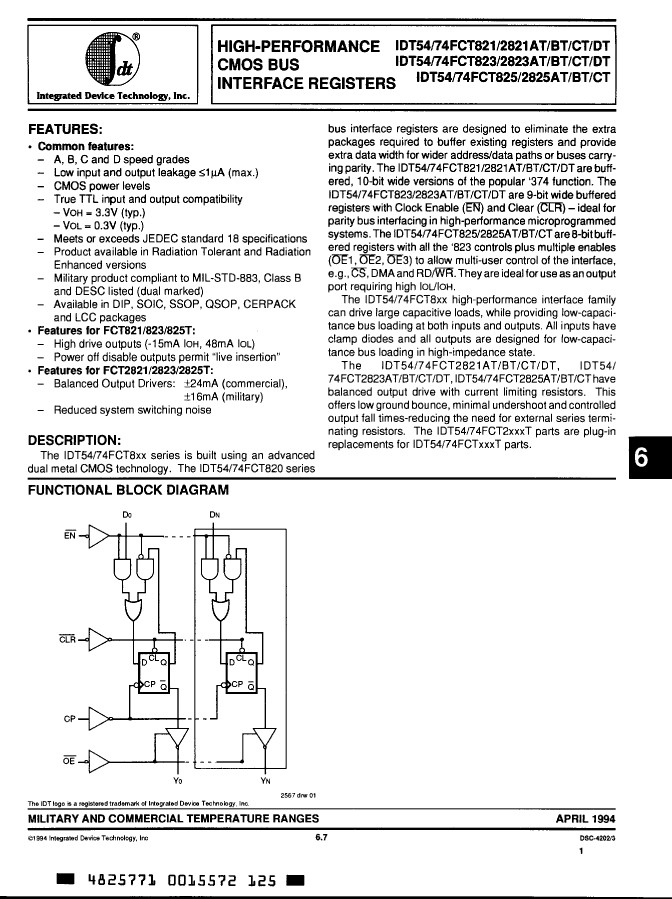

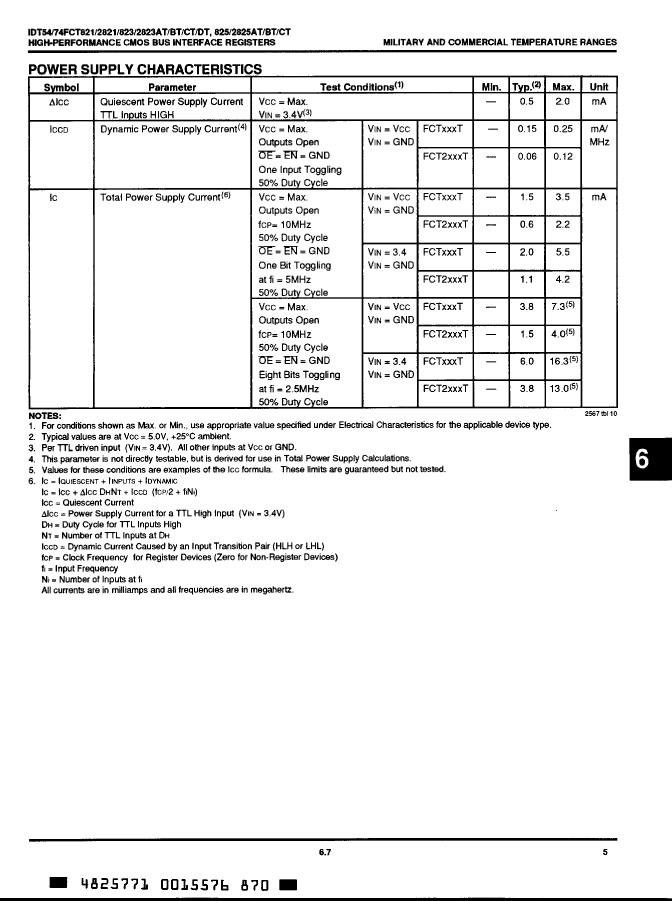

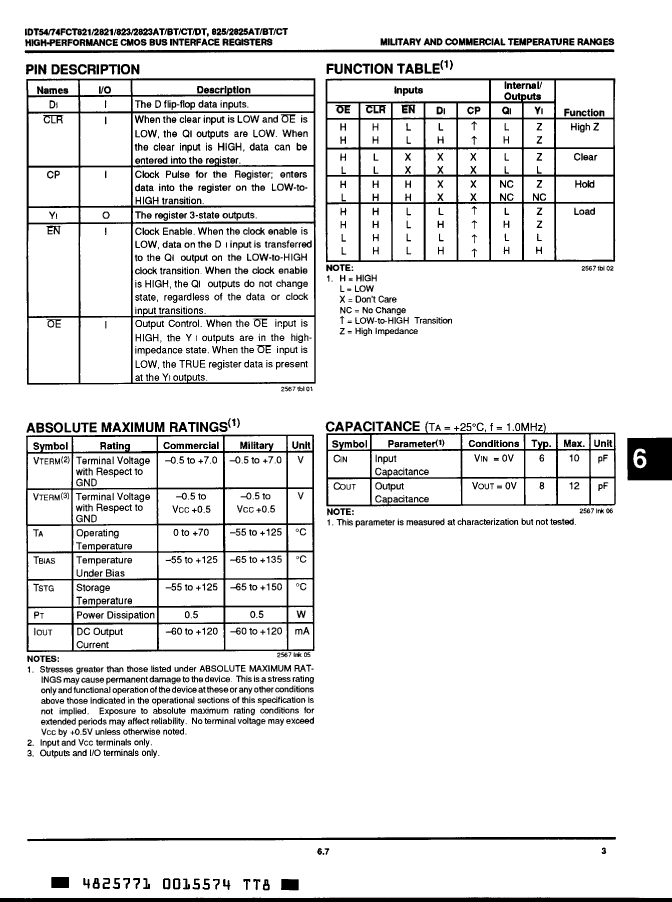

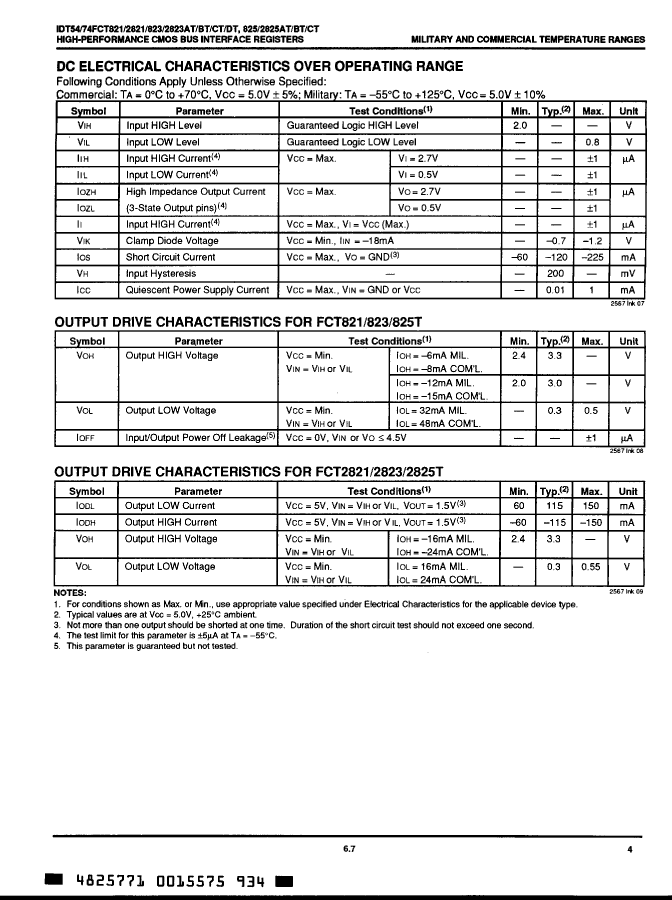

54FCT2825CTLB Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

54FCT2825CTLB Related Products

	54FCT2825CTLB	54FCT2823BTEB	74FCT2823CTSO	54FCT2823BTLB	74FCT2823ATP	74FCT2823ATPY	74FCT2823CTP	74FCT2823CTPY
Description	Jbar-Kbar Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CQCC28	Jbar-Kbar Flip-Flop, 9-Func, Positive Edge Triggered, CMOS, CDFP24	Jbar-Kbar Flip-Flop, 9-Func, Positive Edge Triggered, CMOS, PDSO24	Jbar-Kbar Flip-Flop, 9-Func, Positive Edge Triggered, CMOS, CQCC28	Jbar-Kbar Flip-Flop, 9-Func, Positive Edge Triggered, CMOS, PDIP24	Jbar-Kbar Flip-Flop, 9-Func, Positive Edge Triggered, CMOS, PDSO24	Jbar-Kbar Flip-Flop, 9-Func, Positive Edge Triggered, CMOS, PDIP24	Jbar-Kbar Flip-Flop, 9-Func, Positive Edge Triggered, CMOS, PDSO24
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
JESD-30 code	S-XQCC-N28	R-XDFP-F24	R-PDSO-G24	S-XQCC-N28	R-PDIP-T24	R-PDSO-G24	R-PDIP-T24	R-PDSO-G24
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	JBAR-KBAR FLIP-FLOP	JBAR-KBAR FLIP-FLOP	JBAR-KBAR FLIP-FLOP	JBAR-KBAR FLIP-FLOP	JBAR-KBAR FLIP-FLOP	JBAR-KBAR FLIP-FLOP	JBAR-KBAR FLIP-FLOP	JBAR-KBAR FLIP-FLOP
Maximum Frequency@Nom-Sup	83300000 Hz	83300000 Hz	83300000 Hz	83300000 Hz	71400000 Hz	71400000 Hz	83300000 Hz	83300000 Hz
MaximumI(ol)	0.012 A	0.012 A	0.012 A	0.012 A	0.012 A	0.012 A	0.012 A	0.012 A
Number of functions	8	9	9	9	9	9	9	9
Number of terminals	28	24	24	28	24	24	24	24
Maximum operating temperature	125 °C	125 °C	70 °C	125 °C	70 °C	70 °C	70 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCN	DFP	SOP	QCCN	DIP	SSOP	DIP	SSOP
Encapsulate equivalent code	LCC28,.45SQ	FL24,.4	SOP24,.4	LCC28,.45SQ	DIP24,.3	SSOP24,.3	DIP24,.3	SSOP24,.3
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK	SMALL OUTLINE	CHIP CARRIER	IN-LINE	SMALL OUTLINE, SHRINK PITCH	IN-LINE	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	240	NOT SPECIFIED	240
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Prop。Delay @ Nom-Sup	7 ns	8.5 ns	6 ns	8.5 ns	10 ns	10 ns	6 ns	6 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	FLAT	GULL WING	NO LEAD	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	0.635 mm	2.54 mm	0.635 mm
Terminal location	QUAD	DUAL	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	20	NOT SPECIFIED	20
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
Objectid	1157440514	-	-	1157440506	1157440845	1157440844	1157440853	1157440852
package instruction	QCCN, LCC28,.45SQ	-	SOP, SOP24,.4	QCCN, LCC28,.45SQ	-	SSOP, SSOP24,.3	-	SSOP, SSOP24,.3
