54FCT620ATEB

Description
Bus Driver/Transceiver, FCT Series, 1-Func, 8-Bit, Inverted Output, CMOS, CDFP20, CERPACK-20
Categorylogic    logic
File Size350KB,7 Pages
ManufacturerIDT (Integrated Device Technology)
Download Datasheet Parametric Compare View All

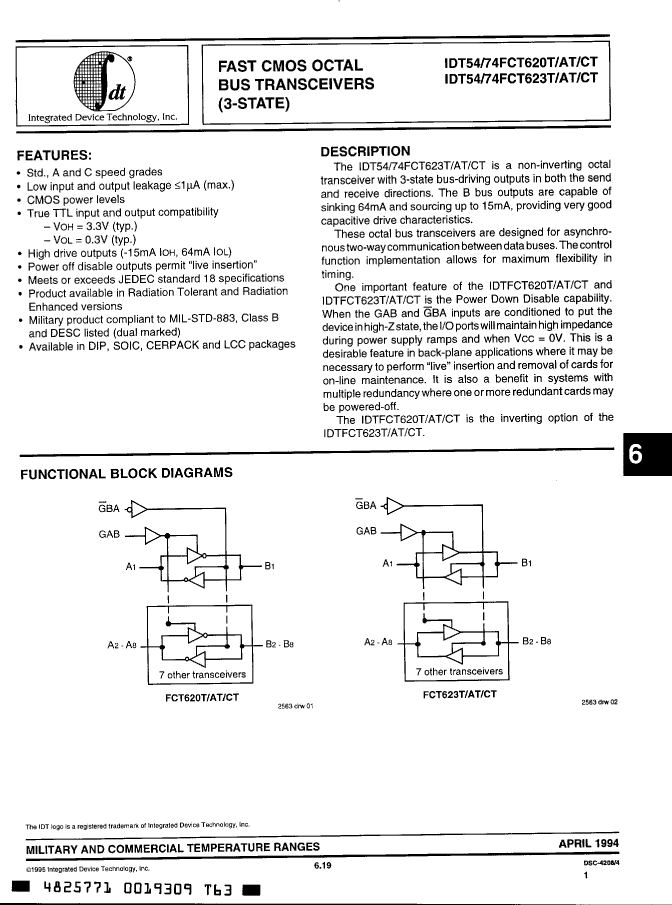

54FCT620ATEB Overview

Bus Driver/Transceiver, FCT Series, 1-Func, 8-Bit, Inverted Output, CMOS, CDFP20, CERPACK-20

54FCT620ATEB Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Objectid1164057914

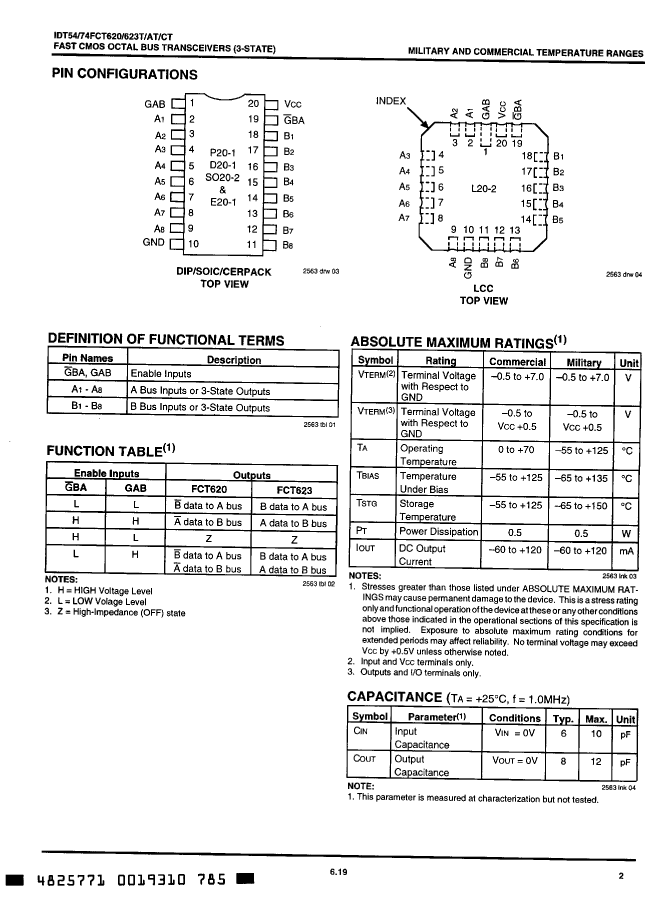

package instructionDFP, FL20,.3
Reach Compliance Codenot_compliant
Control typeINDEPENDENT CONTROL
Counting directionBIDIRECTIONAL
seriesFCT
JESD-30 codeR-CDFP-F20
JESD-609 codee0
MaximumI(ol)0.048 A
Number of digits8
Number of functions1
Number of ports2
Number of terminals20
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristics3-STATE
Output polarityINVERTED
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeDFP
Encapsulate equivalent codeFL20,.3
Package shapeRECTANGULAR
Package formFLATPACK
Peak Reflow Temperature (Celsius)225

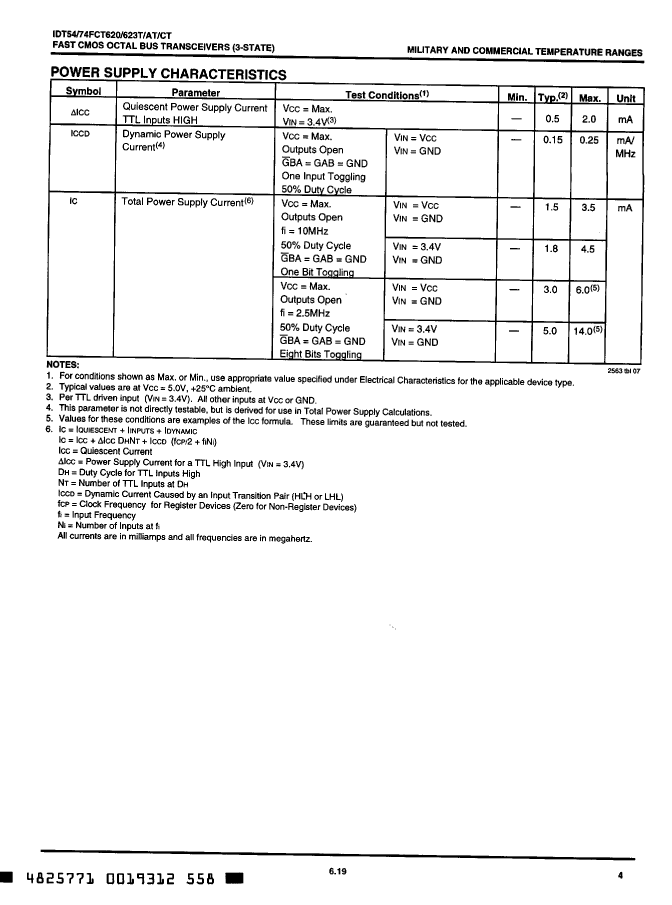

power supply5 V

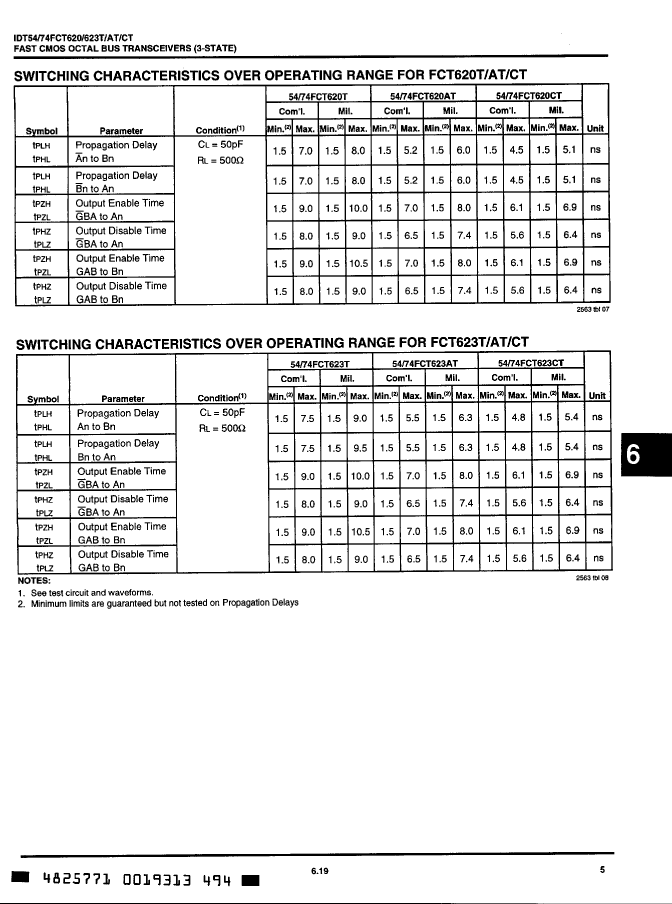

Prop。Delay @ Nom-Sup6 ns
propagation delay (tpd)6 ns
Certification statusNot Qualified
Filter levelMIL-STD-883 Class B

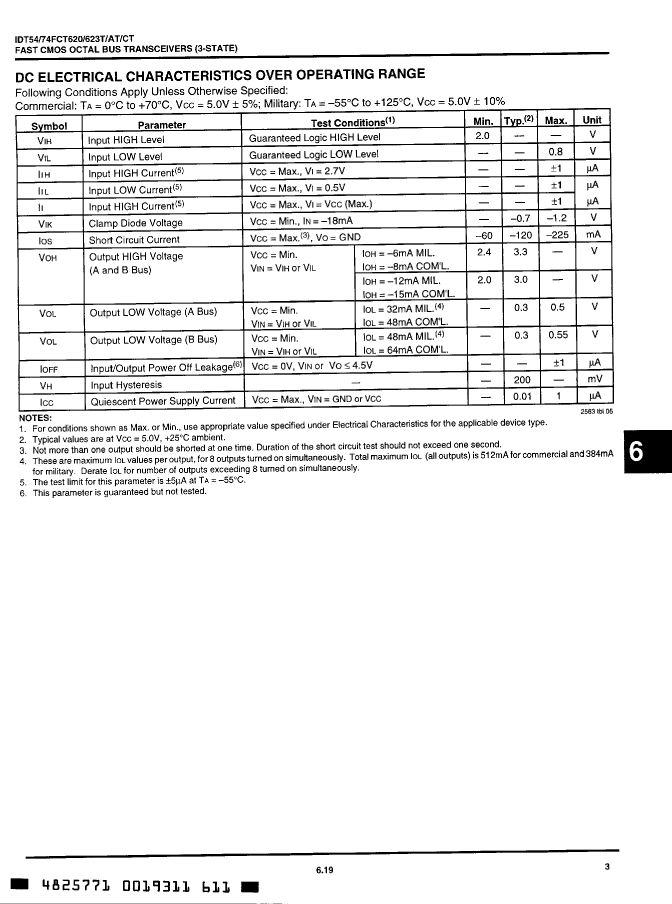

Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyCMOS
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formFLAT
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperature30
translateN/A

54FCT620ATEB Related Products

54FCT620ATEB 54FCT620CTEB 54FCT620TEB
Description Bus Driver/Transceiver, FCT Series, 1-Func, 8-Bit, Inverted Output, CMOS, CDFP20, CERPACK-20 Bus Driver/Transceiver, FCT Series, 1-Func, 8-Bit, Inverted Output, CMOS, CDFP20, CERPACK-20 Bus Driver/Transceiver, FCT Series, 1-Func, 8-Bit, Inverted Output, CMOS, CDFP20, CERPACK-20
Is it lead-free? Contains lead Contains lead Contains lead
Is it Rohs certified? incompatible incompatible incompatible
Objectid 1164057914 1164057917 1164057920
package instruction DFP, FL20,.3 DFP, FL20,.3 DFP, FL20,.3
Reach Compliance Code not_compliant not_compliant not_compliant
Control type INDEPENDENT CONTROL INDEPENDENT CONTROL INDEPENDENT CONTROL
Counting direction BIDIRECTIONAL BIDIRECTIONAL BIDIRECTIONAL
series FCT FCT FCT
JESD-30 code R-CDFP-F20 R-CDFP-F20 R-CDFP-F20
JESD-609 code e0 e0 e0
MaximumI(ol) 0.048 A 0.048 A 0.048 A
Number of digits 8 8 8
Number of functions 1 1 1
Number of ports 2 2 2
Number of terminals 20 20 20
Maximum operating temperature 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C
Output characteristics 3-STATE 3-STATE 3-STATE
Output polarity INVERTED INVERTED INVERTED
Package body material CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED
encapsulated code DFP DFP DFP
Encapsulate equivalent code FL20,.3 FL20,.3 FL20,.3
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form FLATPACK FLATPACK FLATPACK
Peak Reflow Temperature (Celsius) 225 225 225
power supply 5 V 5 V 5 V
Prop。Delay @ Nom-Sup 6 ns 5.1 ns 8 ns
propagation delay (tpd) 6 ns 5.1 ns 8 ns
Certification status Not Qualified Not Qualified Not Qualified
Filter level MIL-STD-883 Class B MIL-STD-883 Class B MIL-STD-883 Class B
Maximum supply voltage (Vsup) 5.5 V 5.5 V 5.5 V
Minimum supply voltage (Vsup) 4.5 V 4.5 V 4.5 V
Nominal supply voltage (Vsup) 5 V 5 V 5 V
surface mount YES YES YES
technology CMOS CMOS CMOS
Temperature level MILITARY MILITARY MILITARY
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form FLAT FLAT FLAT
Terminal pitch 1.27 mm 1.27 mm 1.27 mm
Terminal location DUAL DUAL DUAL
Maximum time at peak reflow temperature 30 30 30
translate N/A N/A N/A
