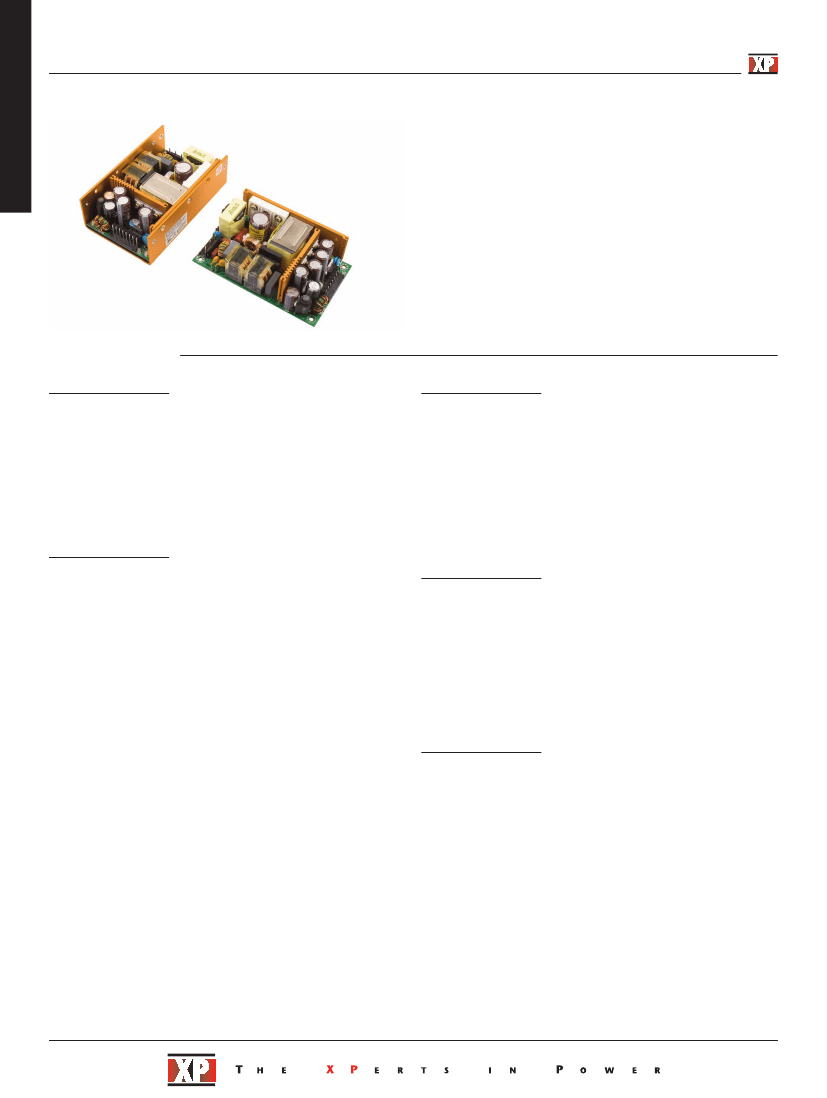

AC DC
150 Watts
SDU Series
•
•
•
•
•
•
•
Medical Approvals
3.2” x 5” Footprint
Fits 1U Applications
High Efficiency
12 V & 24 V Outputs
xppower.com
U Channel or Open Frame Versions
3 Year Warranty
Specification
Input
Input Voltage
Input Frequency
Input Current
Inrush Current
Power Factor
No Load Input Power
Earth Leakage Current
Input Protection
•
•
•
•
•
•
•
•
90-264 VAC
47-63 Hz
2.0 A at 90 VAC, 1 A at 230 VAC
Max 100 A at 230 VAC, cold start 25 °C
>0.9 at >40% load
<1 W
<250 µA at 264 VAC
F5 A / 350 V internal in line fuse
General
Efficiency
Isolation
• Typically 87%
• 4000 VAC Input to Output
1500 VAC Input to Ground
1000 VDC Output to Ground
• Primary to secondary: 2 x MOPP
Primary to earth: 1 x MOPP
• 65 kHz PFC typical,
55 kHz - 65 kHz PWM typical at full load
• 8.4 W/in
3
• 110 kHrs to MIL-HDBK-217F at 25 °C, GB
Protection Level
Switching Frequency
Power Density
MTBF
Output
Output Voltage
Output Voltage Trim
Initial Set Accuracy
Minimum Load
Start Up Delay
Start Up Rise Time
Hold Up Time
Line Regulation
Load Regulation
Over/Undershoot
Transient Response
Ripple & Noise
Overvoltage Protection
Overload Protection
Short Circuit Protection
Temperature
Coefficient
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
See table
±10%
±1%
No minimum load required
3.0 s max at 120 VAC
30 ms typical
20 ms min at full load, 120 VAC
±0.5%
±2%
3% max
4% max deviation, recovery to within
1% in 500 µs for a 50% load change
1% pk-pk, 20 MHz bandwidth
112-130% Vnom with auto recovery
110-185%
Trip & restart (hiccup mode), auto recovery
0.04% /°C
Environmental
Operating Temperature
• 0 °C to +70 °C, derate at 2.5%/ °C from
+50 °C to +70 °C
Storage Temperature
• -20 °C to +85 °C
Operating Humidity
• 5-90%, non-condensing
Storage Humidity
• 5-95%, non-condensing
Cooling
• Convection-cooled
Operating Altitude
• 3000 m
Vibration
• 5-50 Hz, acceleration 7.35 m/s
2
on
X, Y and Z axis
EMC & Safety
Emissions
Harmonic Currents
Voltage Flicker
ESD Immunity
Radiated Immunity
EFT/Burst
Surge
Conducted Immunity
Dips & Interruptions
• EN55011 Level B conducted & radiated
• EN61000-3-2 class A
EN61000-3-2 class C for loads ≥40%
• EN61000-4-2, level 3 Perf Criteria A
• EN61000-3-3
• EN61000-4-3, 3 V/m Perf Criteria A
• EN61000-4-4, level 2 Perf Criteria A
• EN61000-4-5, installation class 3,
Perf Criteria A
• EN61000-4-6, 3V Perf Criteria A
• EN61000-4-11, 30% 500 ms, 60% 100 ms,
100% 10 ms, 100% 5000 ms
Perf Criteria A, A, A, B high line,
A, B, A, B low line. See note 5
• ANSI AMMI ES60601-1:2005, CSA C22-2
No 60601-1:08, EN60601-1:2006
Safety Approvals
AC DC
Models and Ratings
Output Power
150 W
150 W
Notes
1. See derating curves for temperature and input curves.
2. Average efficiencies measured at 25%, 50%, 75% and 100% load with 230 VAC input.
3. For optional PCB only version, delete letter B from the model number e.g. SDU150PS24.
4. For optional 2 pin Molex input, add suffix ‘-D’ to model number e.g. SDU150PS24B-D.
5. At low line, 60% dip for 100 ms can meet performance criteria A with 50% load.
SDU150
Output Current
12.50 A
6.25 A
Efficiency
85%
86%
(2)
Output Voltage
12 V
24 V
Model Number
SDU150PS12B
SDU150PS24B
(3,4)

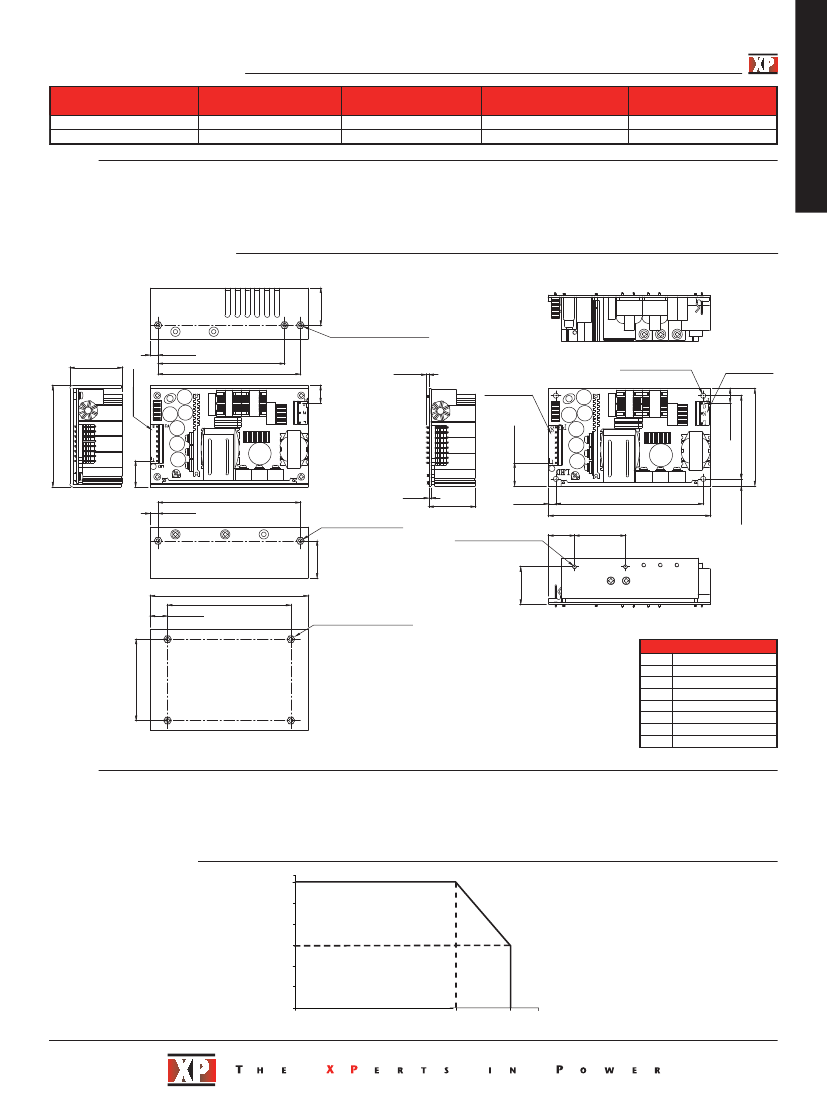

Mechanical Details
U Channel
1.18 (30.0)
M3 x P0.5 (Mounting holes) x3
0.25 (6.4)
1.66 (42.2)
Pitch=0.16 (4.0)
4.00 (101.6)
4.50 (114.3)
0.55 (14.0)
AC INPUT
Open Frame
0.12 (3.0) max
Pitch=0.16 (4.0)
ø4
(Mounting holes) x4
Pitch=0.31 (7.9)
0.45 (11.4)
AC INPUT
Notes
1. All dimensions are in inches (mm), tolerance: ±0.02 (±0.5)
2. Input connector P1 mates with Molex housing 09-50-3051 and Molex 2478
series crimp terminals.
3. Output connector P2 mates with Molex housing 09-50-3131 and Molex 3081
series crimp terminals.
4. Maximum mounting screw penetration: 0.14 (3.5).
5. Weight: U Channel: 1.27 lbs (580 g)
Open Frame: 0.86 lbs (390 g)
Derating Curve
100
Load (%)
3.21 (81.6)
0.82 (20.8)
2.57 (65.3)
3.00 (76.2)
0.71 (18.1)
DC OUTPUT
DC OUTPUT
4.50 (114.3)
0.25 (6.35)
0.21 (5.5)
0.06 (1.6)
1.44 (36.6)
M3 x P0.5 (Mounting holes) x2
0.22 (5.7)
0.80 (20.3)
4.55 (115.6)
5.00 (127.0)
1.57 (40.0)
M3*P0.5 (Mounting holes) x2
1.18 (30.0)
1.17 (29.6)
5.00 (127.0)
3.90 (99.1)
0.55 (14.0)
M3 x P0.5 (Mounting holes) x4
Pin
Pin
Pin
Pin
Pin
Pin
Pin
Pin
P2 Pin Connections
1
V1
2
V1
3
V1
4
V1
5
Return
6
Return
7
Return
8
Return
2.57 (65.3)
50
0
Ambient Temperature (°C)
50
70
