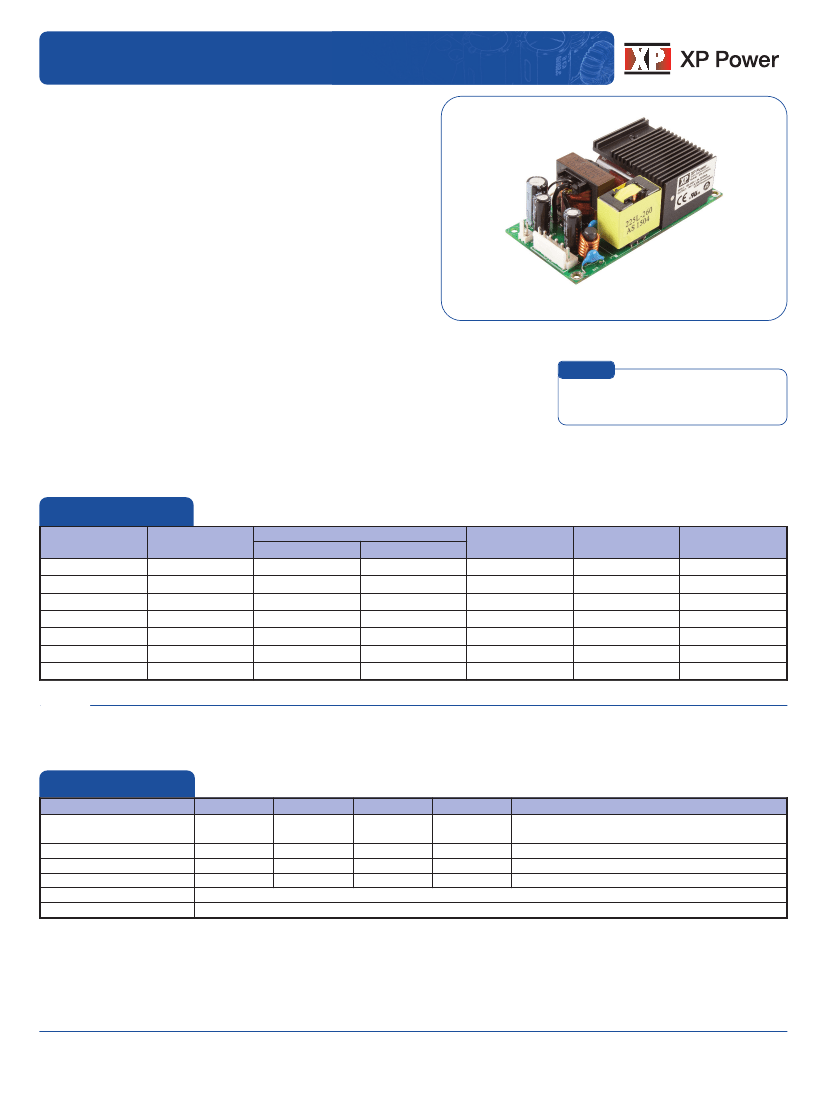

EPL225 Series
2
25Watts
• 150WConvection/225WForced-cooledRatings
• 2”by4”Footprint
• Low1.26”Profile
• 12VFanOutput
•HighEfficiency,upto95%
• ITE&MedicalApprovals
• HighPowerDensity
•Lessthan0.5WNoLoadInputPower
•3YearWarranty
AC-DC Power Supplies
The EPL225 series maximises efficiency across the load range and minimises no load power
consumption minimising heat dissipation, reducing running costs and enabling compliance with the
latest environmental goals and legislation. Fully approved for ITE and Industrial applications the
EPL225 provides up to 150W when convection cooled and up to 225 W when force cooled at just
10 CFM. A 12 V 0.5 A fan supply is included to support force cooled applications. The small
footprint, low profile, low noise and comprehensive safety agency approvals allow this versatile
product to be used in a wide range of ITE and industrial applications.
Dimensions:
EPL225:
4.00x2.00x1.26”(101.6x50.8x32.3mm)
Models & Ratings
Output
Power
225 W
225 W
225 W
225 W
225 W
225 W
225 W
Notes
1. Requires 10 CFM.
2. Minimum average efficiencies measured at 25%, 50%, 75% & 100% of 225 W load and 230 VAC input.
Output
Voltage
12.0 V
15.0 V
18.0 V
24.0 V
28.0 V
36.0 V
48.0 V
Output Current
Convection-cooled
Forced-cooled
(1)
12.50 A
10.00 A
8.33 A
6.25 A
5.36 A
4.16 A
3.10 A
18.75 A
15.00 A
12.50 A
9.38 A
8.04 A
6.25 A
4.69 A
Fan Output
12 V/0.5 A
12 V/0.5 A
12 V/0.5 A
12 V/0.5 A
12 V/0.5 A
12 V/0.5 A
12 V/0.5 A
Efficiency
(2)
93%
93%
93%
93%
93%
93%
93%
Model Number
EPL225PS12
EPL225PS15
EPL225PS18
EPL225PS24
EPL225PS28
EPL225PS36
EPL225PS48
Summary
Characteristic
Input Range
No Load Input Power
Efficiency
Operating Temperature
EMC
Safety Approvals
-20
95
+70
Minimum
80
Typical
115/230
Maximum
264
0.5
Units
VAC
W
%
°C
230 VAC (see fig.1 & 2)
See derating curve (fig.3)
Notes & Conditions
Derate output from 100% at 90 VAC to 90% at 85 VAC and
85% at 80 VAC
Conducted: EN55011/22, Class B, Radiated: EN55011/22, Class A (Class B with external core, see EMC Emissions for details)
IEC60950-1, EN60950-1, UL60950-1, CSA22.2 No. 234 per cUL, IEC60601, ES60601, EN60601
1
www.xppower.com
EPL225 Series
Input
Characteristic
Input Voltage - Operating
Input Frequency
Power Factor
Input Current - Full Load
Inrush Current
Earth Leakage Current
No load Input Power
Input Protection
Minimum
80
47
Typical
115/230
50/60
>0.9
2.2/1.1
120
80/140
230
0.5
F3.15 A/250 V Internal fuse fitted in line and neutral.
Maximum
264
63
AC-DC Power Supplies
Units
VAC
Hz
Notes & Conditions
Derate output from 100% at 90 VAC to 90% at 85 VAC and
85% at 80 VAC
230 VAC, 100% load EN61000-3-2 class A
EN61000-3-2 class C
> 145W
A
A
µA
W
115/230 VAC
230 VAC cold start, 25
ºC
115/230 VAC/50 Hz (Typ), 264 VAC/60 Hz (Max)
Output - Main Output
Characteristic
Output Voltage - V1
Initial Set Accuracy
Output Voltage Adjustment-V1
Minimum Load
Start Up Delay
Hold Up Time
Drift
Line Regulation
Load Regulation
Transient Response
Over/Undershoot
Ripple & Noise
Overvoltage Protection
Overload Protection
Short Circuit Protection
Temperature Coefficient
Overtemperature Protection
0.02
%/˚C
°C
Measured internally, Auto Resetting
110
110
10
20/13
±0.02
±0.5
±0.5
4
7
1
140
170
0
2
Minimum
12
Typical
Maximum
48
±1
Units
VDC
%
%
A
s
ms
%
%
%
%
%
% pk-pk
%
% I nom
Trip & Restart
115/230 VAC full load.
Min at full load, 115 VAC. Typical at 150W/ 225W
After 20 min warm up
90-264 VAC
0-100% load.
Recovery within 1% in less than 500 µs
for a 50-75% and 75-50% load step
Full load
20 MHz bandwidth and 10
µF electrolytic capacitator in
parallel with 0.1 µF ceramic capacitator.
Vnom, recycle input to reset
Notes & Conditions
See Models and Ratings table
50% load, 115/230 VAC
None
www.xppower.com
2
EPL225 Series
General
Characteristic
Efficiency
Isolation: Input to Output
Input to Ground
Output to Ground
Switching Frequency
Power Density
Mean Time Between Failure
Weight
300
0.43(195)
4000
1500
1500
40
50
130
95
Minimum
Typical
95
AC-DC Power Supplies
Maximum
Units
%
VAC
VAC
VAC
kHz
kHz
W/in
3
Notes & Conditions
230 VAC (see fig. 1 & 2)
2 MOPP
1 MOPP
1 MOPP
PFC
Main converters
Forced/convection-cooled
MIL-HDBK-217F, Notice 2 +25
°C GB
22/14.6
kHrs
lb(g)

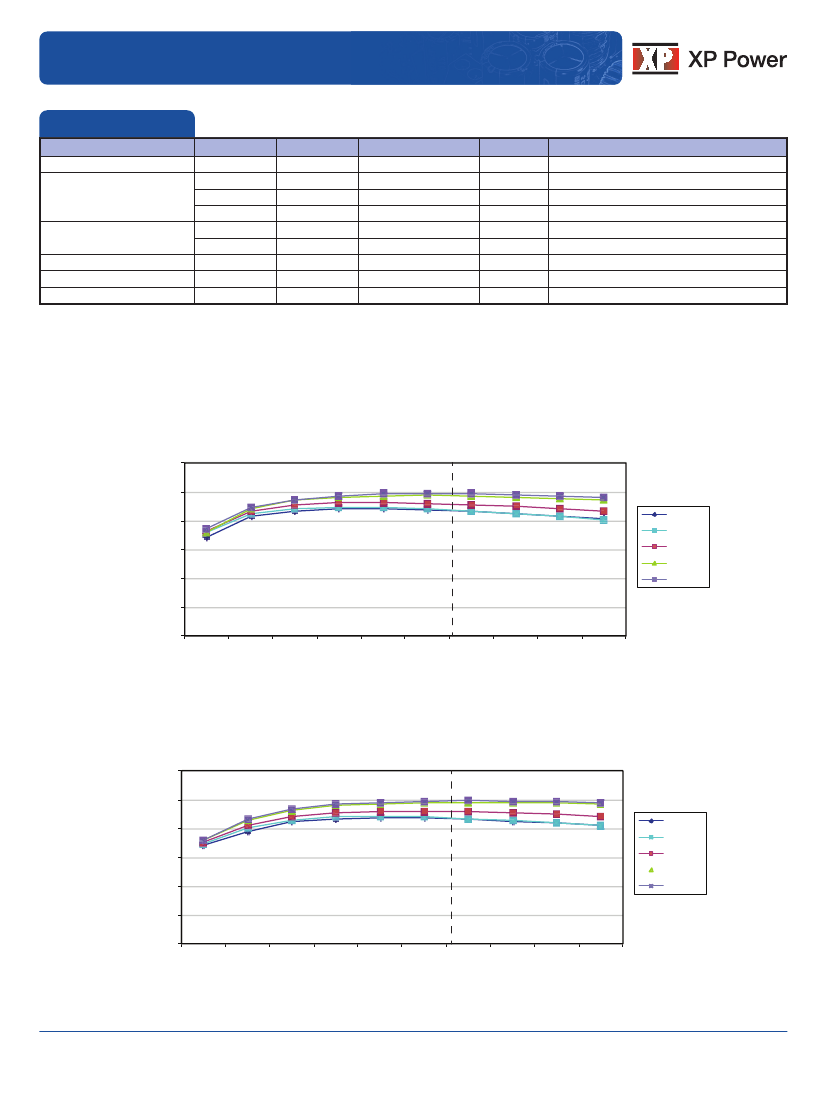

Efficiency Vs Load
Figure 1
EPL225PS12
12 V at 225 W
100%
95%
90%
85%
Convection-cooled
80%
75%
70%
Forced-cooled
85Vac input
90Vac input
115Vac input
230Vac input
264Vac input
Efficiency
10
20
30
40
50
60
70
80
90
100
Load (%)
Figure 2
EPL225PS24
24 V at 225 W
100%
95%
90%
85%
85Vac input
90Vac input
115Vac input
Convection-cooled
80%
75%
70%
Forced-cooled
230Vac input
264Vac input
10
20
30
40
50
60
70
80
90
100
Load (%)
3
www.xppower.com
EPL225 Series

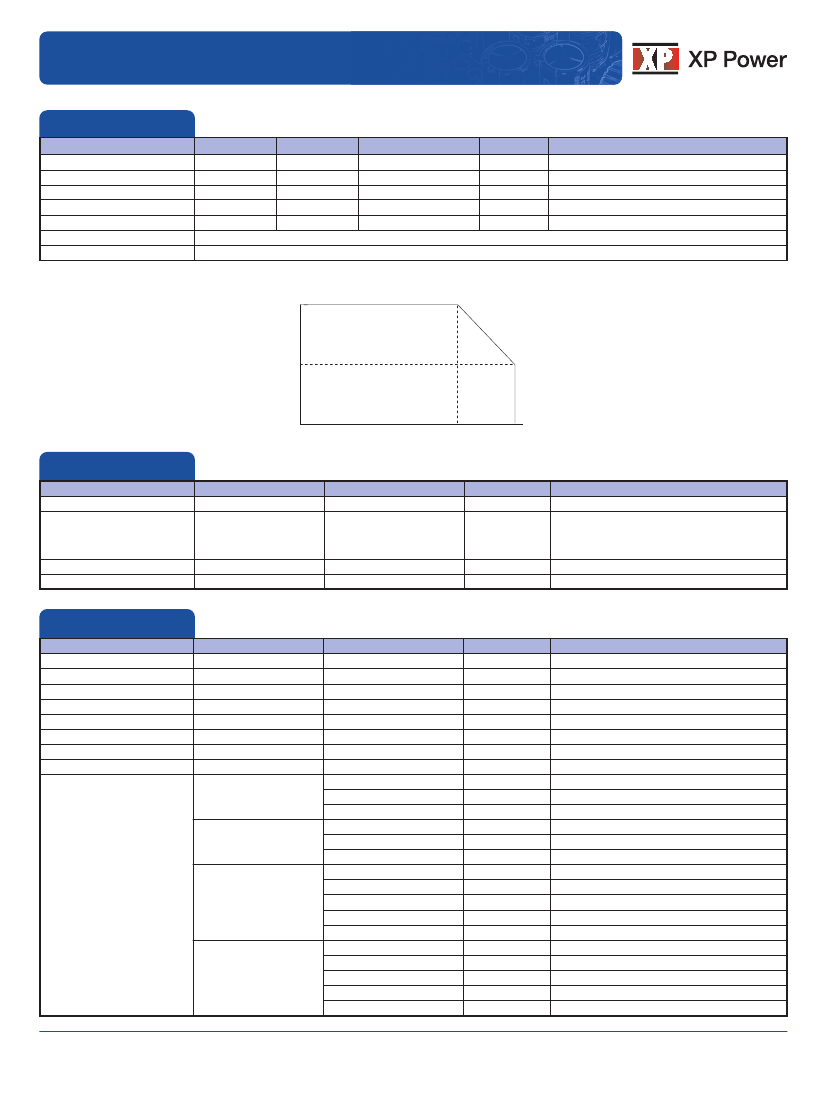

Environmental
Characteristic
Operating Temperature
Storage Temperature
Cooling
Humidity
Operating Altitude
Shock
Vibration
Minimum
-20
-40
10
5
95
Typical
AC-DC Power Supplies
Maximum
+70
+85
Units
°C
°C
CFM
%RH
m
Notes & Conditions
See derating curve, fig.3
Forced-cooled > 150W
Non-condensing
5000
±3 x 30g shocks in each plane, total 18 shocks. 30g = 11ms (+/- 0.5msecs), half sine. Conforms to EN60068-2-27
Single axis 10-500 Hz at 2g sweep and endurance at resonance in all 3 planes. Conforms to EN60068-2-6
Temperature Derating Curve
Figure 3
Output Load (%)
100
50
0
-20
0
+50
+70
Ambient Temperature (ºC)
EMC: Emissions
Phenomenon
Conducted
Radiated
Harmonic Current
Voltage Functions
Standard
EN55011/22
EN55011/22
EN61000-3-2
EN61000-3-3
Test Level
Class B
Class A
Class A
Class B with King Core
K5B RC 13*23*7 on input cable.
Meet Class C for loads above 145W
Criteria
Notes & Conditions
EMC: Immunity
Phenomenon
Medical Device EMC
Low Voltage PSU EMC
ESD
Radiated
EFT
Surges
Conducted
Magnetic Fields
Standard
IEC60601-1-2
EN61204-3
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN55024 (100 VAC)
Test Level
Ed.4.0 : 2014
High severity level
4
3
3
Installation class 3
3
4
Dip >95% (0 VAC), 8.3 ms
Dip 30% (70 VAC), 416 ms
Dip >95% (0 VAC), 4160 ms
Dip >95% (0 VAC), 10.0 ms
EN55024 (240 VAC)
Dip 30% (168 VAC), 500 ms
Dip
100% (0 VAC), 10.0 ms
Dip 100% (0 VAC), 20 ms
Dip >95% (0 VAC), 5000 ms
Criteria
as below
as below
A
A
A
A
A
A
A
A
B
A
A
B
A
A
A
B
A
A
A
B
A
At 150 W
At 170 W
A
At 120 W
Derate Output Power to 30W
At 200 W
At 200 W
±8kV contact, ±15kV air
Notes & Conditions
Dips and Interruptions
EN60601-1-2 (100 VAC)
Dip 60% (40 VAC), 100 ms
Dip 30% (40 VAC), 500 ms
Dip
100% (0 VAC), 10.0 ms
Dip 100% (0 VAC), 20 ms
Dip 100% (0 VAC), 5000 ms
Dip 60% (96 VAC), 100 ms
EN60601-1-2 (240 VAC)
Dip 30% ( 168 VAC), 500 ms
Dip 100% (0 VAC), 5000 ms
www.xppower.com
4
EPL225 Series
Safety Approvals
Safety Agency
CB Report
UL
TUV
CB Report
UL
EN
CE
Isolation
Primary to Secondary
Primary to Earth
Secondary to Earth
Safety Standard
IEC60950-1:2005 + A1:2009 + A2: 2013
UL60950-1 (2011), CSA 22.2 No.60950-1-11 Ed 2
AC-DC Power Supplies
Notes & Conditions
Information Technology
Information Technology
Information Technology
Medical
Medical
Medical
EN60950-1: 2006 + A11: 2009 + A1:2010 + A12: 2012
IEC60601: 2005 + A1
ES60601: 2005/(R)2012 CSA C22.2 No.60601-1: 2014
EN60601: 2006 + A12
LVD
Safety Standard
2 x MOPP (Means of Patient Protection)
1 x MOPP (Means of Patient Protection)
1 x MOPP (Means of Patient Protection)
Notes & Conditions

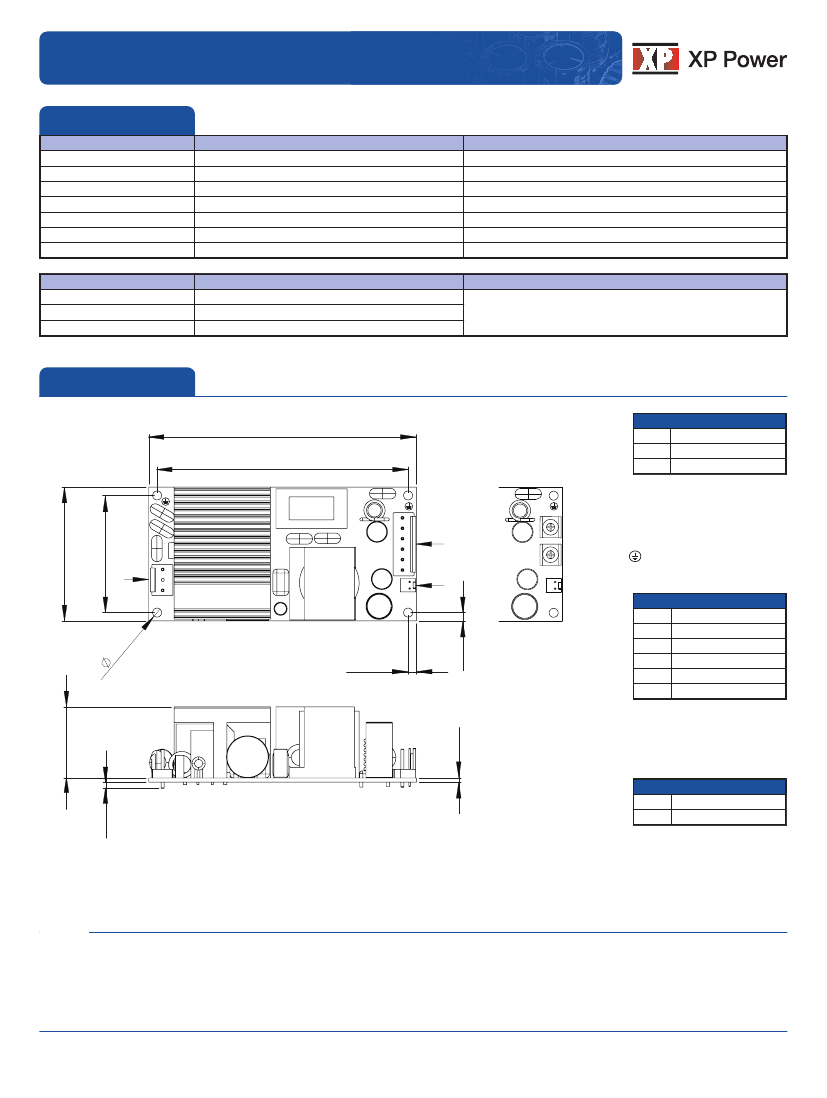

Mechanical Details
CN1 - Input Connector
Pin 1
Pin 2
3.75 (95.3)
For 18 V to 48 V
For 12 V & 15 V
4.00 (101.6)
Line
Not Fitted
Neutral
Pin 3
L4
1
Mates with JST housing
VHR-3N and JST Series
SVH-21T-P1.1 crimp terminals
+Vout
CN2
COM
2.00 (50.8)
1.75 (44.5)
Mounting holes marked with
must be connected to safety earth
3
6
CN1
1
TR1
C52
2
1
CN3
2
1
CN2 - Output Connector
Pin 1
0.13 (3.2)
+Vout
+Vout
+Vout
Com
Com
Com
(3
.4
)
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
0.
13
0.13 (3.2)
1.10 (28.0)
C2
0.06 (1.6)
Mates with JST housing
VHR-6N and JST Series
SVH-21T-P1.1 crimp terminals
CN3 - Fan Connector
0.10 (2.6)
Pin 1
Pin 2
Fan -
Fan +
Mates with Molex housing
22-01-1022 and 2759 crimp terminals
Notes
1. All dimensions shown in inches (mm).
Tolerance: ±0.02 (0.5)
2. Weight: 0.43 lbs (195 g) approx.
5
www.xppower.com
