M55342H11W129AC-TR datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> M55342H11W129AC-TR

M55342H11W129AC-TR: DescriptionFixed Resistor, Thin Film, 0.05W, 129ohm, 50V, 0.1% +/-Tol, -50,50ppm/Cel, 0402,; CategoryPassive components The resistor; File Size108KB，1 Pages; ManufacturerState of the Art Inc.; Environmental Compliance

Download Datasheet Parametric View All

M55342H11W129AC-TR Overview

Fixed Resistor, Thin Film, 0.05W, 129ohm, 50V, 0.1% +/-Tol, -50,50ppm/Cel, 0402,

M55342H11W129AC-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	257471382
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Chip
JESD-609 code	e4
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package height	0.46 mm
Package length	1.07 mm
Package form	SMT
Package width	0.56 mm
method of packing	TR
Rated power dissipation(P)	0.05 W
Guideline	MIL-PRF-55342
resistance	129 Ω
Resistor type	FIXED RESISTOR
series	M55342/11-THINFILM
size code	0402
technology	THIN FILM
Temperature Coefficient	50 ppm/°C
Terminal surface	Gold (Au)
Tolerance	0.1%
Operating Voltage	50 V

Preview

Download Datasheet

View All

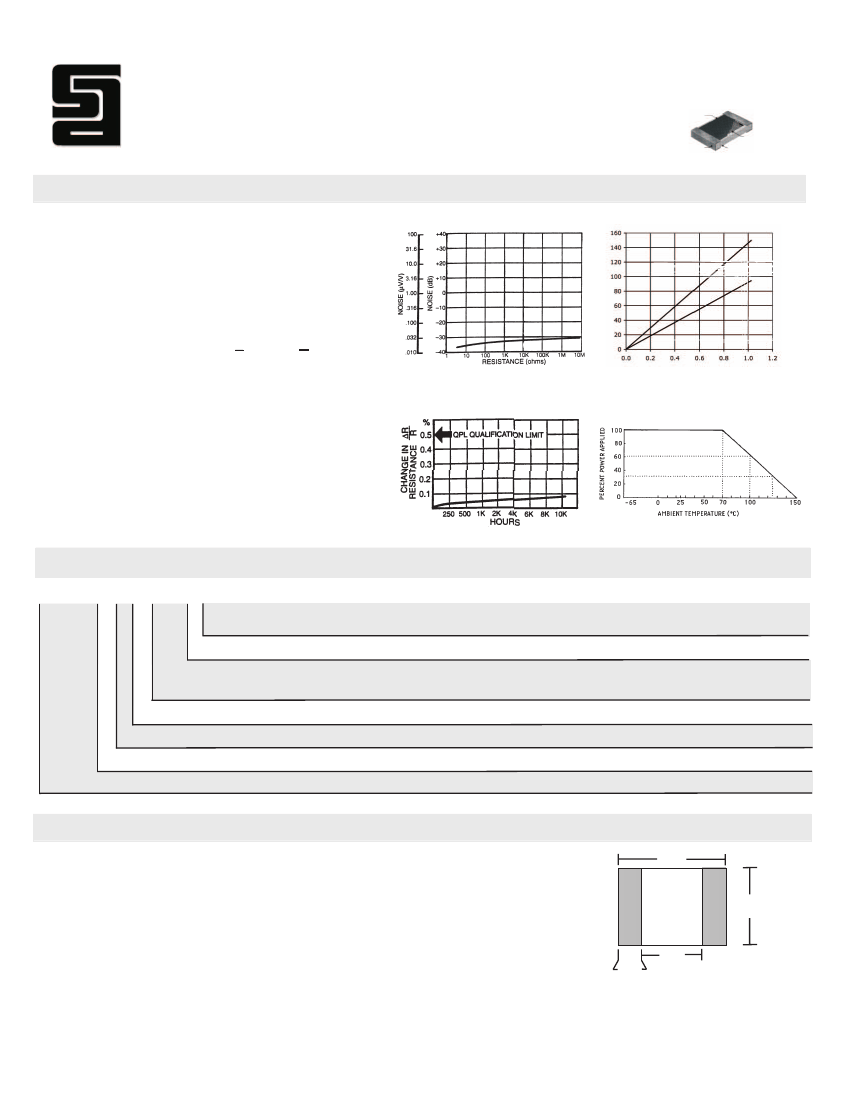

State of the Art, Inc.

Thin Film Chip Resistor

M55342/11 RM0402

PROTECTIVE

ENCAPSULANT

PRECISION

THIN FILM

RESISTOR

99.6% ALUMINA CHIP

WRAPAROUND

TERMINATIONS

PRETINNED

PERFORMANCE

TEMPERATURE RISE (°C)

Resistance Range

Tolerances

Maximum Power

Maximum Voltage

100

- 100K

0.1%, 1%, 2%, 5%

50 mW

50 Volts

CURRENT NOISE

POWER DISSIPATION

fiber epoxy board

ceramic board

TESTS

TCR (-55 to +125

C) in ppm/

Thermal Shock

Low Temperature Operation

Short-time Overload

Resistance to Soldering Heat

Moisture Resistance

Life, 2,000 Hours (qualification)

High Temperature Exposure

CHARACTERISTICS*

±25

±0.1%

±0.2%

±0.5%

±0.1%

±50

±0.25%

±0.1%

±0.25%

±0.4%

±0.5%

±0.2%

POWER DISSIPATION (WATTS)

LIFE TEST

POWER DERATING

*Maximum allowable change per MIL-PRF-55342,

typical change is 10% of these values.

PART NUMBERING

M55342 H 11 B 100D R - TR

PACKAGING CODE: TR = Tape & Reel W= Waffle Pack

PRODUCT LEVEL DESIGNATOR: M: 1% per 1000 hrs. R: 0.01% P: 0.1% T: Space Level C: Non - ER

RESISTANCE AND TOLERANCE CODE:

Three significant digits, with a letter indicating the

decimal location, the tolerance, and the value range.

TERMINATION MATERIALS:

SIZE CODE: /11 = RM0402

TEMPERATURE CHARACTERISTIC: E: ± 25ppm H: ± 50ppm

PERFORMANCE SPECIFICATION MIL-PRF-55342

B: Solderable wraparound

A: 0.1%

D: 1%

G: 2%

J: 5%

B: 0.1% K

E: 1% K

H: 2% K

K: 5% K

C: 0.1% M

F: 1% M

T: 2% M

L: 5% M

W: Gold wire bondable

MECHANICAL

INCHES

MILLIMETERS

.072

MINIMUM

RECOMMENDED

MOUNTING

PADS

(INCHES)

Length

Width

Thickness

Top Term

Bottom Term

Gap

Approx. Weight

.042 (.034 - .050)

.022 (.017 - .027)

.018 (.010 - .033)

.008 (.005 - .015)

.026 (.022 - .030)

.00108 grams

1.07

0.56

0.46

0.20

0.66

(0.86 - 1.27)

(0.43 - 0.69)

(0.25 - 0.84)

(0.13 - 0.38)

(0.56 - 0.76)

.024

.022

.025

2470 Fox Hill Road, State College, PA 16803-1797

Phone (814) 355-8004 Fax (814) 355-2714 Toll Free 1-800-458-3401

“Specifications subject to change without notice.”

www.resistor.com

04/09/08
