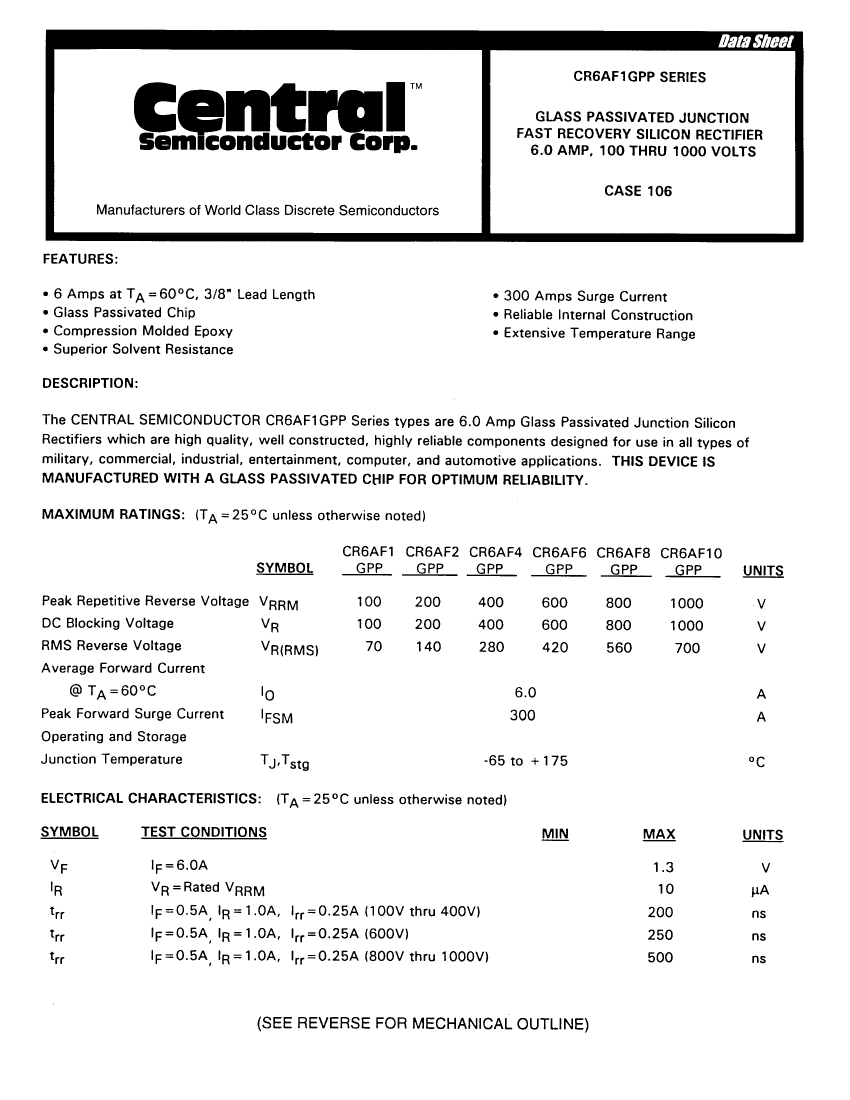

CR6AF10GPP: DescriptionGLASS PASSIVATED JUNCTION FAST RECOVERY SILICON RECTIFIER 6.0 AMP 100 THRU 1000 VOLTS; CategoryDiscrete semiconductor diode; File Size62KB，2 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

CR6AF10GPP Overview

GLASS PASSIVATED JUNCTION FAST RECOVERY SILICON RECTIFIER 6.0 AMP 100 THRU 1000 VOLTS

CR6AF10GPP Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Central Semiconductor

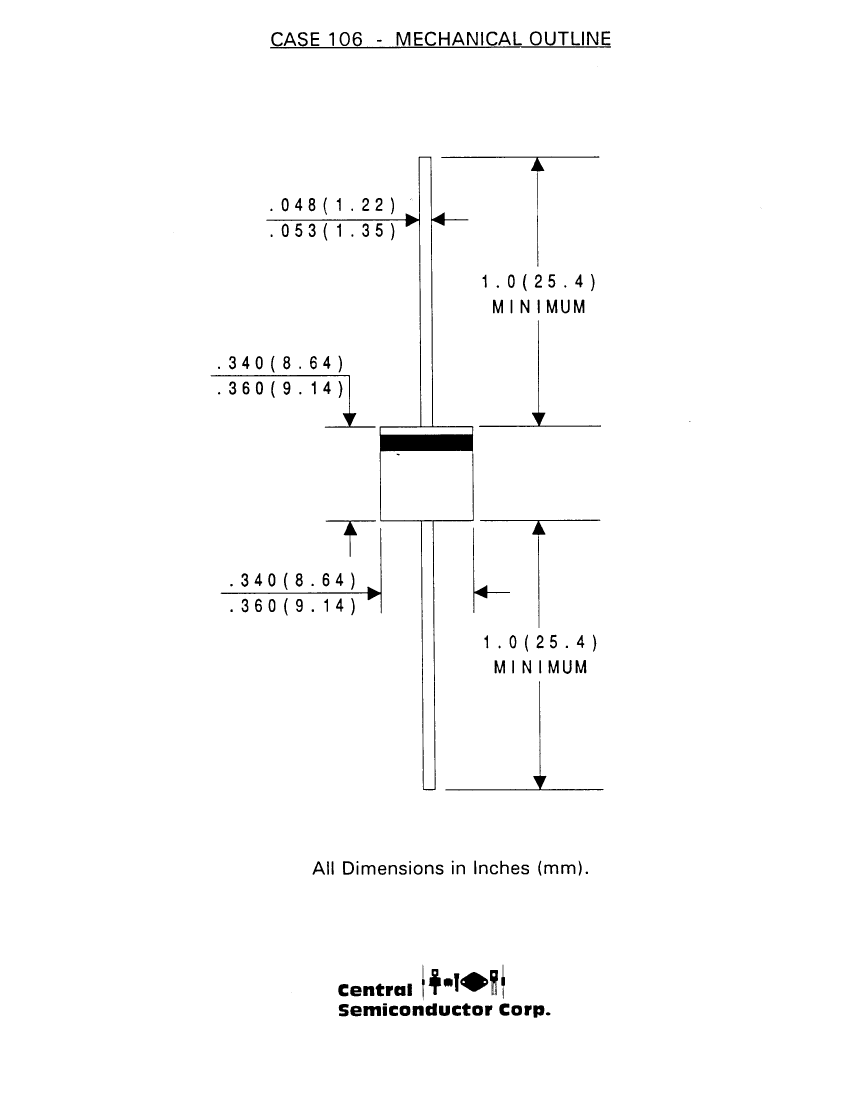

package instruction	PLASTIC, CASE 106, 2 PIN
Contacts	2
Manufacturer packaging code	CASE 106
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	FAST RECOVERY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V
JESD-30 code	O-PALF-W2
JESD-609 code	e0
Maximum non-repetitive peak forward current	300 A
Number of components	1
Phase	1
Number of terminals	2
Maximum output current	6 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1000 V
Maximum reverse recovery time	0.5 µs
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

145 Adams Avenue, Hauppauge, NY 11788 USA

Tel: (631) 435-1110 • Fax: (631) 435-1824

CR6AF10GPP Related Products

	CR6AF10GPP	CR6AF1GPP	CR6AF2GPP	CR6AF4GPP	CR6AF6GPP	CR6AF8GPP
Description	GLASS PASSIVATED JUNCTION FAST RECOVERY SILICON RECTIFIER 6.0 AMP 100 THRU 1000 VOLTS	GLASS PASSIVATED JUNCTION FAST RECOVERY SILICON RECTIFIER 6.0 AMP 100 THRU 1000 VOLTS	GLASS PASSIVATED JUNCTION FAST RECOVERY SILICON RECTIFIER 6.0 AMP 100 THRU 1000 VOLTS	GLASS PASSIVATED JUNCTION FAST RECOVERY SILICON RECTIFIER 6.0 AMP 100 THRU 1000 VOLTS	GLASS PASSIVATED JUNCTION FAST RECOVERY SILICON RECTIFIER 6.0 AMP 100 THRU 1000 VOLTS	GLASS PASSIVATED JUNCTION FAST RECOVERY SILICON RECTIFIER 6.0 AMP 100 THRU 1000 VOLTS
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	PLASTIC, CASE 106, 2 PIN	O-PALF-W2	PLASTIC, CASE 106, 2 PIN	PLASTIC, CASE 106, 2 PIN	PLASTIC, CASE 106, 2 PIN	PLASTIC, CASE 106, 2 PIN
Contacts	2	2	2	2	2	2
Manufacturer packaging code	CASE 106	CASE 106	CASE 106	CASE 106	CASE 106	CASE 106
Reach Compliance Code	not_compliant	not_compliant	_compli	_compli	_compli	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
application	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
JESD-609 code	e0	e0	e0	e0	e0	e0
Maximum non-repetitive peak forward current	300 A	300 A	300 A	300 A	300 A	300 A
Number of components	1	1	1	1	1	1
Phase	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum output current	6 A	6 A	6 A	6 A	6 A	6 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1000 V	100 V	200 V	400 V	600 V	800 V
Maximum reverse recovery time	0.5 µs	0.2 µs	0.2 µs	0.2 µs	0.25 µs	0.5 µs
surface mount	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	Central Semiconductor	Central Semiconductor	-	Central Semiconductor	-	Central Semiconductor
Base Number Matches	1	1	1	-	1	-
