8D025K29AN

Description
MIL Series Connector,
CategoryThe connector    The connector
File Size364KB,2 Pages
ManufacturerEsterline Technologies Corporation
Download Datasheet Parametric View All

8D025K29AN Overview

MIL Series Connector,

8D025K29AN Parametric

Parameter NameAttribute value
Objectid8338994871
Reach Compliance Codeunknown
ECCN codeEAR99
Connector typeMIL SERIES CONNECTOR
LAYOUT SHOWN AS EXAMPLE
Keying Shown as example
CHARACTERISTICS
-Standard : Based on MIL-DTL-38999 Series III
-Shell Material
-Shell Plating
-Insulator
-Contacts
-Seals & Grommet
-Contact Plating
-Durability
: Stainless Steel
: Passivated
: Thermoplastic
: Copper Alloy
: Silicon Elastomer
: Gold over copper Alloy 0.8µm minimum
: 500 Mating cycles
Connector dimension
Dim
Nominal
P
3.91±0.2
PP
6.15±0.2
R1
38.1
R2
34.93
S
46±0.3
V
20.07+0/-1.25
W
2.1/3.2
Z
31.5 Max
VV THREAD
M37x1-6g
SOURIAU shall not be liable for any non-conformity or damage
due to a use of the Products which does not comply with
the Specifications issued by either of the Parties or by a third party
(professional recommendation, technical notice.)
Country
FR
Jurisdiction & Control List
Not Listed
-Delivered with Souriau contacts and Accessories
-Temperature Range
-Salt Spray
-Mass
: -65°C to +200°C
: 500 hours
: 102.16 g ± 10%
PN: 8D025K29AN
A
ISS
14-10-2016 First Release
DATE
Latest modification - by
Date:
MOD N°
CUSTOMER DRAWING
Designed By:
TITLE
BASIC SERIES:
8D
0
-
25
K
29
A
N
SCALE

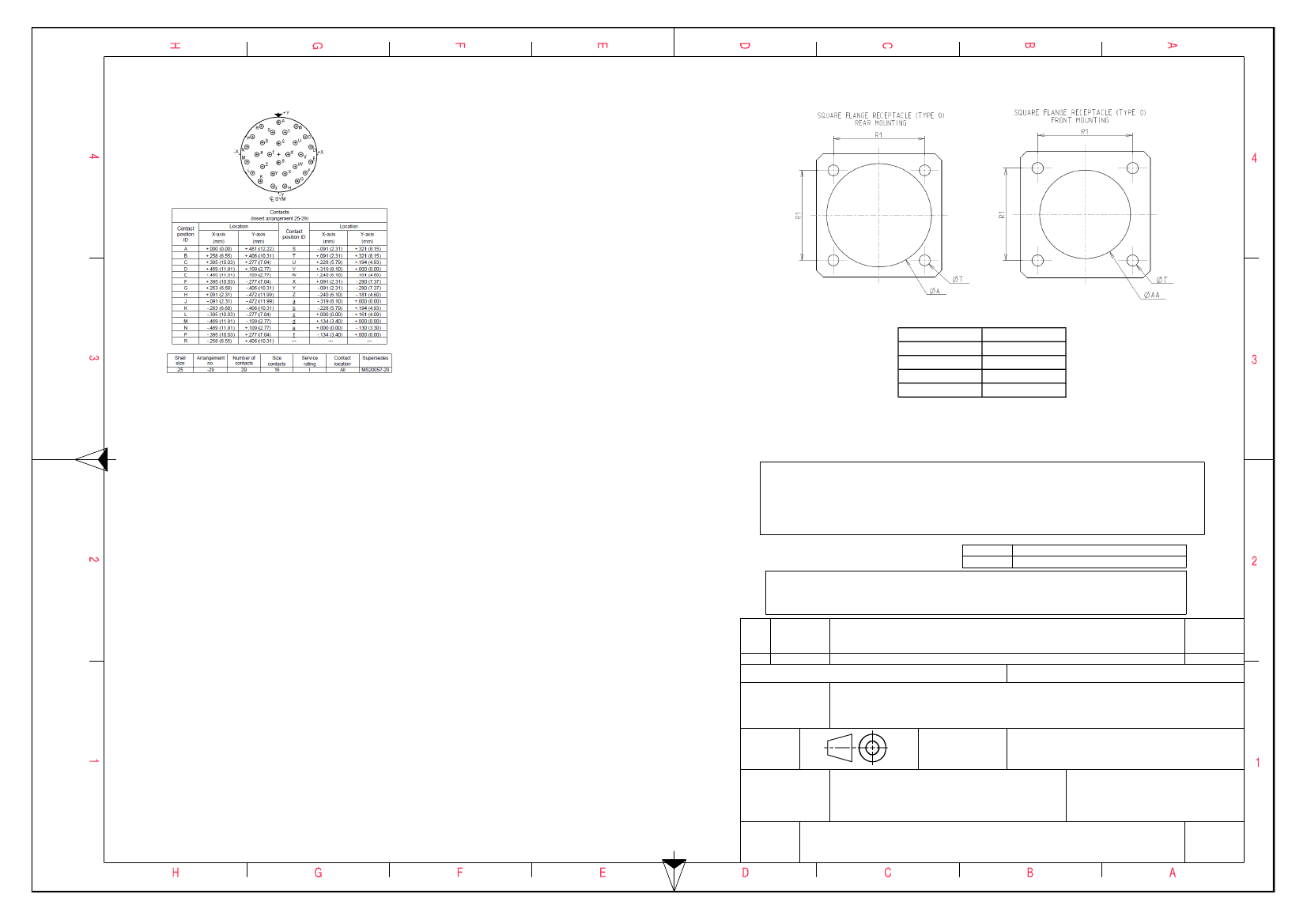

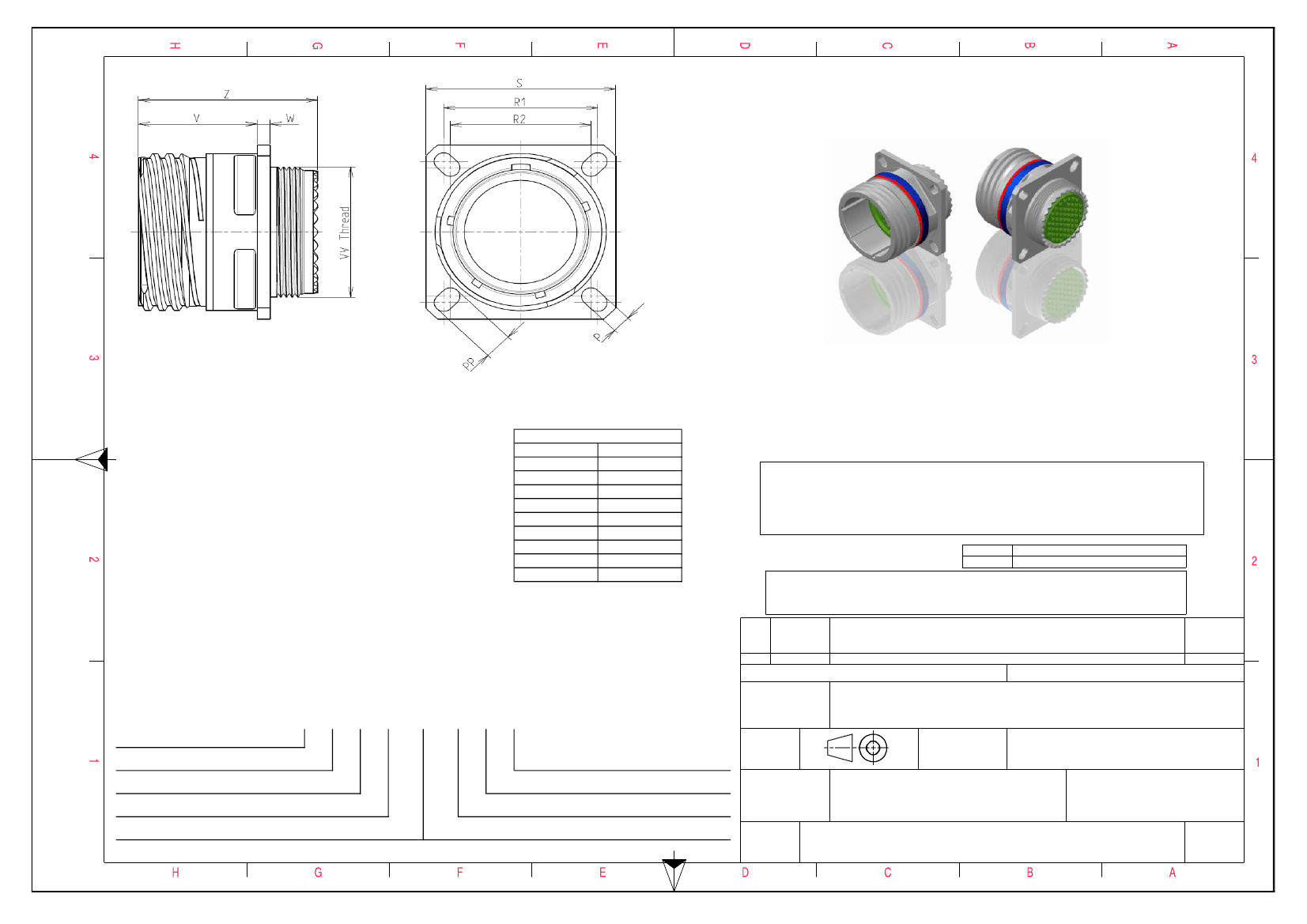

Stainless Steel Receptacle 8D series
General linear
Tolerances:
±--
NPRDS / PROJECT
SHELL TYPE : Square Flange Receptacle
CONTACT TYPE
SHELL SIZE : 25
PLATING
:
K =
Passivated
: Standard Crimp Contact
ORIENTATION : N
CONTACT TYPE : PIN(500 Matings)
CONTACT LAYOUT : 25-29
NA
859
This document is the property of
SOURIAU
it must not be reproduced or
communicated without permission
SOURIAU
FORMAT
WWW.SOURIAU.COM
A3
SOURIAU DRG N°
8D025K29AN-C
SHEET
1/2
