MJK302-PA881G50SB-10S datasheet, PDF

Datasheet> All Categories > The connector> The connector> MJK302-PA881G50SB-10S

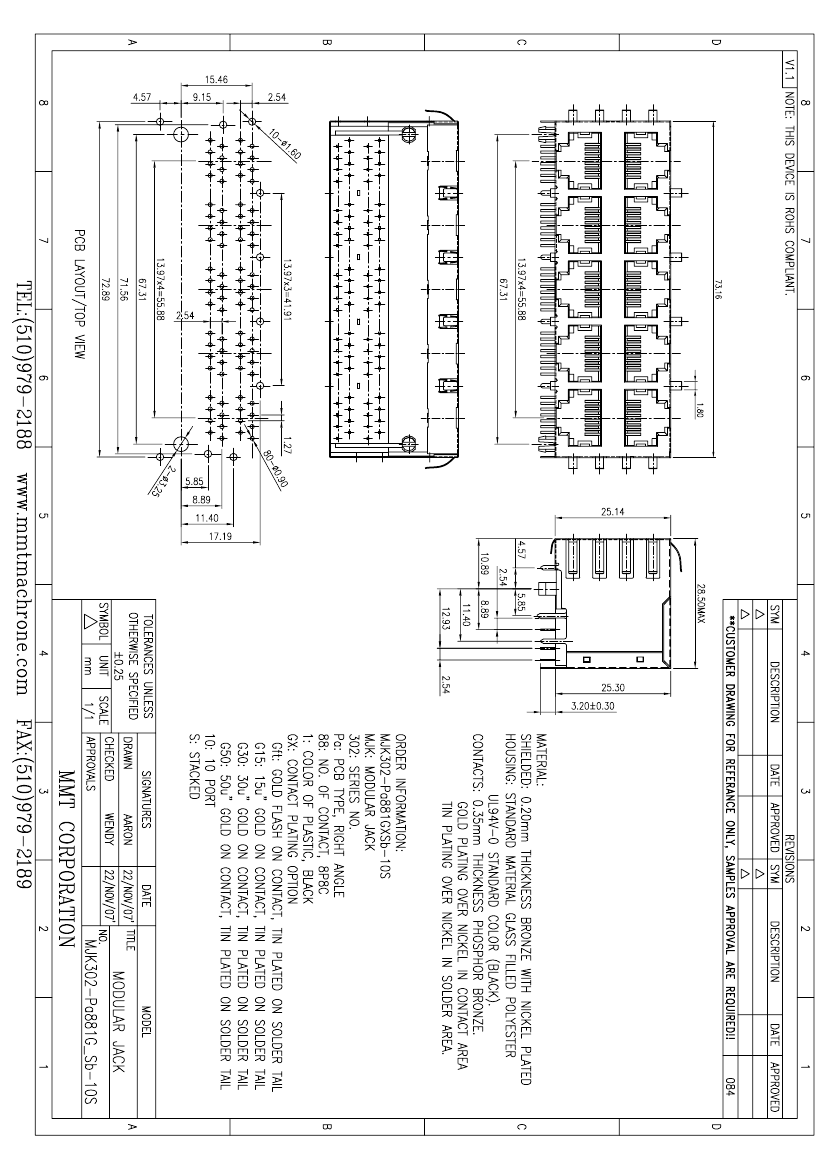

MJK302-PA881G50SB-10S: DescriptionTelecom and Datacom Connector, 80 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size90KB，1 Pages; ManufacturerMMT Corp; Websitehttp://www.mmtmachrone.com

Download Datasheet Parametric Compare View All

MJK302-PA881G50SB-10S Overview

Telecom and Datacom Connector, 80 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

MJK302-PA881G50SB-10S Parametric

Parameter Name	Attribute value
Objectid	304306258
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK
body width	0.99 inch
subject depth	1.122 inch
body length	2.88 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact style	TELCOM, MODULAR
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	MJK302
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	10
PCB contact pattern	STAGGERED
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRONZE
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	80

Preview

Download Datasheet

View All

MJK302-PA881G50SB-10S Related Products

	MJK302-PA881G50SB-10S	MJK302-PA881G15SB-10S	MJK302-PA881G30SB-10S	MJK302-PA881GFTSB-10S
Description	Telecom and Datacom Connector, 80 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 80 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 80 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 80 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle
Objectid	304306258	304306256	304306257	304306255
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.99 inch	0.99 inch	0.99 inch	0.99 inch
subject depth	1.122 inch	1.122 inch	1.122 inch	1.122 inch
body length	2.88 inch	2.88 inch	2.88 inch	2.88 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Manufacturer's serial number	MJK302	MJK302	MJK302	MJK302
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of ports	10	10	10	10
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Plating thickness	50u inch	15u inch	30u inch	FLASH inch
Rated current (signal)	1.5 A	1.5 A	1.5 A	1.5 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	BRONZE	BRONZE	BRONZE	BRONZE
Terminal length	0.126 inch	0.126 inch	0.126 inch	0.126 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	80	80	80	80
