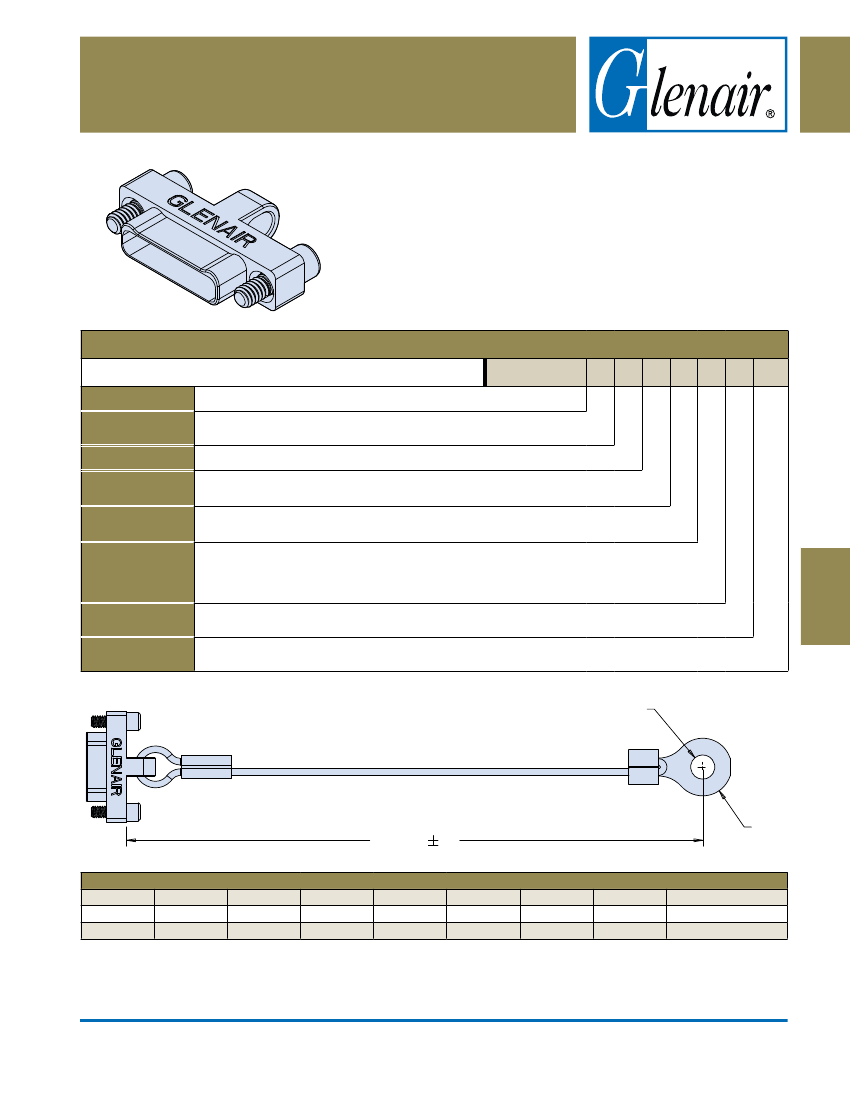

899-011
Dual Row Nano
Rectangular EMI Cover
from electro magnetic interference as a result of electromagnetic
induction emitted from intended external sources such as radio
transmissions or electromagnetic radiation and from unintentional sources
such as electric power transmission lines. These covers feature a solid one
piece construction machined from your choice of aluminum, stainless steel
or titanium. Standard aluminum finishes include cadmium or electroless
nickel plating. Available with or without lanyard attachment. Covers are in
accordance with MIL-DTL-32139/3 and MIL-DTL-32139/4.
How to Order Nano Dual Row EMI Cover
Sample Part Number
Series
Insert
Arrangement
Body Style
Cover Material
and Finish
Hardware
Attachment Type
Attachment
Length
Attachment
Diameter
899-011
EMI Dual Row, Nanominiature Cover
9, 15, 21, 25, 31, 37, 51, 65, 69, 85;

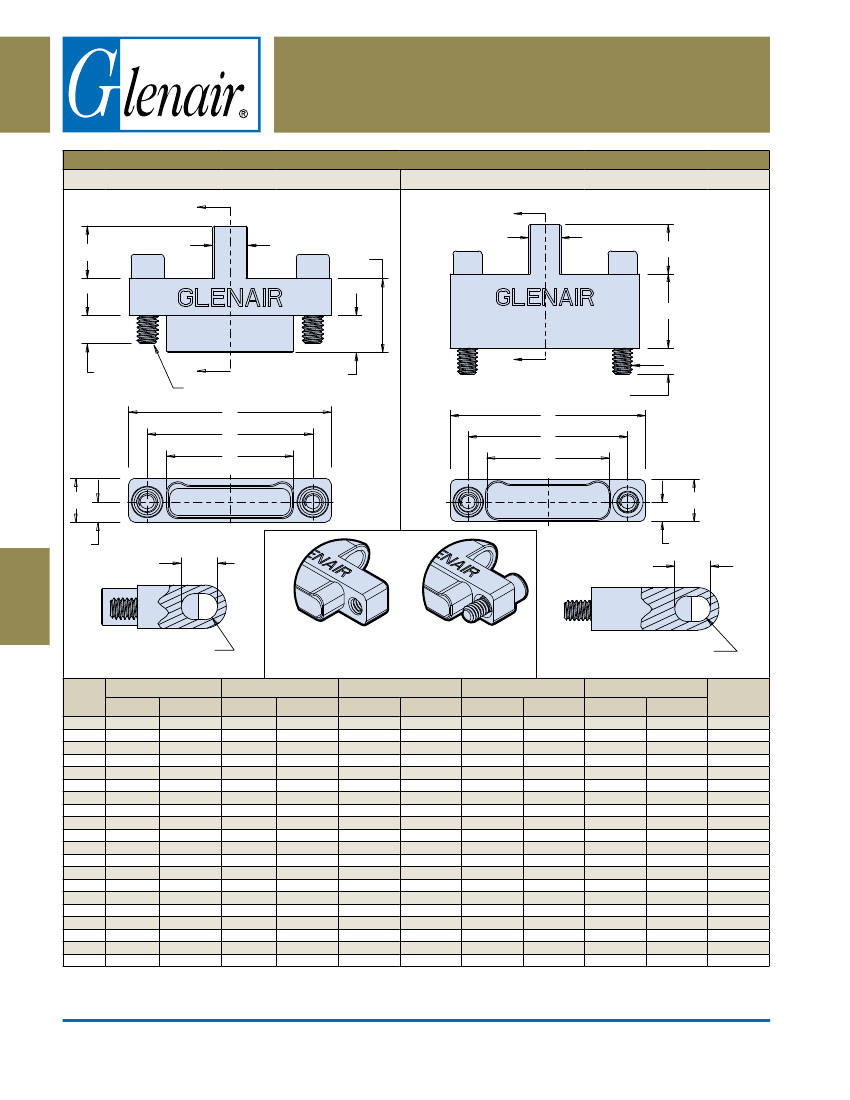

See Table II for dimensions
P
= Plug
S
= Receptacle
S
- Stainless Steel, Passivated
T
- Titanium, Unplated
Glenair EMI Covers
offer the same EMI protection as a mated connector
899-011
-25
P
S
J
F
3
-126
A1
- Aluminum Shell, Cadmium Plating
A2
- Aluminum Shell, Electroless Nickel Plating
J
- Jacksrew
T
- Female Threaded
Female threads are available on plug covers only if cover material is titanium or stainless steel.
N
- No Lanyard
F
- Stainless Steel Wire Rope, Nylon jacket, Black, Ø .034
G
- Flexible Nylon Rope, Ø .090
H
- Stainless Steel Wire Rope, Teflon Jacket, Black, Ø .034
Attachment Length in Inches (Omit for No Lanyard)
See Table I; (Omit for No Lanyard)
Ø ID
Ø OD
LENGTH
.5
Dash No.
ID
OD
-098
Ø .098 (2.49)
Ø .300 (7.62)
-126
Ø .126 (3.20)
Ø .300 (7.62)
Table I: Attachment Diameter
-140
-156
-167
Ø.140 (3.56)
Ø.156 (3.96)
Ø .167 (4.24)
Ø .300 (7.62)
Ø .300 (7.62)
Ø .300 (7.62)
-188
Ø.188 (4.78)
Ø .300 (7.62)
-197
Ø.197 (5.00)
Ø .300 (7.62)
-218
Ø.223/.218 (5.66/5.54)
Ø .300 (7.62)
Dimensions in inches (millimeters) and are subject to change without notice.
© 2013 Glenair, Inc.
Series 89 Nano Catalog
U.S. CAGE Code 06324/0CA77
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-9
E-Mail: sales@glenair.com
