Technical Data
Spacing 5.0 mm
// AK2200/..-5.0-H-GREEN
Wire Sizes
Solid min
Solid max
Stranded (flexible) min
Stranded (flexible) max
Stranded with ferrule min
Stranded with ferrule max
Dimensions
Stripped length
PCB hole diameter
Materials
Screw
Solder tab
Clamp cage
Excenter
Insulating Material
Material
Flammability class
Temperatures
Operating temperature (without mech. load)
Store temperature
Wave Soldering Process
Soldering temperature, recommended
Peak soldering time, recommended
Reflow Process
Soldering temperature, recommended
Peak soldering time, recommended
-
-
260 °C
3-4 s
-40 °C - 105 °C
-40 °C - 105 °C
PA 6.6
UL 94 V-0
Steel
Copper Alloy
Steel
Steel
9.0 mm
1.3 mm
0.2 mm²
4.0 mm²
0.2 mm²
2.5 mm²
0.25 mm²
2.5 mm²
PTR HARTMANN GmbH
· Gewerbehof 38 · 59368 Werne, Germany · Tel. +49 2389 7988-0 · Fax +49 2389 7988-88 · info@ptr-hartmann.com
www.ptr-hartmann.com

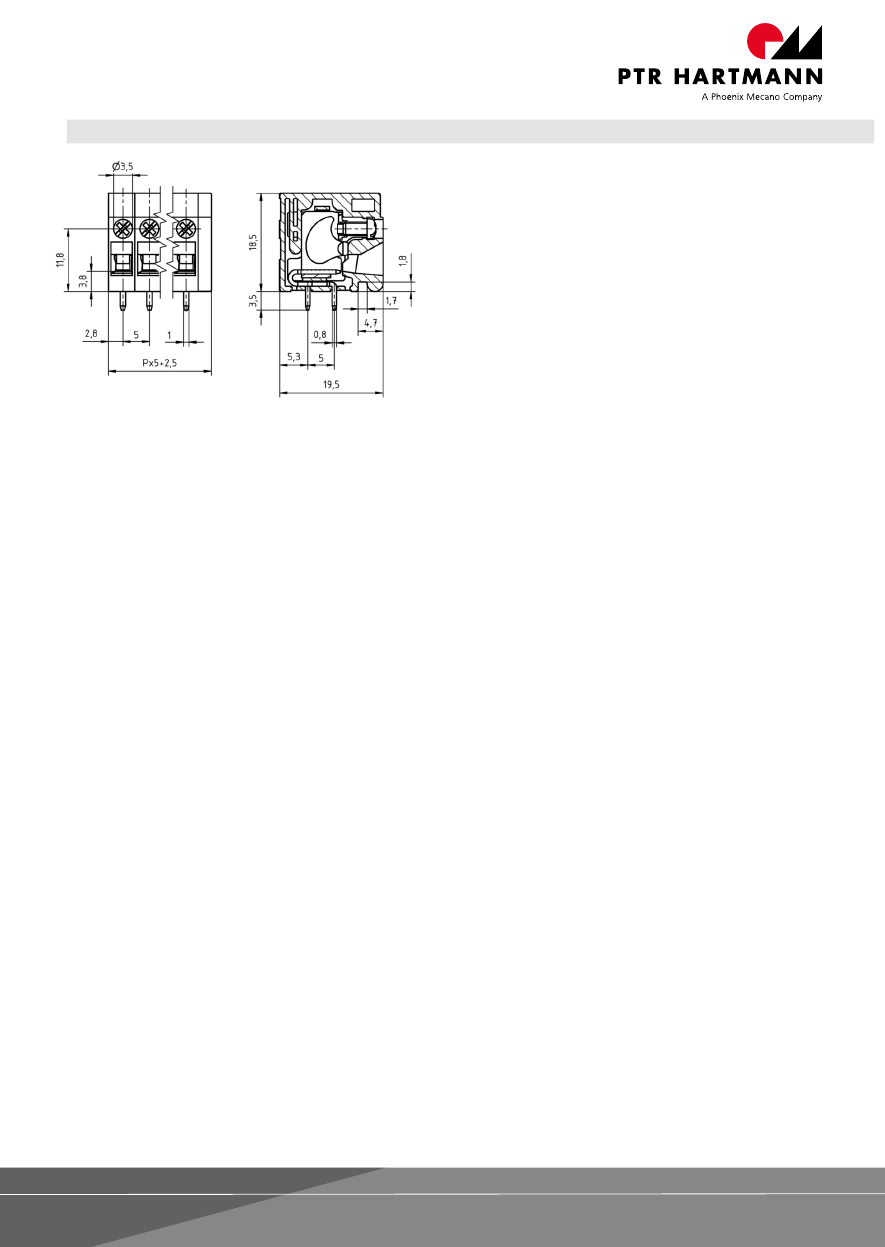

Technical Data
Spacing 5.0 mm
Colours
GREEN, RAL 6018
BLACK, RAL 9011
// AK2200/..-5.0-H-GREEN
LIGHT GREEN, similar RAL 6018
Colours according to RAL, there may be variations on colour due to production conditions.
Special colours on request.
Ratings
UseGroup
Rated voltage
Rated current
Rated wire size
- solid
- stranded
Torque
Screw size
Test voltage
Accessoires
Figure
Designation
B
300 V
20 A
C
150 V
20 A
D
300 V
10 A
min
250 V
24 A
max
2.5 mm²
2.5 mm²
0.50 Nm
M2.5
2.0 kV
AWG 30-12
AWG 30-12
0.50 - 0.60 Nm
M2.5
1.60 kV
AWG 30-12
AWG 30-12
0.50 - 0.60 Nm
M2.5
1.30 kV
AWG 30-12
AWG 30-12
0.50 - 0.60 Nm
M2.5
1.60 kV
0.5 mm²
0.5 mm²
Article Number
Order Data: 52200000002
Spacer SPC-AK2200-GREEN
Order Data (Spacing 5.0 mm)
Number of Poles
1
2
3
4
5
6
7
8
9
10
11
12
Width (mm)
7.50
12.50
17.50
22.50
27.50
32.50
37.50
42.50
47.50
52.50
57.50
62.50
Article Designation
AK2200/1-5.0-H-GREEN
AK2200/2-5.0-H-GREEN
AK2200/3-5.0-H-GREEN
AK2200/4-5.0-H-GREEN
AK2200/5-5.0-H-GREEN
AK2200/6-5.0-H-GREEN
AK2200/7-5.0-H-GREEN
AK2200/8-5.0-H-GREEN
AK2200/9-5.0-H-GREEN
AK2200/10-5.0-H-GREEN
AK2200/11-5.0-H-GREEN
AK2200/12-5.0-H-GREEN
Article Number
52200010051 E
52200020051 D
52200030051 D
52200040051 D
52200050051 D
52200060051 D
52200070051 D
52200080051 D
52200090051 D
52200100051 D
52200110051 D
52200120051 D
PU
100
50
50
50
50
50
50
50
50
50
50
50
PTR HARTMANN GmbH
· Gewerbehof 38 · 59368 Werne, Germany · Tel. +49 2389 7988-0 · Fax +49 2389 7988-88 · info@ptr-hartmann.com
www.ptr-hartmann.com
