CND2B10VTTD332J datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> The resistor> CND2B10VTTD332J

Preview

CND2B10VTTD332J: DescriptionArray/Network Resistor, Bussed, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 2512, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size429KB，2 Pages; ManufacturerKOA; Environmental Compliance

Download Datasheet Parametric Compare View All

CND2B10VTTD332J Overview

Array/Network Resistor, Bussed, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 2512, CHIP, ROHS COMPLIANT

CND2B10VTTD332J Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1246645936
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Component power consumption	0.063 W
The first element resistor	3300 Ω
JESD-609 code	e3
Installation features	SURFACE MOUNT
Network Type	BUSSED
Number of components	8
Number of functions	1
Number of terminals	10
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, PAPER, 7 INCH
Rated temperature	70 °C
Resistor type	ARRAY/NETWORK RESISTOR
size code	2512
surface mount	YES
Temperature Coefficient	200 ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	5%
Operating Voltage	50 V

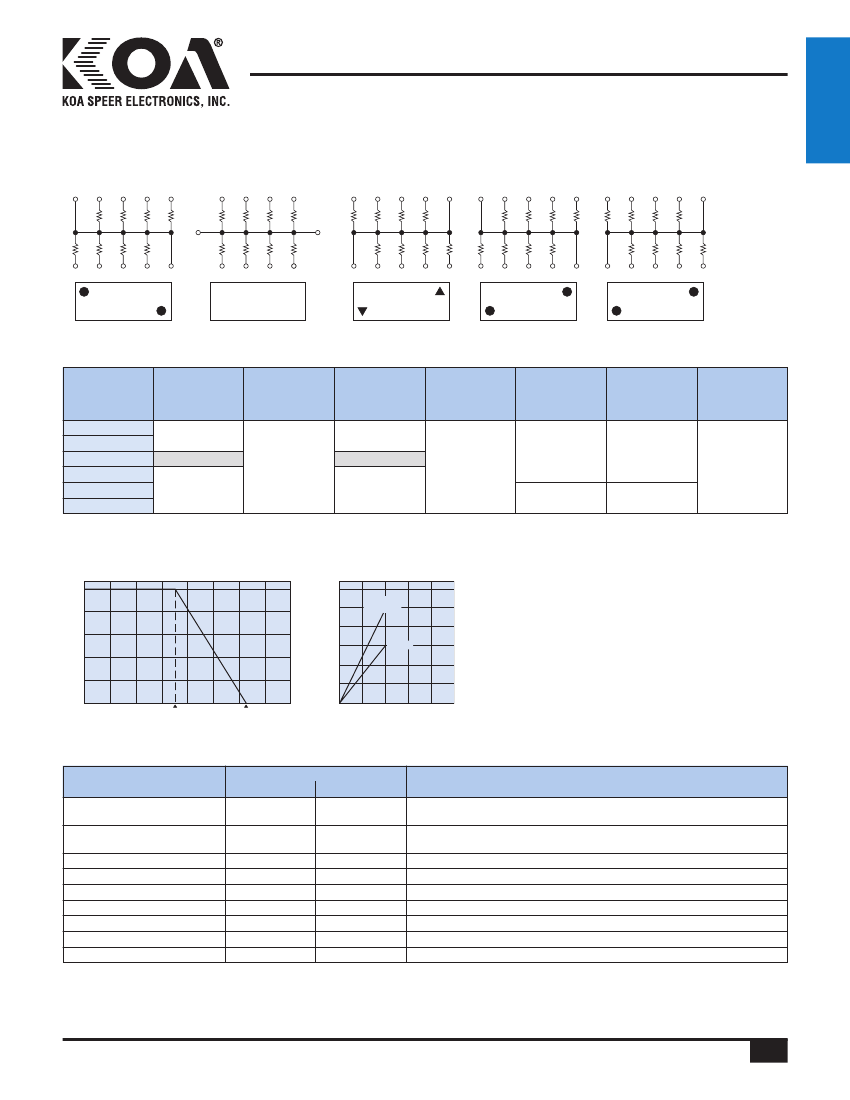

Preview

Download Datasheet

View All

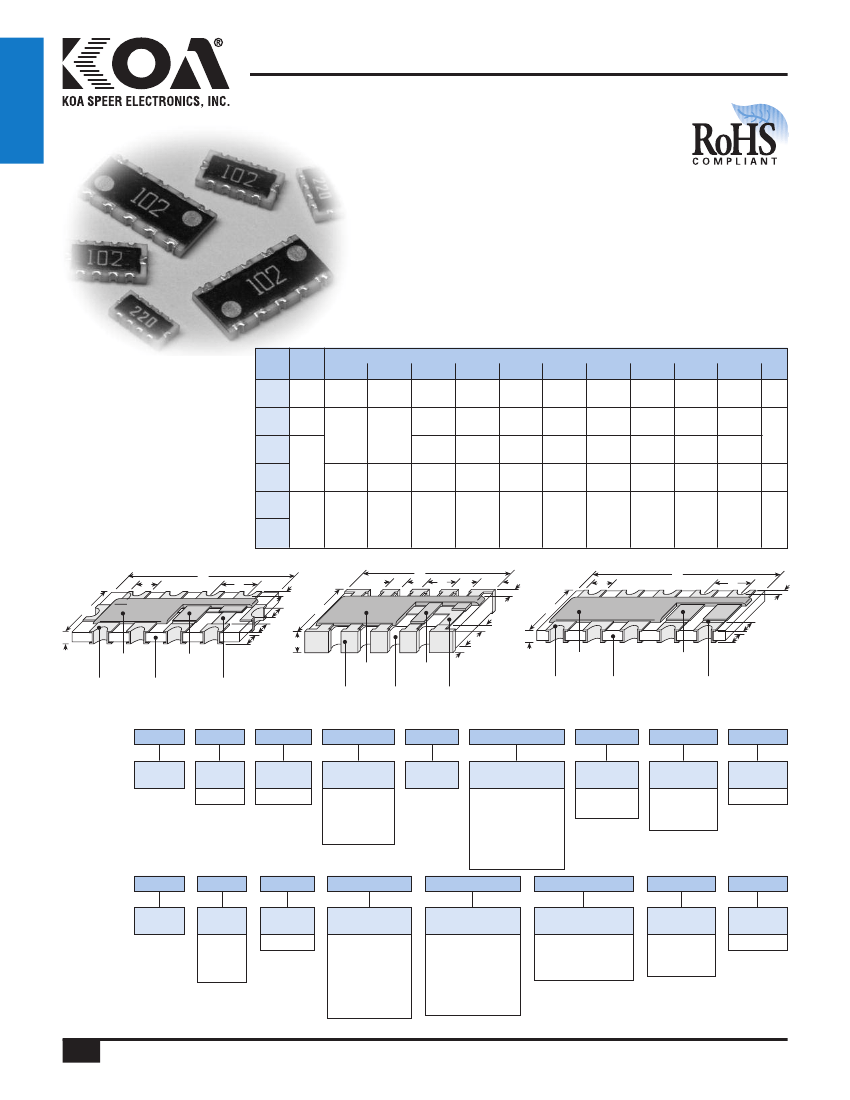

CND

bussed square corner resistor array

resistors

EU

features

•

Manufactured to type RK73 standards

Concave or convex terminations

Less board space than individual chips

Eight bussed resistor elements included in one array

Marking: Marked with resistance value

Products with lead-free terminations meet EU RoHS

requirements. EU RoHS regulation is not intended for

Pb-glass contained in electrode, resistor element and glass.

Dimensions

inches

(mm)

t

a (top)

e

—

.020±.004 .016±.004

(0.5±0.1) (0.4±0.1)

dimensions and

construction

Size Figure

Code No.

1J10VK

1J10K

1J10Y

1

2A10Y

2B10V

3

2B10

2

L

W

C

d

a2

—

a (bot.)

.012

(0.3)

b

—

p

.025

(0.64)

.126±.004 .063±.004 .012±.008 .012±.004

(3.2±0.1) (1.6±0.1) (0.3±0.2) (0.3±0.1)

.020±.004

.012±.008 .010±.004

—

(0.5±0.1)

(0.3±0.2) (0.25±0.1)

.126±.006 .063±.008

(3.2±0.15) (1.6±0.2)

.014±.004 .014±.004 .016±.006 .022±.004

(0.35±0.1) (0.35±0.1) (0.4±0.15) (0.55±0.1)

.016±.004 .022±.004 .012±.008

(0.4±0.1) (0.55±0.1) (0.3±0.2)

.013±.006

(0.33±0.15)

—

.025

.012±.004 .008±.004

(0.64)

(0.3±0.1) (0.2±0.1)

.157±.008 .083±.008 .010±.008 .016±.008 .020±.008 .024±.004 .020±.008

(4.0±0.2) (2.1±0.2) (0.25±0.2) (0.4±0.2) (0.5±0.2) (0.6±0.1) (0.5±0.2)

.252±.008 .122±.008 .014±.006 .022±.006

(6.4±0.2) (3.1±0.2) (0.35±0.15) (0.55±0.15)

Figure 2

—

.024±.004 .024±.004

(0.6±0.1) (0.6±0.1)

.016±.006 .006±.004 .031

(0.4±0.15) (0.15±0.1) (0.8)

.024±.006 .006±.004 0.05

(0.6±0.15) (0.15±0.1) (1.27)

—

Figure 1

a

W

t

Protective

Coating

Electrode

Resistive

Film

d

C

L

p

b

e

t

Protective

Coating

Electrode

Figure 3

a2

b

a

W

t

Protective

Coating

Electrode

Ceramic

Substrate

Resistive

Film

Inner

Electrode

d

C

L

p

b

a

W

L

p

C

d

Resistive

Film

Concave

Inner

Electrode

Convex

Concave

Ceramic

Substrate

ordering information

New Part #

CND

Type

1J

Size

1J

10

Elements

10

V

Ceramic

Substrate

Inner

Electrode

K

Terminal

Symbol

T

Termination

Material

T: Sn

(Other termination

styles may be

available, please

contact factory

for options)

T

TD

Packaging

TD: 7"

paper tape

103

Nominal

Resistance

2 significant

figures + 1

multiplier

J

Tolerance

J: ±5%

Circuit

Symbol

V: Reverse

common

electrode

Nil: Standard

New Part #

CND

Type

2B

Size

1J

2A

2B

10

Elements

10

V

Circuit

Symbol

V: Reverse

common

electrode

Y: Side electrode

type

Nil: Standard

TE

Packaging

TD: 7" paper tape

TE: 7" embossed

plastic

103

Nominal

Resistance

2 significant

figures + 1

multiplier

J

Tolerance

J: ±5%

For further information on packaging,

please refer to Appendix A.

Termination

Material

T: Sn

(Other termination

styles may be

available, please

contact factory

for options)

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

11/18/11

72

KOA Speer Electronics, Inc.

• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
