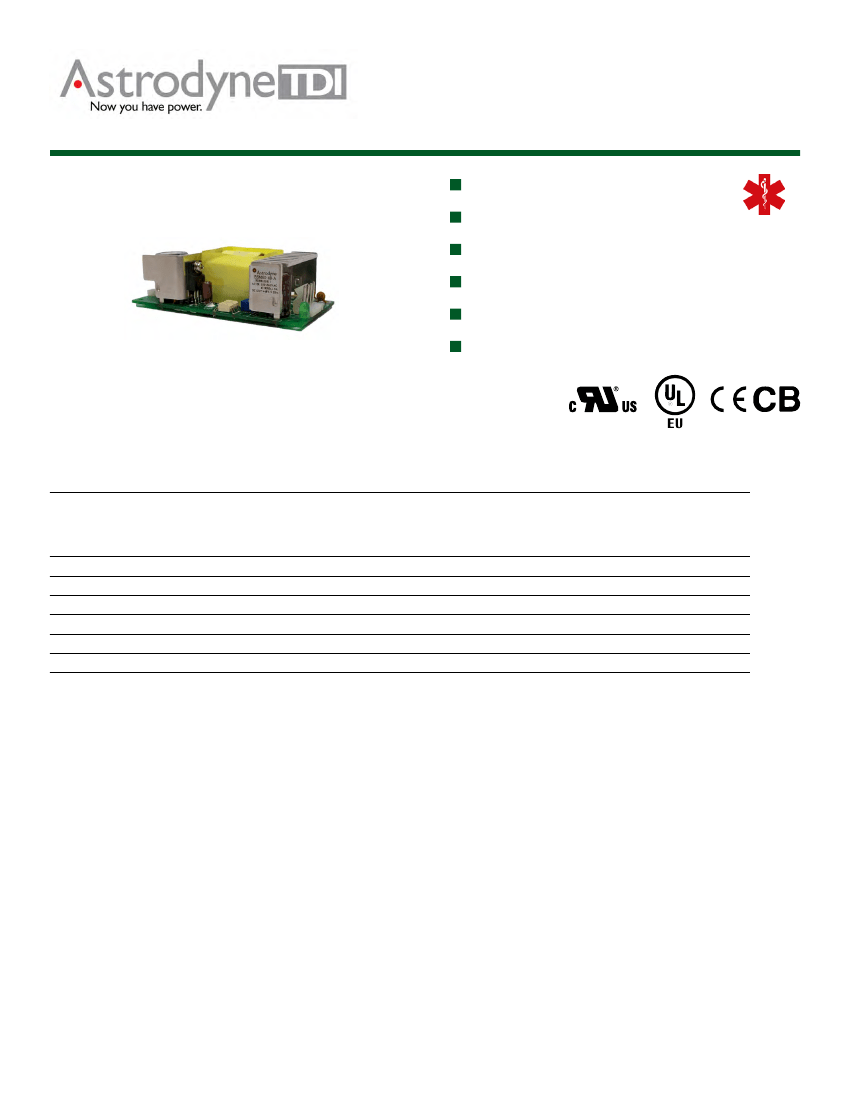

40W S i ng l e O utp ut Cl as s II Me dic a l P owe r S u p p li e s

Up to 40W Output Power

BSM40

Universal 90-264VAC Input

Single Outputs from 5VDC to 48VDC

High Efficiency up to 85%

4000VAC Isolation

series

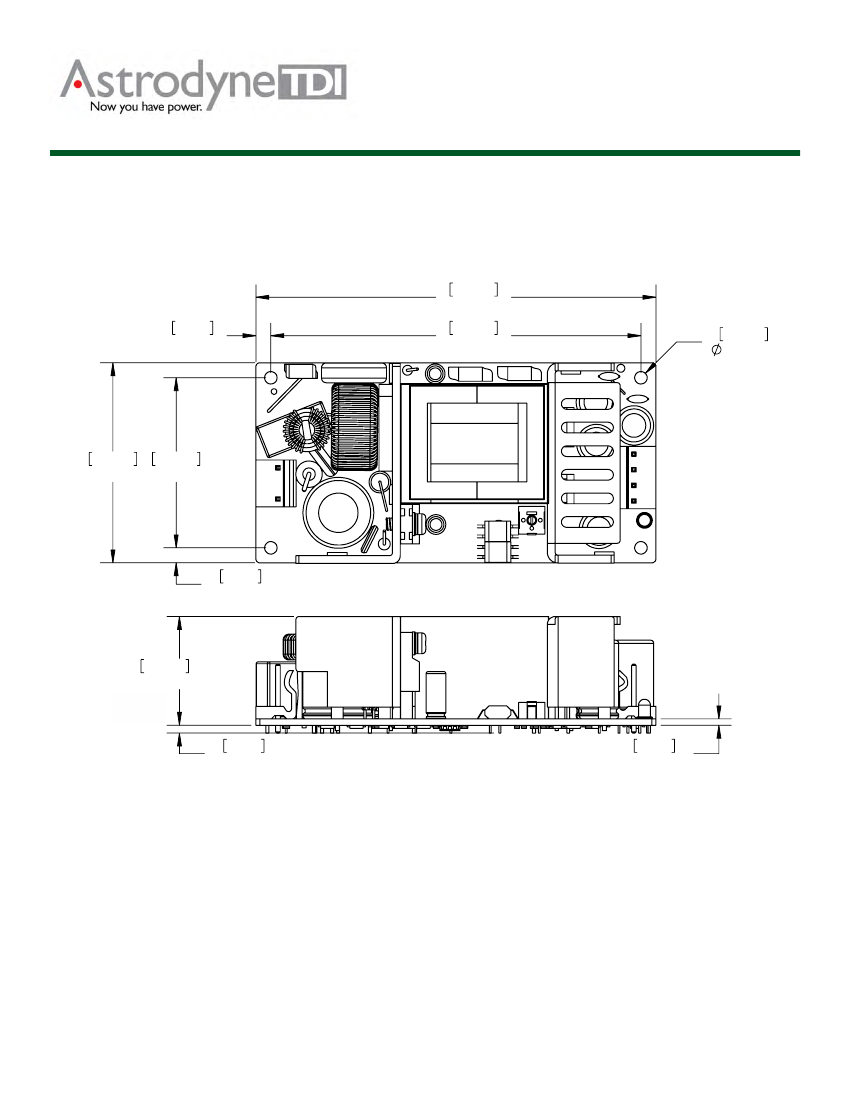

2”W x 4”L x 1.244”H

1U Compatible Height

Model Number

SINGLE OUTPUT

BSM40-5-A

BSM40-9-A

BSM40-12-A

BSM40-15-A

BSM40-24-A

BSM40-36-A

BSM40-48-A

Output Voltage Max. O/P Amps

Efficiency (230VAC)

R&N p-p max.

Capacitive Load

5VDC

9VDC

12VDC

15VDC

24VDC

36VDC

48VDC

4.4

3.33

2.66

1.66

1.1

0.83

77% typ.

80% typ.

83% typ.

85% typ.

300mV

250mV

240mV

360mV

400mV

23,000uF

10,200uF

4,000uF

5,500uF

1,300uF

600uF

270uF

WWW.ASTRODYNETDI.COM

ASTRODYNE USA: 1-800-823-8082

ASTRODYNE PACIFIC: 886-2-26983458
