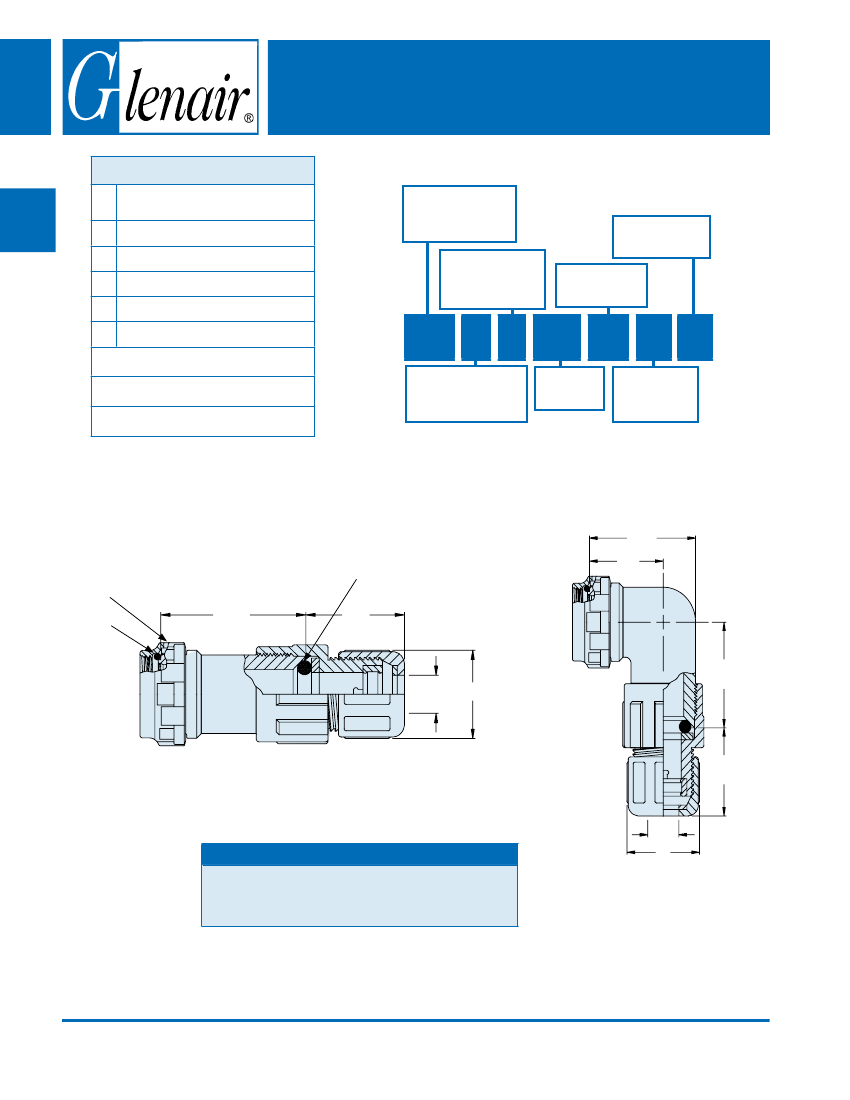

370-017
Composite Cable-Sealing Environmental Backshell
with Self-Locking Rotatable Coupling
and Qwik-Clamp
Composite
Backshells
CONNECTOR DESIGNATOR:
A
A
F
L
H
G
U
MIL-DTL-5015, -26482 Series II, and
-83723 Series I and III
MIL-DTL-38999 Series I, II
MIL-DTL-38999 Series 1.5 (JN1003)
MIL-DTL-38999 Series III and IV
MIL-DTL-28840
DG123 and DG123A
Product Series
370
- Environmental
Strain Relief
Angle and Profile
S
- Straight
W
- 90° Elbow
Dash Number
(Table
IV)
Finish Symbol
(See
Table III)
B
SELF-LOCKING
ROTATABLE COUPLING
STANDARD PROFILE
370
H
S
017 XO 19 28
Basic Part
Number
Connector
Shell Size
(See
Table II)
Connector
Designator
A, F, L, H, G and U
C
Anti-Decoupling
Device
O-ring
O-ring
1.38
(35.1)
J
US PATENT 5211576
F
E
D
Cable
Range
G
H
E
J
Cable
Range
F
NOTES
1.
2.
Coupling nut supplied unplated.
See Table I in Intro for front-end dimensional details.
H
G
© 2009 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-44
Rev. 12 FEBRUARY 2013
with Self-Locking Rotatable Coupling
and Qwik-Clamp
TABLE II: CONNECTOR SHELL SIZE ORDER NUMBER
Shell Size For
Connector Designator*
E
F
G
Max Entry
A F/L H G U
± .06 (1.5) ± .09 (2.3) ± .09 (2.3) Dash No.**
08 08 09 – –
.69 (17.5)
.88 (22.4) 1.06 (26.9)
08
10 10 11 – 08
.75 (19.1) 1.00 (25.4) 1.13 (28.7)
12
12 12 13 11 10
16
.81 (20.6) 1.13 (28.7) 1.19 (30.2)
14 14 15 13 12
.88 (22.4) 1.31 (33.3) 1.25 (31.8)
20
16 16 17 15 14
.94 (23.9) 1.38 (35.1) 1.31 (33.3)
24
18 18 19 17 16
.97 (24.6) 1.44 (36.6) 1.34 (34.0)
28
20 20 21 19 18
1.06 (26.9) 1.63 (41.4) 1.44 (36.6)
32
22 22 23 – 20
36
1.13 (28.7) 1.75 (44.5) 1.50 (38.1)
24 24 25 23 22
40
1.19 (30.2) 1.88 (47.8) 1.56 (39.6)
28 – – 25 24
44
1.34 (34.0) 2.13 (54.1) 1.66 (42.2)
**Consult factory for additional entry sizes available.
TABLE III: FINISH
Symbol
XB
XM
XMT
XO
XW
Finish Description
No Plating - Black Color (Non-Conductive Finish)
2000 Hour Corrosion Resistant Electroless Nickel
2000 Hour Corrosion Resistant Ni-PTFE, Nickel-
Fluorocarbon Polymer.
1000 Hour Grey
TM
No Plating - Brown Color (Non-Conductive Finish)
2000 Hour Corrosion Resistant Cadmium/Olive
Drab over Electroless Nickel
TABLE IV: CABLE ENTRY
Cable Range
J
H
(Max)
Minimum Maximum
Dash No. (Max)
08
.72 (18.3) .87 (22.1) .13 (3.3) .25 (6.4)
12
.91 (23.1) 1.01 (25.7) .22 (5.6) .38 (9.7)
16 1.09 (27.7) 1.11 (28.2) .34 (8.6) .50 (12.7)
20 1.22 (31.0) 1.11 (28.2) .47 (11.9) .63 (15.9)
24 1.34 (34.0) 1.11 (28.2) .60 (15.0) .75 (19.1)
28 1.53 (38.9) 1.26 (32.0) .72 (18.3) .88 (22.2)
32 1.72 (43.7) 1.41 (35.8) .84 (21.3) 1.00 (25.4)
36 1.85 (47.0) 1.41 (35.8) .97 (24.6) 1.13 (28.6)
40 1.97 (50.0) 1.41 (35.8) 1.09 (27.7) 1.25 (31.8)
44 2.09 (53.1) 1.53 (38.9) 1.22 (31.0) 1.38 (34.9)
© 2009 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-45
Rev. 12 FEBRUARY 2013
Composite
Backshells
370-017
Composite Cable-Sealing Environmental Backshell
A
B
C
D
E
F
G
