Metal Protective Covers
with Silicone Rubber Gaskets
500-017 and 500-037
Choose Metal Protective Covers
for full environmental protection.
Silicone Rubber Gasket
provides a watertight seal.
Use with M83513 Type Metal Shell Micro-D Connectors

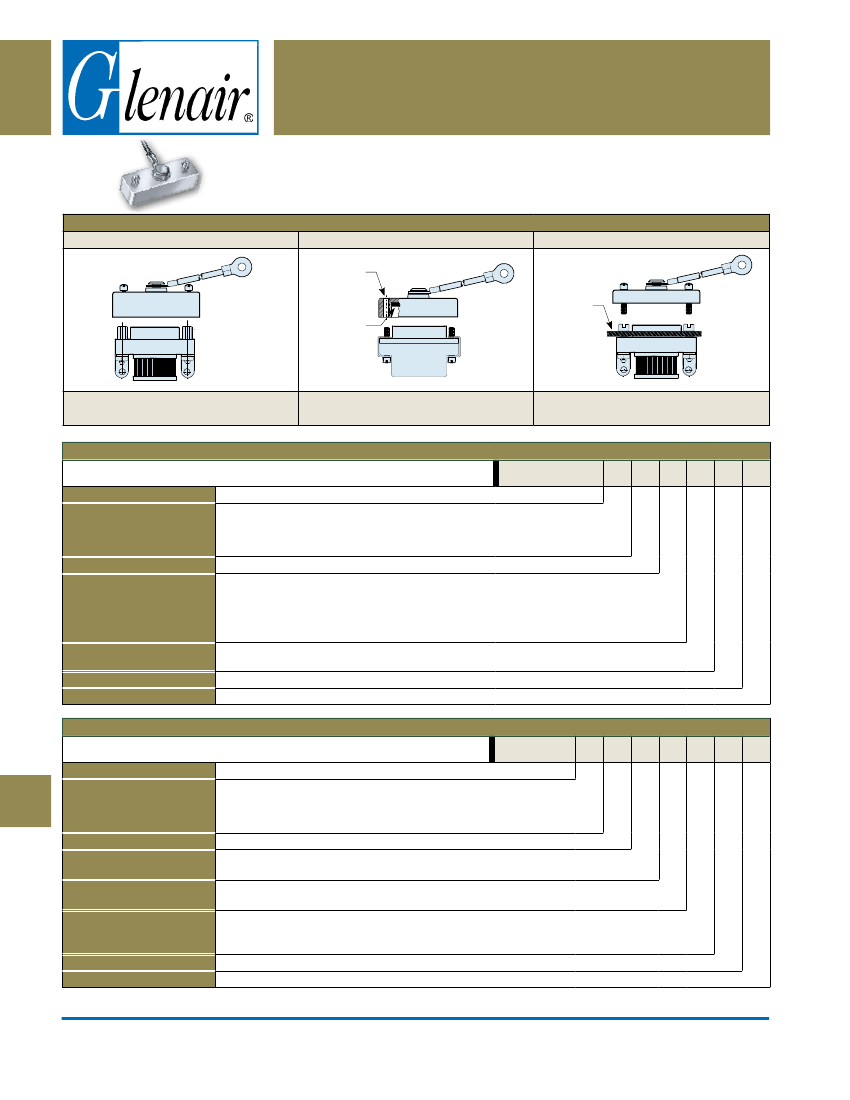

Select A Protective Cover Style
Style 1
Tapped
Threads
Panel
Silicone
Gasket
(All Styles)
Micro-D
Accessories
Use With Micro-D Connectors With Jackposts
Not for rear panel mounted connectors.
Style 2
Style 3
Use With Micro-D Connectors With
Jackscrews
Use With Rear-Panel Mounted Micro-D
Connectors
How To Order 500-017 Style 1 and 2 Protective Covers
Sample Part Number
Series
500-017
M
25 MB
F
4
-06
500-017
B
- Cad/Olive Drab
C
- Black Anodize Nickel
E
- Chem Film
J
- Cadmium, Yellow Chromate Drab
M
- Electroless
NF
- Cadmium, Olive
Shell Finish
R
- Red Anodize
Y
- Gold Iridite Over Cadmium Plate
Z2
- Gold
ME
- Electroless Nickel, Grade A
Shell Size
09, 15, 21, 25, 31, 37, 51, 51-2, 67, 69, 100
(See Table I)
STYLE 1
STYLE 2
Fits Micro-D With Jackposts, Cover has
Fits Micro-D's With Jackscrews Cover has Tapped Female
Hardware Option
Jackscrews
Threads
MB
- Fillister Head Jackscrew (See Note 3)
F
- Female Threads
MH
- Hex Head Jackscrew (See Note 3)
N
- No Lanyard
F
- Wire Rope, Nylon Jacket
G
- Flexible Nylon Rope
Lanyard Option
H
- Wire Rope, Hi-Temp Fluoropolymer Jacket
R
- Wire Rope, PVC Jacket
T
- Wire Rope, No Jacket
Lanyard Length
Length in One Inch Increments; Example: “6” equals six inches.
Ring Terminal Ordering Code
01
- .140 (3.6)
04
- .197 (5.0)
05
- .167 (4.2)
06
- .125 (3.2)
I.D. of Ring Terminal
How To Order Style 500-037 Style 3 Protective Cover
Sample Part Number
Series
500-037
500-037
C
- Black Anodize Nickel
E
- Chem Film
J
- Cadmium, Yellow Chromate Drab
N
- Cadmium Plate/Olive Drab
M
- Electroless
NF
- Cadmium, Olive
Z2
- Gold
R
- Red Anodize
Y
- Gold Iridite over Cadmium Plate
9, 15, 21, 25, 31, 37, 51, 51-2, 67, 69, 100
(See Table I)
R1
- .031 (0.79) Panel
R2
- .047 (1.19) Panel
R3
- .062 (1.57) Panel
M
09
R3
B
F
-01 -2
N
Shell Finish
Shell Size
Rear Mounted
(Omit for Front Mount)
Hardware Option
Lanyard Length
Attachment Ring "G" Dia.
Attachment Length Opt
© 2013 Glenair, Inc.
R4
- .093 (2.36) Panel
B
- (2) Male Fillister Head
H
- (2) Male Hex Socket
F
- (2) Female Jackpost
FB
- (1) Female Jackpost and (1) Male Fillister Head
FH
- (1) Female Jackpost (1) Male Hex Socket
N
- No Lanyard
G
- Flexible Nylon Rope
R
- Wire Rope, PVC Jacket
F
- Wire Rope, Nylon Jacket
H
- Wire Rope, Hi-Temp
T
- Wire Rope, No Jacket
Fluoropolymer Jacket
01
- .140 (3.6)
02
- .182 (4.6)
03
- .191 (4.8)
04
- .197 (5.0)
05
- .167 (4.2)
06
- .125 (3.2)
07
- .218 (5.5)
Example
2
= 2 inches (omit for standard 4 inch)
High Performance Micro-D Connectors and Cables
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
N-6
E-Mail: sales@glenair.com
500-017 and 500-037

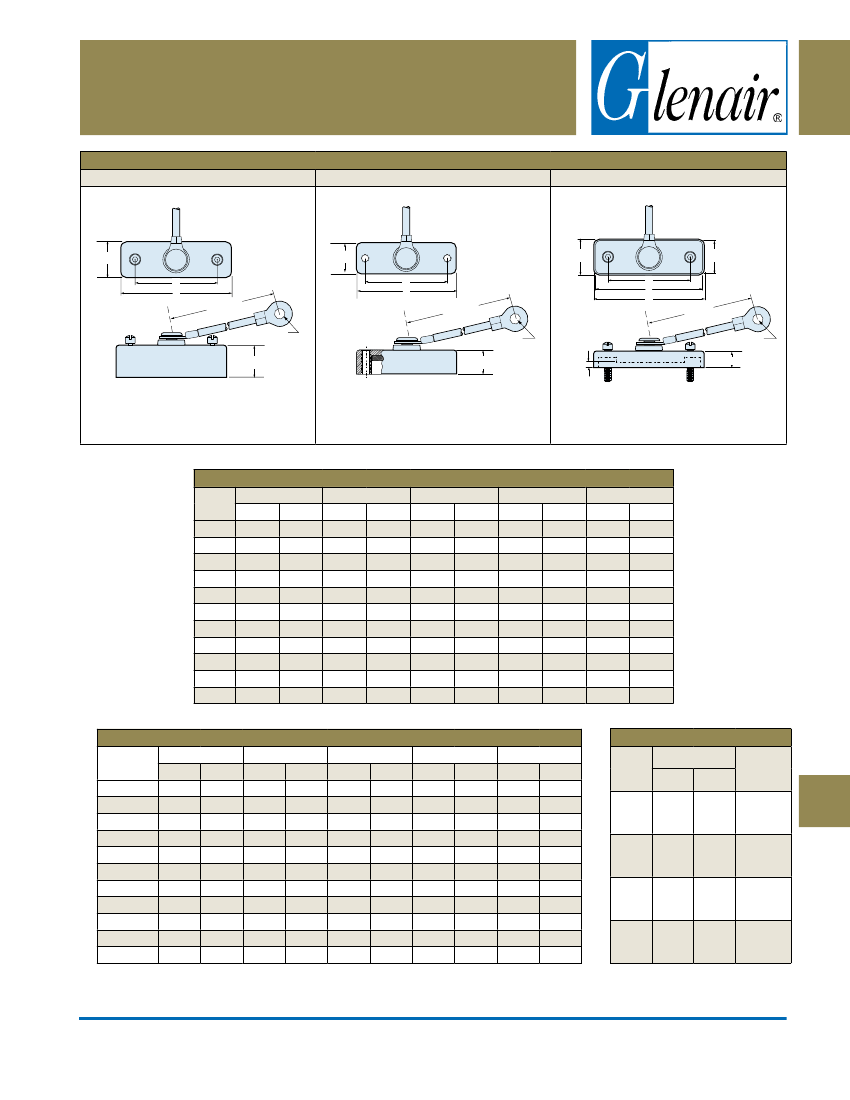

Table I: Protective Cover Dimensions
Style 1
Style 2
Style 3
A
C
B
th
Leng
D
C
E
th
Leng
D
C
B
E
th
Leng
A
RING TERMINAL
DIA.
RING TERMINAL
DIA.
F
RING TERMINAL
DIA.
.260 (6.6) MAX
380 (9.6)
.280 (7.1)
#2-56 UNC THREADS SIZES 9-69
#4-40 UNC THREADS SIZE 100
For Micro-D Connectors With Jackposts
#2-56 UNC THREADS SIZES 9-69
#4-40 UNC THREADS SIZE 100
For Micro-D Connectors With Jackscrews
#2-56 UNC THREADS SIZES 9-69
#4-40 UNC THREADS SIZE 100
For Rear-Panel Mounted Micro-D
Dimensions for Style 1 and 2
Size
9
15
21
25
31
37
51
51-2
67
69
100
A Max.
In.
mm.
.453
.453
.453
.453
.453
.453
.496
.453
.453
.496
.539
11.5
11.5
11.5
11.5
11.5
11.5
12.6
11.5
11.5
12.6
13.7
B Max.
In .
mm.
.930
1.080
1.230
1.330
1.480
1.630
1.580
1.980
2.380
1.880
2.315
23.6
27.4
31.2
33.8
37.6
41.4
40.1
50.3
60.5
47.8
58.8
C
In.
.565
.715
.865
.965
1.115
1.265
1.215
1.615
2.015
1.515
1.800
mm.
14.35
18.16
21.97
24.51
28.32
32.13
30.86
41.02
51.18
38.48
45.72
D Max.
In.
mm.
.380
.380
.380
.380
.380
.380
.420
.380
.380
.420
.470
9.7
9.7
9.7
9.7
9.7
9.7
10.7
9.7
9.7
10.7
11.9
E Max.
In.
mm.
.795
.945
1.095
1.195
1.345
1.495
1.445
1.845
2.245
1.745
2.180
20.2
24.0
27.8
30.4
34.2
38.0
36.7
46.9
57.0
44.3
55.4
Dimensions for Style 3
Shell Size
09
15
21
25
31
37
51
51-2*
67
69*
100
A Ref
In.
mm.
.328
.328
.328
.328
.328
.328
.371
.328
.328
.371
.414
8.33
8.33
8.33
8.33
8.33
8.33
9.42
8.33
8.33
9.42
10.52
B Ref
In .
mm.
.805
.955
1.105
1.205
1.355
1.505
1.455
1.855
2.255
1.755
2.190
20.45
24.26
28.07
30.61
34.42
38.23
36.96
47.12
57.28
44.58
55.63
C
In.
.565
.715
.865
.965
1.115
1.265
1.215
1.615
2.015
1.515
1.800
mm.
14.35
18.16
21.97
24.51
28.32
32.13
30.86
41.02
51.18
38.48
45.72
D Max
In.
mm.
.453
.453
.453
.453
.453
.453
.496
.453
.453
.496
.539
11.51
11.51
11.51
11.51
11.51
11.51
12.60
11.51
11.51
12.60
13.69
E Max
In.
mm.
.930
1.080
1.230
1.330
1.480
1.630
1.580
1.980
2.380
1.880
2.315
23.62
27.43
31.24
33.78
37.59
41.40
40.13
50.29
60.45
47.75
58.80
Style 3 Rear Mounted Dash No.
Dash
No
R1
F
In.
.126
mm.
3.2
Panel
Thickness
.031
R2
.110
2.8
.047
R3
.095
2.4
.062
R4
.064
1.6
.093
© 2013 Glenair, Inc.
High Performance Micro-D Connectors and Cables
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
N-7
E-Mail: sales@glenair.com
