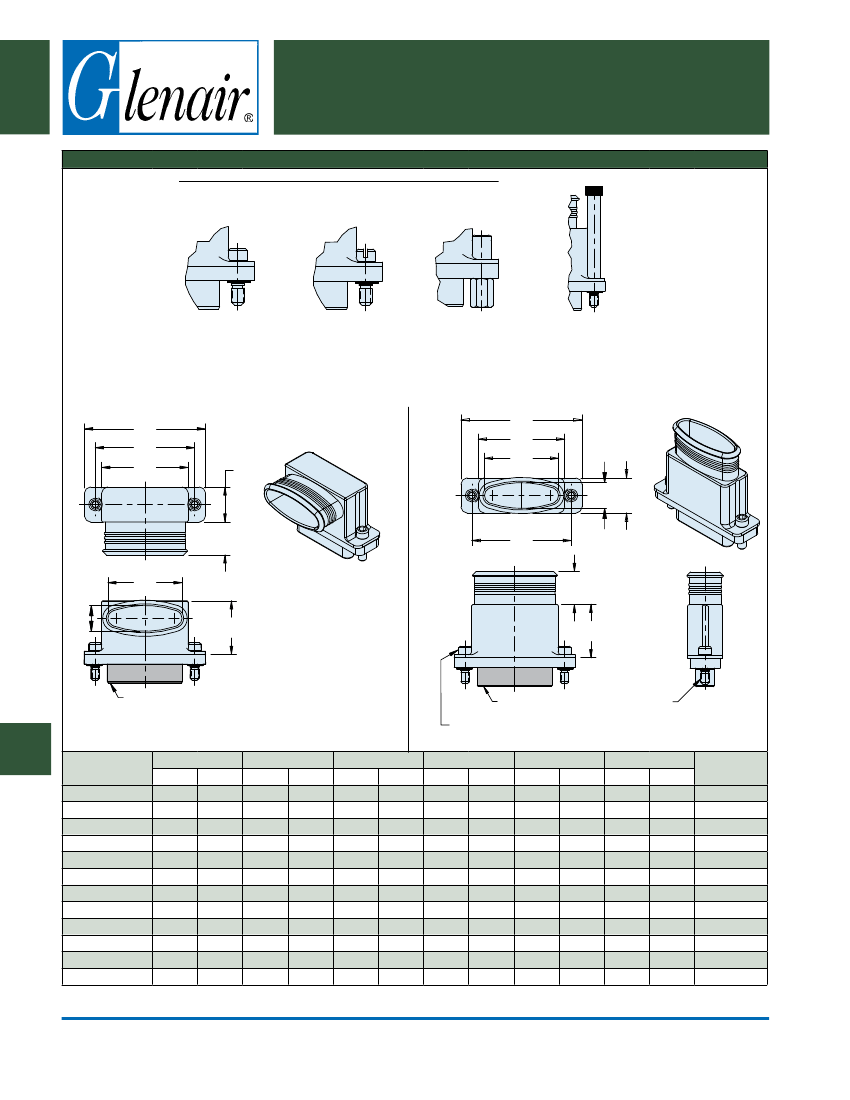

507-296

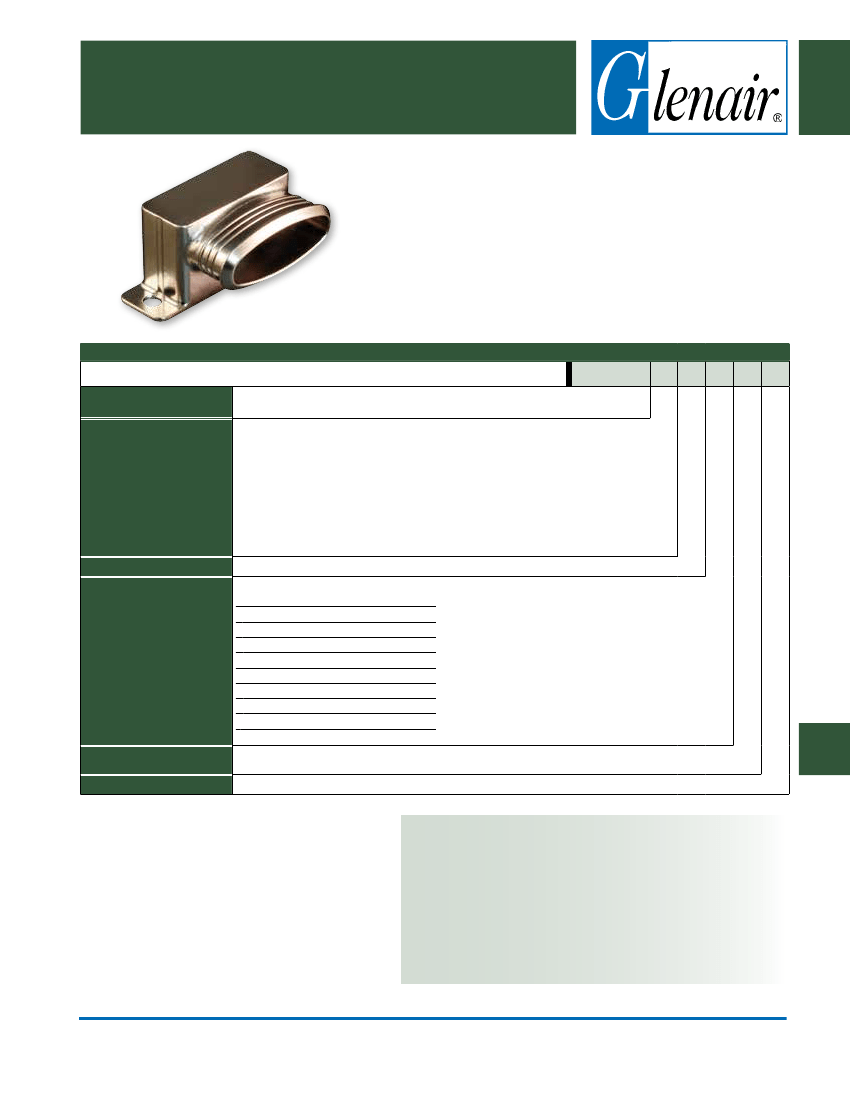

EMI/RFI Elliptical Lightweight Metal Backshell
MIL-DTL-83513
EMI/RFI Elliptical Lightweight Metal Shell Backshells
provides
added room for larger wire bundles. Terminate cable shields with
BandMaster™ ATSmicrobands. This backshell features floating male
screwlocks which allow full mating of the connector before the
screws are fastened.
Rugged Aluminum
housing with stainless steel hardware,
available in standard nickel plating, or choose optional finishes.
A
B
C
D
How To Order EMI/RFI Metal Shell Backshells
Sample Part Number
Series
507T296
- Top Entry (Straight)
507S296
- Side Entry (90°)
A
- Cadmium Plate/Bright Dip
B
- Cadmium Plate/Olive Drab
B1
- Cadmium Plate/Olive Drab Type II Class 1
J
- Gold Iridite Over Cadmium Plate Over Nickel
M
- Electroless Nickel
N
- Cadmium Plate/Olive Drab Over Nickel
NF -
Cad/O.D. Over Electroless Nickel (1000 Hour Salt Spray)
T
- Cadmium Plate/Bright Dip Over Nickel
Z2
- Gold Plate
09, 15, 21, 25, 31, 37, 51, 51-2, 67, 69, 75, 100
(See Table I)
Code
G
Available Sizes
A
0.320
09 Thru 100
B
0.470
15 Thru 100
C
0.620
21 Thru 100
D
0.720
25 Thru 100
E
0.870
31 Thru 100
F
0.970
37 Thru 100
G
1.020
37 & 51-2 Thru 100
H
1.270
51-2 Thru 100
J
1.360
51-2, 67 & 100
K
1.770
67
B
-
Fillister Head Jackscrew
H
-
Socket Head Jackscrew
E
- Extended Jackscrew
F
-
Female Jackpost
Omit
(Blank) -
No Band
M
-
Uncoiled .125" Wide Band
L
-
Coiled .125" Wide Band
507T296
M
25
D
h
l
E
F
G
H
J
K
L
M
N
P
Q
INDEX
Finish Symbol
Shell Size
Entry Code
Hardware Option
EMI Band Strap Option
Notes
1. Assembly identified with manufacture's name and P/N, space
permitting.
2. See 507-297 for 45° configuration
3. Symbol 'E' extended hardware is not to be used with straight
backshell at max cable entry size.
Material/Finish
• Backshell - al alloy/see Table 2
• Hardware-cres/pasivated
U.S. CAGE Code 06324
Printed in U.S.A.
© 2013 Glenair, Inc.
