CDR31BX103AKSM-ANTISTATIC: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, BX, 15% TC, 0.01uF, Surface Mount, 0805, CHIP; CategoryPassive components capacitor; File Size55KB，1 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

CDR31BX103AKSM-ANTISTATIC Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, BX, 15% TC, 0.01uF, Surface Mount, 0805, CHIP

CDR31BX103AKSM-ANTISTATIC Parametric

Parameter Name	Attribute value
Objectid	8351271416
package instruction	, 0805
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.01 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
positive tolerance	10%
Rated (DC) voltage (URdc)	50 V
Guideline	MIL-PRF-55681
size code	0805
surface mount	YES
Temperature characteristic code	BX
Temperature Coefficient	15% ppm/°C
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

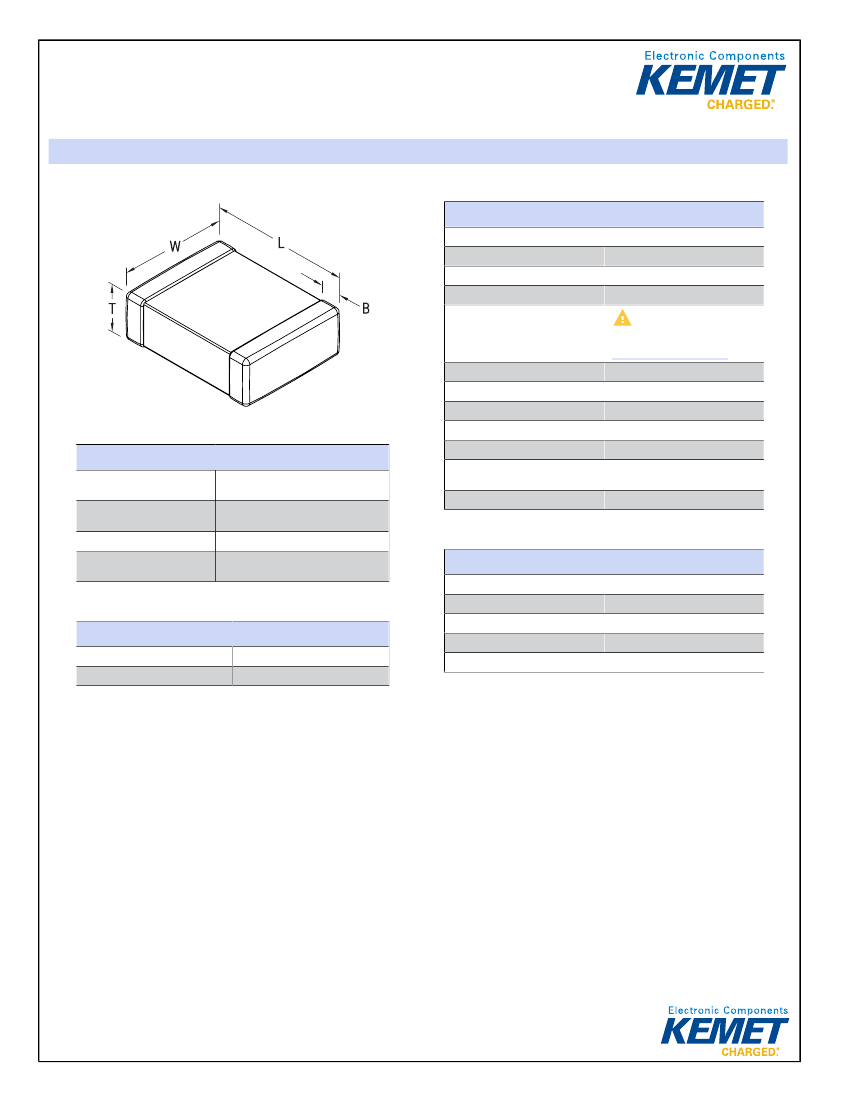

KEMET Part Number: CDR31BX103AKSM-ANTISTATIC

(C0805N103K5XMH7246)

SMD Mil PRF55681, Ceramic, Military/High Reliability, 0.01 uF, 10%, 50 VDC, BX, M (1%/1000 Hrs), 0805

General Information

Supplier:

Series:

Style:

RoHS:

Prop 65:

REACH:

Termination:

Failure Rate:

Testing and Reliability:

KEMET

SMD Mil PRF55681

SMD Chip

No

WARNING:

Cancer

and reproductive harm -

www.p65warnings.ca.gov.

SVHC (Pb – CAS 7439-92-1)

Lead (SnPb)

M (1%/1000 Hrs)

MIL-PRF-55681

Termination Description:

SolderCoat 60-40

0805

Dimensions

L

W

T

B

2mm +0.8/-0.2mm (0.079

in +0.031/-0.008 in)

1.25mm +0.5/-0.2mm

(0.049 in +0.02/-0.008 in)

1.3mm +0.3mm (0.051 in +0.012 in)

0.5mm +0.5/-0.2mm

(0.02 in +0.02/-0.008 in)

Qualifications:

Miscellaneous:

Chip Size:

Specifications

Capacitance:

Capacitance Tolerance:

Voltage DC:

Temperature Range:

Temperature Coefficient:

0.01 uF

10%

50 VDC

-55/+125C

BX

Packaging Specifications

Packaging:

Packaging Quantity:

Bulk, Anti-Static Bag

1

Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but are not intended to constitute - and

we specifically disclaim - any warranty concerning suitability for a specific customer application or use. This Information is intended for use only by customers who have the

requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by us

with reference to the use of our products is given gratis, and we assume no obligation or liability for the advice given or results obtained.

Generated 3/08/2019 - 9a224ce7-f0a0-48eb-9ec0-27275634b1d3
