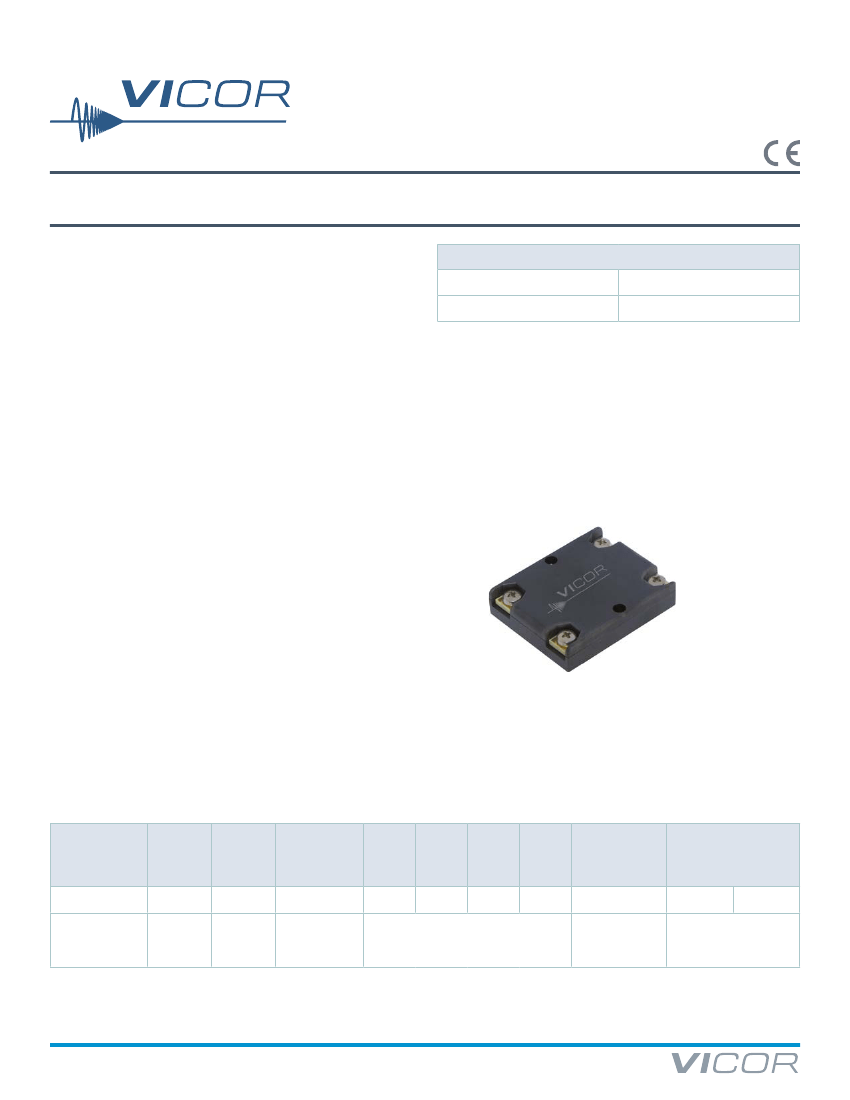

AIM™ in a VIA™ Package
AIM1714xB6MC7D5yzz
Universal AC Input Module
Features & Benefits
•
Universal input (85 – 264V
AC
, 47 – 63Hz)
•
Chassis-mount or PCB-mount form factor
•
Small robust package
•
Low profile
•
EMI filtering
•
Meets EN61000-4-5 Class 3 surge protection
when used with external MOV and fuse,
paired with Vicor PFM4414 products
V
IN
= 85 – 264V
V
OUT
= Rectified AC
Product Ratings
P
OUT
= up to 450W
I
OUT
= 5.3A
Product Description
The AIM in a VIA Package (AC Input Module) is a front-end module
designed to interface directly with worldwide AC mains and
provide a rectified AC input to the Vicor family of PFM4414 VIA
products. The AIM combines a bridge rectifier, EMI filter and surge
protection circuitry in an easy-to-use VIA plastic housing. The AIM
and PFM components in a VIA Package can realize a small, efficient
and simple AC-DC solution for a broad range of end applications.
Typical Applications
•
Small cell base stations
•
Telecom switching equipment
•
LED lighting
•
Test and Measurement Equipment
•
200 – 400W Industrial Power Systems
•
Office Equipment
Size:
1.76 x 1.40 x 0.37in
[44.6 x 35.5 x 9.3mm]
Part Ordering Information
Product
Function
AIM
AIM =
AC Input Module
Package
Length
17
Package
Width
14
Package
Type
x
B
= Board VIA
V
= Chassis VIA
Input
Voltage
B6
Range
Ratio
M
Output
Voltage
(Range)
C7
Max
Output
Power
D5
Product Grade
Option Field
y
C
= –20 to 100°C
T
= –40 to 100°C
z
z
Length in
Width in
Inches x 10 Inches x 10
Internal Reference
00
= Chassis/Always On
04
= Short Pin/Always On
08
= Long Pin/Always On
AIM™ in a VIA™ Package
Page 1 of 14
Rev 1.3
09/2018
AIM1714xB6MC7D5yzz
Typical PCB Mount Applications
J
1
F
1
M
1
M
2
L
+OUT
+IN
+OUT
24 V
2 x Cool-Power
®
ZVS Buck
+
_ 24 V 10 A
+
C
2
+
C
3
Cool-Power
®
ZVS Buck
85 –
264V
AC
Inlet
MOV
AIM
N
–OUT
–IN
PFM™
–OUT
+
C
1
+
_ 3.3 V 10 A
+
_ 1.8 V 8 A
The PCB terminal option allows mounting on an industry standard printed circuit board, with two different pin lengths.
Parts List for Typical PCB Mount Applications
J1
F1
M1
M2
C1, C2, (C3)
MOV
Qualtek
703W IEC 320-C14 Power Inlet
Littelfuse
0216008.MXP 8A 250V
AC
5 x 20mm holder
Vicor AIM™
AIM1714BB6MC7D5yzz
Vicor PFM™
PFM4414BB6M24D0yzz
or
Vicor PFM
PFM4414BB6M48D0yzz
Select capacitors based on 4414 VIA PFM model used, as per typical application parts list.
Littelfuse
TMOV20RP300E VARISTOR 10kA 30V 250 J 20mm
AIM™ in a VIA™ Package
Page 2 of 14
Rev 1.3
09/2018
AIM1714xB6MC7D5yzz
Typical Chassis Mount Applications
J
1
F
1
M
1
M
2
L
+OUT
+IN
+OUT
24V
Fan
85 –
264V
AC
Inlet
MOV
AIM
N
–OUT
PFM™
–IN
–OUT
C
1
C
2
C
3
8
8
Relays
16
Dispensors
Controller
Coin Box
The AIM and PFM are available in chassis-mount option, saving the cost of a PCB and allowing access to both sides of the power supply for
cooling. The parts list below minimizes the number of interconnects required between necessary components, and selects components
with terminals traditionally used for point-to-point chassis wiring.
Parts List for Typical Chassis Mount Applications
J1
F1
M1
M2
C1, C2, C3
MOV
Qualtek
719W or 723W IEC 320-C14 Power Inlet
Littelfuse
0216008.MXP 8A 250V
AC
5 x 20mm in a J1, or separate fuse holder
Vicor AIM™
AIM1714VB6MC7D5y00
Vicor PFM™
PFM4414VB6M24D0y00
or
Vicor PFM
PFM4414VB6M48D0y00
Select capacitors based on PFM4414 VIA model used, as per typical application parts list.
Littelfuse
TMOV20RP300E VARISTOR 10kA 300V 250 J 20mm
AIM™ in a VIA™ Package
Page 3 of 14
Rev 1.3
09/2018
AIM1714xB6MC7D5yzz
Pin Configuration
TOP VIEW
L
+OUT
N
–OUT
AIM1714 VIA - Chassis Mount - Terminals Up
TOP VIEW
N
–OUT
L
+OUT
AIM1714 VIA - PCB Mount - Pins Down
Please note that these pin drawings are not to scale.
Pin Descriptions
Signal Name
N
L
–OUT
+OUT
Type
INPUT POWER RETURN
INPUT POWER
OUTPUT POWER RETURN
OUTPUT POWER
AC Neutral / Line 2 input
AC Line 1 input
Negative output power terminal
Positive output power terminal
Function
AIM™ in a VIA™ Package
Page 4 of 14
Rev 1.3
09/2018
AIM1714xB6MC7D5yzz
Absolute Maximum Ratings
The absolute maximum ratings below are stress ratings only. Operation at or beyond these maximum ratings can cause permanent damage to the device.
Parameter
Peak Voltage at Input Terminals,
1ms Max
Input Voltage (AC RMS) Continuous
Output Current (Continuous)
Operating Internal Temperature
Storage Temperature
Input / Output Pin Torque and
Mounting Torque
Comments
Min
0
0
0
–40
–65
Max
600
275
5.3
125
125
4 [0.45]
Unit
V
PK
V
RMS
A
RMS
°C
°C
in.lbs [N.m]
AIM™ in a VIA™ Package
Page 5 of 14
Rev 1.3
09/2018
