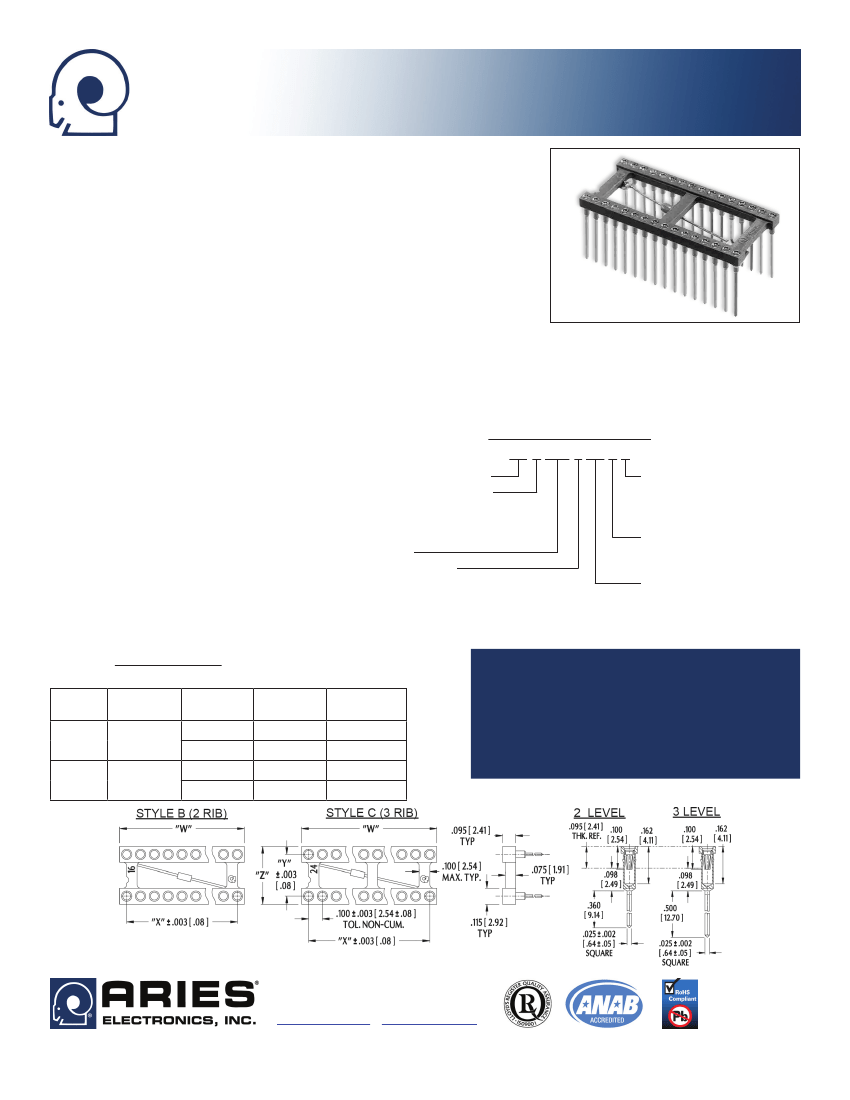

Series 508 Open-Frame Capacitor
Collet Socket with Wire Wrap Pins
FEATURES
• Capacitor bypasses unwanted electromagnetic ‘noise’
• Available with either 0.1µF or 0.33µF capacitor, 50V, Z5U temperature coefficient
• Open frame allows for more efficient utilization of board space and better cooling
• Compatible with automatic insertion equipment
• Side-to-side and end-to-end stackable
GENERAL SPECIFICATIONS
• BODY MATERIAL: black UL 94V-0 glass-filled Nylon
• PIN BODY: Brass 360 1/2-hard per UNS C36000 ASTM B16-85
• PIN BODY PLATING: either 10µ [0.25µ] min. Au per MIL-G-45204
or
200µ
[5.08µ] min. 93/7 Sn/Pb per ASTM B545
or
200µ [5.08µ] min. Sn per ASTM
CUSTOMIZATION:
In addition to the standard products shown
B545 Type 1 over 100µ [2.54µ] min. Ni per SAE AMS-QQ-N-290
on this page, Aries specializes in custom design and production.
• 4-FINGERED COLLET CONTACT: BeCu per UNS C17200 ASTM-B194-01
Special materials, platings, sizes, and configurations can be
furnished, depending on the quantity.
NOTE:
Aries reserves the
• CONTACT PLATING: 30µ [0.76µ] min. Au per MIL-G-45204 over 50µ [1.27µ]
right to change product general specifications without notice.
min. Ni per SAE AMS-QQ-N-290
• CONTACT CURRENT RATING: 3 amps
• OPERATING TEMPERATURE: -67°F to 221°F
ORDERING INFORMATION
[-55°C to 105°C] Sn : -67°F to 257°F [-55°C to
XX-X 508-1 XX X X
125°C] Au
Optional
Pin Count
(see Table)
• INSERTION FORCE: 180g/pin
H = Heavy Au on Collet
Row-to-Row Spacing
• WITHDRAWAL FORCE: 90g/pin
T = Sn on Collet
3 “Y” = 0.300 [7.62]
• NORMAL FORCE: 140g/pin; based on a
E = Extra Long Solder Tail
4 “Y” = 0.400 [10.16]
0.018 [0.46] dia. test lead
Capacitor
6 “Y” = 0.600 [15.24]
• ACCEPTS LEADS: 0.015-0.025 [0.38-0.64] in
1 = 0.1µF
Series
dia.
2 = 0.33µF
Solder Pin Tail
• ACCEPTS LEAD LENGTHS: from 0.100 [2.54]
Plating
min.
MOUNTING CONSIDERATIONS
• Suggested PCB Hole Size: 0.045 ±0.002 [1.14 ±0.05] dia.
NOTE:
See
Data Sheet 12026
for Open Frame Capacitor Collet Socket
with Solder Pin Tail
Frame
Style
B
C
No. of Ribs
Centers “Y”
0.300 [7.62]
0.400 [10.16]
0.300 [7.62]
0.600 [15.24]
Dim. “Z”
0.400 [10.16]
0.500 [12.70]
0.400 [10.16]
0.700 [17.78]
Available Sizes
14, 16, 18, 20
20, 22, 24
24, 28
24, 28, 32, 40
0 = Au Collet, Sn Shell
1 = Au Collet, Au Shell
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES ± 0.005 [0.127] UNLESS OTHERWISE
SPECIFIED
“W” = (No. of Pins per Row) x 0.100 [2.54]
“X” = (No. of Pins per Row -1) x 0.100 [2.54]
CONSULT FACTORY FOR OTHER SIZES & CONFIGURATIONS
2
3
Bristol, PA 19007-6810 USA
TEL (215) 781-9956 • FAX (215) 781-9845
WWW.ARIESELEC.COM • INFO@ARIESELEC.COM
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
12027
Rev. AA
