sorptive switch with integral silicon ASIC driver.
Packaged in a 16-lead ceramic surface mount pack-
age, this device offers excellent performance and
repeatability from DC to 3 GHz while maintaining low
power consumption. The SW05-0311 is ideally
suited for use where fast speed, low power con-
sumption and broadband applications are required.
GND
GND
Vcc
C1
Pin Configuration
Pin No.
Function
Vee
GND
GND
GND
RF1
GND
GND
GND
Pin No.
9
10
11
12
13
14
15
16
Function
GND
GND
GND
RF2
GND
GND
Vcc
C1
Ordering Information
Part Number
SW05-0311
SW05-0311TR
MASW-008843-0001TB
1
2
Package
Bulk Packaging
1000 piece reel
Sample Test Board
3
4
5
6
7
8
Note: Reference Application Note M513 for reel size
information.
The metal bottom of the case must be connected to RF and DC
ground.
1
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
SW05-0311
Matched GaAs SPST Switch,
DC-3.0 GHz with TTL/CMOS Control Input
Electrical Specifications: T
A
= +25°C
1,2
Parameter
Insertion Loss
Rev. V6
Test Conditions
—
Frequency
DC - 3000 MHz
DC - 2000 MHz
DC - 1000 MHz
DC - 500 MHz
DC - 3000 MHz
DC - 2000 MHz
DC - 1000 MHz
DC - 500 MHz
DC - 3000 MHz
DC - 2000 MHz
DC - 1000 MHz
DC - 500 MHz
—
—
—
0.05 GHz
0.5 GHz to 3 GHz
0.05 GHz
0.5 GHz to 3 GHz
0.05 GHz
0.5 GHz to 3 GHz
—
—
—
—
Units
dB
dB
dB
dB
Ratio
Ratio
Ratio
Ratio
dB
dB
dB
dB
ns
ns
mV
dBm
dBm
dBm
dBm
dBm
dBm
µA
µA
mA
mA
Min
—
—
—
—
—
—
—
—
25
35
35
65
—
—
—
—
—
—
—
—
—
—
—
—
—
Typ
1.0
0.8
0.7
0.6
1.4:1
1.3:1
1.2:1
1.1:1
29
40
60
70
50
150
50
+21
+27
+62
+68
+40
+46
—
—
—
—
Max
1.3
1.2
1.0
0.8
1.5:1
1.4:1
1.3:1
1.2:1
—
—
—
—
—
—
—
—
—
—
—
—
—
1
1
1
1
VSWR
—
Isolation
—
Trise, Tfall
Ton, Toff
Transients
1 dB Compression
IP2
10% to 90%
D1.3V CTL to 90% / 10%
In-Band
Input Power
Two-Tone Input Power up to
+5 dBm
Two-Tone Input Power up to
+5 dBm
0V to 0.8V
2.0V to 5.0V
+5.0V ± 10%
-5.0V to -8.0V
IP3
Vin Low
Vin High
Vcc
Vee
1. All specifications apply when operated with bias voltages of +5V for Vcc and –5V for Vee.
2. When DC blocks are used, a 10K ohm return to GND is required on the RFC port.
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
SW05-0311
Matched GaAs SPST Switch,
DC-3.0 GHz with TTL/CMOS Control Input
Absolute Maximum Ratings
3,4
Parameter
Max Input Power
50 MHz
500 - 3000 MHz
V
CC
V
EE
V
CC
- V
EE
Vin
5
Operating Temperature
Storage Temperature
3.
4.
5.
Rev. V6
Absolute Maximum
+27 dBm
+34 dBm
-0.5V ≤ V
CC
≤ +7.0V
-8.5V ≤ V
EE
≤ +0.5V
-0.5V ≤ V
CC
- V
EE
≤ 14.5V
-0.5V ≤ Vin ≤ V
CC
+ 0.5V
-40°C to +125°C
-65°C to +150°C
Truth Table (Switch)
Control Input
C1
0
1
0 = TTL Low; 1 = TTL High
Condition of Switch
RF1 to RF2
ON
OFF
Exceeding any one or combination of these limits may cause
permanent damage to this device.
M/A-COM does not recommend sustained operation near
these survivability limits.
Standard CMOS TTL interface, latch-up will occur if logic
signal is applied prior to power supply.
Typical Performance Curves
Insertion Loss vs. Frequency
+ 8 5 °C
+ 2 5 °C
- 55 °C
Handling Procedures
Please observe the following precautions to avoid
damage:
2
1.5
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
devices.
Loss (dB)
1
0.5
0
0.0
0.5
1.0
1.5
2.0
2.5
3
F re que nc y ( G H z)
Isolation vs. Frequency
VSWR vs. Frequency
V SW R On
V SW R Of f
80
70
2.00
Isolation dB
60
50
40
30
20
10
0
0.0
0.5
1.0
1.5
2.0
2.5
3
1.80
1.60
VSWR
1.40
1.20
1.00
0.0
0.5
1.0
1.5
2.0
2.5
3
3
F re que nc y ( G H z)
F re que nc y ( G H z)
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
SW05-0311
Matched GaAs SPST Switch,
DC-3.0 GHz with TTL/CMOS Control Input

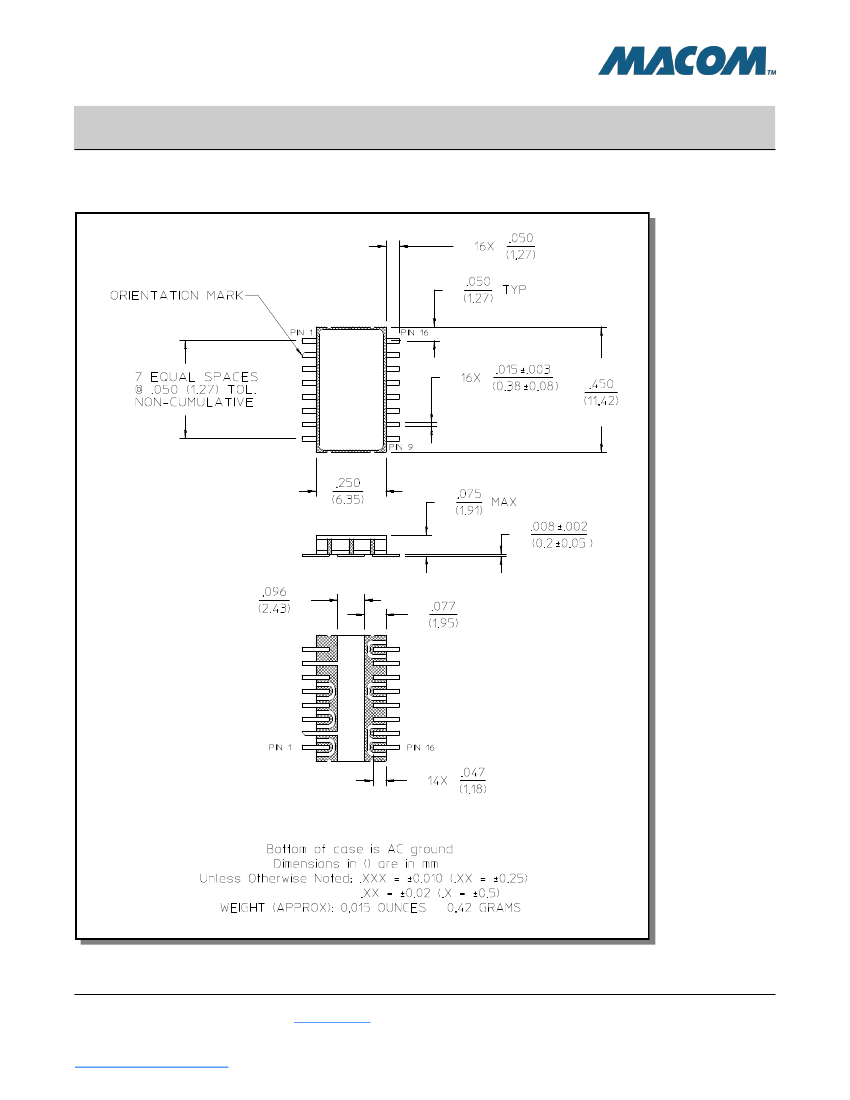

Lead-Free,
CR-9 Ceramic Package
†
Rev. V6
†
4
Reference Application Note M538 for lead-free solder reflow
recommendations.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
SW05-0311
Matched GaAs SPST Switch,
DC-3.0 GHz with TTL/CMOS Control Input
Rev. V6
M/A-COM Technology Solutions Inc. All rights reserved.
Information in this document is provided in connection with M/A-COM Technology Solutions Inc ("MACOM")
products. These materials are provided by MACOM as a service to its customers and may be used for
informational purposes only. Except as provided in MACOM's Terms and Conditions of Sale for such products or
in any separate agreement related to this document, MACOM assumes no liability whatsoever. MACOM
assumes no responsibility for errors or omissions in these materials. MACOM may make changes to
specifications and product descriptions at any time, without notice. MACOM makes no commitment to update
the information and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future
changes to its specifications and product descriptions. No license, express or implied, by estoppels or otherwise,
to any intellectual property rights is granted by this document.
THESE MATERIALS ARE PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, RELATING TO SALE AND/OR USE OF MACOM PRODUCTS INCLUDING LIABILITY OR
WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, CONSEQUENTIAL OR
INCIDENTAL DAMAGES, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR
OTHER INTELLECTUAL PROPERTY RIGHT. MACOM FURTHER DOES NOT WARRANT THE ACCURACY
OR COMPLETENESS OF THE INFORMATION, TEXT, GRAPHICS OR OTHER ITEMS CONTAINED WITHIN
THESE MATERIALS. MACOM SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR LOST PROFITS,
WHICH MAY RESULT FROM THE USE OF THESE MATERIALS.
MACOM products are not intended for use in medical, lifesaving or life sustaining applications. MACOM
customers using or selling MACOM products for use in such applications do so at their own risk and agree to
fully indemnify MACOM for any damages resulting from such improper use or sale.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
