LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
TAPE AND REEL TYPE LED LAMPS
Pb
Lead-Free Parts
LEG42292/L11-PF/TRS-X
DATA SHEET
DOC. NO :
REV.
DATE
:
:
QW0905- LEG42292/L11-PF/TRS-X
A
24 - Oct. - 2006
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO.LEG42292/L11-PF/TRS-X
Page 1/7

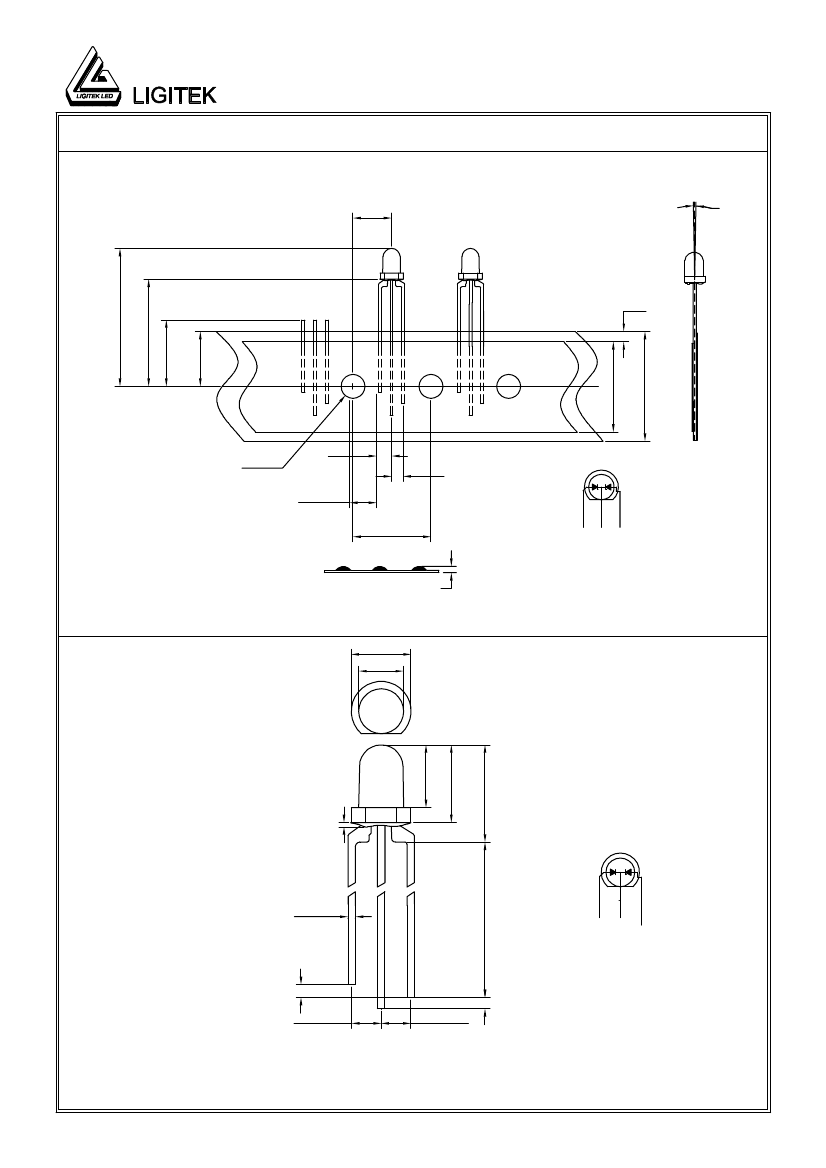

Package Dimensions
P2
Δ
H
H2
H1
L
W0
W2
W3
W1
+ - +
D
F
F
P1
P
1
2
3
G
E
T
1.ANODE GREEN
2.COMMON CATHODE
3.ANODE ORANGE
LEG42292/L11-PF
4.0
3.0
4.2
5.2
6.7±0.5
1.5 MAX
G
E
□
0.5
TYP
1
2
3
18.0MIN
1
2
3
2.0MIN
2.0TYP
2.0TYP
2.0MIN
1.ANODE GREEN
2.COMMON CATHODE
3.ANODE ORANGE
Note : 1.All dimension are in millimeter tolerance is
±
0.25mm unless otherwise noted.
2.Specifications are subject to change without notice.
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO.LEG42292/L11-PF/TRS-X
Page 2/7
Absolute Maximum Ratings at Ta=25
℃
Ratings
Parameter
Symbol
E
Forward Current
Peak Forward Current
Duty 1/10@10KHz
Power Dissipation
Reverse Current @5V
Operating Temperature
Storage Temperature
I
F
I
FP
PD
Ir
T
opr
Tstg
30
120
100
10
-40 ~ +85
-40 ~ +100
G
30
120
100
mA
mA
mW
UNIT
μ
A
℃
℃
Typical Electrical & Optical Characteristics (Ta=25
℃
)
PART NO
MATERIAL
Emitted
GaAsP/GaP
Orange
COLOR
Lens
Peak
wave
length
λ
P nm
Forward
Spectral
voltage
halfwidth
△λ
nm
@20mA(V)
Luminous
intensity
@ 10mA(mcd)
Viewing
angle
2
θ
1/2
(deg)
Min. Max. Min. Typ.
635
45
30
1.7
1.7
2.6
2.6
8.0
8.0
20
20
70
70
LEG42292/L11-PF/TRS-X
White Diffused
GaP
Green
565
Note : 1.The forward voltage data did not including
±
0.1V testing tolerance.
2. The luminous intensity data did not including
±
15% testing tolerance.
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO.LEG42292/L11-PF/TRS-X
•
Dimensions Symbol Information
SYMBOL ITEMS
Tape Feed Hole Diameter
Component Lead Pitch
Front-To-Rear Deflection
Page 3/7
OPTION
SYMBOL
CODE
-------
-------
-------
SPECIFICATIONS
Minimum
inch
mm
3.8
1.7
-------
Maximum
inch
mm
4.2
2.5
2.0
18.5
22.5
26.5
28.5
23.5
20.9
25.0
25.5
20.0
19.4
22
21.5
19.0
27.5
36
11.0
0.17
0.10
0.08
0.73
0.89
1.04
1.12
0.93
0.82
0.98
1.0
0.79
0.76
0.87
0.85
0.75
1.08
1.42
0.43
0.51
0.23
0.3
0.06
0.38
0.61
0.16
0.75
D
F
△
H
0.15
0.07
-------
Feed Hole To Bottom Of Component
TRS-1
TRS-2
TRS-3
TRS-4
TRS-5
TRS-6
TRS-7
TRS-8
TRS-9
TRS-10
TRS-11
TRS-12
TRS-13
TRS-14
-------
-------
-------
-------
-------
-------
-------
-------
-------
-------
H1
17.5
21.5
25.5
27.5
22.5
19.9
24.0
24.5
19.0
18.4
21
20.5
18.0
26.5
-------
0.69
0.85
1.0
1.08
0.89
0.78
0.94
0.96
0.75
0.72
0.83
0.81
0.71
1.04
-------
Feed Hole To Overall Component Height
Lead Length After Component Height
Feed Hole Pitch
Lead Location
Center Of Component Location
Overall Taped Package Thickness
Feed Hole Location
Adhesive Tape Width
Adhesive Tape Position
Tape Width
H2
L
P
P1
P2
T
W0
W1
W2
W3
W0
12.4
4.4
5.1
-------
0.49
0.17
0.2
-------
13.0
5.8
7.7
1.42
9.75
15.5
4.0
19.0
8.5
14.5
0
17.5
0.33
0.57
0
0.69
REMARK:TRS=Tape And Reel Straight Leads
•
Dimensions Symbol Information
Specification
Description
Reel Diameter
Core Diameter
Hub Recess Inside Diameter
Arbor Hole Diameter
Overall Reel Thickness
Iside Reel Flange Thickness
•
Package Dimensions
Symbol
D
D1
D2
D3
T2
T1
minimum
mm
inch
78.2
34.9
28.6
13.8
3.08
1.37
1.13
0.54
maxmum
mm
inch
380
102
88.0
38.1
57.2
14.96
4.02
3.46
1.5
2.25
1.97
D3
MARKING
D2
D1
D
T1
T2
30.0
1.18
2000PCS
50.0
Quantity/Reel
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO.LEG42292/L11-PF/TRS-X
Page 4/7
Typical Electro-Optical Characteristics Curve
E CHIP
Fig.1 Forward current vs. Forward Voltage
Fig.2 Relative Intensity vs. Forward Current
3.0
1000
Forward Current(mA)
100
Relative Intensity
Normalize @20mA
1.0
2.0
3.0
4.0
5.0
2.5
2.0
1.5
1.0
0.5
0.0
1.0
10
100
1000
10
1.0
0.1
Forward Voltage(V)
Fig.3 Forward Voltage vs. Temperature
Forward Current(mA)
Fig.4 Relative Intensity vs. Temperature
3.0
2.5
2.0
1.5
1.0
0.5
0.0
-40
-20
0
20
40
60
80
100
Forward Voltage@20mA
Normalize @25
℃
1.1
1.0
0.9
0.8
-40
-20
0
20
40
60
80
100
Relative Intensity@20mA
Normalize @25
℃
1.2
Ambient Temperature(
℃
)
Ambient Temperature(
℃
)
Fig.5 Relative Intensity vs. Wavelength
Relative Intensity@20mA
1.0
0.5
0.0
550
600
650
700
750
Wavelength (nm)
