BUL52AFI
ADVANCED
DISTRIBUTED BASE DESIGN
HIGH VOLTAGE
HIGH SPEED NPN
SILICON POWER TRANSISTOR
3.6 Dia.
6.3
15.1
Designed for use in
electronic ballast applications
•
•
•
•
SEMEFAB DESIGNED AND DIFFUSED DIE
HIGH VOLTAGE
FAST SWITCHING
HIGH ENERGY RATING
1 2 3
1.3
14.0
0.85
FEATURES
2.54 2.54
ISOLATED TO220
Pin 1 – Base
Pin 2 – Collectorn
Pin3 – Emitter
• Multi–base for efficient energy distribution
across the chip resulting in significantly
improved switching and energy ratings
across full temperature range.
• Ion implant and high accuracy masking for
tight control of characteristics from batch to
batch.
• Triple Guard Rings for improved control of
high voltages.
ABSOLUTE MAXIMUM RATINGS
(T
case
= 25°C unless otherwise stated)
V
CBO
V
CEO
V
EBO
I
C
I
C(PK)
I
B
P
tot
T
stg
Semelab plc.
Collector – Base Voltage
Collector – Emitter Voltage (I
B
= 0)
Emitter – Base Voltage (I
C
= 0)
Continuous Collector Current
Peak Collector Current
Base Current
Total Dissipation at T
case
= 25°C
Operating and Storage Temperature Range
Telephone (01455) 556565. Telex: 341927. Fax (01455) 552612.
1000V
500V
10V
6A
10A
2.5A
45W
–55 to 150°C
Prelim. 3/97
LAB
ELECTRICAL CHARACTERISTICS
(Tcase = 25°C unless otherwise stated)
Parameter
V
CEO(sus)
V
(BR)CBO
V
(BR)EBO
I
CBO
I
CEO
I
EBO
SEME
BUL52AFI
Test Conditions
Min.
500
1000
10
Typ.
Max.
Unit
ELECTRICAL CHARACTERISTICS
Collector – Emitter Sustaining Voltage I
C
= 10mA
Collector – Base Breakdown Voltage
Emitter – Base Breakdown Voltage
Collector – Base Cut–Off Current
Collector – Emitter Cut–Off Current
Emitter Cut–Off Current
I
C
= 1mA
I
E
= 1mA
V
CB
= 1000V
T
C
= 125°C
I
B
= 0
V
EB
= 9V
I
C
= 0
I
C
= 0.1A
I
C
= 1A
I
C
= 2.5A
I
C
= 100mA
T
C
= 125°C
V
CE
= 5V
V
CE
= 5V
V
CE
= 1V
T
C
= 125°C
I
B
= 20mA
I
B
= 0.5A
I
B
= 0.5A
I
B
= 0.2A
I
B
= 0.5A
V
CE
= 4V
f = 1MHz
V
CE
= 500V
V
10
100
100
10
100
µA
µA
µA
18
12
5
30
15
9
0.05
0.1
0.3
0.8
0.9
20
45
0.1
0.2
0.8
1.0
1.2
V
V
—
h
FE*
DC Current Gain
V
CE(sat)*
Collector – Emitter Saturation Voltage I
C
= 1A
I
C
= 2.5A
I
C
= 1A
I
C
= 2.5A
I
C
= 0.2A
V
CB
= 20V
V
BE(sat)*
Base – Emitter Saturation Voltage
DYNAMIC CHARACTERISTICS
Transition Frequency
Output Capacitance
f
t
C
ob
MHz
pF
* Pulse test t
p
= 300µs ,
δ
< 2%
Semelab plc.
Telephone (01455) 556565. Telex: 341927. Fax (01455) 552612.
Prelim. 3/97
LAB
SEME
BUL52AFI

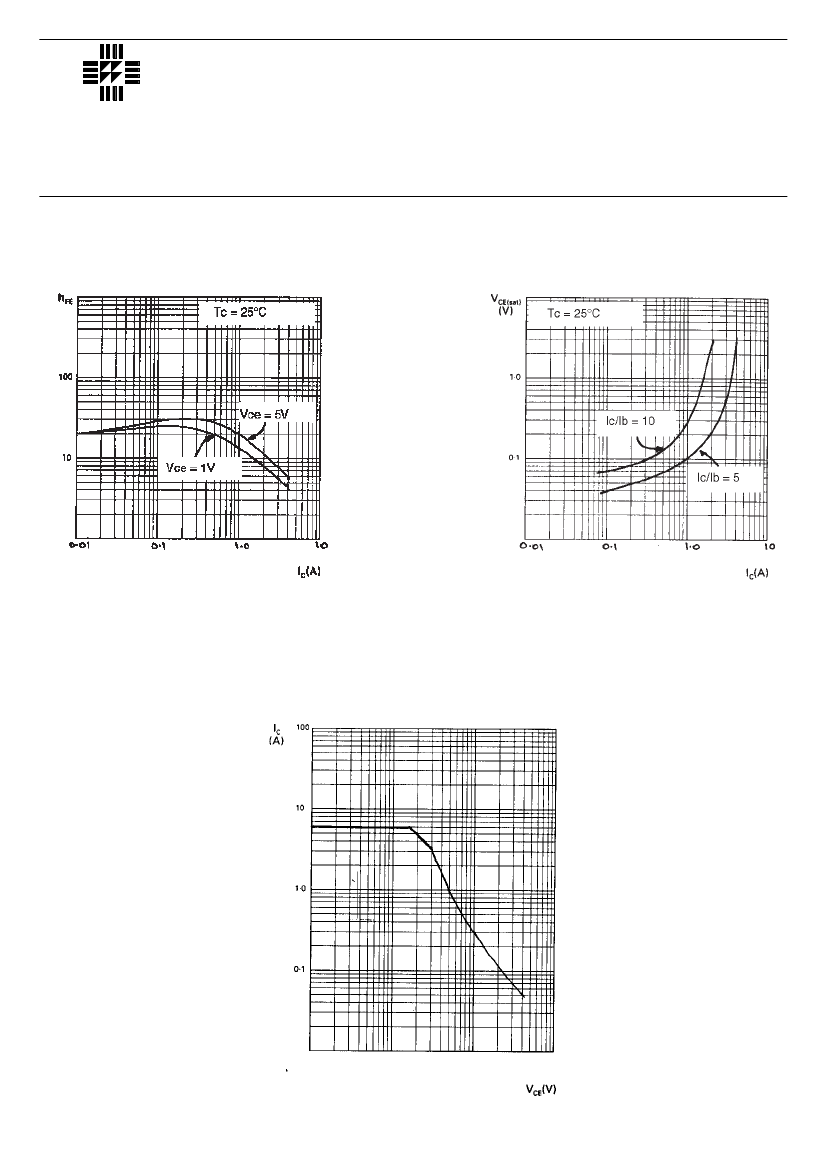

DC Current Gain
Collector-Emitter Saturation Voltage
Forward Bias Safe Operating Area
Semelab plc.
Telephone (01455) 556565. Telex: 341927. Fax (01455) 552612.
Prelim. 3/97
LAB
SEME
BUL52AFI

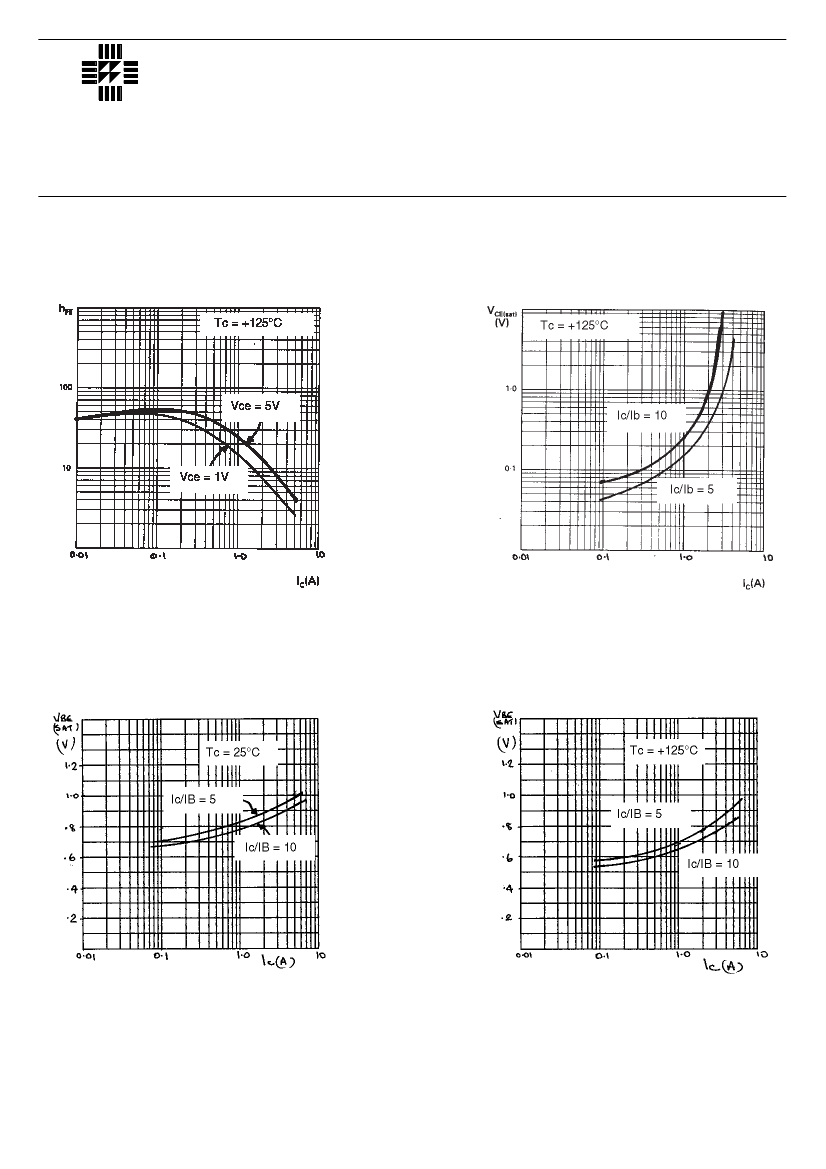

DC Current Gain
Collector-Emitter Saturation Voltage
Base-Emitter Saturation Voltage
Base-Emitter Saturation Voltage
Semelab plc.
Telephone (01455) 556565. Telex: 341927. Fax (01455) 552612.
Prelim. 3/97
