High Power, DC Pass
8 Way-0°
50Ω
Power Splitter/Combiner
Up to 100W
650 to 3600 MHz
ZN8PD-362HP+
The Big Deal
• High power, up to 100W as a splitter
• Low insertion loss, 1.0 dB
• Good isolation, 23 dB
ZN8PD-362HPX-S+
▲
ZN8PD-362HP-S+
Product Overview
Mini-Circuits’ ZN8PD-362HP+ is an 8-way 0˚ splitter/combiner providing very high power handling and low
insertion loss across 600 to 3600 MHz, covering many wireless communications bands as well as satel-
lite IF and more. Its outstanding combination of high power and low loss minimize power dissipation due
to intrinsic losses and provide excellent signal fidelity from input to output. This model also provides high
port-to-port isolation and low amplitude and phase unbalance. It comes housed in a rugged aluminum alloy
case with your choice of SMA or N-Type connectors and an optional heat sink for cooling.
Key Features
Feature
Wideband, 600 to 3600 MHz
High power handling:
• 100W as a splitter
• 3.2W as a combiner
Advantages
ZN8PD-362HP+ covers many popular wireless communications bands, making it suit-
able for a wide variety of applications.
Suitable for many high power applications.
Low insertion loss, 1.0 dB
Low unbalance:
• 0.35 dB amplitude unbalance
• 4˚ phase unbalance
Very low insertion loss minimizes intrinsic losses, making this model a suitable candidate
for high power signal distribution applications where low loss is a requirement.
ZN8PD-362HP+ produces nearly equal output signals, ideal for parallel path / multichan-
nel systems.
DC Passing, 1.2A (each port)
Supports applications where DC power is needed at later stages in the system.
Notes
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
www.minicircuits.com
P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com
Mini-Circuits
®
Page 1 of 2

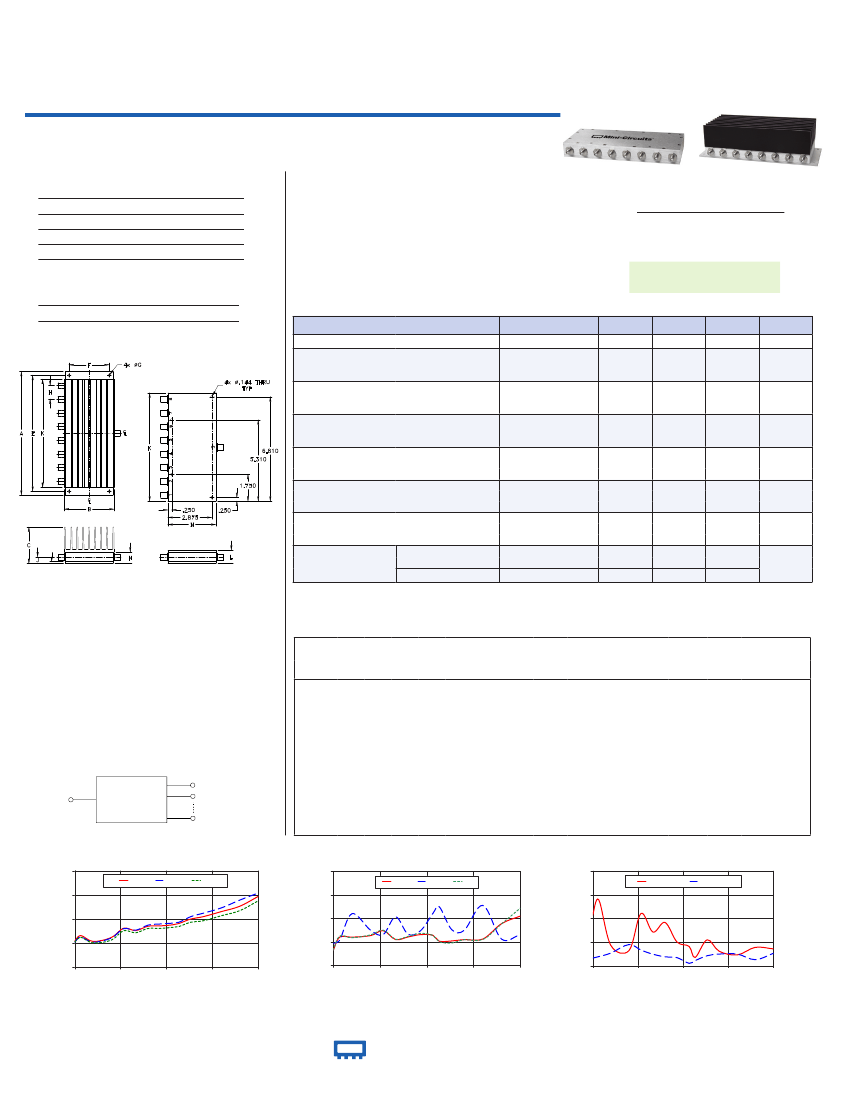

Power Splitter/Combiner
8 Way-0°
Operating Temperature
Storage Temperature
Power Input (as a splitter
1
)
Internal Dissipation
DC Current
High Power, DC Pass
ZN8PD-362HP+
ZN8PD-362HP-S+
ZN8PD-362HPX-S+
▲
Generic photo used for illustration purposes only
50Ω
Up to 100W
600 to 3600 MHz
CASE STYLE: AW257-1
Connectors Model
SMA
ZN8PD-362HP-S+
SMA
ZN8PD-362HPX-S+
▲
N-TYPE
ZN8PD-362HP-N+
N-TYPE
ZN8PD-362HPX-N+
▲
+RoHS Compliant
The +Suffix identifies RoHS Compliance. See our web site
for RoHS Compliance methodologies and qualifications
Maximum Ratings
-55°C to 60°C
-55°C to 100°C
100W max.
3.2W max.
Features
• power handling up to 100W
• wideband, 600 to 3600 MHz
• low insertion loss, 1.0 dB typ.
• good isolation, 23 dB typ.
• rugged shielded case
1.2A (150mA for each port)
Permanent damage may occur if any of these limits are exceeded.
Applications
• WiMax
• LTE
• WCDMA
Coaxial Connections
SUM PORT
PORT 1,2,3,4,5,6,7,8
S
1,2,3,4,5,6,7,8
Electrical Specifications at 25°C
Parameter
Frequency (MHz)
600 - 700
700 - 2700
2700 - 3600
600 - 700
700 - 2700
2700 - 3600
600 - 700
700 - 2700
2700 - 3600
600 - 700
700 - 2700
2700 - 3600
600 - 700
700 - 2700
2700 - 3600
600 - 700
700 - 2700
2700 - 3600
600 - 2700
2700 - 3600
600 - 3600
Min.
600
—
—
—
16
19
16
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Typ.
0.7
1.0
1.6
20
23
20
1
4
5
0.1
0.2
0.4
1.5
1.4
1.5
1.1
1.15
1.2
—
—
—
Max.
3600
1.0
1.6
2.2
—
—
—
3
8
10
0.3
0.7
0.9
1.7
1.8
1.8
1.35
1.35
1.35
100
50
3.2
Unit
MHz
dB
Outline Drawing
MOUNTING INFORMATION FOR
MODELS WITHOUT HEATSINK
Frequency Range
Insertion Loss
(above theoretical 9.0 dB)
Isolation
Phase Unbalance
Amplitude Unbalance
VSWR (Port S)
VSWR (Port 1-8)
Power Handling
As Splitter
1
As Combiner
2
dB
Degree
dB
:1
:1
Watt
Outline Dimensions (
inch
)
mm
A
8.06
204.72
H
.890
22.61
B
3.25
82.55
C
2.38
60.45
D
E
.125 7.560
3.18 192.02
F
2.625
66.68
G
.144
3.66
1. All outputs must terminate 50 ohm (VSWR 1.5:1 or better)
2. As a combiner of non-coherent signals, max. power per port is 3.2 watt power rating divided by number of ports.
▲
Heat sink not included. Alternative heat sinking and heat removal must be provided by the user to limit maximum base-plate temperature to 60°C, in order to ensure
proper performance. For reference, this requires thermal resistance of user’s external heat sink to be 1.1°C/W max.
Typical Performance Data
Freq.
(MHz)
S-1
600
700
900
1200
1400
1600
1800
2000
2200
2300
2500
2700
3000
3300
3600
9.54
9.65
9.53
9.61
9.80
9.76
9.85
9.85
9.88
9.90
10.00
10.04
10.15
10.26
10.46
J
K
.44
7.06
11.18 179.32
L
M
N
wt
.88
3.13
.75 grams*
22.35 79.50
19.05
1240
*850 grams without heatsink
Total Loss
1
(dB)
S-2
9.54
9.65
9.52
9.60
9.80
9.76
9.86
9.88
9.89
9.91
10.00
10.04
10.15
10.29
10.49
S-3
9.51
9.63
9.51
9.60
9.80
9.76
9.87
9.89
9.91
9.93
10.05
10.12
10.23
10.39
10.53
S-4
9.51
9.62
9.49
9.57
9.78
9.74
9.85
9.86
9.87
9.89
10.01
10.06
10.18
10.32
10.48
S-6
9.53
9.64
9.53
9.62
9.81
9.78
9.87
9.89
9.91
9.92
10.06
10.10
10.19
10.34
10.50
S-8
9.52
9.62
9.50
9.56
9.75
9.71
9.80
9.80
9.82
9.84
9.93
9.96
10.06
10.17
10.37
Amp.
Unb.
(dB)
0.05
0.04
0.05
0.06
0.06
0.07
0.07
0.09
0.09
0.09
0.13
0.16
0.16
0.22
0.16
Isolation
(dB)
1-2
19.47
27.87
27.88
28.86
32.05
26.32
27.99
29.49
29.04
25.28
25.44
26.28
26.67
36.49
41.31
2-3
23.95
25.82
42.88
32.22
29.51
40.86
29.65
32.00
43.15
47.28
32.67
32.17
48.18
26.63
29.44
3-4
19.46
27.94
28.04
29.31
31.81
26.51
27.91
30.28
28.13
24.64
24.86
26.22
26.42
36.18
45.05
5-6
19.53
28.59
27.48
29.33
32.32
26.51
28.39
30.28
28.94
24.90
24.11
26.24
26.37
36.31
46.39
Phase
Unb.
(deg.)
0.76
0.88
1.13
1.40
1.55
1.75
1.76
2.02
1.94
1.98
2.07
2.16
2.35
2.54
2.57
VSWR VSWR VSWR
S
1
8
1.43
1.56
1.17
1.13
1.44
1.28
1.37
1.20
1.16
1.07
1.22
1.12
1.09
1.15
1.14
1.06
1.08
1.11
1.18
1.13
1.10
1.07
1.07
1.02
1.04
1.08
1.10
1.10
1.05
1.10
1.05
1.08
1.12
1.17
1.12
1.08
1.06
1.07
1.03
1.04
1.09
1.10
1.11
1.05
1.12
Electrical Schematic
(DC THROUGH)
PORT 1 RF+DC
PORT S
RF+DC
PORT N RF+DC
PORT 2 RF+DC
1. Total Loss = Insertion Loss + 9dB theoretical splitter loss.
ZN8PD-362HP+
TOTAL LOSS
S-1
S-3
S-8
11.0
TOTAL LOSS (dB)
10.5
70
1-2
ZN8PD-362HP+
ISOLATION
2-3
5-6
1.8
1.6
ZN8PD-362HP+
VSWR
#S-VSWR
#1-VSWR
ISOLATION (dB)
55
40
25
10.0
9.5
9.0
10
600
1350
2100
FREQUENCY (MHz)
2850
3600
600
1350
2100
FREQUENCY (MHz)
2850
3600
VSWR
1.4
1.2
1.0
600
1350
2100
2850
3600
Notes
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
FREQUENCY (MHz)
www.minicircuits.com
P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com
Mini-Circuits
®
REV. C
M165034
ZN8PD-362HP+
ED-13816B/1
JC/CP/AM
151019
Page 2 of 2
