LLQ2W820MHSZ: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 20% +Tol, 20% -Tol, 82uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size287KB，3 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric Compare View All

LLQ2W820MHSZ Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 20% +Tol, 20% -Tol, 82uF, Through Hole Mount, RADIAL LEADED

LLQ2W820MHSZ Parametric

Parameter Name	Attribute value
Objectid	1911697128
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	82 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
Custom functions	Shorter Terminal 4mm Available
diameter	22 mm
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.57628 mA
length	25 mm
Manufacturer's serial number	LQ
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	BULK
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	450 V
ripple current	780 mA
series	LQ
surface mount	NO
Delta tangent	0.2
Terminal surface	MATTE TIN OVER COPPER
Terminal pitch	10 mm
Terminal shape	SNAP-IN

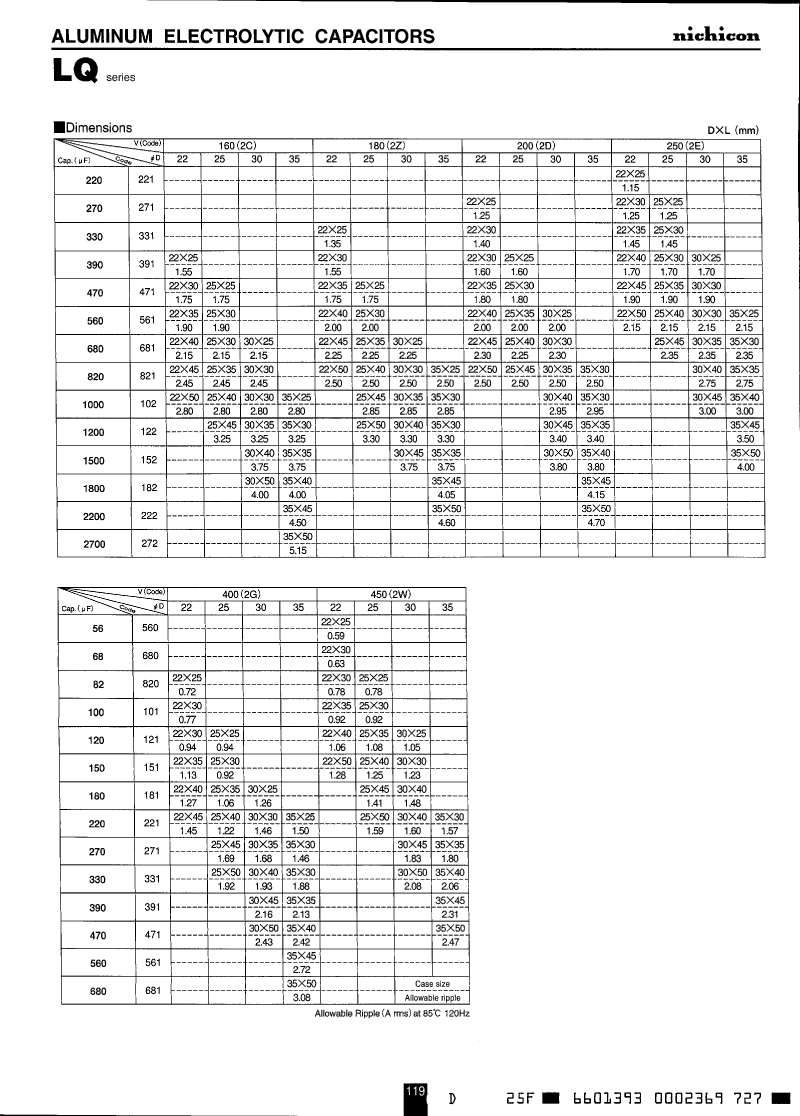

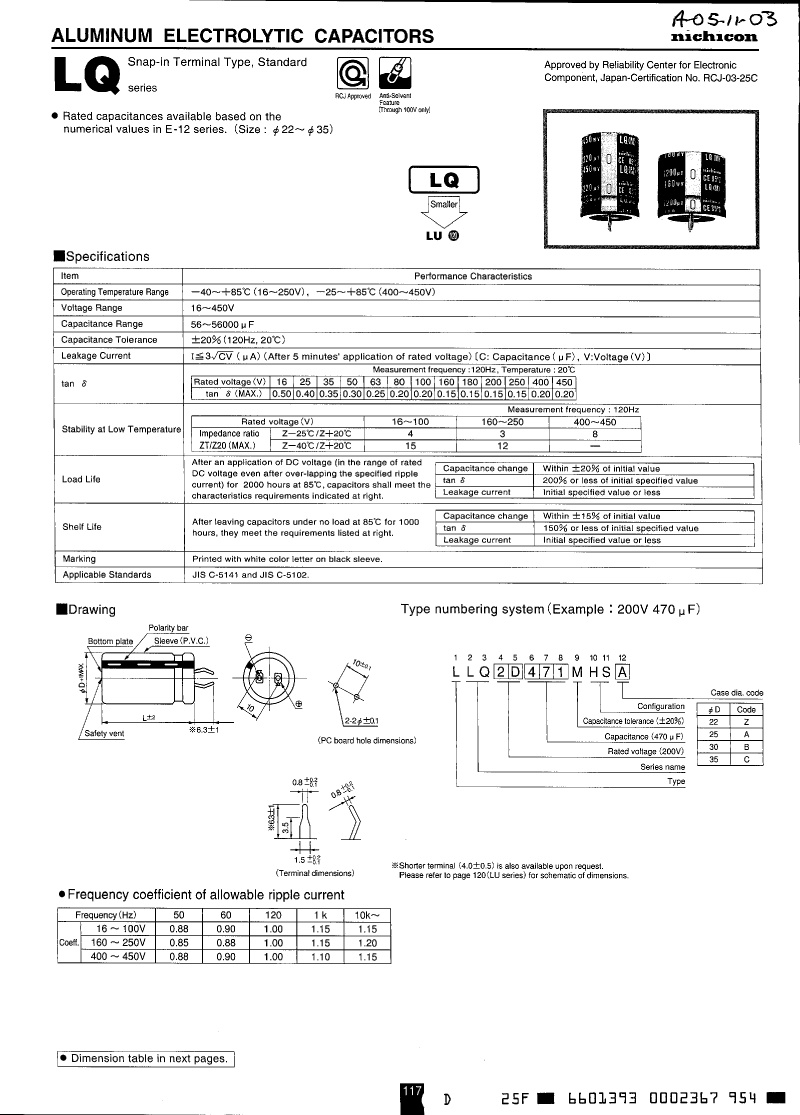

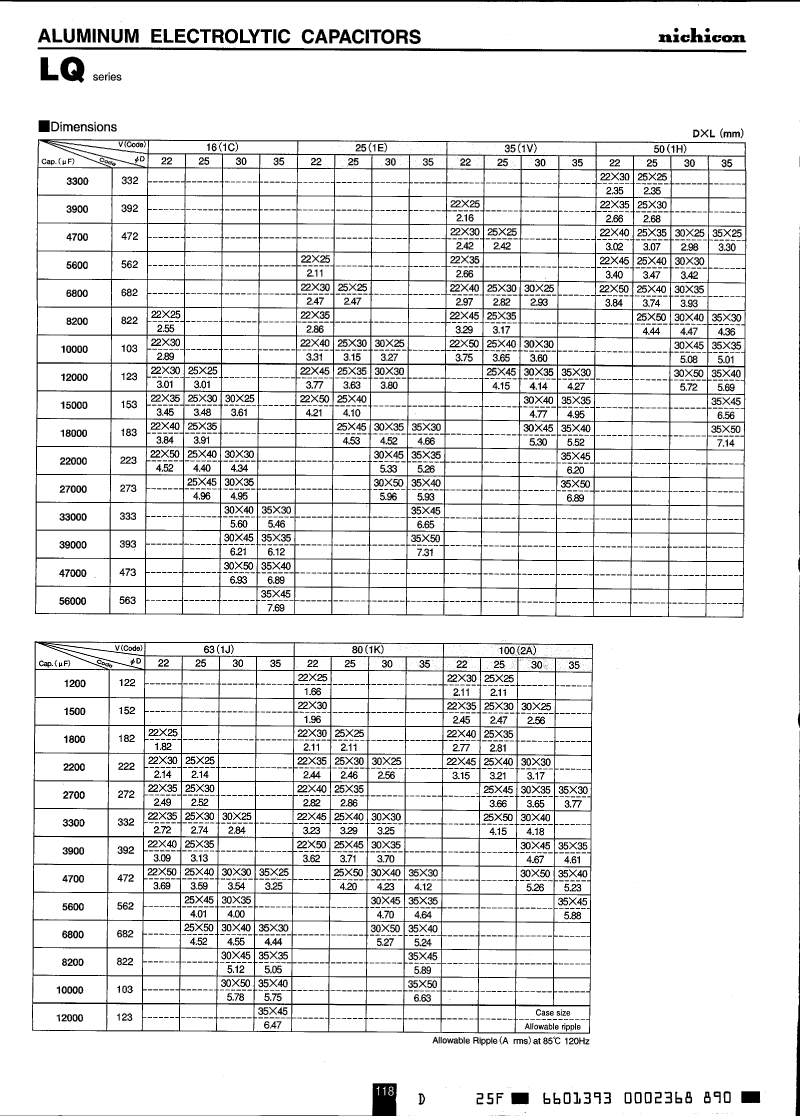

Preview

Download Datasheet

View All

LLQ2W820MHSZ Related Products

	LLQ2W820MHSZ	LLQ2A182MHSZ	LLQ2C102MHSB	LLQ2E681MHSB	LLQ2W151MHSA	LLQ2W221MHSC	LLQ2W271MHSB
Description	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 20% +Tol, 20% -Tol, 82uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 1800uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 160V, 20% +Tol, 20% -Tol, 1000uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 250V, 20% +Tol, 20% -Tol, 680uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 20% +Tol, 20% -Tol, 150uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 20% +Tol, 20% -Tol, 220uF, Through Hole Mount, RADIAL LEADED	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 20% +Tol, 20% -Tol, 270uF, Through Hole Mount, RADIAL LEADED
Objectid	1911697128	1911696995	1911697010	1911697077	1911697111	1911697118	1911697119
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	82 µF	1800 µF	1000 µF	680 µF	150 µF	220 µF	270 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
Custom functions	Shorter Terminal 4mm Available	Shorter Terminal 4mm Available	Shorter Terminal 4mm Available	Shorter Terminal 4mm Available	Shorter Terminal 4mm Available	Shorter Terminal 4mm Available	Shorter Terminal 4mm Available
diameter	22 mm	22 mm	30 mm	30 mm	25 mm	35 mm	30 mm
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
leakage current	0.57628 mA	1.27279 mA	1.2 mA	1.23693 mA	0.77942 mA	0.94392 mA	1.0457 mA
length	25 mm	25 mm	25 mm	25 mm	25 mm	25 mm	25 mm
Manufacturer's serial number	LQ	LQ	LQ	LQ	LQ	LQ	LQ
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-40 °C	-40 °C	-40 °C	-25 °C	-25 °C	-25 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
Package form	Radial	Radial	Radial	Radial	Radial	Radial	Radial
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	450 V	100 V	160 V	250 V	450 V	450 V	450 V
ripple current	780 mA	2770 mA	2800 mA	2350 mA	1250 mA	1570 mA	1830 mA
series	LQ	LQ	LQ	LQ	LQ	LQ	LQ
surface mount	NO	NO	NO	NO	NO	NO	NO
Delta tangent	0.2	0.2	0.15	0.15	0.2	0.2	0.2
Terminal surface	MATTE TIN OVER COPPER	MATTE TIN OVER COPPER	MATTE TIN OVER COPPER	MATTE TIN OVER COPPER	MATTE TIN OVER COPPER	MATTE TIN OVER COPPER	MATTE TIN OVER COPPER
Terminal pitch	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm	10 mm
Terminal shape	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN	SNAP-IN
