TWIST TIES
1
THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.
B
NOTES:

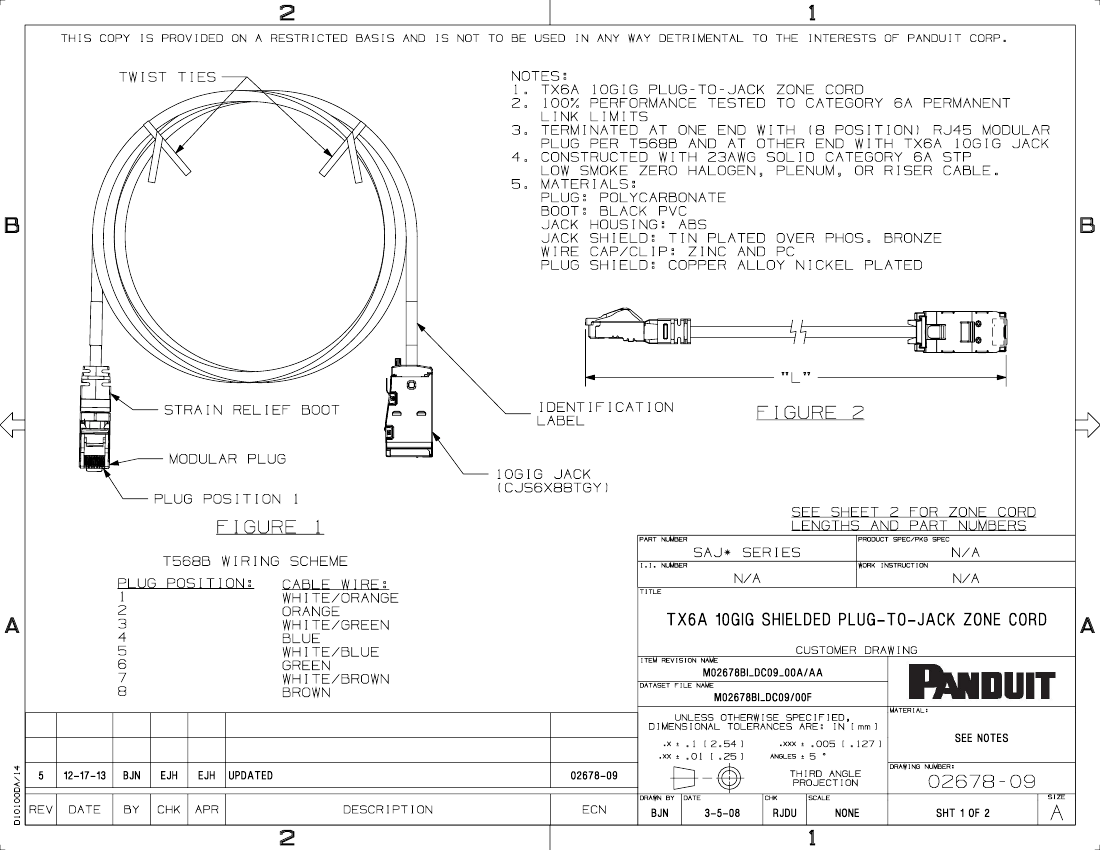

1. TX6A 10GIG PLUG-TO-JACK ZONE CORD
2. 100% PERFORMANCE TESTED TO CATEGORY 6A PERMANENT
LINK LIMITS
3. TERMINATED AT ONE END WITH (8 POSITION) RJ45 MODULAR
PLUG PER T568B AND AT OTHER END WITH TX6A 10GIG JACK
4. CONSTRUCTED WITH 23AWG SOLID CATEGORY 6A STP
LOW SMOKE ZERO HALOGEN, PLENUM, OR RISER CABLE.
5. MATERIALS:
PLUG: POLYCARBONATE
BOOT: BLACK PVC
JACK HOUSING: ABS
JACK SHIELD: TIN PLATED OVER PHOS. BRONZE
WIRE CAP/CLIP: ZINC AND PC
PLUG SHIELD: COPPER ALLOY NICKEL PLATED
B
"L"
STRAIN RELIEF BOOT
IDENTIFICATION
LABEL
FIGURE 2
MODULAR PLUG
PLUG POSITION 1
10GIG JACK
(CJS6X88TGY)
SEE SHEET 2 FOR ZONE CORD
LENGTHS AND PART NUMBERS
PART NUMBER
PRODUCT SPEC/PKG SPEC
FIGURE 1
T568B WIRING SCHEME
PLUG POSITION:
1
2
3
4
5
6
7
8
CABLE WIRE:
WHITE/ORANGE
ORANGE
WHITE/GREEN
BLUE
WHITE/BLUE
GREEN
WHITE/BROWN
BROWN
I.I. NUMBER
SAJ* SERIES
WORK INSTRUCTION
N/A
N/A
N/A
TITLE
A
TX6A
10GIG
SHIELDED
PLUG-TO-JACK
ZONE
CORD
CUSTOMER DRAWING
ITEM REVISION NAME
A
M02678BI_DC09_00A/AA
DATASET FILE NAME
M02678BI_DC09/00F
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
.X
.XX
MATERIAL:
.1 [2.54]
.01 [.25]
.XXX
ANGLES
.005 [.127]
5
DRAWING NUMBER:
SEE
NOTES
D10100DA/14
5
REV
12-17-13
DATE
BJN
EJH
EJH
UPDATED
DESCRIPTION
02678-09
DRAWN BY
DATE
CHK
THIRD ANGLE
PROJECTION
SCALE
02678-09
SIZE
BY
CHK
APR
ECN
BJN
3-5-08
RJDU
NONE
SHT
1
OF
2
A
2
1
2

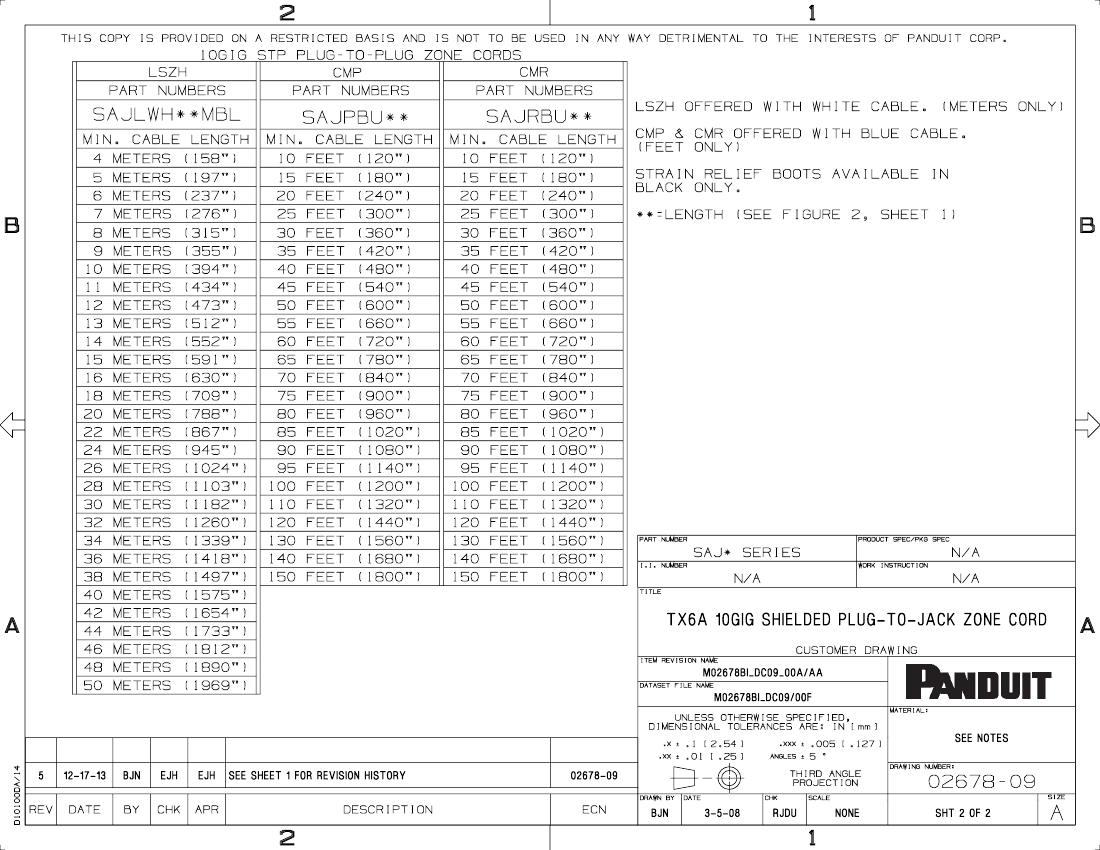

10GIG STP PLUG-TO-PLUG ZONE CORDS
LSZH
CMR
CMP
PART NUMBERS
PART NUMBERS
PART NUMBERS
1
THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.
SAJLWH**MBL
MIN. CABLE LENGTH
4 METERS (158")
5 METERS (197")
6 METERS (237")
7 METERS (276")
8 METERS (315")
9 METERS (355")
10 METERS (394")
11 METERS (434")
12 METERS (473")
13 METERS (512")
14 METERS (552")
15 METERS (591")
16 METERS (630")
18 METERS (709")
20 METERS (788")
22 METERS (867")
24 METERS (945")
26 METERS (1024")
28 METERS (1103")
30 METERS (1182")
32 METERS (1260")
34 METERS (1339")
36 METERS (1418")
38 METERS (1497")
40 METERS (1575")
42 METERS (1654")
44 METERS (1733")
46 METERS (1812")
48 METERS (1890")
50 METERS (1969")
SAJPBU**
MIN. CABLE LENGTH
10 FEET (120")
15 FEET (180")
20 FEET (240")
25 FEET (300")
30 FEET (360")
35 FEET (420")
40 FEET (480")
45 FEET (540")
50 FEET (600")
55 FEET (660")
60 FEET (720")
65 FEET (780")
70 FEET (840")
75 FEET (900")
80 FEET (960")
85 FEET (1020")
90 FEET (1080")
95 FEET (1140")
100 FEET (1200")
110 FEET (1320")
120 FEET (1440")
130 FEET (1560")
140 FEET (1680")
150 FEET (1800")
SAJRBU**
MIN. CABLE LENGTH
10 FEET (120")
15 FEET (180")
20 FEET (240")
25 FEET (300")
30 FEET (360")
35 FEET (420")
40 FEET (480")
45 FEET (540")
50 FEET (600")
55 FEET (660")
60 FEET (720")
65 FEET (780")
70 FEET (840")
75 FEET (900")
80 FEET (960")
85 FEET (1020")
90 FEET (1080")
95 FEET (1140")
100 FEET (1200")
110 FEET (1320")
120 FEET (1440")
130 FEET (1560")
140 FEET (1680")
150 FEET (1800")
LSZH OFFERED WITH WHITE CABLE. (METERS ONLY)
CMP & CMR OFFERED WITH BLUE CABLE.
(FEET ONLY)
STRAIN RELIEF BOOTS AVAILABLE IN
BLACK ONLY.
**=LENGTH (SEE FIGURE 2, SHEET 1)
B
B
PART NUMBER
PRODUCT SPEC/PKG SPEC
SAJ* SERIES
I.I. NUMBER
WORK INSTRUCTION
N/A
N/A
N/A
TITLE
A
TX6A
10GIG
SHIELDED
PLUG-TO-JACK
ZONE
CORD
CUSTOMER DRAWING
ITEM REVISION NAME
A
M02678BI_DC09_00A/AA
DATASET FILE NAME
M02678BI_DC09/00F
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
.X
.XX
MATERIAL:
.1 [2.54]
.01 [.25]
.XXX
ANGLES
.005 [.127]
5
DRAWING NUMBER:
SEE
NOTES
D10100DA/14
5
REV
12-17-13
DATE
BJN
EJH
EJH
SEE
SHEET
1
FOR
REVISION
HISTORY
02678-09
DRAWN BY
DATE
CHK
THIRD ANGLE
PROJECTION
SCALE
02678-09
SIZE
BY
CHK
APR
DESCRIPTION
ECN
BJN
3-5-08
RJDU
NONE
SHT
2
OF
2
A
2
1
