from 50 MHz to 1 GHz. It features low insertion loss
and excellent linearity. It includes two high-power
ports capable of handling up to 200 Watts CW and
one low-power port capable of handling up to 100
Watts CW of incident power at a base plate
temperature of +85ºC.
This high power switch is ideal for use on land
mobile radio and MIL-COM applications that require
higher CW and pulsed power operation. This device
can operate with positive-only DC supplies, making it
suitable for switch-filter and power amplifier control
circuits.
The MASW-011041 is manufactured using
MACOM’s hybrid manufacturing process featuring
high voltage PIN diodes and passive devices
integrated in a 9 mm HQFN 20-lead plastic package.
The MASW-011041 is compatible with MACOM’s
MADR-010574 PIN Diode Driver.
4
12
5
11
6
7
8
9
10
B2
RF2
N/C
N/C
N/C
Pin Configuration
Pin
1
2
2
3
4
5
6
7
2
Function
No Connection
RF1 Input /
V1 Bias
No Connection
B1 Bias
Ground
B2 Bias
RF2 Input /
V2 Bias
No Connection
No Connection
No Connection
Pin
11
12
13
14
2
15
16
17
18
19
20
Paddle
3
Function
Ground
B3 Bias
No Connection
RF3 Input /
V3 Bias
No Connection
Ground
No Connection
RF Common /
V4 Bias
No Connection
Ground
Ground
Ordering Information
Part Number
MASW-011041-TR0500
MASW-011041-001SMB
1
8
Package
500 pc reel
Sample Test Board
9
10
1. Reference Application Note M513 for reel size information.
*Restrictions on Hazardous Substances,
European Union Directive 2011/65/EU.
1
2. RF1 and RF3 are high power ports (200 W); RF2 is a low
power port (100 W).
3. The exposed paddle centered on the package bottom must be
connected to RF, DC and thermal ground.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MASW-011041
Switch, SP3T 200 W
0.05 - 1.0 GHz
Rev. V1
Electrical Specifications:
T
A
= 25°C, P
IN
= 0 dBm (unless otherwise defined), Z
0
= 50 Ω
Bias
4
= 5 V / 400 mA, 3 V / 200 mA, 100 V / 25 mA
Parameter
Insertion Loss
RFC - RF1 & RFC - RF3
Insertion Loss
RFC - RF2
Isolation
RFC - RF1 & RFC - RF3
Isolation
RFC - RF2
Input Return Loss
RFC - RF1 & RFC - RF3
Input Return Loss
RFC - RF2
CW Input Power
RFC - RF1 & RFC - RF3
CW Input Power
RFC - RF2
P0.1dB
RFC - RF1 & RFC - RF3
P0.1dB
RFC - RF2
2nd Harmonics
3rd Harmonics
T
ON
, T
OFF
Test Conditions
0.5 GHz
1.0 GHz
0.5 GHz
1.0 GHz
0.5 GHz
1.0 GHz
0.5 GHz
1.0 GHz
P
IN
= 0 dBm
P
IN
= 0 dBm
85°C base plate,
550 MHz
950 MHz
85°C base plate,
550 MHz
950 MHz
85°C base plate,
550 MHz
950 MHz
85°C base plate,
550 MHz
950 MHz
P
IN
= 49 dBm, F = 950 MHz
P
IN
= 49 dBm, F = 950 MHz
(50% CTL - 90% RF and 10% RF)
1 MHz Rep Rate in Modulating Mode
(10-90% RF Voltage)
1 MHz Rep Rate in Modulating Mode
Units
dB
Min.
—
Typ.
0.30
0.40
0.25
0.40
51
45
56
52
>14
Max.
—
0.60
—
0.55
—
dB
—
—
40
—
45
—
dB
dB
—
dB
—
dB
—
>21
—
dBm / W
—
53 / 200
52 / 158
50 / 100
49 / 80
54
53
51
50
-75
-85
3.5
—
dBm / W
—
—
dBm
—
—
dBm
dBc
dBc
µs
—
—
—
—
—
—
—
—
T
RISE
, T
FALL
4. See Bias table.
µs
—
0.8
—
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MASW-011041
Switch, SP3T 200 W
0.05 - 1.0 GHz
Bias Table
5
RF State
RFC - RF1 Low Loss
RFC - RF2 Isolation
RFC - RF3 Isolation
RFC - RF2 Low Loss
RFC - RF1 Isolation
RFC - RF3 Isolation
RFC - RF3 Low Loss
RFC - RF1 Isolation
RFC - RF2 Isolation
V1 Bias
(V)
0V@
400 mA
100 V @
25 mA
100 V @
25 mA
V2 Bias
(V)
100 V @
25 mA
0V@
200 mA
100 V @
25 mA
V3 Bias
(V)
100 V @
25 mA
100 V @
25 mA
0V@
400 mA
V4 Bias
(V)
5V@
400 mA
3V@
200 mA
5V@
400 mA
B1 Bias
(V)
100 V @
0 mA
0V@
25 mA
0V@
25 mA
B2 Bias
(V)
0V@
25 mA
100 V @
0 mA
0V@
25 mA
B3 Bias
(V)
0V@
25 mA
0V@
25 mA
100 V @
0 mA
Rev. V1
5. DC reverse bias of a PIN diode operating at a high power is dependent on RF frequency, incident power, and VSWR. See Minimum
Reverse DC Voltage table for high power operation.
Absolute Maximum Ratings
6,7
Parameter
Forward Current
Reverse DC Voltage
Operating Temperature
Storage Temperature
Junction Temperature
Absolute Maximum
+400 mA
| -150 V |
-55°C to +85°C
-65°C to +150°C
+175°C
Minimum Reverse DC Voltage
8
Frequency (MHz)
50
100
200
500
1000
Minimum Reverse
DC Voltage
| -142 V |
| -102 V |
| -60 V |
| -26 V |
| -13 V |
6. Exceeding any one or combination of these limits may cause
permanent damage to this device.
7. MACOM does not recommend sustained operation near these
survivability limits.
8. Required to maintain low loss under 200 W of incident power
with 1.5:1 VSWR.
3
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MASW-011041
Switch, SP3T 200 W
0.05 - 1.0 GHz

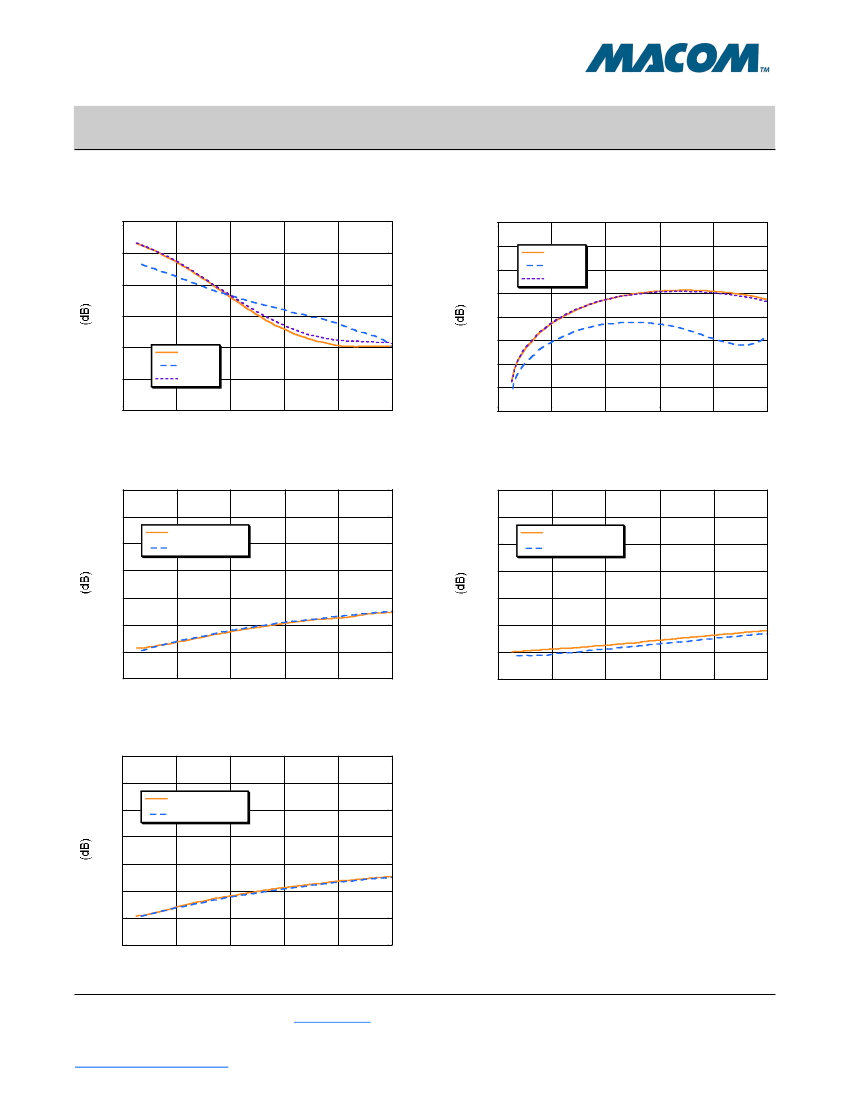

Typical Performance Curves:
Insertion Loss
0.0
-0.1
-0.2
-0.3
-0.4
-0.5
-0.6
0.0
Rev. V1
Return Loss
0
-5
-10
-15
-20
-25
RFC - RF1
RFC - RF2
RFC - RF3
RFC - RF1
RFC - RF2
RFC - RF3
-30
-35
0.4
0.6
0.8
1.0
0.2
-40
0.0
0.2
0.4
0.6
0.8
1.0
Frequency (GHz)
Frequency (GHz)
Isolation RFC - RF1
0
-10
RFC - RF1 Iso, RF2 IL
Isolation RFC - RF2
0
-10
RFC - RF2 Iso, RF1 IL
-20
-30
-40
-50
-60
-70
RFC - RF1 Iso, RF3 IL
-20
-30
-40
-50
-60
-70
RFC - RF2 Iso, RF3 IL
0.0
0.2
0.4
0.6
0.8
1.0
0.0
0.2
0.4
0.6
0.8
1.0
Frequency (GHz)
Frequency (GHz)
Isolation RFC - RF3
0
-10
RFC - RF3 Iso, RF1 IL
-20
-30
-40
-50
-60
-70
RFC - RF3 Iso, RF2 IL
0.0
0.2
0.4
0.6
0.8
1.0
4
Frequency (GHz)
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MASW-011041
Switch, SP3T 200 W
0.05 - 1.0 GHz

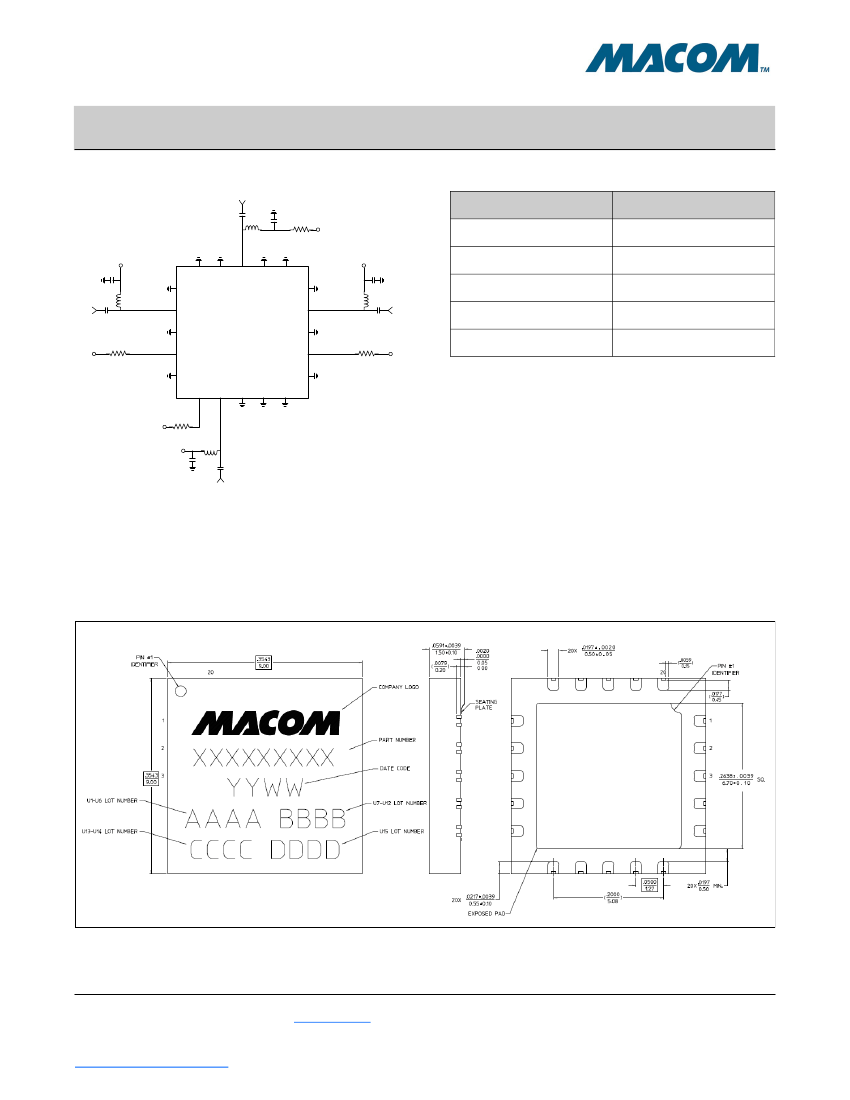

Application Schematic
RFC
C8
C7
V4
L4
V1
GND
GND
RFC
N/C
N/C
Rev. V1
Off-Chip Component Values
Component
R4
V3
C6
N/C
L3
RF4
C5
N/C
R3
B4
N/C
B3
RF3
Value
1000 pF
270 pF
680 nH
4.4 kΩ
10 Ω
C1,C3,C6,C7
C2,C4,C5,C8
L1 - L4
R1 - R3
R4
9
C1
N/C
L1
RF1
C2
N/C
R1
B1
B1
N/C
RF1
9. Must be rated for appropriate power handling.
RF2
N/C
N/C
N/C
B2
R2
B2
L2
Handling Procedures
Please observe the following precautions to avoid
damage:
RF2
V2
C3
C4
Static Sensitivity
These electronic devices are sensitive to
electrostatic discharge (ESD) and can be damaged
by static electricity. Proper ESD control techniques
should be used when handling these Class 1B
HBM devices.
Lead Free 9
mm HQFN 20-Lead
†
All dimensions shown as inches/mm.
†
Reference Application Note S2083 for lead-free solder reflow recommendations.
