up-converter that has a typical conversion gain of
11 dB, and an image rejection of greater than
15 dBc. The device includes a LO doubler and
buffer, and can be tuned to give 2LO leakage of
less than -15 dBm. Variable gain can be achieved
by adjusting the bias, with turn-down trajectories
optimized to maintain linearity and 2LO leakage
over the gain control range. At full gain, an OIP3 of
30 dBm is typical. It is ideally suited for 42 GHz
band point-to-point radios.
Each device is 100% RF tested to ensure
performance compliance. The part is fabricated
using an efficient pHEMT process.
Pin Configuration
1
Pin No.
1
2
3
4
5
6
Function
LO
V
G
3
V
D
3
V
G
1
V
D
1
V
G
2
V
D
2
RF
V
G
4
I* Input
I Input
Q Input
Q* Input
Ordering Information
Part Number
MAUC-010515-000000
MAUC-010515-TR0200
MAUC-010515-TR0500
MAUC-010515-001SMB
Package
Bulk Quantity
200 Piece Reel
500 Piece Reel
Sample Evaluation Board
7
8
9
10
11
12
13
1. The exposed pad centered on the package bottom must be
connected to RF, DC and thermal ground.
* Restrictions on Hazardous Substances, European Union Directive 2011/65/EU.
1
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAUC-010515
Up Converter
40.5 - 43.5 GHz
Electrical Specifications: RF Freq: 40.5 - 43.5 GHz, LO = 0 dBm, IF = -10 dBm,
V
D
= 4 V, I
D
1 = I
D
2 = 90 mA, I
D
3 = 120 mA, T
A
= 25°C
Parameter
Frequency Range (LO)
2
Frequency Range (IF)
LO Input Power (Plo)
Conversion Gain
Image Rejection
Output IP3
Spurious (2xLO) [tuned]
Spurious (1xLO)
Noise Figure
Input Return Loss (IF port)
Output Return Loss (RF Port)
LO Return Loss
Current (I
D
1 + I
D
2 + I
D
3)
Gate Voltage (V
G
4)
Gate Current (I
G
4)
3
Rev. V5
Units
GHz
GHz
dBm
dB
dBc
dBm
dBm
dBm
dB
dB
dB
dB
mA
V
mA
Min.
18.5
DC
0
8
-
25
-
-
-
-
-
-
-
-
-
Typ.
-
-
-
11
22
30
-40
-57
19
12
8
15
300
-3
4
Max.
21.75
3.5
8
16
-
-
-
-
-
-
-
-
400
-
-
2. LO frequency range limits the performance characteristics to USB only.
3. Adjust V
G
1, V
G
2, V
G
3 between -1.0 and -0.1 V to achieve specified current. Typical 300 mA = 90 (I
D
1) + 90 (I
D
2) + 120 (I
D
3)
Absolute Maximum Ratings
4,5,6
Parameter
Drain Voltage
Gate Bias Voltage (V
G
1,2,3)
Gate Bias Voltage (V
G
4)
Input Power
LO Input Power
Storage Temperature
Operating Temperature
Junction Temperature
7
Absolute Maximum
4.3 V
-1.5 V < V
G
< 0 V
-4.0 V < V
G
< 0 V
10 dBm
13 dBm
-55°C to +150°C
-40°C to +85°C
+150°C
Handling Procedures
Please observe the following precautions to avoid
damage:
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
Human Body Model Class 1B and Machine Model
Class B devices.
2
4. Exceeding any one or combination of these limits may cause
permanent damage to this device.
5. MACOM does not recommend sustained operation near these
survivability limits.
6. Operating at nominal conditions with T
J
≤ 150 °C will ensure
MTTF > 1 x 10
6
hours.
7. Junction Temperature (T
J
) = T
C
+ Ө
JC
* (V * I)
Typical thermal resistance (Ө
JC
) = 41.7 °C/W.
a) For T
C
= 25 °C, T
J
= 75.04 °C @ 4 V, 300 mA
b) For T
C
= 85 °C, T
J
= 135.04 °C @ 4 V, 300 mA
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAUC-010515
Up Converter
40.5 - 43.5 GHz

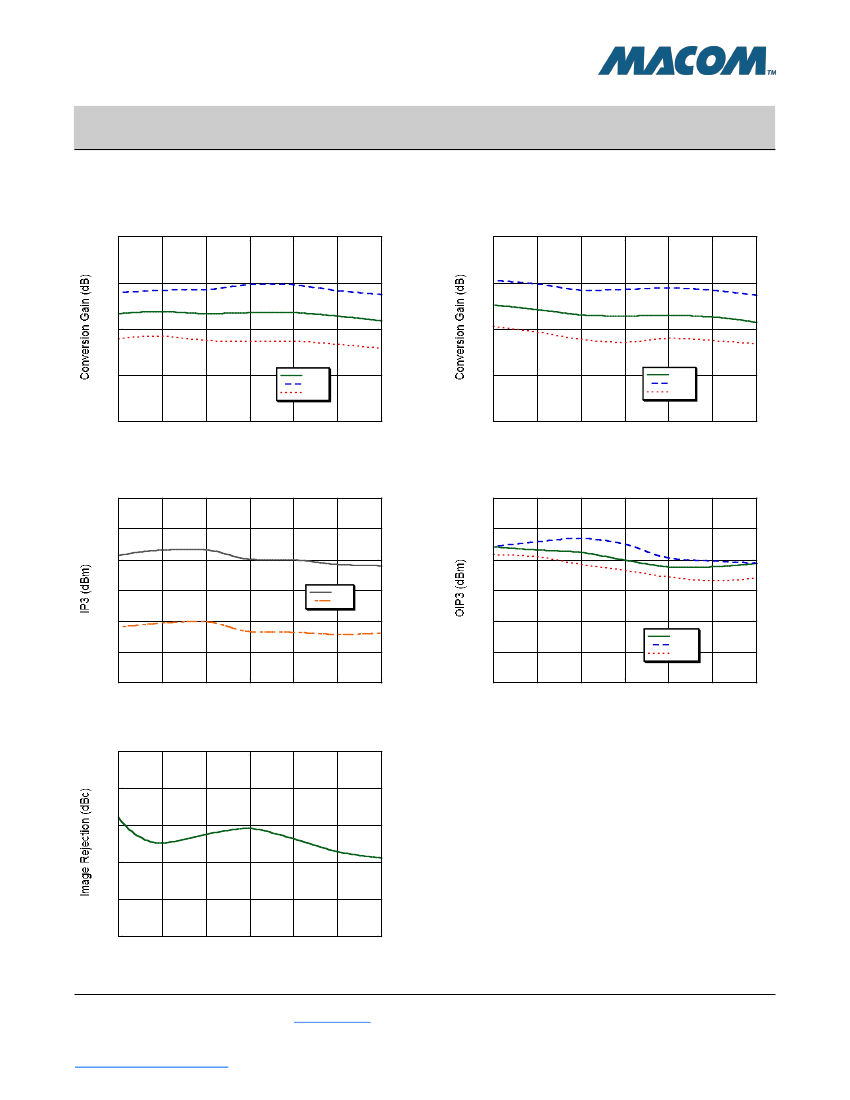

Typical Performance Curves:
V
D
= 4 V, I
D
1 = I
D
2 = 90 mA, I
D
3 = 120 mA, LO = 0 dBm, IF = -10 dBm, T
A
= 25°C
Conversion Gain @ 3.5 GHz IF
20
Rev. V5
Conversion Gain @ 2 GHz IF
20
15
15
10
10
5
+25°C
-40°C
+85°C
5
+25°C
-40°C
+85°C
0
40.5
41.0
41.5
42.0
42.5
43.0
43.5
0
40.5
41.0
41.5
42.0
42.5
43.0
43.5
Frequency (GHz)
Frequency (GHz)
IP3 @ 3.5 GHz IF
40
35
30
25
20
15
10
40.5
OIP3
IIP3
Output IP3 @ 2 GHz IF
40
35
30
25
20
15
10
40.5
+25°C
-40°C
+85°C
41.0
41.5
42.0
42.5
43.0
43.5
41.0
41.5
42.0
42.5
43.0
43.5
Frequency (GHz)
Frequency (GHz)
Image Rejection @ 3.5 GHz IF
35
30
25
20
15
10
40.5
41.0
41.5
42.0
42.5
43.0
43.5
Frequency (GHz)
3
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAUC-010515
Up Converter
40.5 - 43.5 GHz
Typical Performance Curves:
V
D
= 4 V, I
D
1 = I
D
2 = 90 mA, I
D
3 = 120 mA, LO = 0 dBm, IF = -10 dBm, T
A
= 25°C
IF Return Loss
0
Rev. V5
RF Return Loss
0
-5
-5
-10
-10
-15
-15
-20
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
-20
40.5
41.0
41.5
42.0
42.5
43.0
43.5
Frequency (GHz)
Frequency (GHz)
LO Return Loss
0
-5
-10
LO Leakage
-20
-30
1xLO
2xLO
-40
-15
-50
-20
-25
-30
18.0
-60
18.5
19.0
19.5
20.0
20.5
21.0
21.5
22.0
-70
18.75
19.00
19.25
19.50
19.75
20.00
Frequency (GHz)
Frequency (GHz)
4
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MAUC-010515
Up Converter
40.5 - 43.5 GHz
Rev. V5
App Note [1] Biasing -
As shown in the Pin Designations table, the device is operated by biasing V
D
1, V
D
2, and
V
D
3 at 4 V. The corresponding drain currents are set to 90 mA, 90 mA, and 120 mA respectively. V
G
4 requires a
fixed voltage bias of nominally -3 V. It is recommended to use active bias on V
G
1 and V
G
2 to keep the currents in
V
D
1 and V
D
2 constant, in order to maintain the best performance over temperature. The LO multiplier can be
operated with either a fixed gate V
G
3 > -0.6 V or fixed current 120 mA. In either scenario the performance of the
part should be the same. Depending on the supply voltages available and the power dissipation constraints, the
bias circuits may include a single transistor or a low power operational amplifier, with a low value resistor in series
with the drain supply to sense the current. Make sure to sequence the applied voltage to ensure negative gate
bias is available before applying the positive drain supply.

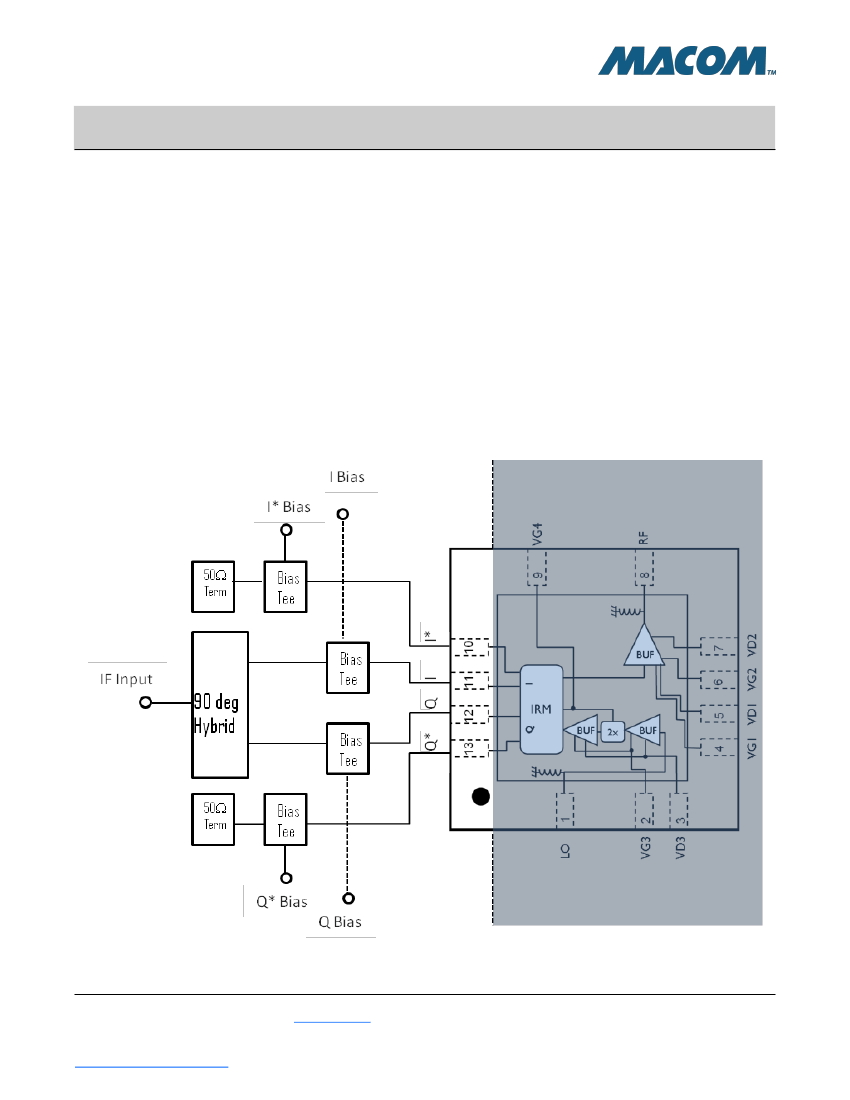

App Note [2] I/Q versus I*/Q* -
The IF input to the typical configuration is through a 90° hybrid coupler. The
hybrid splits the IF input into inphase and quadrature phase components. These two signals enter the
MAUC-010515 on either the I/Q pair, or the I*/Q* complimentary pair. Whichever pair are not used must be
terminated into 50 Ω. There are subtle differences between the performance when using the main IF ports (I, Q)
versus the complimentary ports (I*, Q*). For highest gain, best image rejection and lowest noise figure, the main
IF ports (I, Q) should be used.
5
