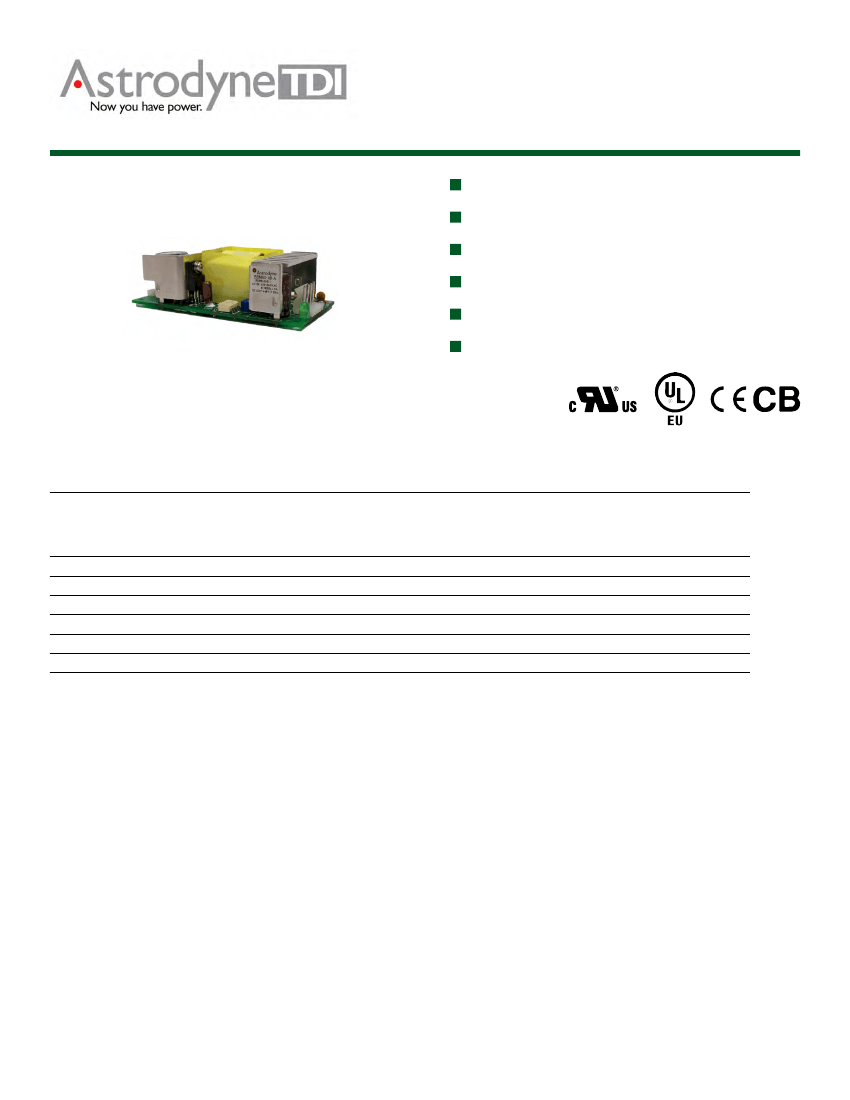

40W S i ng l e O utp ut Cl as s II S wi tc hing P owe r S u p p li e s
Up to 40W Output Power
Universal 90-264VAC Input
BSL40
Single Outputs from 5VDC to 48VDC
High Efficiency up to 85%
3000VAC Isolation
series
2”W x 4”L x 1.244”H
1U Compatible Height
Model Number
SINGLE OUTPUT
BSL40-5-A
BSL40-9-A
BSL40-12-A
BSL40-15-A
BSL40-24-A
BSL40-36-A
BSL40-48-A
Output Voltage Max. O/P Amps
Efficiency (230VAC)
R&N p-p max.
Capacitive Load
5VDC
9VDC
12VDC
15VDC
24VDC
36VDC
48VDC
8
4.4
3.33
2.66
1.66
1.1
0.83
77% typ.
80% typ.
83% typ.
83% typ.
83% typ.
83% typ.
85% typ.
300mV
250mV
250mV
250mV
240mV
360mV
400mV
23,000uF
10,200uF
4,000uF
5,500uF
1,300uF
600uF
270uF
WWW.ASTRODYNETDI.COM
ASTRODYNE USA: 1-800-823-8082
ASTRODYNE PACIFIC: 886-2-26983458
40W S i ng l e O utp ut Cl as s II S wi tc hing P owe r S u p p li e s
INPUT SPECIFICATIONS
Input Voltage Range
Frequency Range
Input Current (90 / 264 Vin)
Inrush Current (115 / 230 Vin)
Leakage Current (264V / 50Hz)
90-264 VAC (100-240VAC nom.)
47-63 Hz
1A / 0.4A
30A / 60A typical
*
<0.25mA
BSL40
series
GENERAL SPECIFICATIONS
Input-Out Isolation
Insulation Resistance
Efficiency typ.
Switching Frequency
Safety UL/cUL:
UL-EU:
CE:
CB:
3000VAC
≥20MΩ; 500VDC, 1S I/P-O/P
See Selection Chart
65Khz, (fixed, typical)
UL60950-1 2nd ed./
C22.2 60950-1 2nd ed.
EN60950-1 2nd ed.
EN60601-1-2
IEC60950-1 2nd ed.
OUTPUT SPECIFICATIONS
Voltage and Current (Note 3)
Minimum Load
Turn On Delay Time
Rise Time
Load Regulation (20%-FL)
Line Regulation (LL-HL)
Preset Accuracy (FL, 115Vin)
Transient Response
Over-Shoot and Under-Shoot
Ripple/Noise (Note 1 & 4)
Over Voltage Protection
Over Power Protection
Short Circuit Protection
Hold Up Time (115V / 60Hz)
Capacitive Loading (Note 5)
See Selection Chart
0 Amps
<1S
<30mS
± 1% max
± 1% max
1%
See Page 3
<10% of O/P Voltage
See Selection Chart
Latching, re-power
240% max.*
Latching, Auto Recover
*
8 mS, typ.
See Selection Chart
ENVIRONMENTAL SPECIFICATIONS
Oper. Temperature (Note 2)
Storage Temperature
Relative Humidity
ESD
RS
EFT
Surge
CS
DIPS
EMI
MTBF
Vibration
Drop Test
-10 to +70°C, See Derate
-25 to +85°C
*
0-95%
*
IEC61000-4-2
IEC61000-4-3
IEC61000-4-4
IEC61000-4-5
IEC61000-4-6
IEC61000-4-11
EN55011 B / CISPR 11 B
196,000 Hrs
Mil Std 217, 25°C
2G Peak, 10-500Hz, 3 Axis, 30 min
70 cm Height
PHYSICAL SPECIFICATIONS
Size (Inches / mm)
Construction
Weight
2” x 4” x 1.244” / 50.8 x 101.6 x 31.6
Open Frame
5.61oz (159g)
NOTES
1. Make all measurements directly at the pins of the supply
2. Specified for free air convection cooling
3. 115Vin minimum required for full load start up
4. Measured by paralleling 47uF/EC and 0.1uF ceramic capacitors on
the output at a 20MHz band-width
5. The power supply should start up and operate normally into these
capacitive loads within specified input voltage and output current ranges
over the specified operating temperature range and according to Derate.
All specifications are typical at nominal input, full load, and 25°C unless other-
wise noted
*
These are stress ratings. Exposure of the devices to any of these conditions
may adversely affect long term reliability. Proper operation under conditions
other than the standard operating conditions is neither warranteed nor implied.
WWW.ASTRODYNETDI.COM
ASTRODYNE USA: 1-800-823-8082
ASTRODYNE PACIFIC: 886-2-26983458
load
40W S i
Single
utp ut Cl
C lass II
wi tc hing P owe r S u p p li e s
40W
ng l e O
Output
as s II S
Switching Power S upplies
B S
S L 4 0
s e r
e
i
r
e
i
s
s
B
L40
s e
t
Δ
a
Table 2

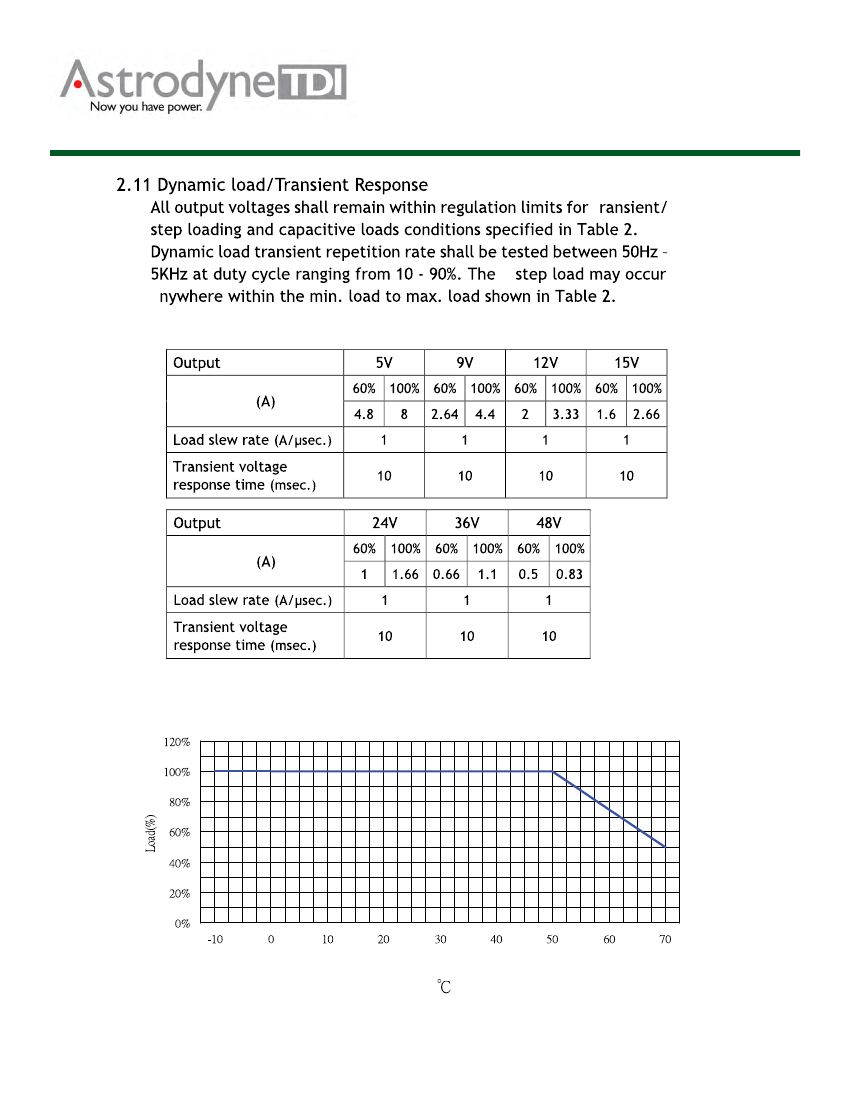

Δ Step load
Δ Step load
Derating Curve
Ambient (
)
ASTRODYNE USA: 1-800-823-8082
ASTRODYNE USA: 1-800-823-8082
ASTRODYNE PACIFIC: 886-2-26983458
ASTRODYNE PACIFIC: 886-2-26983458
WWW.ASTRODYNETDI.COM
WWW.ASTRODYNE.COM
40W S i ng l e O utp ut Cl as s II S wi tc hing P owe r S u p p li e s

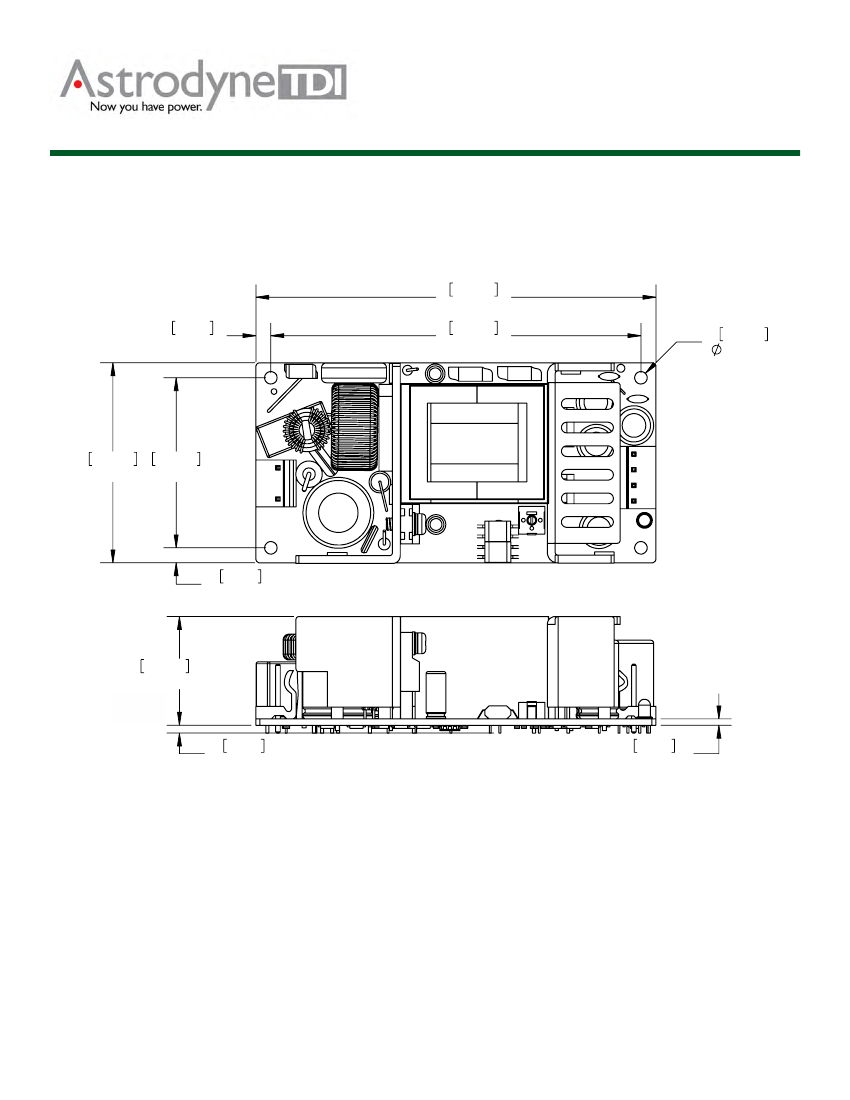

MECHANICAL DIMENSIONS
BSL40
series
.15in
3.8mm
4.00in
101.6mm
3.70in
94mm
.125in
3.175mm
2.00in
1.70in
50.8mm 43.2mm ACN
ACL
+Vout
+Vout
GND
GND
.15in
3.8mm
1.17in
29.6mm max
B
.08in
2mm
Input connector : Molex 5273 series or equivalent
Output connector : Molex 5273 series or equivalent
.06in
1.6mm
olerance :
0.1mm (0.004in)
BSM60-A_B
DESCRIPTION
Length and Width Tolerance:
±
0.1mm (0.004in)
DATE
SHEET METAL TOLERANCE
(UNLESS OTHERWISE SPECIFIED)
UNIT
SIZE
SCALE
mm
A4
MATERIAL
PART NO.
MODEL NO.
TITLE
Height changes
2012/05/25
DIMENSION PIERCINGBENDING ANGULAR
SHEET
±0.1
±0.15
X<8
±0.3°
±0.5° Projection
±0.1
±0.2
8<X<25
25<X<100
100<X<300
300<X<800
±0.15
±0.2
±0.3
±0.25
±0.3
±0.5
±0.5°
±1°
±1.5°
DRAWN
CHECKED
APPROVED
1:1
OF
2D
Erica
WWW.ASTRODYNETDI.COM
1715
ASTRODYNE USA: 1-800-823-8082
ASTRODYNE PACIFIC: 886-2-26983458
