DC0803X472MBS0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> DC0803X472MBS0

DC0803X472MBS0: DescriptionCeramic Capacitor, Ceramic, 50V, 20% +Tol, 20% -Tol, X7R, -/+15ppm/Cel TC, 0.0047uF,; CategoryPassive components capacitor; File Size54KB，2 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

DC0803X472MBS0 Overview

Ceramic Capacitor, Ceramic, 50V, 20% +Tol, 20% -Tol, X7R, -/+15ppm/Cel TC, 0.0047uF,

DC0803X472MBS0 Parametric

Parameter Name	Attribute value
Objectid	4000892183
package instruction	,
Reach Compliance Code	compliant
capacitance	0.0047 µF
Capacitor type	CERAMIC CAPACITOR
diameter	2.032 mm
dielectric materials	CERAMIC
length	1.016 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	Feed-Thru
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
series	DA/DC/DM(X,50V)
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C

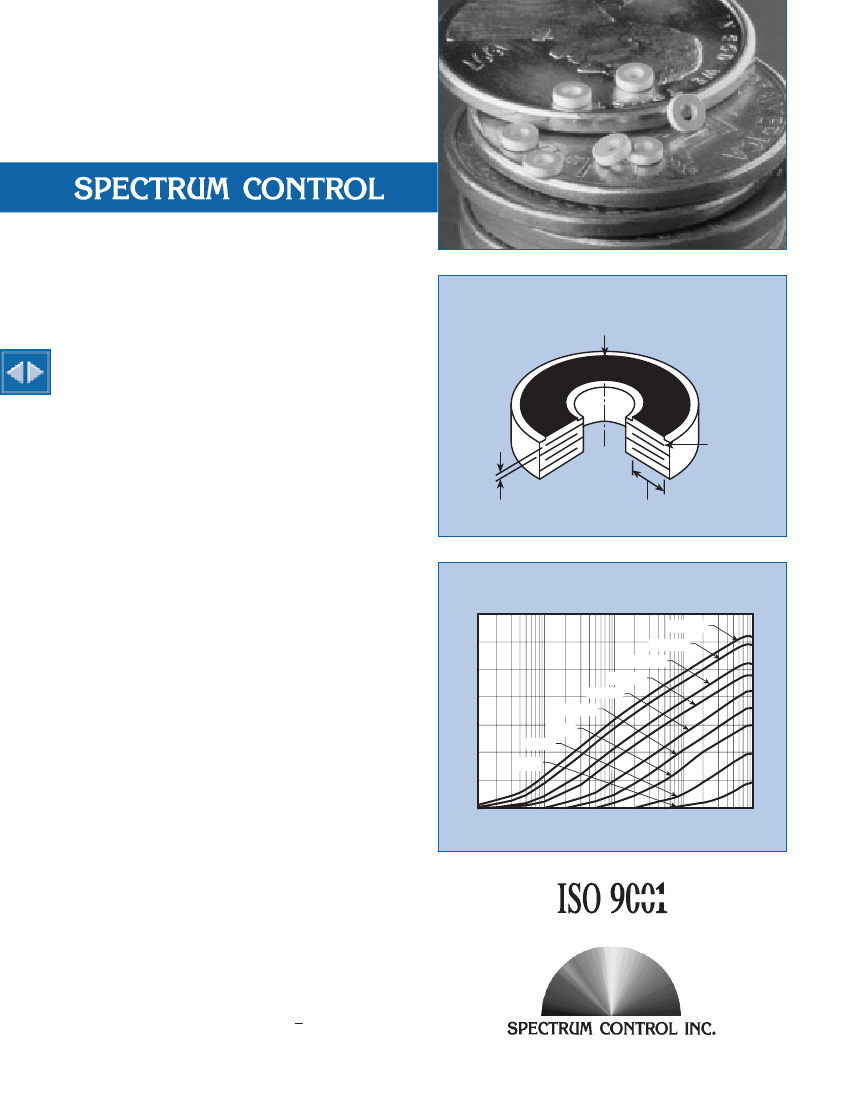

DC0803X472MBS0 Preview

Miniature Discoidal

Feed-thru Capacitor

0.080" Miniature Discoidal Capacitor

Features

Compact design for easy mounting on 0.100"

center connector line

Saves more than 36% PCB space

over 0.100" discoidal

High reliability due to proprietary

“wet process” manufacturing

Offer a special X7R dielectric that delivers

superior response in AC applications

Custom designs available

Offer an O.D. of 0.100" and smaller

Implantable medical devices

EMI/RFI filters

Ignitors

Bypass filtering

L-C filter configurations

Multi-layer

Discoidal

Capacitor

Ceramic

dielectric

Applications

Electrodes

Dielectric

thickness

Overlap

area

Typical Electrical Characteristics

Capacitance

Range

. . . . . . COG (NPO)

. . . . . . . . . .

X7R

. . . . . . . . . .

Z5U

Capacitance

Tolerance

. . . . COG (NPO)

. . . . . . . . . .

X7R

. . . . . . . . . .

Z5U

Temperature

Coefficient

. . . COG (NPO)

. . . . . . . . . .

X7R

. . . . . . . . . .

Z5U

Dissipation

Factor. . . . . . .

COG (NPO)

. . . . . . . . . .

X7R

. . . . . . . . . .

Z5U

22 pF to 500 pF

501 pF to 22000 pF

2000 pF to 26000 pF

± 10%, ± 20%

± 20%, +80%; -20%, GMV

+80%; -20%, GMV

0 ± 30 ppm/°C, -55 to +125°C

± 15%, -55 to +125°C

+22%, -56%, +10°C to +85°C

0.1% max. at 25°C

3.5% max. at 25°C

Typical Insertion Loss (dB)

26000pF

500pF

150pF

22pF

18000pF

8000pF

5000pF

2000pF

1000pF

0.1

Aging . . . . . . .

COG (NPO) none

. . . . . . . . . .

X7R, Z5U 0.8% per decade hour, typically

Insulation

Resistance . . .

1000 ohm F or 100 Gohm, whichever

. . . . . . . . . .

is less at 25°C. At 125°C, 100 ohm F

. . . . . . . . . .

or 10 Gohm, whichever is less

Dielectric

Strength . . . . .

2.5 x Wvdc min., 25°C, 0.5 mA max.

Test

Parameters. . .

COG (NPO)

. . . . . . . . . .

X7R

..........

. . . . . . . . . .

Z5U

For values > 1000 pF, 1 Khz

± 50 Hz, 1.0 ± 0.2 Vrms;

For values < 1000 pF, 1 MHz

± 50 Khz, .1 Vrms min.

1 KHz ± 50 Hz, 0.5 ± 0.2 Vrms

100

Frequency (MHz)

1000

CERTIFIED

A Control Products & Systems Company

Termination width (both sides)

Miniature Discoidal

Feed-thru Capacitor

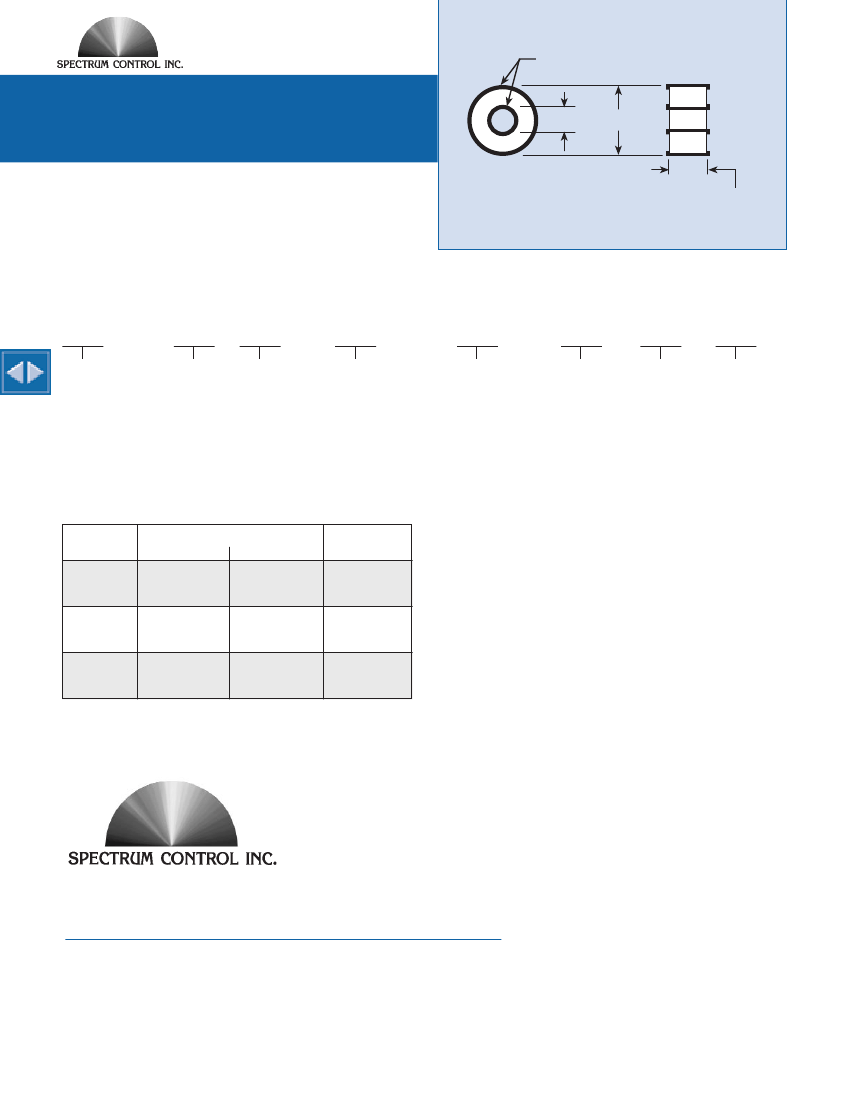

Ordering Information

Example:

DA0803X102PDSO

The part number shown represents a 0.080" O.D. discoidal feed-thru

capacitor with a X7R dielectric and a capacitance value of 1,000 pF.

The capacitor will have a tolerance of + 100% - 0%, is voltage rated

for 100 VDC, has silver termination and no coating.

.030" I.D. .080" O.D.

Tolerance

.003"

Maximum

thickness

.040"

Style

DA -

Commercial

DC -

Custom

DM -

Burn-in

0803

Dimension

0.080"

Outside

Diameter

Dielectric

C -

COG (NPO)

X -

X7R

Z -

Z5U

102

Capacitance Code

First two digits represent

significant figures. Third

digit specifies number of

zeros. 100 pF = 101.

Tolerance

J -

± 5%

K -

± 10%

M -

± 20%

Z -

+ 80%, -20%

P -

+ 100%, -0%

X -

Special

Voltage (Vdc)

A -

B -

D -

100

X -

Special

Termination

S -

Silver

P -

Silver

Palladium

Coating*

0 -

None

1 -

One

Side

2 -

Both

Sides

* (Color

identification

only for

cap value)

Specifications

Dielectric

NPO

X7R

Z5U

Capacitance

Minimum

Maximum

22 pF

500 pF

600 pF

2000 pF

500 pF

300 pF

150 pF

22000 pF

13000 pF

7500 pF

26000 pF

18000 pF

8000 pF

Voltage

25 Vdc

50 Vdc

100 Vdc

25 Vdc

50 Vdc

100 Vdc

25 Vdc

50 Vdc

100 Vdc

For additional information about all the sizes available

and custom designs, please contact Spectrum Control

or your Spectrum Control Representative.

A Control Products & Systems Company

Ceramic

Components

Division

4100 Michoud Blvd.

New Orleans, LA 70129

Phone: 504-253-2100

Fax: 504-253-2200

Corporate

Headquarters

6000 West Ridge Road

Erie, Pennsylvania 16506

Phone: 814-835-4000

Fax: 814-835-9000

European

Headquarters

Spectrum Control GmbH

Hansastrasse 6

91126 Schwabach, Germany

Phone: (49)-9122-795-0

Fax: (49)-9122-795-58

Web Site: www.spectrumcontrol.com

AHA DP D98 1M

27-0027-0035

Printed in U.S.A.

Spectrum Control, Inc. reserves the right to alter

the specifications provided in this publication.

Consult factory for current specifications.

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
