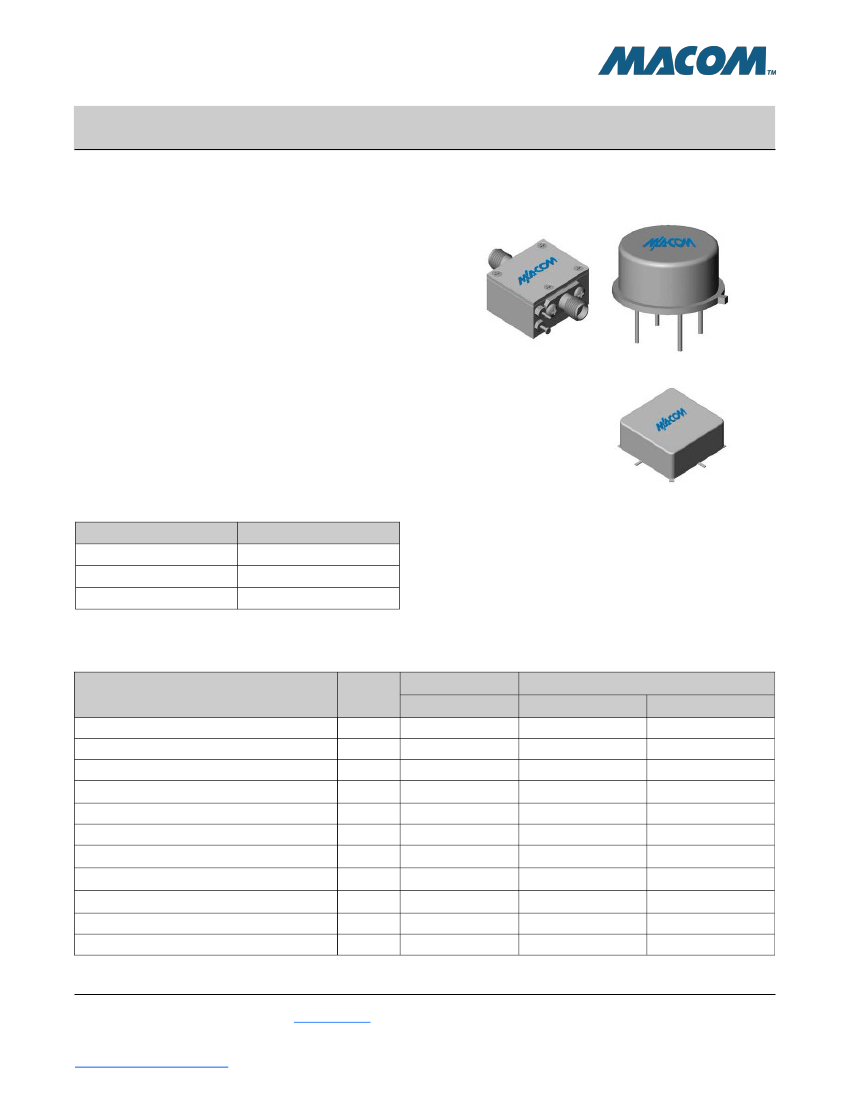

and high reliability. The single stage silicon bipolar
transistor feedback amplifier design displays
impressive performance over a broadband
frequency range. An active DC biasing network is
used for temperature-stable performance, in addition
to an RF Choke, used for power supply decoupling.
Both TO-8 and surface mount packages are hermeti-
cally sealed, and MIL-STD-883 environmental
screening is available.
Ordering Information
Part Number
A77-1
SMA77-1
CA77-1**
Package
TO-8
Surface Mount
SMA Connectorized
** The connectorized version is not RoHS compliant.
Electrical Specifications: Z
0
= 50
,
V
CC
= 15 V
DC
Nominal
*
Parameter
Frequency
Small Signal Gain (min.)
Gain Flatness (max.)
Reverse Isolation
Noise Figure (max.)
Power Output @ 1 dB comp. (min.)
IP3
IP2
Second Order Harmonic IP
VSWR Input / Output (max.)
DC Current (max.)
1
mA
Units
MHz
dB
dB
dB
dB
dBm
dBm
dBm
dBm
Typical
25ºC
2-700
16.0
±0.3
17
5.0
16.5
+30
+43
+49
1.5:1 / 1.5:1
50
Guaranteed
0º to 50ºC
5-600
15.0
±0.7
-54º to +85ºC
5-600
14.5
±1.0
—
6.5
15.0
—
7.0
14.5
—
—
—
1.8:1 / 1.8:1
53
—
—
—
2.0:1 / 2.0:1
56
Over temperature performance limits for part number CA77-1, guaranteed from 0
o
C to +50
o
C only.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
A77-1 / SMA77-1
Cascadable Amplifier
5 - 600 MHz
Absolute Maximum Ratings
Parameter
Storage Temperature
Case Temperature
DC Voltage
Continuous Input Power
Short Term Input power
(1 minute max.)
Peak Power (3 µsec max.)
“S” Series Burn-In
Temperature (case)
Absolute Maximum
-62ºC to +125ºC
125ºC
+17 V
+13 dBm
100 mW
0.5 W
125ºC
Rev. V3
Thermal Data: V
CC
= 15 V
DC
Parameter
Thermal Resistance
θ
jc
Transistor Power Dissipation
P
d
Junction Temperature Rise
Above Case T
jc
Rating
130ºC/W
0.464 W
60ºC

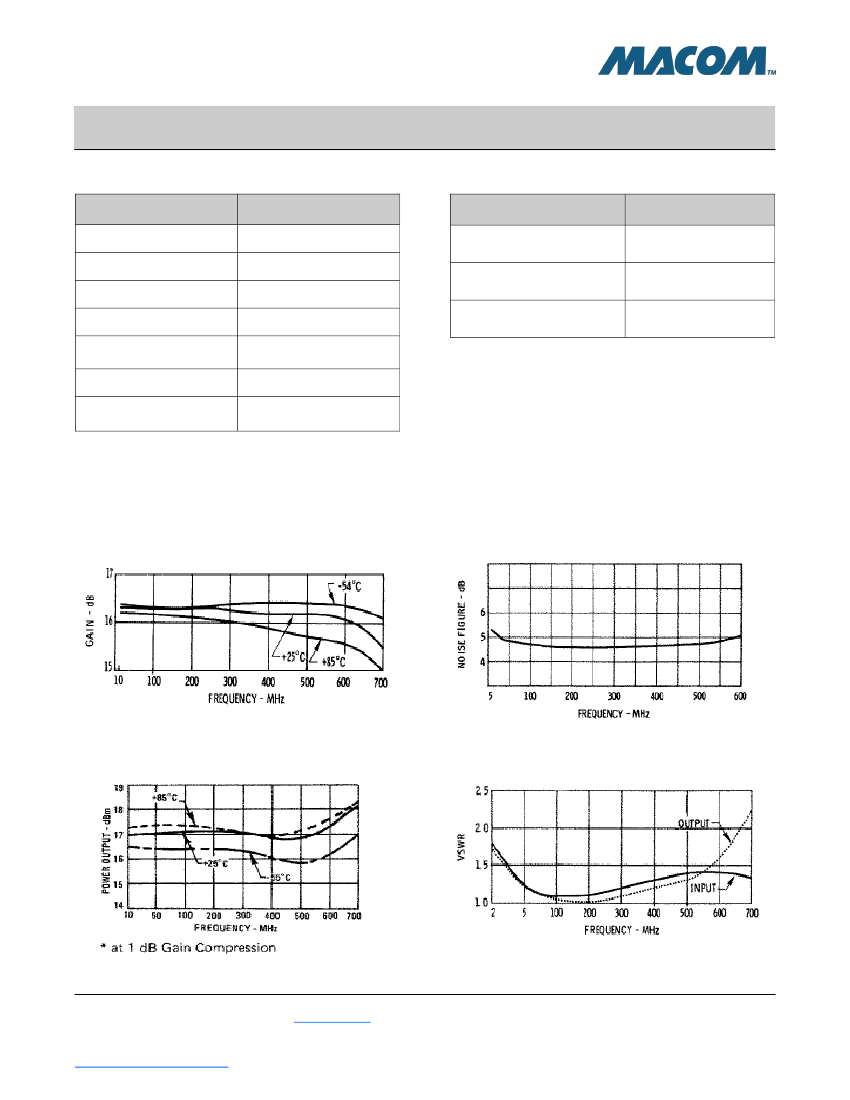

Typical Performance Curves
Gain
Noise Figure
Power Output
VSWR
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
A77-1 / SMA77-1
Cascadable Amplifier
5 - 600 MHz

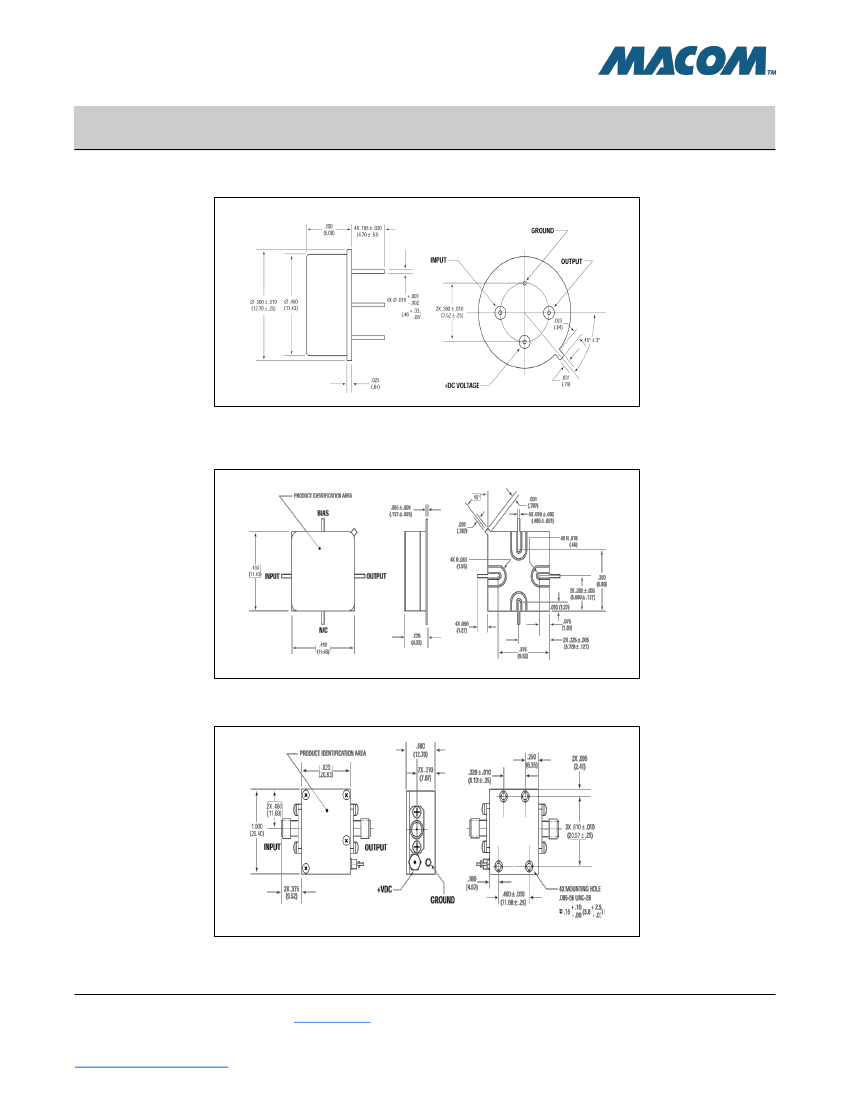

Outline Drawing: TO-8
*
Rev. V3
Outline Drawing: Surface Mount
Outline Drawing: SMA Connectorized
Dimensions are inches (millimeters) ±0.015 (0.38) unless otherwise specified.
3
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
A77-1 / SMA77-1
Cascadable Amplifier
5 - 600 MHz
Rev. V3
M/A-COM Technology Solutions Inc. All rights reserved.
Information in this document is provided in connection with M/A-COM Technology Solutions Inc ("MACOM")
products. These materials are provided by MACOM as a service to its customers and may be used for
informational purposes only. Except as provided in MACOM's Terms and Conditions of Sale for such products or
in any separate agreement related to this document, MACOM assumes no liability whatsoever. MACOM
assumes no responsibility for errors or omissions in these materials. MACOM may make changes to
specifications and product descriptions at any time, without notice. MACOM makes no commitment to update
the information and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future
changes to its specifications and product descriptions. No license, express or implied, by estoppels or otherwise,
to any intellectual property rights is granted by this document.
THESE MATERIALS ARE PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, RELATING TO SALE AND/OR USE OF MACOM PRODUCTS INCLUDING LIABILITY OR
WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, CONSEQUENTIAL OR
INCIDENTAL DAMAGES, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR
OTHER INTELLECTUAL PROPERTY RIGHT. MACOM FURTHER DOES NOT WARRANT THE ACCURACY
OR COMPLETENESS OF THE INFORMATION, TEXT, GRAPHICS OR OTHER ITEMS CONTAINED WITHIN
THESE MATERIALS. MACOM SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR LOST PROFITS,
WHICH MAY RESULT FROM THE USE OF THESE MATERIALS.
MACOM products are not intended for use in medical, lifesaving or life sustaining applications. MACOM
customers using or selling MACOM products for use in such applications do so at their own risk and agree to
fully indemnify MACOM for any damages resulting from such improper use or sale.
