2.258.3063: DescriptionRotary Coded Switch, 10 Positions, Binary Coded Decimal, Latched, 0.1A, 5VDC, Solder Terminal, Through Hole-straight; CategoryMechanical and electronic products switch; File Size1MB，3 Pages; ManufacturerElma Electronic Inc

Download Datasheet Parametric Compare View All

2.258.3063 Overview

Rotary Coded Switch, 10 Positions, Binary Coded Decimal, Latched, 0.1A, 5VDC, Solder Terminal, Through Hole-straight

2.258.3063 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
body width	9.8 mm
body height	6.8 mm
Body length or diameter	9.8 mm
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	.1A@5VDC
Maximum contact voltage (DC)	5 V
Electrical life	10000 Cycle(s)
Manufacturer's serial number	2.258.3063
Installation features	THROUGH HOLE-STRAIGHT
Number of positions	10
Number of switching segments	1
Maximum operating temperature	85 °C
Minimum operating temperature	-10 °C
method of packing	BULK
seal	EPOXY TERMINAL SEALED, TOP TAPE SEALED
surface mount	NO
Switch action	LATCHED
switch function	BINARY CODED DECIMAL
Switch type	ROTARY CODED SWITCH
Termination type	SOLDER
Base Number Matches	1

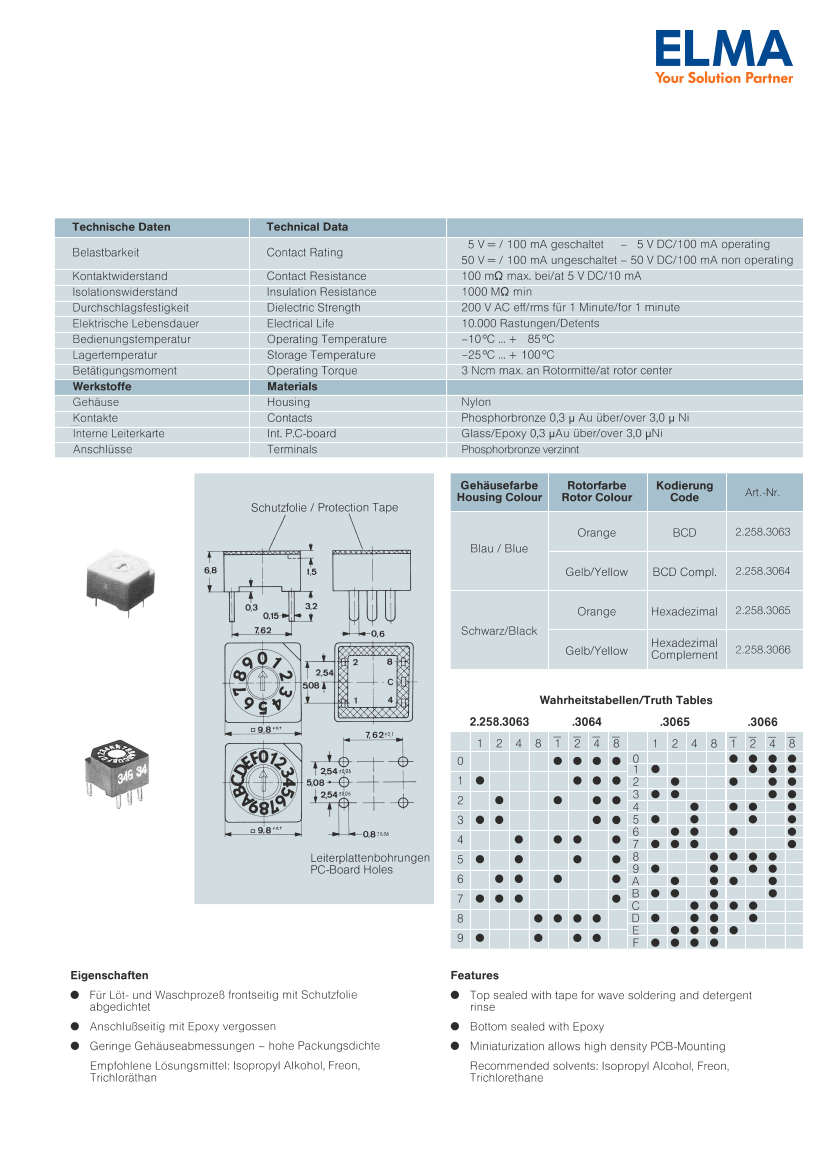

Preview

Download Datasheet

View All

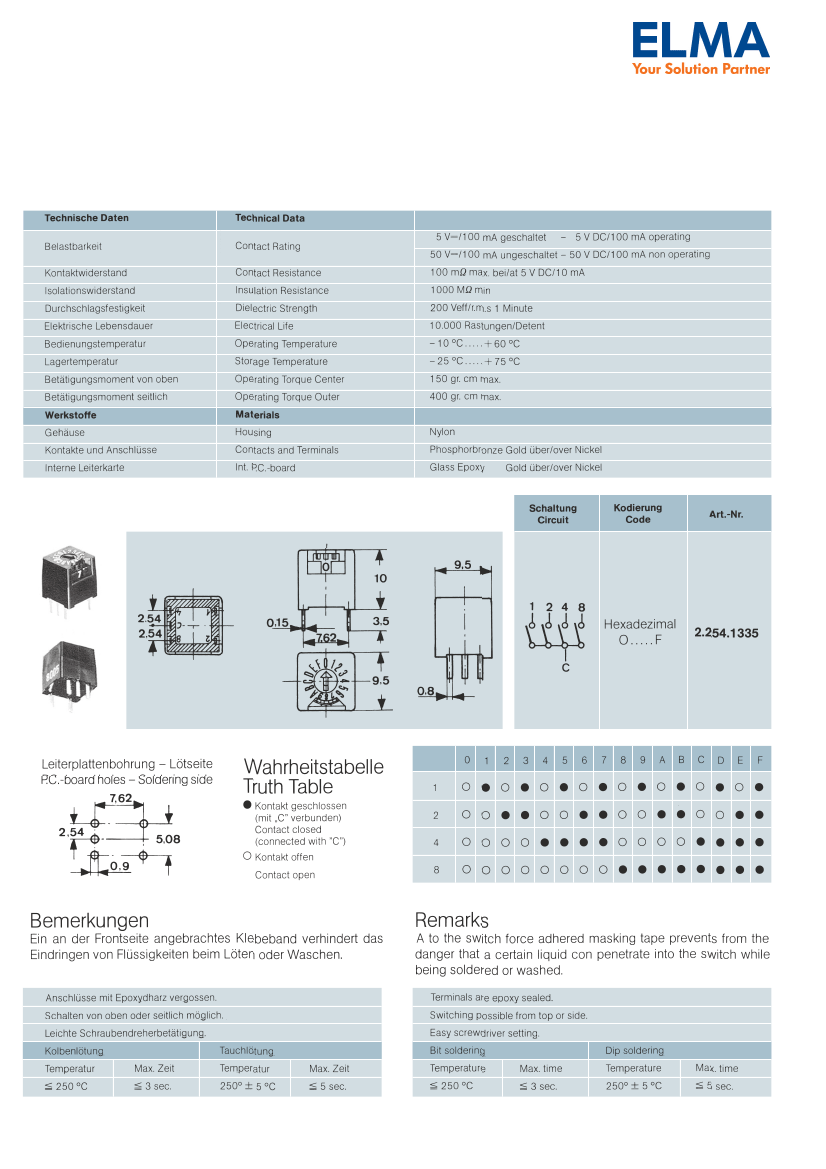

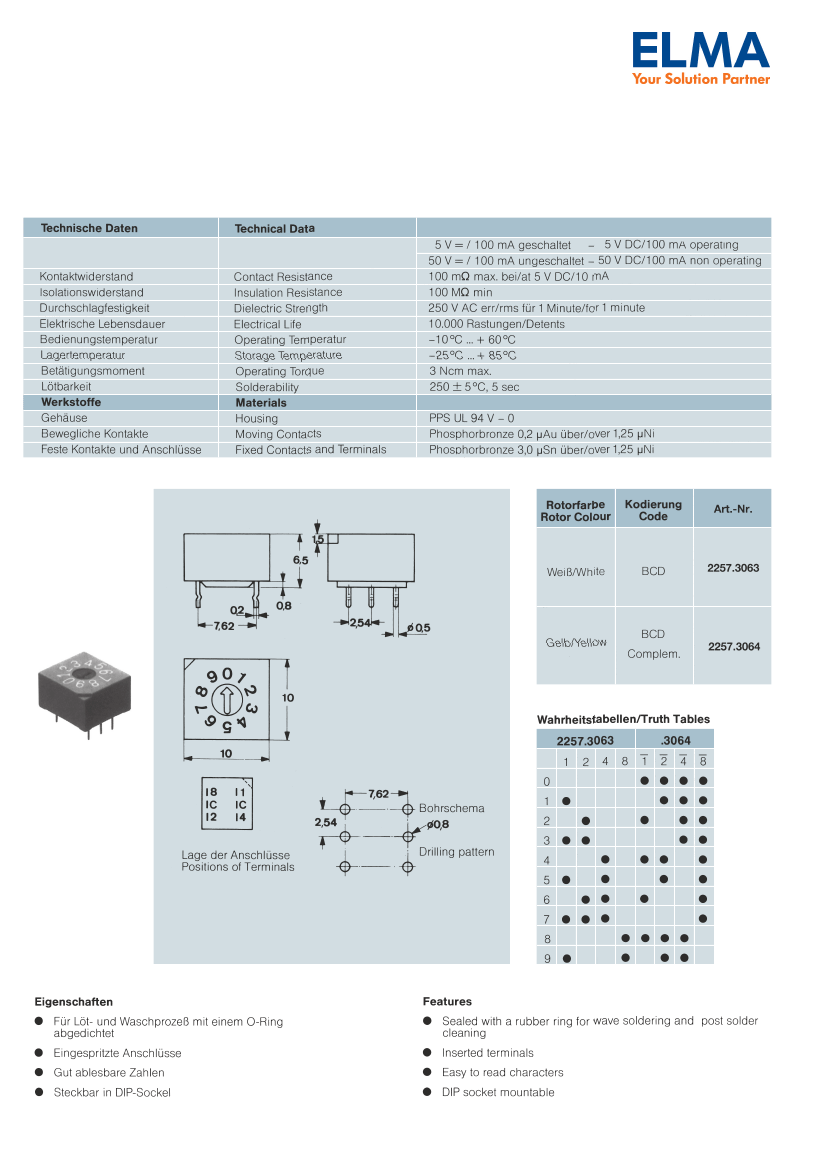

Dreh-Kodierschalter

Rotary Binary Switches

Magerdruck keine Lagertype · Bestellmenge und Preise auf Anfrage

Light printing non-stock item · Quantity and prices on request

Elma Electronic | Phone: 510.656.3400 | Email: sales@elma.com

2.258.3063 Related Products

	2.258.3063	2.258.3066	2.258.3065	2.258.3064	2.254.1335	2257.3063	2257.3064
Description	Rotary Coded Switch, 10 Positions, Binary Coded Decimal, Latched, 0.1A, 5VDC, Solder Terminal, Through Hole-straight	Rotary Coded Switch, 16 Positions, Hexadecimal Complement, Latched, 0.1A, 5VDC, Solder Terminal, Through Hole-straight	Rotary Coded Switch, 16 Positions, Hexadecimal, Latched, 0.1A, 5VDC, Solder Terminal, Through Hole-straight	Rotary Coded Switch, 10 Positions, BCD Complement, Latched, 0.1A, 5VDC, Solder Terminal, Through Hole-straight	Rotary Coded Switch, 16 Positions, Hexadecimal, Latched, 0.1A, 5VDC, Solder Terminal, Through Hole-straight	Rotary Coded Switch, 10 Positions, Binary Coded Decimal, Latched, 0.1A, 5VDC, Solder Terminal, Through Hole-straight	Rotary Coded Switch, 10 Positions, BCD Complement, Latched, 0.1A, 5VDC, Solder Terminal, Through Hole-straight
Reach Compliance Code	compli	compli	compli	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	9.8 mm	9.8 mm	9.8 mm	9.8 mm	9.5 mm	10 mm	10 mm
body height	6.8 mm	6.8 mm	6.8 mm	6.8 mm	10 mm	6.5 mm	6.5 mm
Body length or diameter	9.8 mm	9.8 mm	9.8 mm	9.8 mm	9.5 mm	10 mm	10 mm
Maximum contact current (DC)	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Contact (DC) maximum rated R load	.1A@5VDC	.1A@5VDC	.1A@5VDC	.1A@5VDC	.1A@5VDC	.1A@5VDC	.1A@5VDC
Maximum contact voltage (DC)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Electrical life	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)
Manufacturer's serial number	2.258.3063	2.258.3066	2.258.3065	2.258.3064	2.254.1335	2257.3063	2257.3064
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Number of positions	10	16	16	10	16	10	10
Number of switching segments	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	60 °C	60 °C	60 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
surface mount	NO	NO	NO	NO	NO	NO	NO
Switch action	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED
switch function	BINARY CODED DECIMAL	HEXADECIMAL COMPLEMENT	HEXADECIMAL	BCD COMPLEMENT	HEXADECIMAL	BINARY CODED DECIMAL	BCD COMPLEMENT
Switch type	ROTARY CODED SWITCH	ROTARY CODED SWITCH	ROTARY CODED SWITCH	ROTARY CODED SWITCH	ROTARY CODED SWITCH	ROTARY CODED SWITCH	ROTARY CODED SWITCH
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
method of packing	BULK	BULK	BULK	BULK	-	-	-
seal	EPOXY TERMINAL SEALED, TOP TAPE SEALED	EPOXY TERMINAL SEALED, TOP TAPE SEALED	EPOXY TERMINAL SEALED, TOP TAPE SEALED	EPOXY TERMINAL SEALED, TOP TAPE SEALED	EPOXY TERMINAL SEALED	-	-
Base Number Matches	1	1	1	1	1	1	-
Maker	-	-	-	Elma Electronic Inc	Elma Electronic Inc	Elma Electronic Inc	Elma Electronic Inc
