The CSM5T17 is a termination insensitive mixer, designed for use
in military, wireless, and test equipment applications. The design
utilizes Schottky bridge quad diodes, broadband ferrite baluns and
internal loads to provide excellent performance without degrada-
tion due to external VSWR mismatches. The use of high tem-
perature solder and welded assembly processes used internally
makes it ideal for use in semi-automated and automated assem-
bly. Environmental screening available to MIL-STD-883, MIL-STD
-202, or MIL-DTL-28837, consult factory.
Ordering Information
Part Number
CSM5T17
Package
Surface Mount
Electrical Specifications: Z
0
= 50 Lo = +17 dBm (Downconverter application only)
Typical
Parameter
Test Conditions
Units
+25ºC
SSB Conversion Loss
(max) &
SSB Noise Figure (max)
L - R Isolation (min)
L - I Isolation (min)
R - I Isolation (min)
1 dB Conversion Comp.
Input IP3
R-Port VSWR
L-Port VSWR
I-Port VSWR
1
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
Guaranteed
-40º to +85ºC
11.5
12.5
21
20
fR = 0.05 to 3.4 GHz, fL = 0.05 to 3.4 GHz, fI = 0.05 to 3.0 GHz
fR = 3.4 to 4.8 GHz, fL = 3.4 to 4.8 GHz, fI = 0.05 to 3.0 GHz
fL = 0.05 to 4.8 GHz
fL = 0.05 to 4.8 GHz
fR = 0.05 to 2.0 GHz
fR = 2.0 to 4.8 GHz
fL= +17 dBm
fL = 0.5 to 4.8 GHz, fI = 0.05 to 3.0 GHz, fR = 0.5 to 4.8 GHz
fR = 0.05 to 4.8 GHz
fL = 0.05 to 4.8 GHz
fI = 0.05 to 3.0 GHz
dB
dB
dB
dB
dB
dB
dBm
dBm
7.8
10.0
33
37
30
22
+14
+23
2.0:1
2.0:1
2.0:1
8.5
11.5
23
22
CSM5T17
Wide Band Termination Insensitive Mixer
Rev. V2

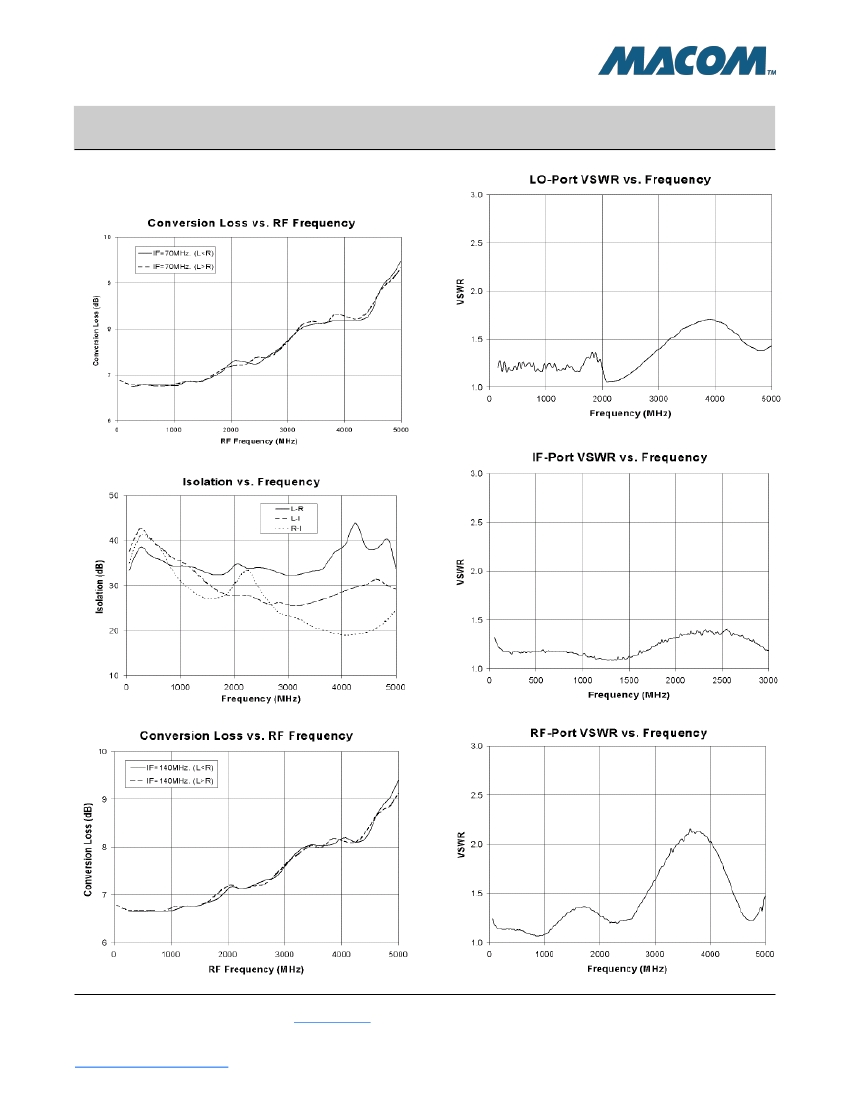

Typical Performance Curves
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
CSM5T17
Wide Band Termination Insensitive Mixer
Rev. V2
Outline Drawing: Surface Mount
*
Weight: 2 grams (0.07 oz.) max
Dimensions are inches (millimeters) ±0.015 (0.38) unless otherwise specified.
Absolute Maximum Ratings
Parameter
Operating Temperature
Storage Temperature
Peak Input Power
Peak Input Current
Absolute Maximum
-54ºC to +85ºC
-65ºC to +100ºC
+20 dBm max @ +25ºC
+17 dBm max @ +85ºC
50 mA DC
3
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
CSM5T17
Wide Band Termination Insensitive Mixer
Rev. V2
M/A-COM Technology Solutions Inc. All rights reserved.
Information in this document is provided in connection with M/A-COM Technology Solutions Inc ("MACOM")
products. These materials are provided by MACOM as a service to its customers and may be used for
informational purposes only. Except as provided in MACOM's Terms and Conditions of Sale for such products or
in any separate agreement related to this document, MACOM assumes no liability whatsoever. MACOM
assumes no responsibility for errors or omissions in these materials. MACOM may make changes to
specifications and product descriptions at any time, without notice. MACOM makes no commitment to update
the information and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future
changes to its specifications and product descriptions. No license, express or implied, by estoppels or otherwise,
to any intellectual property rights is granted by this document.
THESE MATERIALS ARE PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, RELATING TO SALE AND/OR USE OF MACOM PRODUCTS INCLUDING LIABILITY OR
WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, CONSEQUENTIAL OR
INCIDENTAL DAMAGES, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR
OTHER INTELLECTUAL PROPERTY RIGHT. MACOM FURTHER DOES NOT WARRANT THE ACCURACY
OR COMPLETENESS OF THE INFORMATION, TEXT, GRAPHICS OR OTHER ITEMS CONTAINED WITHIN
THESE MATERIALS. MACOM SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR LOST PROFITS,
WHICH MAY RESULT FROM THE USE OF THESE MATERIALS.
MACOM products are not intended for use in medical, lifesaving or life sustaining applications. MACOM
customers using or selling MACOM products for use in such applications do so at their own risk and agree to
fully indemnify MACOM for any damages resulting from such improper use or sale.
4
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
