LQM21DN100N00 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> LQM21DN100N00

LQM21DN100N00: Description1 ELEMENT, 10 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size68KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

LQM21DN100N00 Overview

1 ELEMENT, 10 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD

LQM21DN100N00 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Murata
Reach Compliance Code	compli
ECCN code	EAR99
core material	FERRITE
DC Resistance	0.5 Ω
Nominal inductance(L)	10 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	LQM21D
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum rated current	0.015 A
self resonant frequency	24 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	1 MHz
Tolerance	30%

Preview

Download Datasheet

View All

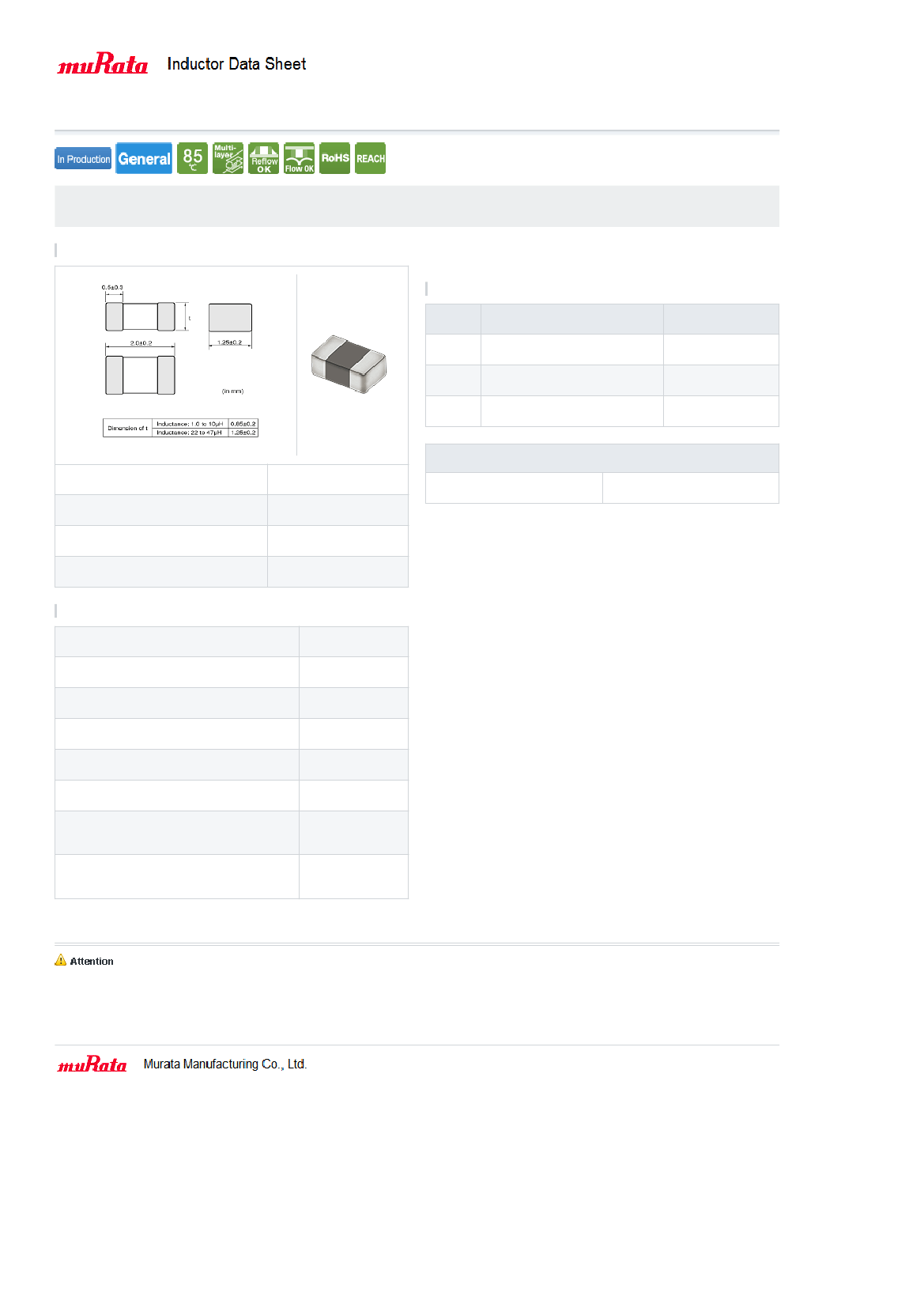

LQM21DN100N00#

# indicates a package specification code.

< List of part numbers with package codes >

LQM21DN100N00D , LQM21DN100N00J , LQM21DN100N00B

Shape

References

Packaging

code

Specifications

φ180mm Paper taping

φ330mm Paper taping

Packing in bulk

Minimum quantity

4000

10000

1000

Mass (Typ.)

L size

W size

T size

Size code in inch (mm)

2.0 ±0.2mm

1.25 ±0.2mm

0.85 ±0.2mm

0805 (2012)

1 piece

0.010g

Specifications

Inductance

Inductance test frequency

Rated current (Isat) (Based on Inductance change)

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Self resonance frequency (min.)

Operating temperature range (Self-temperature rise is not

included)

10µH ±30%

1MHz

15mA

0.50Ω

24MHz

-40∼85℃

Class of magnetic shield

Magnetic shield of

ferrite

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated: 2016/04/20

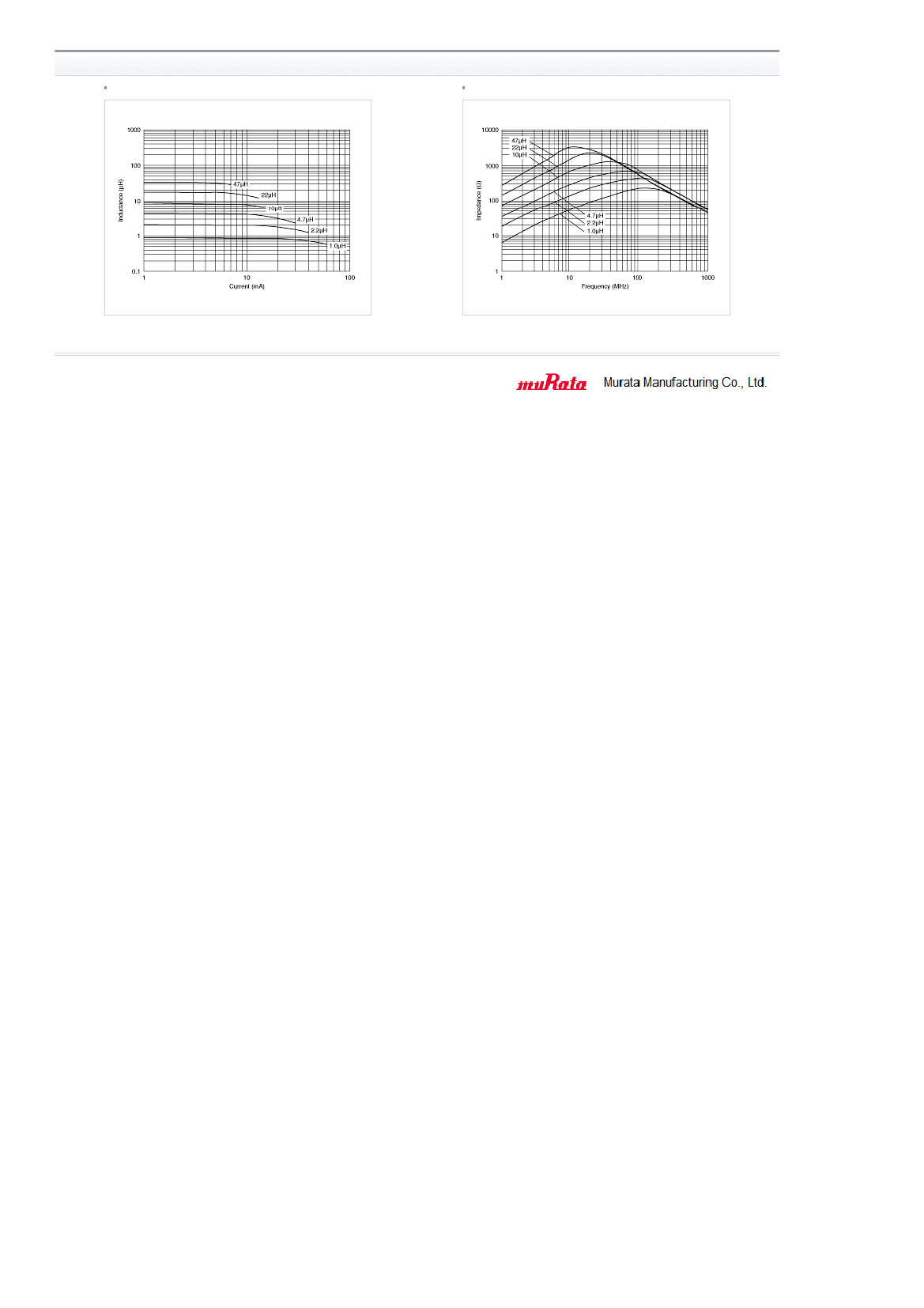

LQM21DN100N00 Related Products

	LQM21DN100N00	SMAJP4KE350A	LQM21DN100N00J
Description	1 ELEMENT, 10 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD	Transient Voltage Suppressor	1 ELEMENT, 10 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD
Is it lead-free?	Lead free	-	Lead free
Is it Rohs certified?	conform to	-	conform to
Maker	Murata	-	Murata
Reach Compliance Code	compli	-	compli
ECCN code	EAR99	-	EAR99
core material	FERRITE	-	FERRITE
DC Resistance	0.5 Ω	-	0.5 Ω
Nominal inductance(L)	10 µH	-	10 µH
Inductor Applications	RF INDUCTOR	-	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3	-	e3
Number of functions	1	-	1
Number of terminals	2	-	2
Maximum operating temperature	85 °C	-	85 °C
Minimum operating temperature	-40 °C	-	-40 °C
Maximum rated current	0.015 A	-	0.015 A
self resonant frequency	24 MHz	-	24 MHz
Shape/Size Description	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE
shield	YES	-	YES
surface mount	YES	-	YES
Terminal surface	Tin (Sn)	-	Tin (Sn)
Terminal location	DUAL ENDED	-	DUAL ENDED
Terminal shape	WRAPAROUND	-	WRAPAROUND
Test frequency	1 MHz	-	1 MHz
Tolerance	30%	-	30%
