DFXOP2NSM3-20.0M,-/-/100/I datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> DFXOP2NSM3-20.0M,-/-/100/I

DFXOP2NSM3-20.0M,-/-/100/I: DescriptionLVPECL Output Clock Oscillator, 20MHz Nom,; CategoryPassive components oscillator; File Size448KB，3 Pages; ManufacturerSTATEK CORPORATION; Websitehttp://www.statek.com/

Download Datasheet Parametric View All

DFXOP2NSM3-20.0M,-/-/100/I Overview

LVPECL Output Clock Oscillator, 20MHz Nom,

DFXOP2NSM3-20.0M,-/-/100/I Parametric

Parameter Name	Attribute value
Objectid	8247625462
Reach Compliance Code	compliant
Other features	TRAY; TR
maximum descent time	1.5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Nominal operating frequency	20 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVPECL
Output load	50 OHM
physical size	7.16mm x 5.16mm x 2.05mm
longest rise time	1.5 ns
Maximum supply voltage	2.75 V
Minimum supply voltage	2.25 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

DFXO

LVDS - LVPECL & CMOS Output

20 MHz to 300 MHz

Differential Output Crystal Oscillator

DESCRIPTION

5mm x 7mm

Statek’s 5 mm x 7 mm surface mount Differential Output

Crystal Oscillator is designed for applications requiring low jitter

and ultra high frequency differential outputs in a small footprint.

Offered at frequencies from 20 MHz to 300 MHz with operation

over a temperature range of (-40°C to +105°C). No external

decoupling capacitor required with internal capacitor.

FEATURES

Low Profile

DIMENSIONS

LVDS - LVPECL- CMOS outputs available

Low phase noise - Low phase jitter

Internal 0.01µF SMD decoupling capacitor

Low Allan deviation

High Frequency Fundamental Mode Crystal

Extended Industrial temperature range

APPLICATIONS

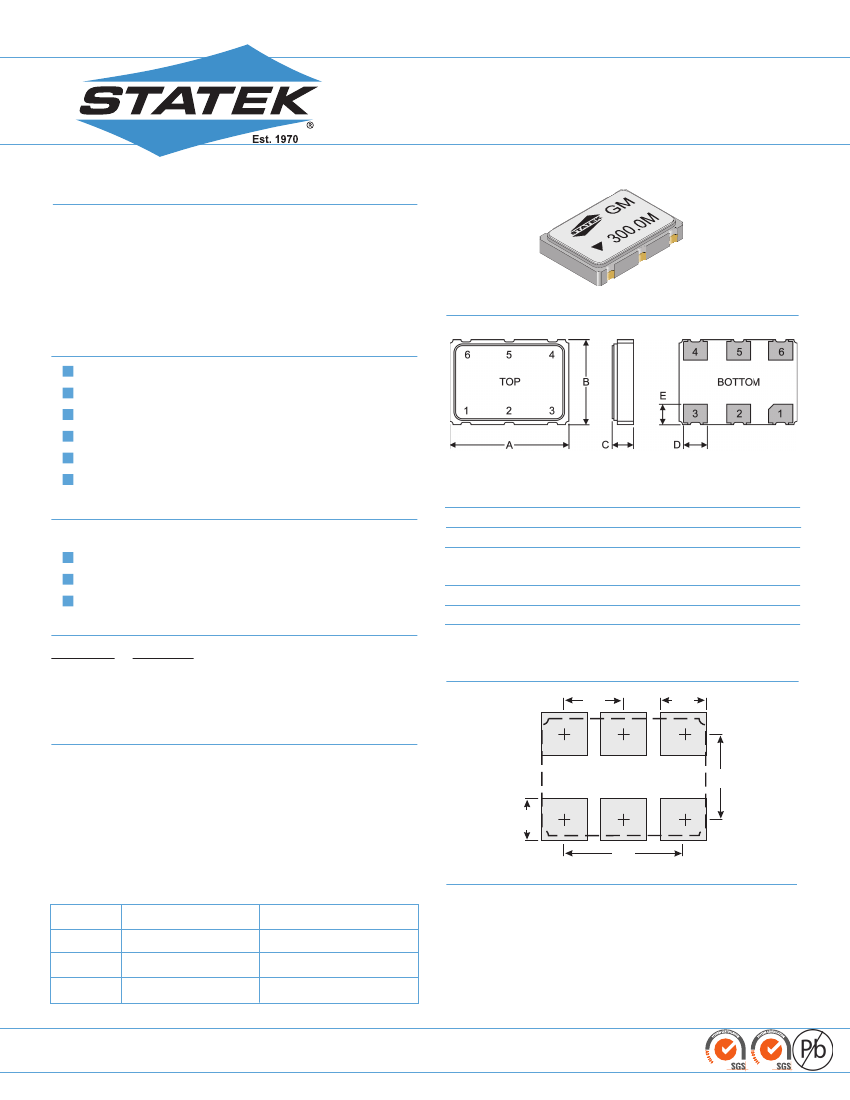

PACKAGE DIMENSIONS

Dimension

(SM1)

(SM3/SM5)

Military & Aerospace

Avionics

Communications

Networking

TERMINATIONS

Minimum

6.86

4.85

1.55

1.65

1.19

1.07

Typical

7.00

5.00

1.75

1.85

1.40

1.27

Maximum

7.16

5.16

1.95

2.05

1.41

1.47

Designation

SM1

SM3

SM5

Termination

Gold Plated (Pb Free)

Solder Dipped

Solder Dipped (Pb Free

)

SUGGESTED LAND PATTERN

0.100

(2.54)

0.077

(1.96)

inches

(mm)

ENABLE/DISABLE OPTIONS (T/N)

Statek offers two enable/disable options: T and N. The T-version

has a Tri-State output and continues to oscillate internally when the

output is put into the high Z state. As a result, when re-enabled,

the oscillator does not have to restart and an output with a stable

frequency resumes almost immediately. The N-version does not

have PIN 2 connected internally and so has no enable/disable

capability. The following table describes the Enable/Disable option T.

ENABLE/DISABLE OPTION T FUNCTION TABLE

0.144

(3.65)

0.070

(1.80)

0.200

(5.08)

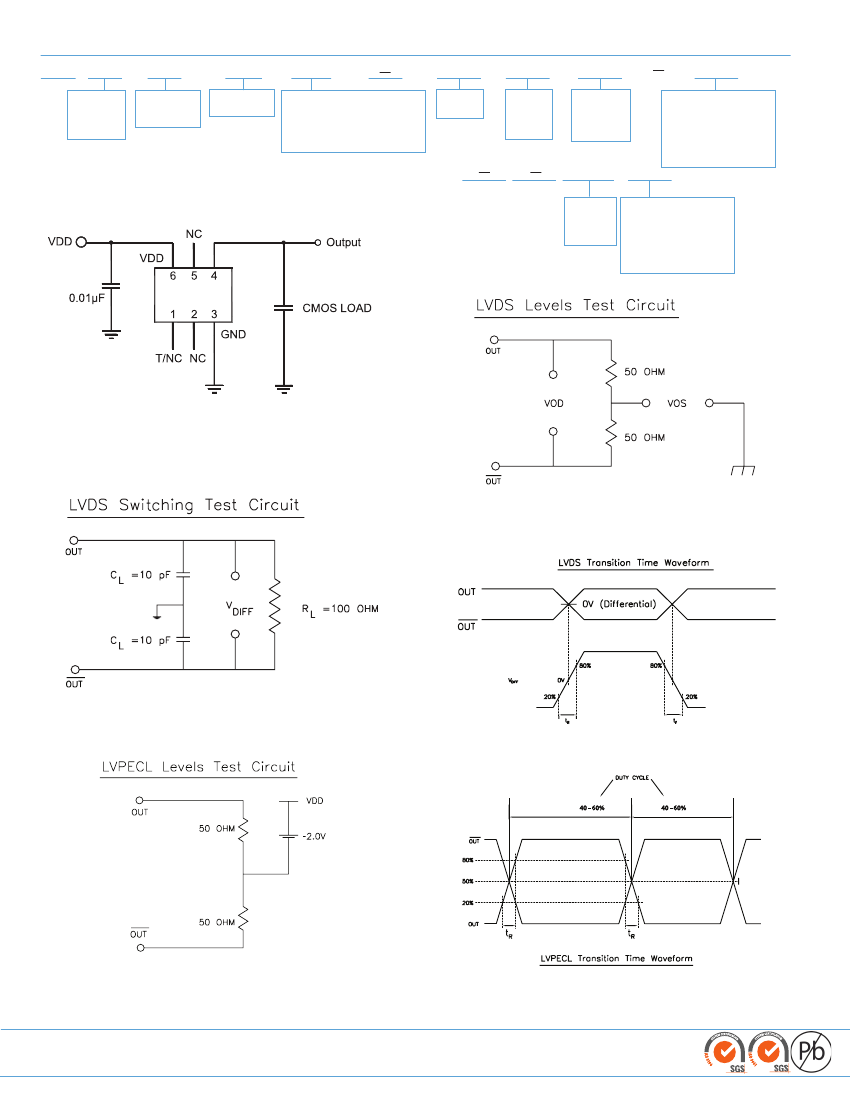

PIN CONNECTIONS

Enable (PIN 1 High*)

Output

Oscillator

Current

Frequency Output

Oscillates

Normal

Disable (PIN 1 Low)

High Z State

Oscillates

Lower than normal

When PIN 1 is allowed to float, it is held high by an internal pull-up resistor.

(T) Enable/Disable or not connected (N)

(NC) Not Connected

Ground

LVDS - LVPECL - CMOS

LVDS - LVPECL (complementary)

Supply Voltage (V

)

10196 Rev C
