RGT2012P-1914-B-T5 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> RGT2012P-1914-B-T5

RGT2012P-1914-B-T5: DescriptionFixed Resistor, Thin Film, 0.1W, 1910000ohm, 150V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0805, CHIP; CategoryPassive components The resistor; File Size214KB，2 Pages; ManufacturerSUSUMU; Environmental Compliance

Download Datasheet Parametric View All

RGT2012P-1914-B-T5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RGT2012P-1914-B-T5	-	-	View	Buy Now

RGT2012P-1914-B-T5 Overview

Fixed Resistor, Thin Film, 0.1W, 1910000ohm, 150V, 0.1% +/-Tol, 25ppm/Cel, Surface Mount, 0805, CHIP

RGT2012P-1914-B-T5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145067277527
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ANTI-SULFUR
structure	Rectangular
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Package height	0.4 mm
Package length	2 mm
Package form	SMT
Package width	1.25 mm
method of packing	TR, PAPER, 7 INCH
Rated power dissipation(P)	0.1 W
Rated temperature	125 °C
Guideline	AEC-Q200
resistance	1910000 Ω
Resistor type	FIXED RESISTOR
size code	0805
surface mount	YES
technology	THIN FILM
Temperature Coefficient	25 ppm/°C
Terminal shape	WRAPAROUND
Tolerance	0.1%
Operating Voltage	150 V

Preview

Download Datasheet

View All

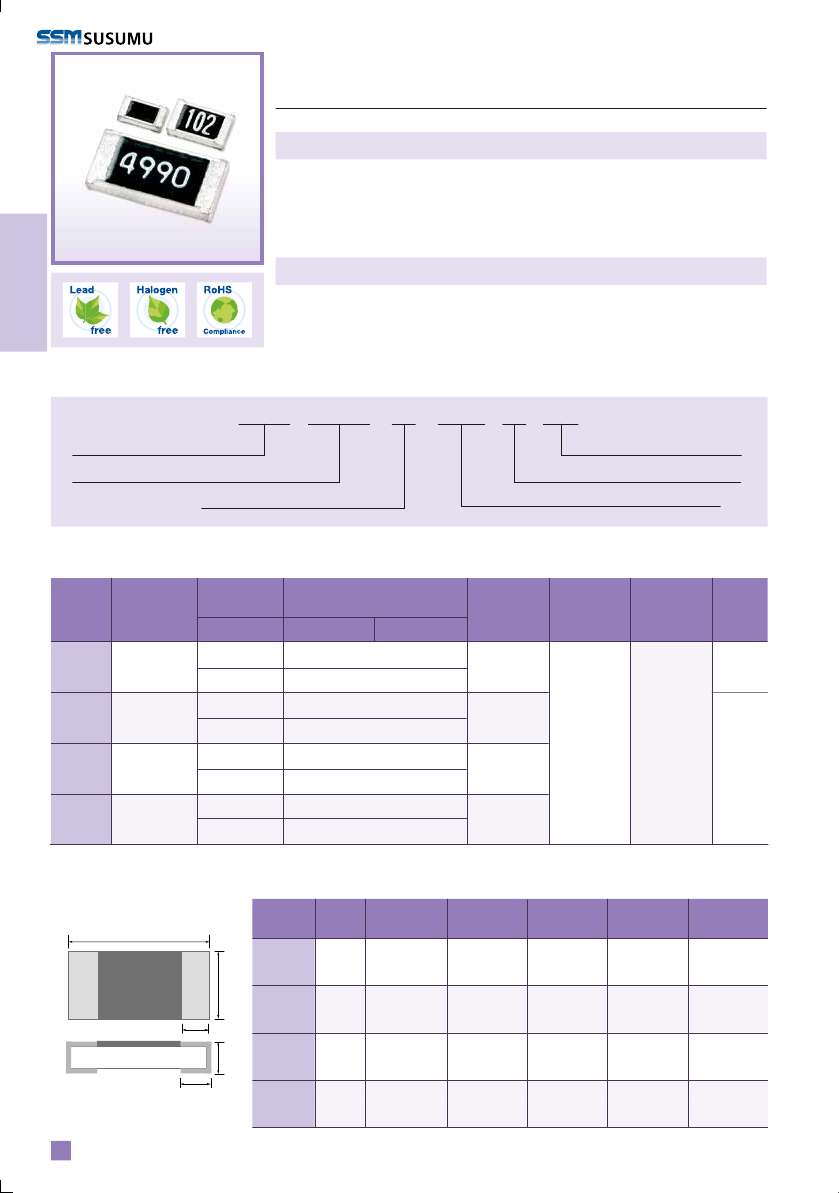

Metal thin film chip resistors

(wide temperature range)

■RGT

series

Features

・

Wide temperature operation (Upper category temperature :175°C）

・

Long term stability with igorganic passivation

・

Resistance tolerance : ±0.1% , TCR : ±10ppm/°C

Thin film surface mount resistors

AEC-Q200 Compliant

・

Thin film structure enabling low noise and anti-sulfur

Applications

・

Automotive electronics

・

Industrial measurement instrumentation, industrial machines

・

Wide temperature operation machines

RGT series

◆Part

numbering system

RGT 2012

Series code

Size: RGT1005, RGT1608, RGT2012, RGT3216

Temperature coefficient of resistance

N - 105 - B - T5

Packaging quantity :

T5(5,000pcs) T10(10,000pcs)

Resistance tolerance

Nominal resistance value

(E-24 : 3 digit, E-96：4 digit)

◆Electrical

Specification

Type

Power

ratings

Temperature

coefficient

of resistance

（ppm/℃）

±10

（N)

RGT1005

1/32W

±25

（P)

±10

（N)

RGT1608

1/16W

±25

（P)

±10

（N）

RGT2012

1/10W

±25

（P）

±10

（N）

RGT3216

1/8W

±25

（P）

Resistance range(Ω)

Resistance tolerance

±0.1%

（B）

±0.5%

（D）

Maximum

voltage

Resistance

value series

Operating

temperature

Packaging

quantity

47≦R≦100k

47≦R≦150k

47≦R≦270k

47≦R≦1M

47≦R≦475k

47≦R≦2.7M

47≦R≦1M

47≦R≦5.1M

50V

T10*

100V

E-24, E-96

150V

-55℃∼ 175℃

200V

*1：Resistance tolerance ± 0.5% (D) of RGT1005 is available only at T10

◆Dimensions

Type

RGT1005

RGT1608

RGT2012

Size

(inch)

0402

1.00+0.1/-0.05

0.50±0.05

0.20±0.10

0.25±0.05

0.35±0.05

0603

1.60±0.20

0.80+0.25/-0.20

0.30±0.20

0.40+0.15/-0.10

0805

2.00±0.20

1.25+0.25/-0.20

0.40±0.20

0.40+0.15/-0.10

RGT3216

1206

3.20±0.20

1.60±0.25

0.50±0.25

0.50±0.20

0.40+0.15/0.10

（unit：mm）
