TCR1206L91K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> TCR1206L91K

TCR1206L91K: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.125W, 91000ohm, 200V, 15% +/-Tol, -200,200ppm/Cel, 1206; CategoryPassive components The resistor; File Size75KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

TCR1206L91K Overview

Fixed Resistor, Metal Glaze/thick Film, 0.125W, 91000ohm, 200V, 15% +/-Tol, -200,200ppm/Cel, 1206

TCR1206L91K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	997177719
Reach Compliance Code	unknown
ECCN code	EAR99
structure	Chip
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.55 mm
Package length	3.2 mm
Package form	SMT
Package width	1.6 mm
method of packing	TR
Rated power dissipation(P)	0.125 W
resistance	91000 Ω
Resistor type	FIXED RESISTOR
series	TCR
size code	1206
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Tolerance	15%
Operating Voltage	200 V

Preview

Download Datasheet

View All

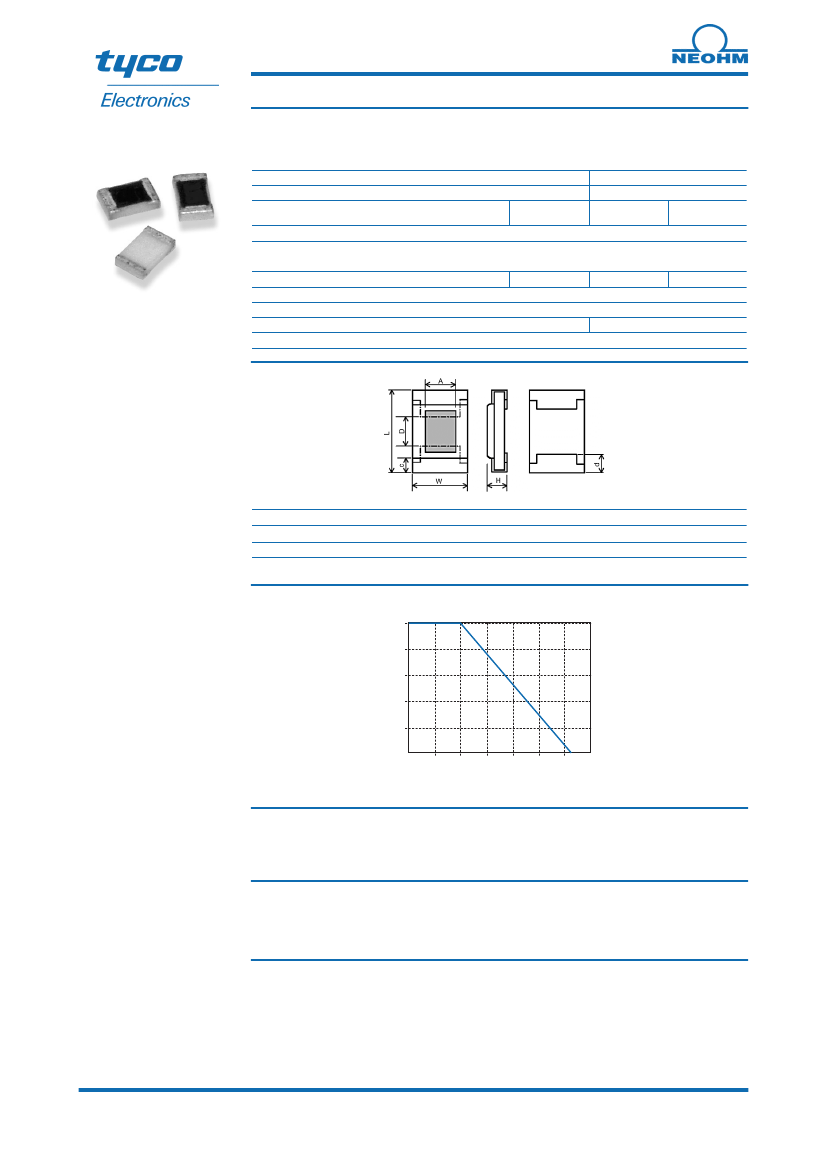

Trimmable Chip Resistors

Type TCR Series

Characteristics -

Electrical

Rated Power @ 70°C (W):

Resistance Range (Ohms) Min:

Max:

Selection Series

Tolerance (%):

Code Letter:

Temperature Coefficient (ppm/°C):

Operating Temperature Range (°C):

Climatic Category:

Limiting Element Voltage (V):

Insulation Resistance Dry Min (M ohms):

0805

0.1

9.1

4M7

9.1

1206

0.125

4M7

-200/+500

Precious metal terminations are screen

printed onto a ceramic base and fired.

The resistive element is screen printed

and fired and the passivation layer

added. The pre-scribed tile is broken

into strips, the end plating is fired on

and the strips broken into individual

components. Final termination is made

by electroplating.

E24

±15 or 0/-30

± 200

-200/+500

-55 to +125

55/125/56

150

1000

200

± 200

Dimensions

Key Features

TCR chip resistors are

suitable for most

applications, including

high frequency operation,

owing to the short lead

structure and low

capacitance.

The TCR series of chip

resistors is designed to

be used in circuits where

variable resistors might

otherwise be used.

The resistance film and the

coating have been specified

to permit YAG laser trimming.

Case sizes 0805 and 1206.

Style

0805

1206

2.0 ± 0.1

3.2 ± 0.15

1.25± 0.10

1.6 ± 0.15

0.55 ± 0.1

0.71 ± 0.1

0.95 ± 0.1

0.66 ± 0.1

1.30 ± 0.1

0.4 ± 0.2

0.5 ± 0.25

0.4± 0.2

0.5± 0.25

Power Derating Curve

100

Rated Power (%)

100

120 125

Ambient Temperature (°C)

Marking

TCR series resistors are not marked.

Mounting

The resistors are suitable for processing on automatic insertion equipment.

Storage

Unopened reels should be stored within a temperature range of +5 °C to +25 °C, separated from any dust, chemicals and

solvent based materials. Non-adherence to this procedure could effect the solderability of this product.

Literature No. 1773287

Issued: 04-05

Dimensions are shown for

reference purposes only.

Dimensions are in millimetres

unless otherwise specified.

Specifications subject to

change.

www.tycoelectronics.com

passives.tycoelectronics.com

TCR1206L91K Related Products

	TCR1206L91K	TCR1206N20K	TCR1206N68K	TCR0805P4K7	TCR1206L68K	TCR0805P910R
Description	Fixed Resistor, Metal Glaze/thick Film, 0.125W, 91000ohm, 200V, 15% +/-Tol, -200,200ppm/Cel, 1206	TRIMMABLE 1206 0/-10% 20K	TRIMMABLE 1206 0/-10% 68K	Fixed Resistor, Metal Glaze/thick Film, 0.1W, 4700ohm, 150V, -200,200ppm/Cel, 0805	Fixed Resistor, Metal Glaze/thick Film, 0.125W, 68000ohm, 200V, 15% +/-Tol, -200,200ppm/Cel, 1206	Fixed Resistor, Metal Glaze/thick Film, 0.1W, 910ohm, 150V, -200,200ppm/Cel, 0805
Resistor type	FIXED RESISTOR	Universal resistor	Universal resistor	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
size code	1206	1206	1206	0805	1206	0805
Is it Rohs certified?	conform to	-	-	conform to	conform to	conform to
Reach Compliance Code	unknown	-	-	unknow	unknow	unknown
ECCN code	EAR99	-	-	EAR99	EAR99	EAR99
structure	Chip	-	-	Chi	Chi	Chip
Number of terminals	2	-	-	2	2	2
Maximum operating temperature	125 °C	-	-	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-	-55 °C	-55 °C	-55 °C
Package height	0.55 mm	-	-	0.55 mm	0.55 mm	0.55 mm
Package length	3.2 mm	-	-	2 mm	3.2 mm	2 mm
Package form	SMT	-	-	SMT	SMT	SMT
Package width	1.6 mm	-	-	1.25 mm	1.6 mm	1.25 mm
method of packing	TR	-	-	TR	TR	TR
Rated power dissipation(P)	0.125 W	-	-	0.1 W	0.125 W	0.1 W
resistance	91000 Ω	-	-	4700 Ω	68000 Ω	910 Ω
series	TCR	-	-	TCR	TCR	TCR
technology	METAL GLAZE/THICK FILM	-	-	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C	-	-	-200,200 ppm/°C	-200,200 ppm/°C	-200,200 ppm/°C
Tolerance	15%	-10%	-10%	-	15%	-
Operating Voltage	200 V	-	-	150 V	200 V	150 V
