controlled oscillator for frequency generation. No
external matching components are required. This
VCO is easily integrated into a phase lock loop using
the divide-by-two output. The extremely low phase
noise makes this part ideal for many radio
applications including high capacity digital radios.
The MAOC-009270 primary applications are
Point-to-Point Radio, Point-to-Multipoint Radio,
Communications Systems, and Low Phase Noise
applications.
The 5 mm PQFN package has a lead-free finish that
is RoHS compliant and compatible with a 260ºC
reflow temperature. The package also features low
lead inductance and an excellent thermal path.
Pin Designations
2
Pin
1
2
3
4
5
6
7
8
Function
N/C
N/C
N/C
N/C
N/C
N/C
V
BUFFER
N/C
N/C
N/C
N/C
RF/2
N/C
N/C
N/C
N/C
Pin
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
Function
N/C
N/C
RF
N/C
V
CC
N/C
N/C
N/C
N/C
N/C
N/C
N/C
V
TUNE
N/C
N/C
N/C
Ordering Information
1
Part Number
MAOC-009270-TR0500
MAOC-009270-TR1000
MAOC-009270-SMB003
Package
500 piece reel
1000 piece reel
Sample Board
9
10
11
12
13
14
15
16
1. Reference Application Note M513 for reel size information.
The exposed pad centered on the package bottom must be
connected to RF and DC ground. Connecting all N/C pins to
RF/DC Ground in the layout is also recommended.
1
*
Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macomtech.com for additional data sheets and product information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
MAOC-009270
Voltage Controlled Oscillator
12.2 – 13.8 GHz
Electrical Specifications: T
A
=+25°C, V
CC
= V
BUFFER
= 5.0 V
3
, Z
0
= 50 Ω
Parameter
Output Power
SSB Phase Noise
V
CC
=V
BUFFER
=V
TUNE
=5V
Harmonics/Subharmonics
V
CC
=V
BUFFER
=V
TUNE
=5V
Pulling
(Sensitivity to Match)
V
CC
=V
BUFFER
=V
TUNE
=5V
Pushing
(Sensitivity to Supply Voltage)
Frequency Drift Rate
(Sensitivity to Temperature)
Output Return Loss
Tuning Sensitivity @ RF Port
Supply Current
Tune Voltage
Tuning Current Leakage
Test Conditions
RF Port, 12.2 - 13.8 GHz
RF/2 Port, 6.1 - 6.9 GHz
RF Port, 10KHZ Offset
RF Port, 100KHZ Offset
RF Port,
1
/
2
F
o
RF Port, 2 F
o
RF Port, VSWR = 1.95:1 to 2.25:1
RF Port, V
TUNE
= 5 V
RF/2 Port, V
TUNE
= 5 V
RF Port, 12.2 - 13.8 GHz
RF/2 Port, 6.1 - 6.9 GHz
RF Port, 12.2 - 13.8 GHz
RF/2 Port, 6.1 - 6.9 GHz
V
TUNE
= 5 V
I
TOTAL
(I
CC
+ I
BUFFER
)
I
CC
I
BUFFER
V
TUNE
V
TUNE
= 13 V
Units
dBm
dBc/Hz
dBc
MHz pk-pk
MHz/V
MHz/ºC
dB
GHz/V
mA
V
µA
Min.
3
-3
—
—
—
—
—
—
—
—
1
—
Typ.
7
1
-78
-107
-18
-38
17.6
14
7
1.2
0.6
3
6
0.22
145
125
20
—
5
Max.
—
—
—
—
—
—
—
—
205
175
30
13
10
Rev. V3
3. VCO can operate over the 4.75 V to 5.25 V supply voltage range.
Absolute Maximum Ratings
4,5,6
Parameter
Supply Voltage
(V
CC
& V
BUFFER
)
V
TUNE
Storage Temperature
Operating Temperature
Case Temperature (T
C
)
(measured @ exposed pad)
Junction Temperature
7
Absolute Maximum
+5.5 Vdc
0 to +15 Vdc
-55ºC to +150ºC
-40ºC to +85ºC
+100ºC
+135ºC
Handling Procedures
Please observe the following precautions to avoid
damage:
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
devices.
2
4. Exceeding any one or combination of these limits may cause
permanent damage to this device.
5. MACOM does not recommend sustained operation near these
survivability limits.
6. Operating at nominal conditions with T
J
≤ +135°C will ensure
MTBF > 2.5 x 10
6
hours.
7. Junction Temperature (T
J
) = T
C
+
Өjc
* (V * I)
Typical thermal resistance (Өjc) = 35° C/W.
a) For T
C
= 25°C, T
J
= 50°C @ 5 V, 145 mA
b) For T
C
= 85°C, T
J
= 111°C @ 5 V, 150 mA
ESD Rating: Class 1A
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macomtech.com for additional data sheets and product information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
MAOC-009270
Voltage Controlled Oscillator
12.2 – 13.8 GHz

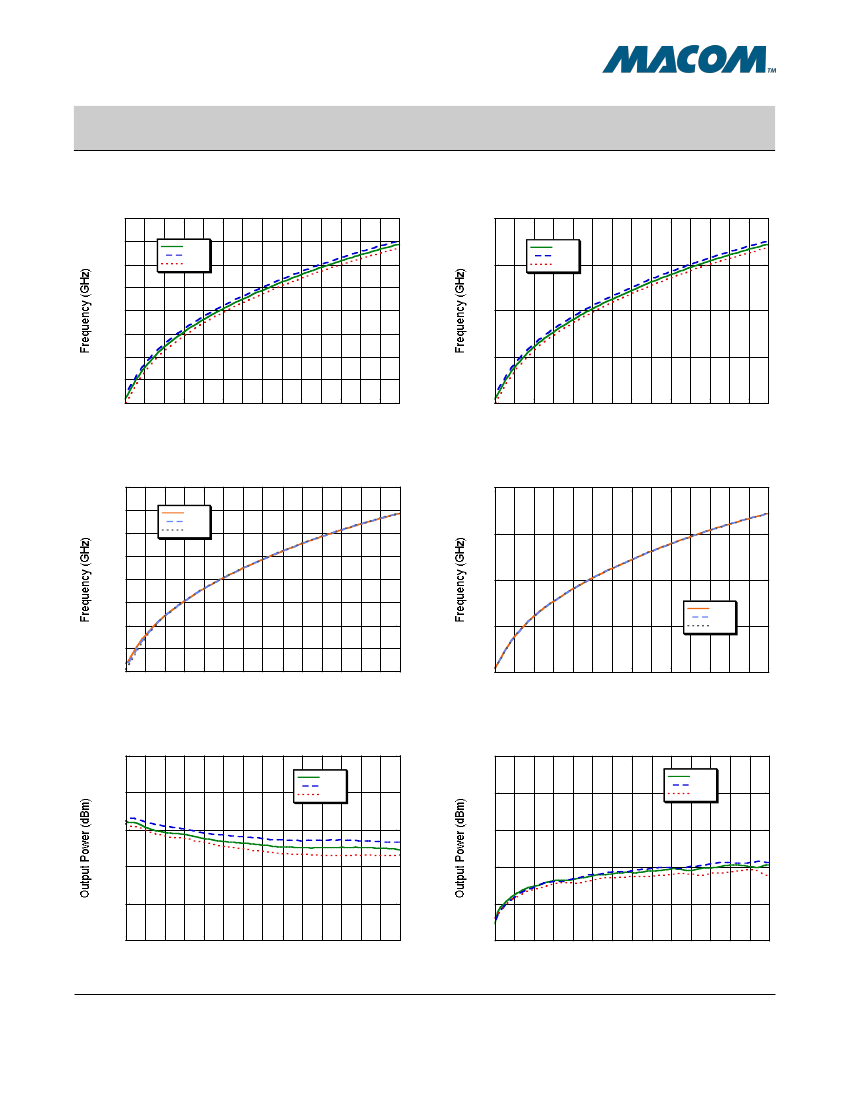

Output Frequency vs. Tuning Voltage - RF Port
15.0
14.5
14.0
13.5
13.0
12.5
12.0
11.5
11.0
0
1
2
3
4
5
6
7
8
9
10 11 12 13 14
+25°C
-40°C
+85°C
Rev. V3
Typical Performance Curves: V
CC
= V
BUFFER
= 5V, T
A
= +25C (unless otherwise indicated)
Output Frequency vs. Tuning Voltage - RF/2 Port
7.5
+25°C
-40°C
+85°C
7.0
6.5
6.0
5.5
0
1
2
3
4
5
6
7
8
9
10 11 12 13 14
Tuning Voltage (V)
Tuning Voltage (V)
Output Frequency vs. Tuning / Supply Voltage - RF Port
15.0
14.5
14.0
13.5
13.0
12.5
12.0
11.5
11.0
0
1
2
3
4
5
6
7
8
9
10 11 12 13 14
4.75 V
5.00 V
5.25 V
Output Frequency vs. Tuning / Supply Voltage - RF/2 Port
7.5
7.0
6.5
4.75 V
5.00 V
5.25 V
6.0
5.5
0
1
2
3
4
5
6
7
8
9
10 11 12 13 14
Tuning Voltage (V)
Tuning Voltage (V)
Output Power vs. Tuning Voltage - RF Port
20
+25°C
-40°C
+85°C
Output Power vs. Tuning Voltage - RF/2 Port
20
+25°C
-40°C
+85°C
15
15
10
10
5
5
0
0
-5
0
1
2
3
4
5
6
7
8
9
10 11 12 13 14
-5
0
1
2
3
4
5
6
7
8
9
10 11 12 13 14
Tuning Voltage (V)
Tuning Voltage (V)
3
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macomtech.com for additional data sheets and product information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
MAOC-009270
Voltage Controlled Oscillator
12.2 – 13.8 GHz

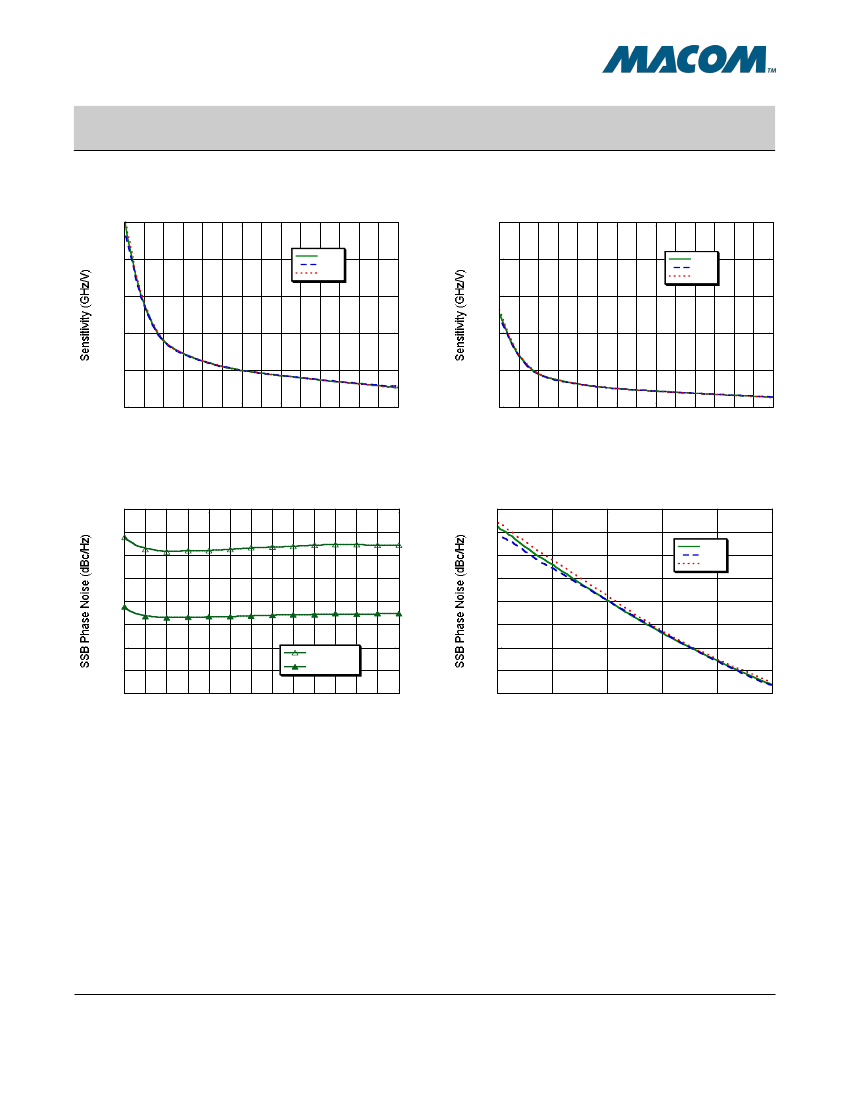

Frequency Sensitivity vs. Tuning Voltage - RF Port
1.0
Rev. V3
Typical Performance Curves: V
CC
= V
BUFFER
= 5V, T
A
= +25C (unless otherwise indicated)
Frequency Sensitivity vs. Tuning Voltage - RF/2 Port
1.0
0.8
+25°C
-40°C
+85°C
0.8
+25°C
-40°C
+85°C
0.6
0.6
0.4
0.4
0.2
0.2
0.0
0
1
2
3
4
5
6
7
8
9
10 11 12 13 14
0.0
0
1
2
3
4
5
6
7
8
9
10 11 12 13 14
Tuning Voltage (V)
Tuning Voltage (V)
Single Side Band Phase Noise vs. Tuning Voltage
RF Port
-60
-70
-80
-90
-100
-110
-120
-130
-140
1
2
3
4
5
6
7
8
9
10 KHz offset
100 KHz offset
Single Side Band Phase Noise vs. Frequency Offset
RF Port (V
TUNE
= 5V)
0
-20
-40
-60
-80
-100
-120
-140
13
14
-160
10
2
10
3
10
4
10
5
10
6
10
7
+25°C
-40°C
+85°C
10
11
12
Tuning Voltage (V)
Frequency Offset (Hz)
4
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macomtech.com for additional data sheets and product information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
MAOC-009270
Voltage Controlled Oscillator
12.2 – 13.8 GHz

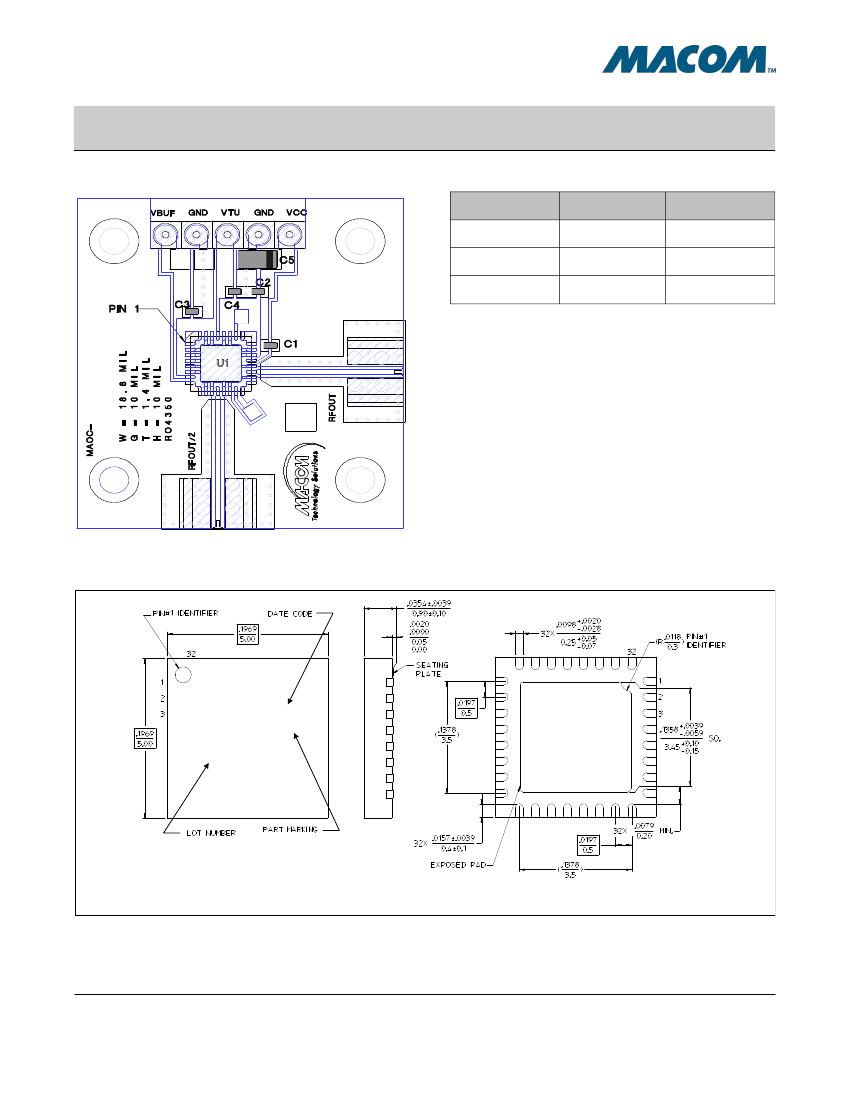

Sample Board
Parts List
Component
C1
C2, C3, C4
C5
Value
100 pF
0.1 µF
10 µF Tantalum
Case Size
0402
0402
1206
Rev. V3
Lead-Free
5 mm 32-Lead PQFN
†
YYWW
OC9270
LLLLLL
MTSR
NOTES:
1. Reference JEDEC MO-220-VHHD-5 for additional dimensional and tolerance information.
2. All dimensions shown as in/mm.
3. Reference S2083 application note for PCB footprint information.
†
Reference Application Note S2083 for lead-free solder reflow recommendations.
